Plan 54057LK

Expansive Modern Hill Country House Plan with 4 Beds and Outdoor Kitchen

Name: Plan 54057LK: Expansive Modern Hill Country House Plan with 4 Beds and Outdoor Kitchen
Brand: Architectural Designs
SKU: 54057LK
Price: 2750.0 USD
Availability: InStock

Heated S.F.

4,423

Beds

Baths

2.5+

Stories

Cars

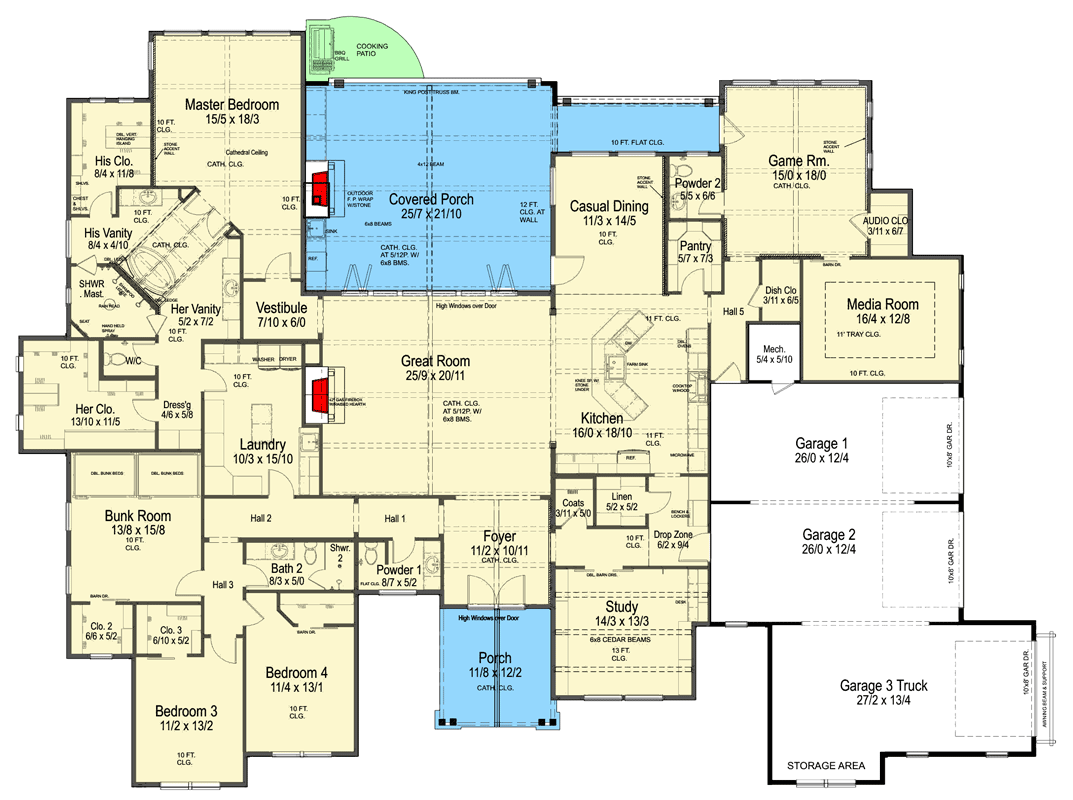

Floor Plan

Plan Details

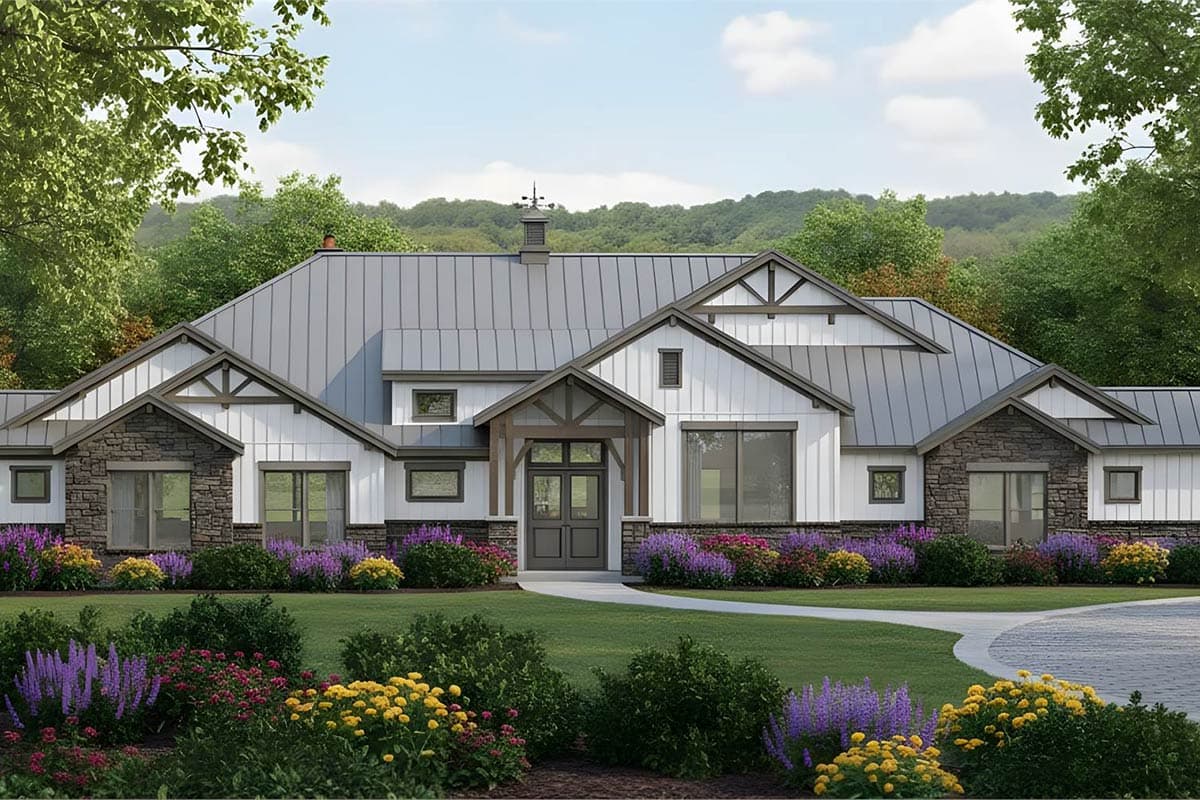

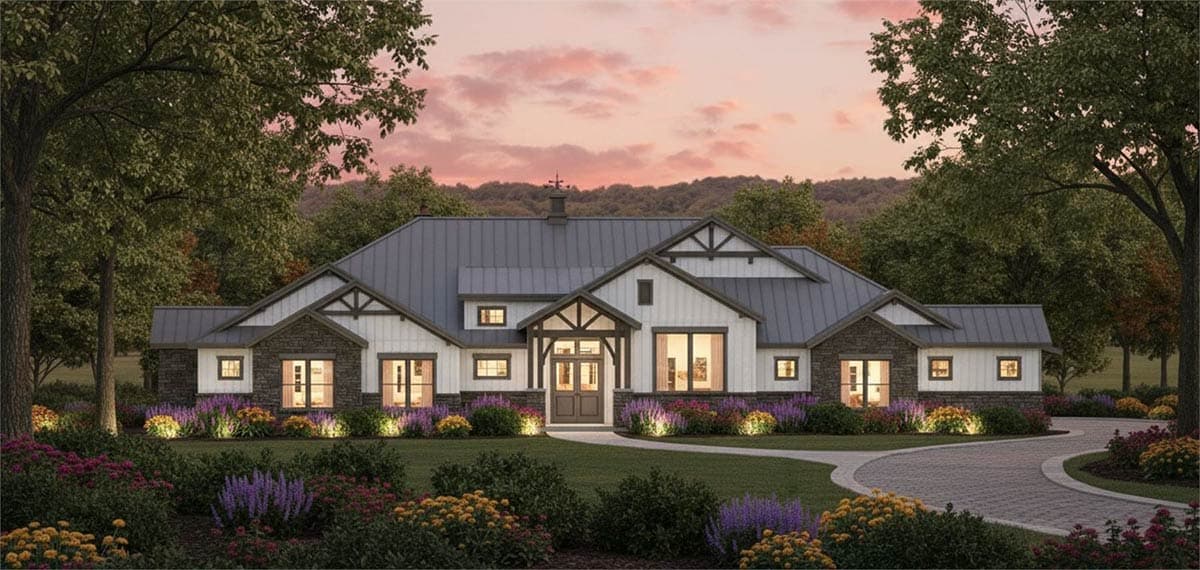

This expansive Modern Hill Country plan, featuring board-and-batten siding and stone accents, offers 4,423 finished sq ft, 4 bedrooms, 2 full and 2 half baths, and a generous 1,127 sq ft 3-car side-entry garage.
Step into a welcoming entry through the prominent timber-accented porch, revealing a dedicated library/study and formal dining room, setting a tone of refined living.
The open-concept heart of the home seamlessly connects a gourmet kitchen with a walk-in pantry to a sunlit breakfast nook and expansive main living area, fostering effortless daily life.
The luxurious primary suite, privately separated, offers direct access to the main-level laundry, while three additional bedrooms are thoughtfully split for ultimate privacy and comfort.
An exciting bunk room provides flexible sleeping arrangements, complemented by a dedicated media room for entertainment and a library/study for quiet productivity.

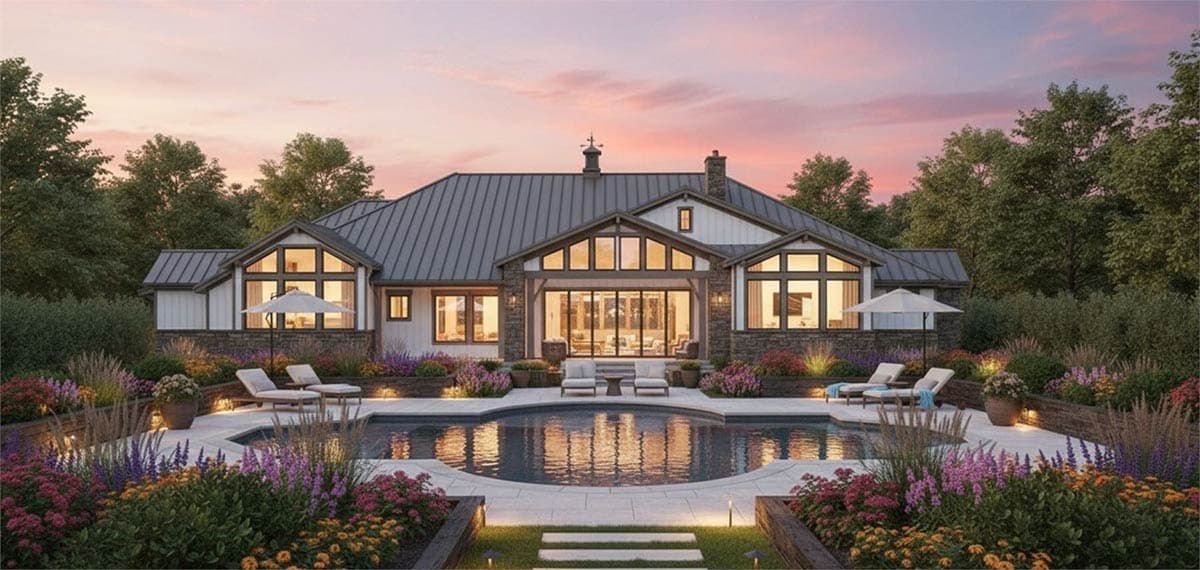

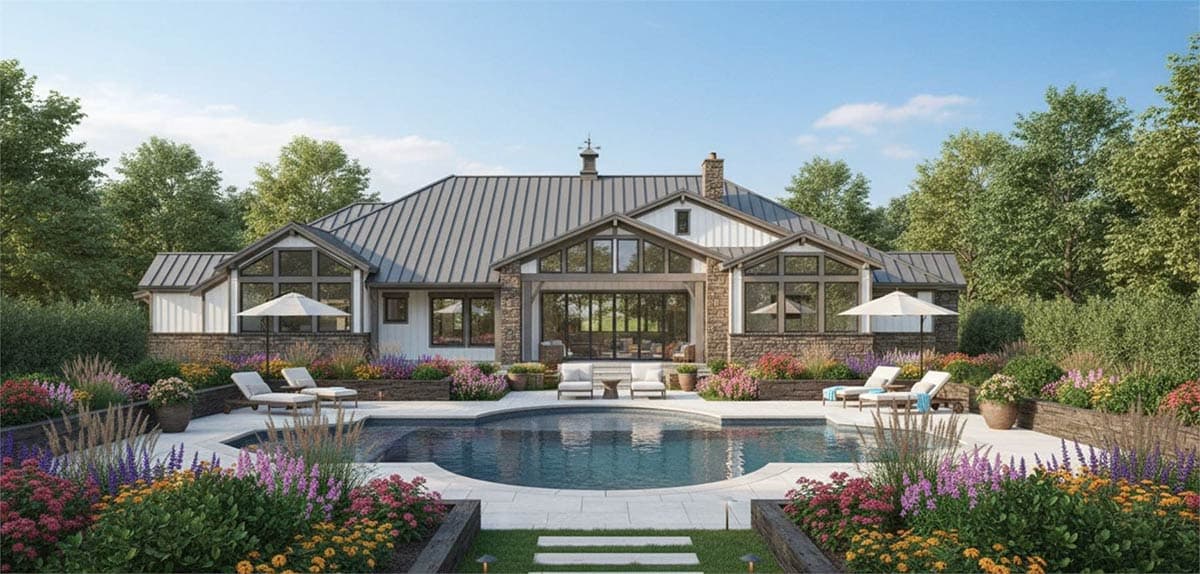

Enjoy significant outdoor living with 826 sq ft of combined porch space, highlighted by an outdoor kitchen and fireplace, ideal for al fresco dining and relaxation.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
