Fabulous 3-Bed House Plan with Beautiful Views

Pageloader

Fabulous 3-Bed House Plan with Beautiful Views

Plan 785013KPH

  • 3,326

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 2-3

    Stories

  • 2

    Cars

  • This vacation home plan boasts large windows on the rear elevation to enjoy the views, five fireplaces, and an entry level that could serve as a separate unit.

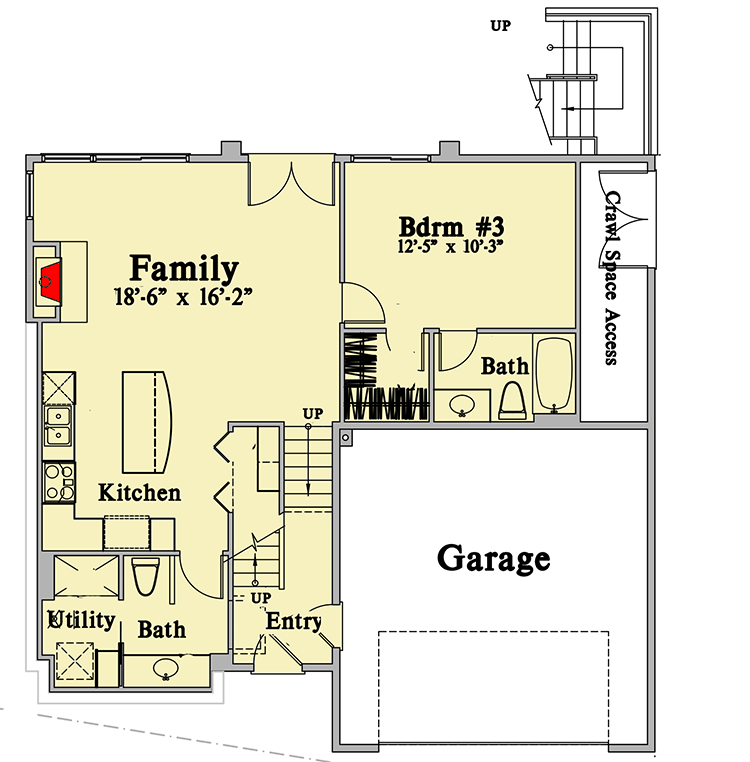

  • The entry level of this home provides a family room with a fireplace, kitchen, bedroom with a walk-in closet and full bathroom, and a powder bath. French doors off the family room lead to the back patio.

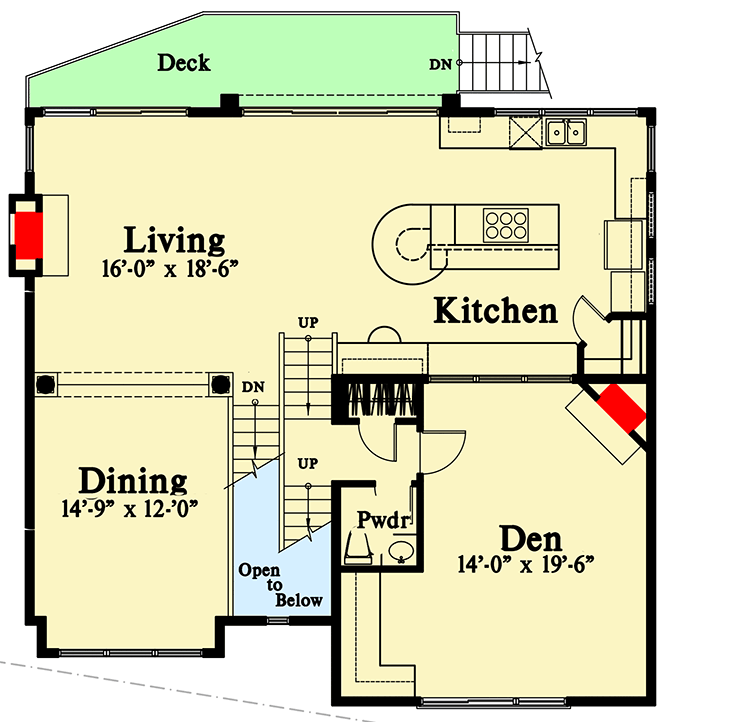

  • Upstairs, on the main level, discover a living room which opens to the kitchen and dining room, with an oversized sliding door that leads to the back deck. The kitchen offers an island with a stovetop and a corner walk-in pantry.
  • A quiet den with a fireplace sits next to the powder bath.

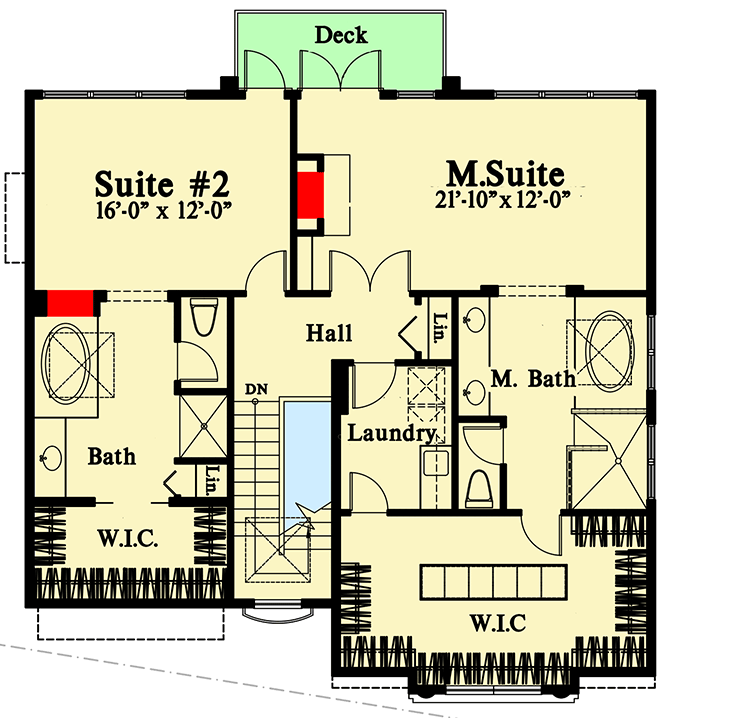

  • The upper level provides your master suite, which features a fireplace, deck, and 5-fixture master bathroom with an oversized walk-in closet with access to the upper-level laundry room. A second bedroom suite, with a walk-in closet, provides a double-sided fireplace to be enjoyed in the 4-fixture bathroom and bedroom.
