All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

About this plan What's included

Family Tradition

Plan 59353ND

This plan plants 3 trees

2,815
Heated s.f.
3-4
Beds
3
Baths
2
Stories
2
Cars

Family unity and tradition come together in this lovely home plan.
A generous great room provides the perfect setting for family movie night.
Preparing meals will be a breeze, and serving them will be just as simple with the adjoining breakfast and dining rooms, both with bay windows.
The master suite is nestled in the rear of this home on the main level.
The upper floor offers beautiful balcony views of the great room and the foyer, as well as two more bedrooms and a media room option.
Brick elevation available (here shown as Elevation #2). Specify when ordering.
Related Plans: Need less space? See these house plans: 59657ND (front-entry garage) and 59899ND (side-entry garage; both plans 2,481 s.f.); 59349ND (2,642 s.f.) and 59347ND (2,755 s.f.).
Need more space? See these related house plans listed by increasing size: 59355ND (2,952 s.f. in brick and siding) and 59378ND with a 3-car side-entry garage and 3,167 s.f.

Each plan set includes the following:

Foundation Plan** (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a birdseye view of rooms with lights, fans to switches

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

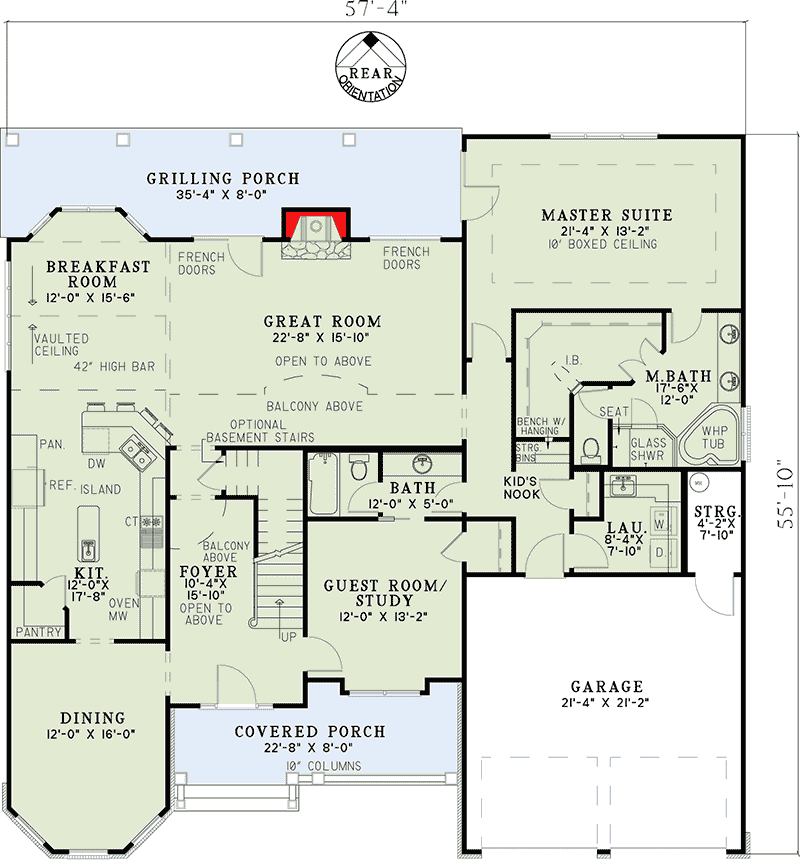

Family Tradition - 59353ND floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

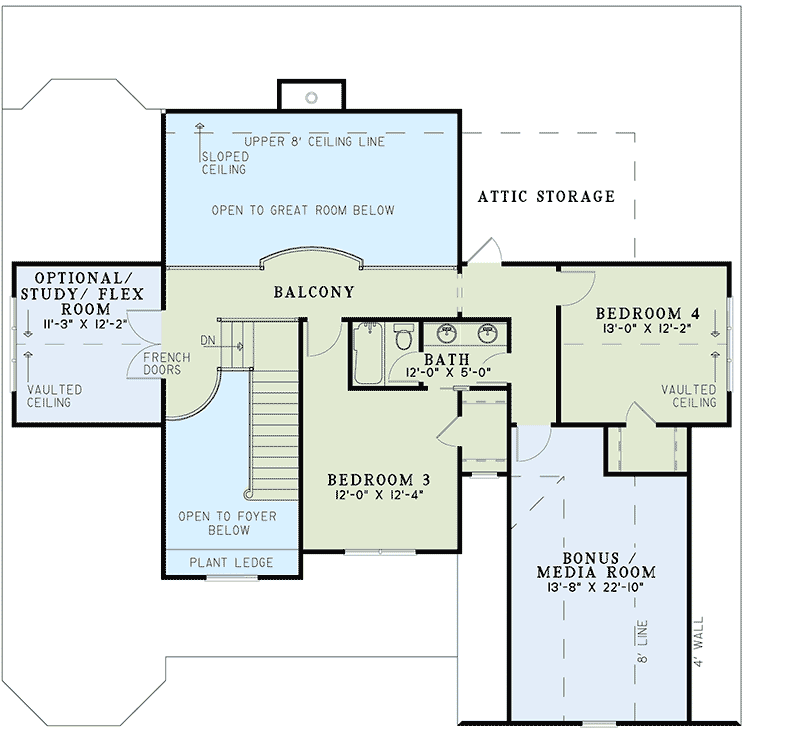

Family Tradition - 59353ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,815 sq. ft.
1st Floor: 2,142 sq. ft.
2nd Floor: 673 sq. ft.

Porch, Combined: 417 sq. ft.
Bonus: 455 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 57' 4"
Depth: 55' 10"
Max ridge height: 32' 0"

Garage

Type: Attached
Area: 507 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 12 on 12

Framing Type: Stick

Architectural Style
