Plan 59355ND Instant Street Appeal

2,952 4 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Instant Street Appeal

Plan 59355ND

  • 2,952

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This home plan has instant street appeal. Preparing meals is easy in the well-planned kitchen, located just steps away from the kid's nook. A breakfast room adjoins the kitchen for quicker meals while the nearby dining room is available for more formal occasions.
  • Entertaining is a snap in the generous great room.
  • At the end of the day, relax in your master suite. After a soothing soak in the whirlpool bath, warm yourself by the fireplace in the master bedroom.
  • The upper level houses twin theater balconies, a convenient computer center, and two additional bedrooms perfect for company.
  • Brick elevation available (here shown as Elevation #2). Specify when ordering.
  • Related Plans: Need less space? See these related house plans: 59657ND (front-entry garage) and 59899ND (side-entry garage; both plans 2,481 s.f.); 59349ND (2,642 s.f.), 59347ND (2,755 s.f.), 59353ND (2,815 s.f.) and 59355ND (2,952 s.f. in brick and siding).
  • Need more space? See 59378ND with a 3-car side-entry garage and 3,167 s.f.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

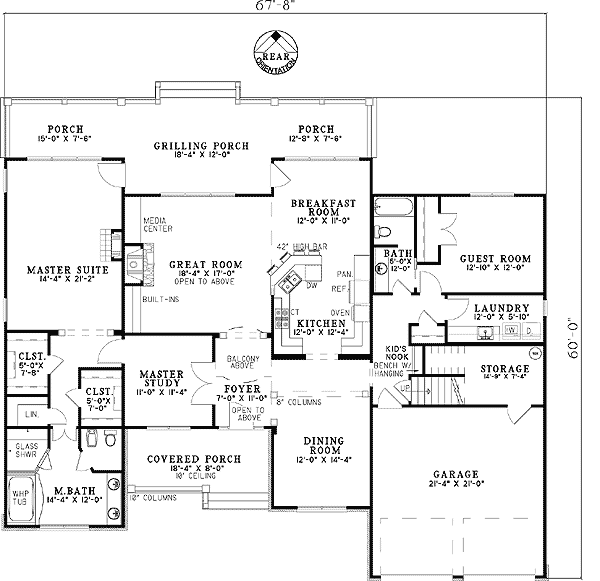

Instant Street Appeal - 59355ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

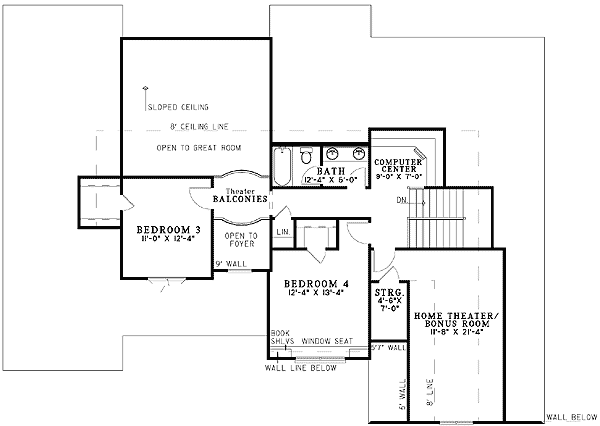

Instant Street Appeal - 59355ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,952 sq. ft.
  • 1st Floor: 2,266 sq. ft.
  • 2nd Floor: 686 sq. ft.
  • Porch, Combined: 576 sq. ft.
  • Bonus: 318 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 8"
  • Depth: 60' 0"
  • Max ridge height: 29' 10"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Instant Street Appeal

  • 2,952

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,450
  • 5 Sets + PDF $1,700
  • PDF - Unlimited Build $2,050
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • This home plan has instant street appeal. Preparing meals is easy in the well-planned kitchen, located just steps away from the kid's nook. A breakfast room adjoins the kitchen for quicker meals while the nearby dining room is available for more formal occasions.
  • Entertaining is a snap in the generous great room.
  • At the end of the day, relax in your master suite. After a soothing soak in the whirlpool bath, warm yourself by the fireplace in the master bedroom.
  • The upper level houses twin theater balconies, a convenient computer center, and two additional bedrooms perfect for company.
  • Brick elevation available (here shown as Elevation #2). Specify when ordering.
  • Related Plans: Need less space? See these related house plans: 59657ND (front-entry garage) and 59899ND (side-entry garage; both plans 2,481 s.f.); 59349ND (2,642 s.f.), 59347ND (2,755 s.f.), 59353ND (2,815 s.f.) and 59355ND (2,952 s.f. in brick and siding).
  • Need more space? See 59378ND with a 3-car side-entry garage and 3,167 s.f.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,952 sq. ft.
  • 1st Floor: 2,266 sq. ft.
  • 2nd Floor: 686 sq. ft.
  • Porch, Combined: 576 sq. ft.
  • Bonus: 318 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 8"
  • Depth: 60' 0"
  • Max ridge height: 29' 10"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 59355ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59355ND
|
