Farmhouse With Lots of Amenities

Plan 69078AM

  • 5,180

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • There's no doubt, this home plan is pure luxury. The plan incorporates a wealth of space on two levels plus every amenity a family could desire. The main level is host to a bevy of rooms devoted to special interests - an office, complete with storage units and a French door to the front porch; a crafts or hobby room, furnished with an L-shaped work surface; a sunroom, replete with windows and French doors; and a club room that's sized for gatherings on a grand scale.
  • The family area is at the hub of the main level. Defined by columns, this area includes a great room with a fireplace, a kitchen, and a casual dining nook with a wall of windows. Furnished with multiple workstations, the kitchen can accommodate a cook and helpers. The island is equipped with a sink and dishwasher. A secondary sink occupies the half-wall facing the family room. A walk-in pantry beside the dining room supplements storage.
  • The upper level of this home accommodates three bedrooms, two baths, a full-service laundry room, and a master suite that's a dream come true. The master bedroom is divided into sitting and sleeping areas. French doors open it to a private deck. A two-sided fireplace warms both the sitting area and the bath. The highlight of the spacious bath is an oval tub tucked beneath a bay window.
  • A breezeway links the side-access garage to the house with an anteroom that includes a coat closet, shelves for briefcases and backpacks, and a bench for removing boots. Above the garage, a two-bedroom suite provides independent living space.
  • Added Bonus: If you're just interested in a garage apartment, see 69080AM or 69394AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

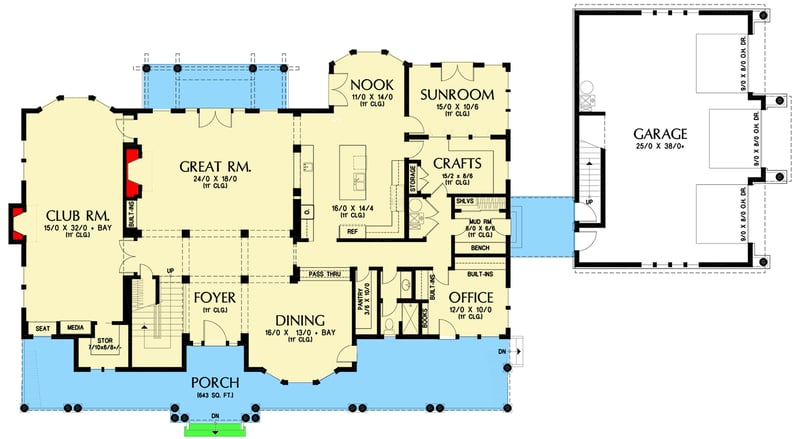

Farmhouse With Lots of Amenities - 69078AM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

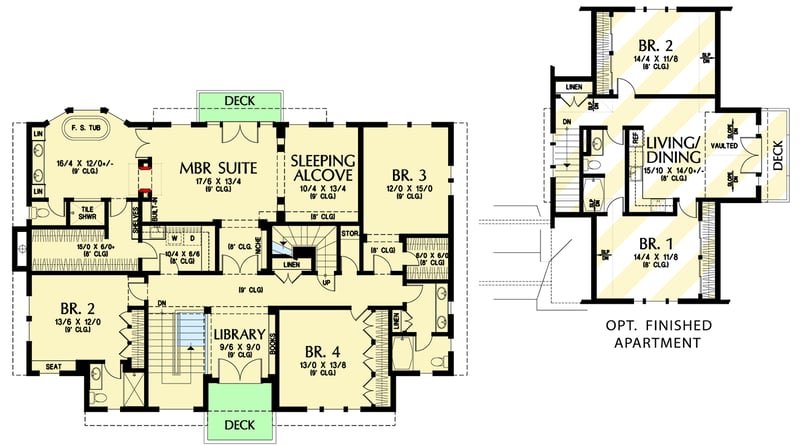

Farmhouse With Lots of Amenities - 69078AM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,180 sq. ft.
  • 1st Floor: 3,030 sq. ft.
  • 2nd Floor: 2,150 sq. ft.
  • Bonus: 908 sq. ft.
  • Workshop: 1,604 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 0"
  • Depth: 64' 0"
  • Max ridge height: 36' 2"

Garage

  • Type: Attached
  • Area: 1079 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Farmhouse With Lots of Amenities

  • 5,180

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $2,012
  • PDF - Single-Build $2,362
  • 5 Sets $2,537
  • 5 Sets + PDF $2,587
  • CAD - Unlimited Build $4,724
  • View all purchase option online

About This Plan

  • There's no doubt, this home plan is pure luxury. The plan incorporates a wealth of space on two levels plus every amenity a family could desire. The main level is host to a bevy of rooms devoted to special interests - an office, complete with storage units and a French door to the front porch; a crafts or hobby room, furnished with an L-shaped work surface; a sunroom, replete with windows and French doors; and a club room that's sized for gatherings on a grand scale.
  • The family area is at the hub of the main level. Defined by columns, this area includes a great room with a fireplace, a kitchen, and a casual dining nook with a wall of windows. Furnished with multiple workstations, the kitchen can accommodate a cook and helpers. The island is equipped with a sink and dishwasher. A secondary sink occupies the half-wall facing the family room. A walk-in pantry beside the dining room supplements storage.
  • The upper level of this home accommodates three bedrooms, two baths, a full-service laundry room, and a master suite that's a dream come true. The master bedroom is divided into sitting and sleeping areas. French doors open it to a private deck. A two-sided fireplace warms both the sitting area and the bath. The highlight of the spacious bath is an oval tub tucked beneath a bay window.
  • A breezeway links the side-access garage to the house with an anteroom that includes a coat closet, shelves for briefcases and backpacks, and a bench for removing boots. Above the garage, a two-bedroom suite provides independent living space.
  • Added Bonus: If you're just interested in a garage apartment, see 69080AM or 69394AM.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,180 sq. ft.
  • 1st Floor: 3,030 sq. ft.
  • 2nd Floor: 2,150 sq. ft.
  • Bonus: 908 sq. ft.
  • Workshop: 1,604 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 0"
  • Depth: 64' 0"
  • Max ridge height: 36' 2"

Garage

  • Type: Attached
  • Area: 1079 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
Plan 69078AM
View this and more for this plan by visiting www.architechtecturaldesigns.com/69078AM
|
