Flexible Mini Modern

Plan 90172PD

This plan plants 3 trees

1,099
Heated s.f.
2
Beds
1.5
Baths
2
Stories
1
Cars

This angular mini-modern house plan delivers an angular exterior that will definitely create a lasting impression. With entertaining space on the main floor and living space on the upper it features a very livable floor plan.
The living room is kept warm and uncluttered with the air-lock entry and side coat closet. The home is open front to back making it feel larger than is 1,315 sq. ft. of living space suggests.
The dining room flows into the kitchen with more informal dining taking place at the lunch counter.
A family room above the garage is spacious and could make a great media room.
Related Plans: Get an alternate brick exterior with house plan 90173PD.
Gain a garage with family room above with house plan 90181PD (1,315 sq. ft. and 90161PD (3 bedrooms, 1,652 sq. ft.).

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Elevations
Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
Main floor plan w/ structure for the roof above, electrical layout
Building section
Construction details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

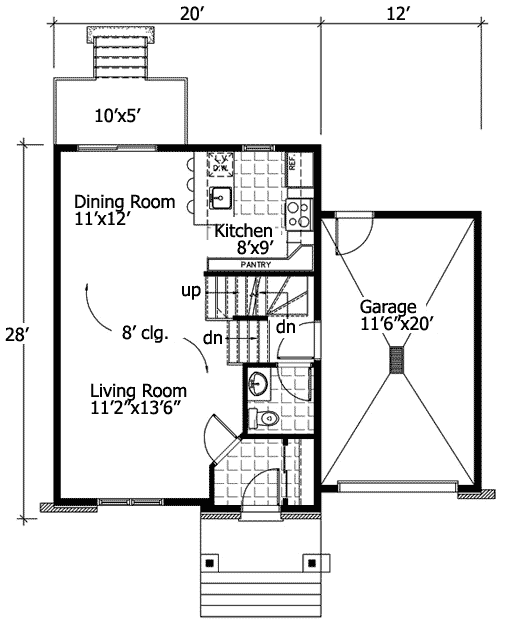

Flexible Mini Modern - 90172PD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

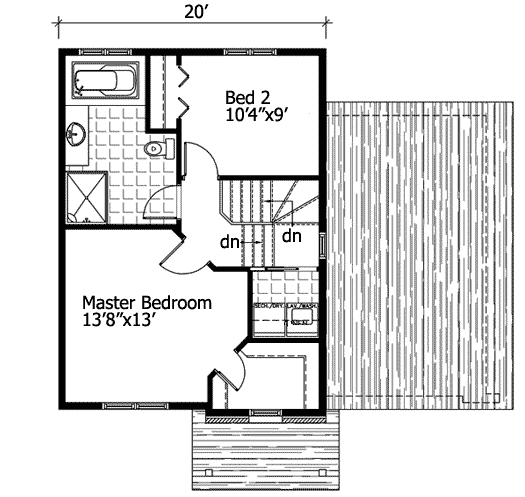

Flexible Mini Modern - 90172PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,099 sq. ft.
1st Floor: 550 sq. ft.
2nd Floor: 549 sq. ft.

Basement Unfinished: 550 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 32' 0"
Depth: 28' 0"
Max ridge height: 27' 2"

Garage

Type: Attached
Area: 253 sq. ft.
Count: 1 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
