Flexible Mountain Craftsman House Plan

Plan 29877RL

  • 2,979

    Heated s.f.

  • 2-5

    Beds

  • 2 - 4

    Baths

  • 1-2

    Stories

  • 2

    Cars

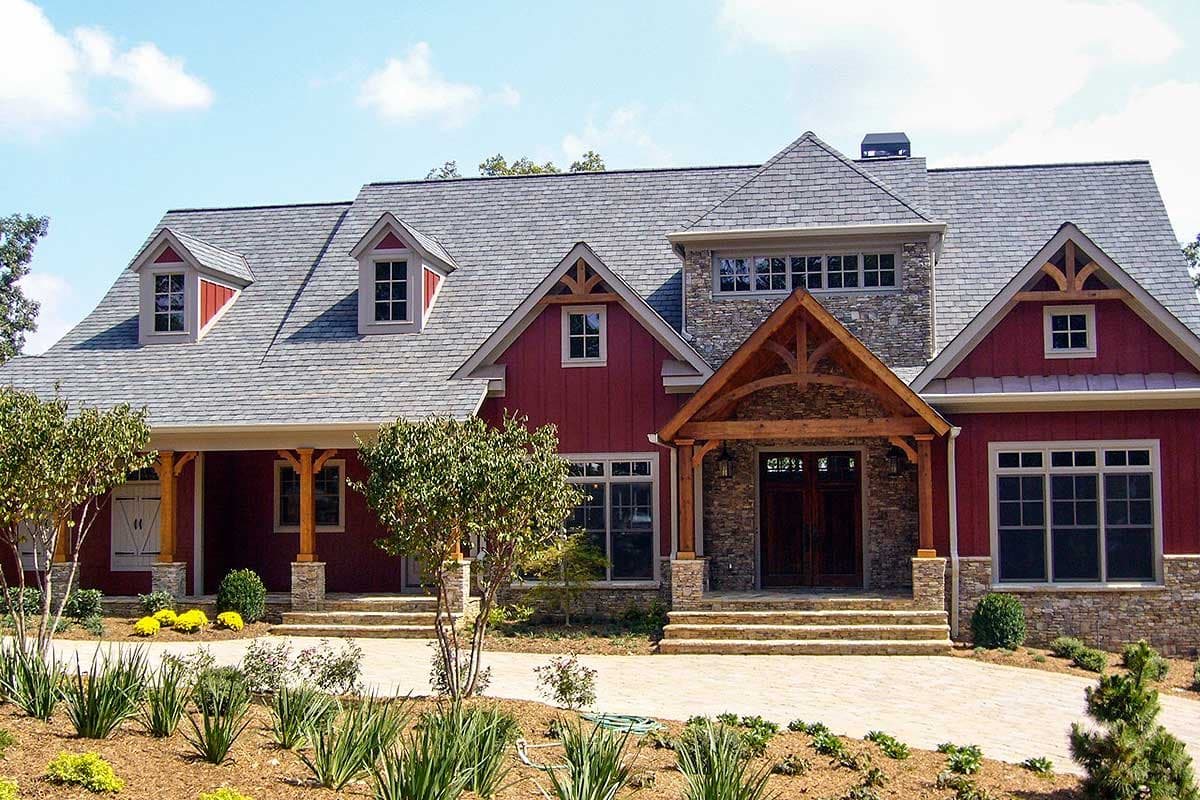

  • This flexible mountain Craftsman house plan is a smaller version of a popular design with a front elevation that is virtually identical to it's larger cousin, house plan 29801RL.

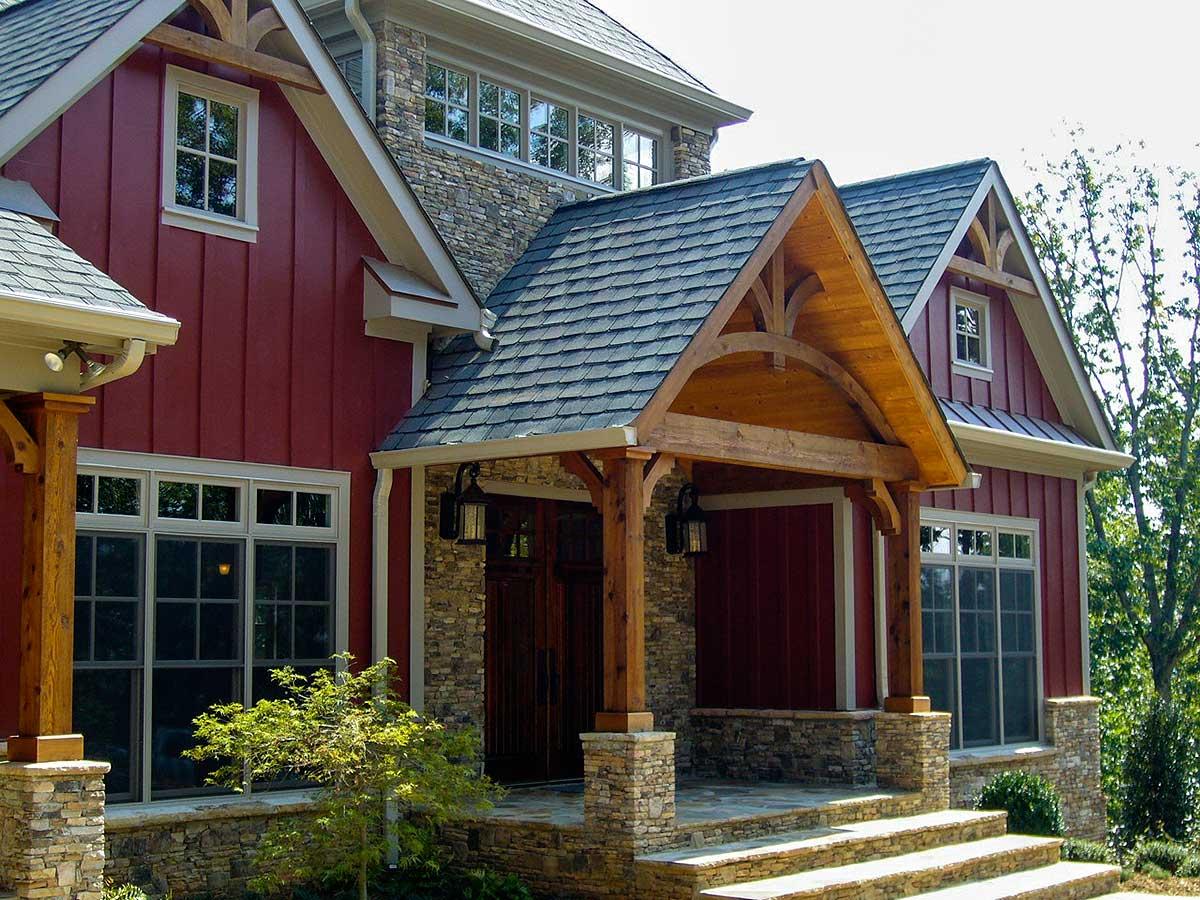

  • It has two covered front porches and lots of room for large decks off the rear elevation.
  • The interior is a split bedroom plan with a shared bath between the second bedroom and office.

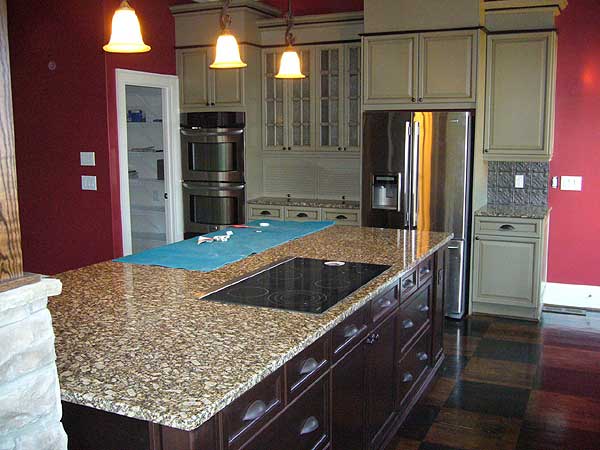

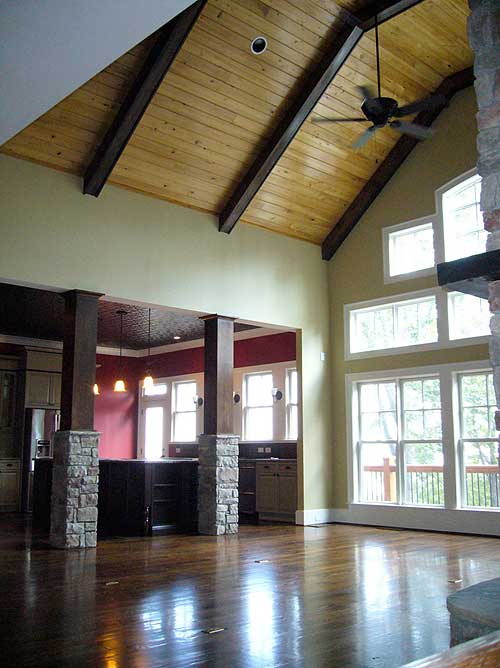

  • The kitchen is large with a walk-in pantry and is open to the breakfast room and two-story family room.
  • Upstairs, there is a large loft that overlooks the family room and a large optional bed and bath.
  • The basement level has room to add two additional bedrooms, a shared bath, a rec room, a theatre room and unfinished storage.
  • Related Plan: Get more room with house plan 29801RL.

Each plan set includes the following:

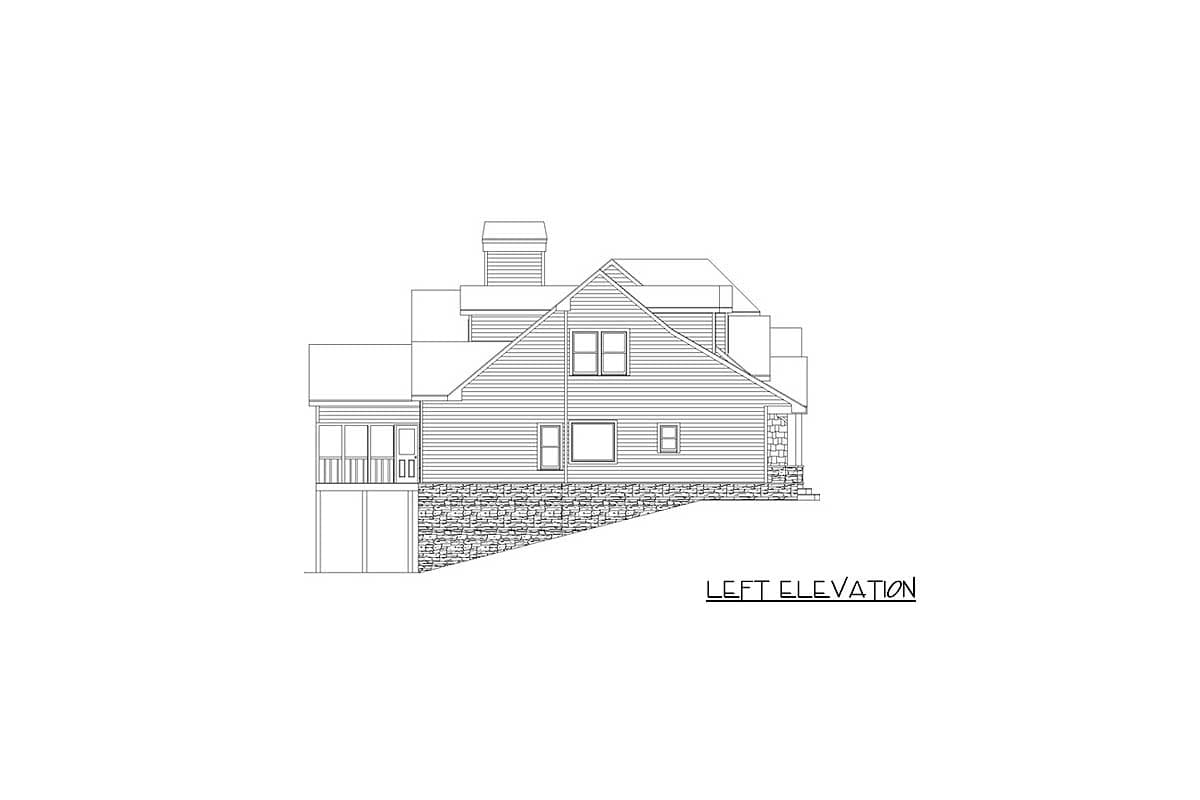

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

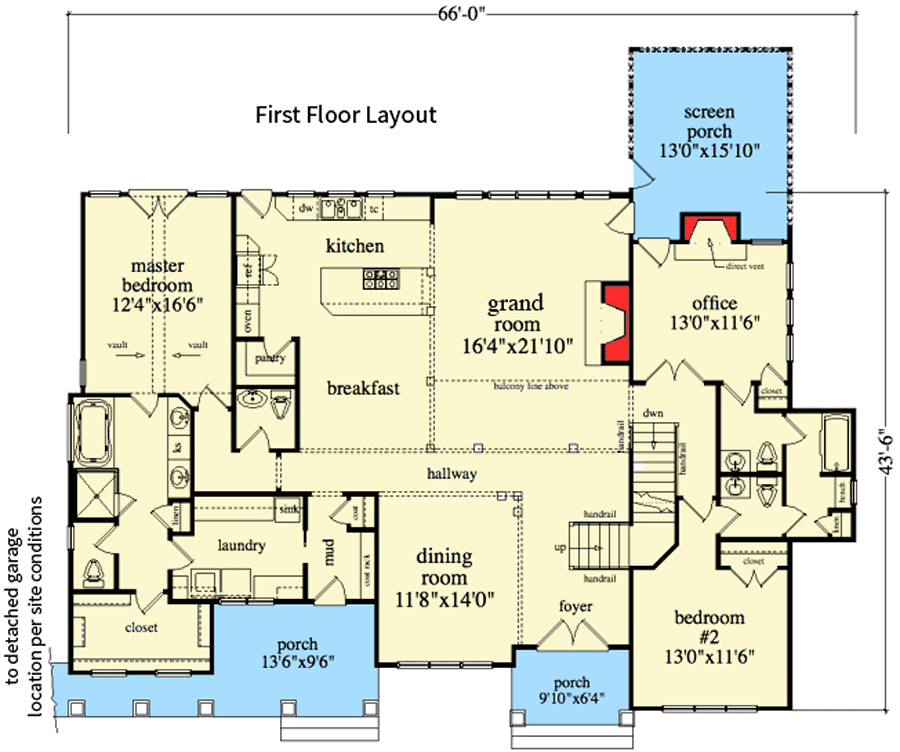

Flexible Mountain Craftsman House Plan - 29877RL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

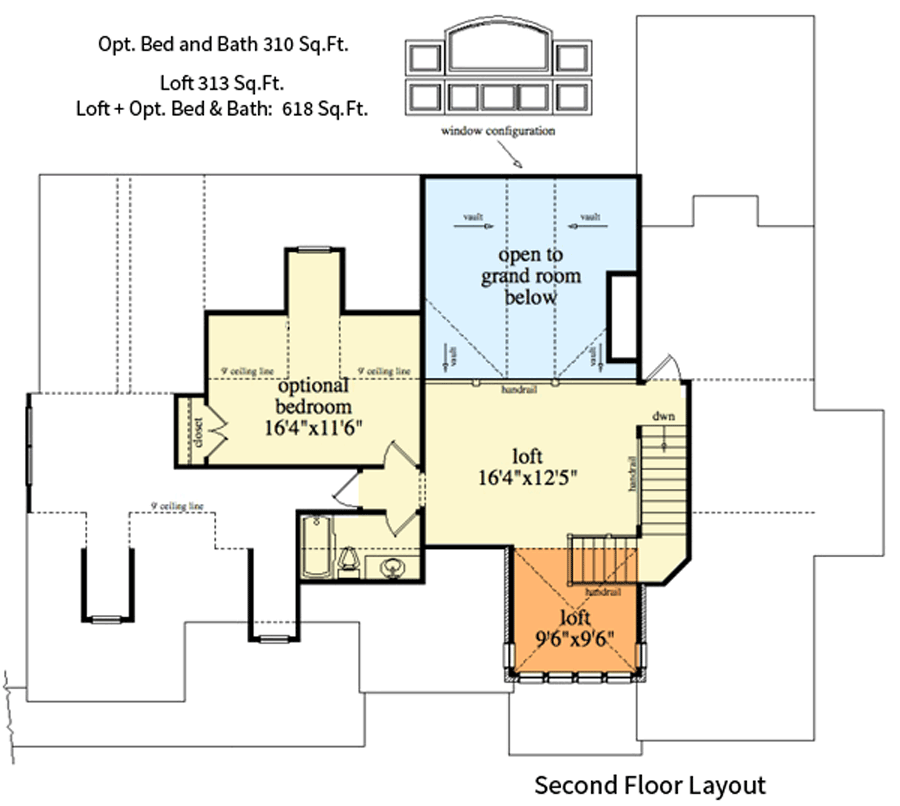

Flexible Mountain Craftsman House Plan - 29877RL floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

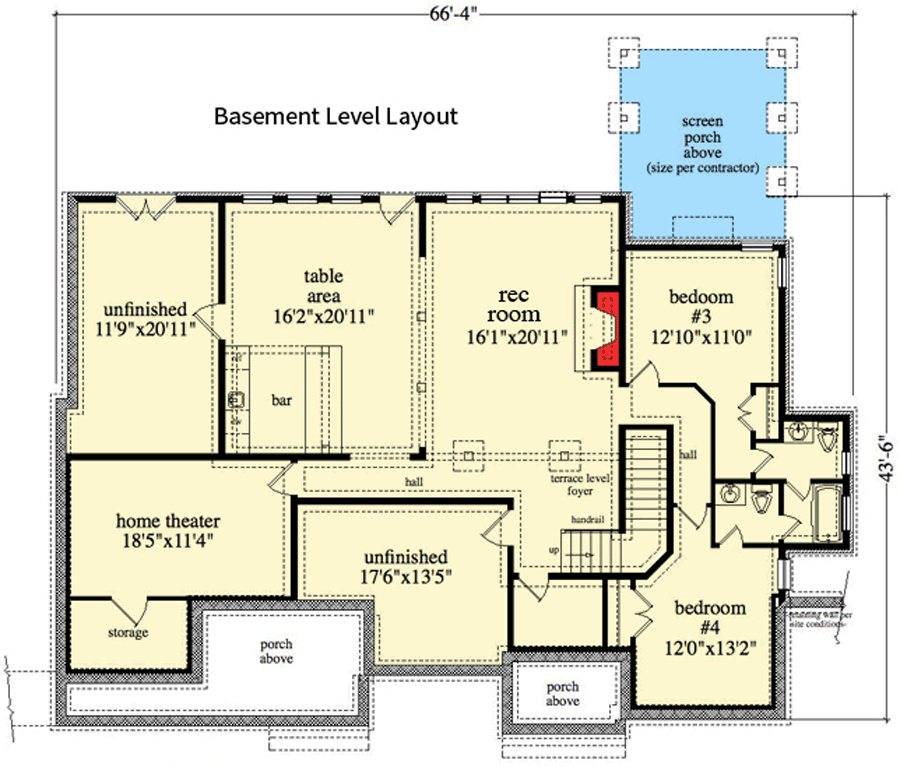

Flexible Mountain Craftsman House Plan - 29877RL floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,979 sq. ft.
  • 1st Floor: 2,361 sq. ft.
  • 2nd Floor: 618 sq. ft.
  • Entry: 62 sq. ft.
  • Screened Porch: 205 sq. ft.
  • Optional Lower Level: 1,744 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 43' 6"
  • Max ridge height: 28' 1"

Garage

  • Type: Detached
  • Area: 1050 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features
