Flexible Split Level Home Plan

Plan 90158PD

  • 1,626

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • This split level home plan is a very flexible design. It offers you both the option of a family room with fireplace on the main floor and a home theater above the garage.
  • Related Plan: For an alternate version, see house plan 90156PD.

Each plan set includes the following:

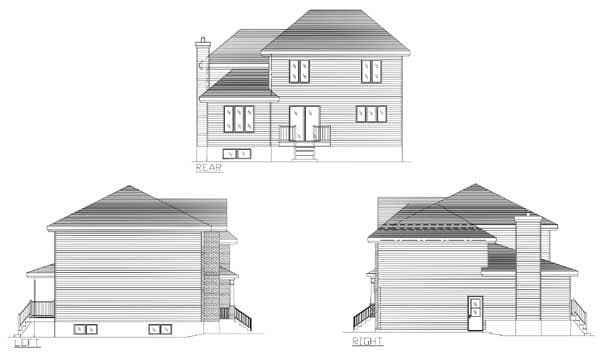

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

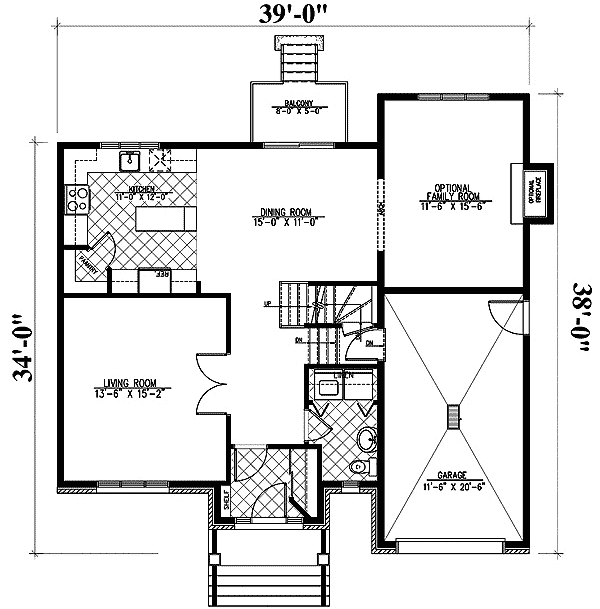

Flexible Split Level Home Plan - 90158PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

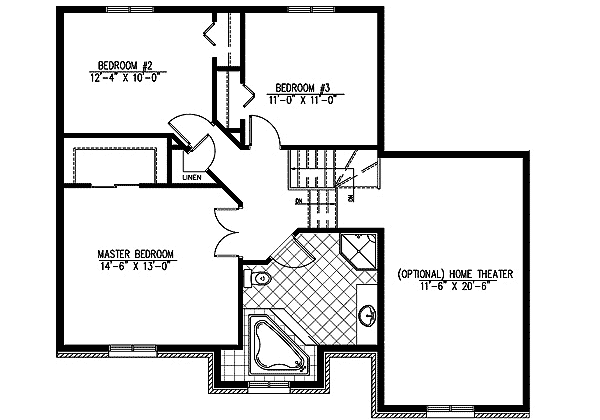

Flexible Split Level Home Plan - 90158PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,626 sq. ft.
  • 1st Floor: 813 sq. ft.
  • 2nd Floor: 813 sq. ft.
  • Porch, Front: 30 sq. ft.
  • Porch, Rear: 40 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 34' 0"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 269 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Special features

Plan Collections

Flexible Split Level Home Plan

  • 1,626

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $1,132
  • 8 Sets $1,177
  • PDF - Single-Build $1,531
  • CAD - Single-Build $2,346
  • View all purchase option online

About This Plan

  • This split level home plan is a very flexible design. It offers you both the option of a family room with fireplace on the main floor and a home theater above the garage.
  • Related Plan: For an alternate version, see house plan 90156PD.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,626 sq. ft.
  • 1st Floor: 813 sq. ft.
  • 2nd Floor: 813 sq. ft.
  • Porch, Front: 30 sq. ft.
  • Porch, Rear: 40 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 34' 0"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 269 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
