Four Season Chalet Escape

Plan 22314DR

This plan plants 3 trees

2,586
Heated s.f.
5
Beds
3
Baths
2
Stories

This great four season chalet is derived from our plan 21553DR which we've added 2' in width and a walkout basement.
You'll appreciate the outdoor storage adjacent to the basement entrance for equipment and gear storage. Step inside on the lower level and you'll find a large storage area, easy access to the laundry room and a three-sided fireplace in the middle of the family room.
On the main floor, the master bedroom includes private access to a 5-fixture bathroom with a 60" x 48" shower, a double vanity and privacy toilet cabin.
The living room, kitchen with island and dining area all enjoy the warmth of another three-sided fireplace and the grand feeling of a 21' cathedral ceiling. A full-width deck is ideal for taking in the views.
Upstairs, two bedrooms share a bath and the loft area is big enough to fit a sofa-bed for extra guests or serve as a reading nook.
Related Plans: Downsize 2' feet in width and get an unfinished basement with house plan 21553DR and an alternate version with house plan 22442DR.
Get a matching detached garage with plan 21199DR.

Each plan includes the following:

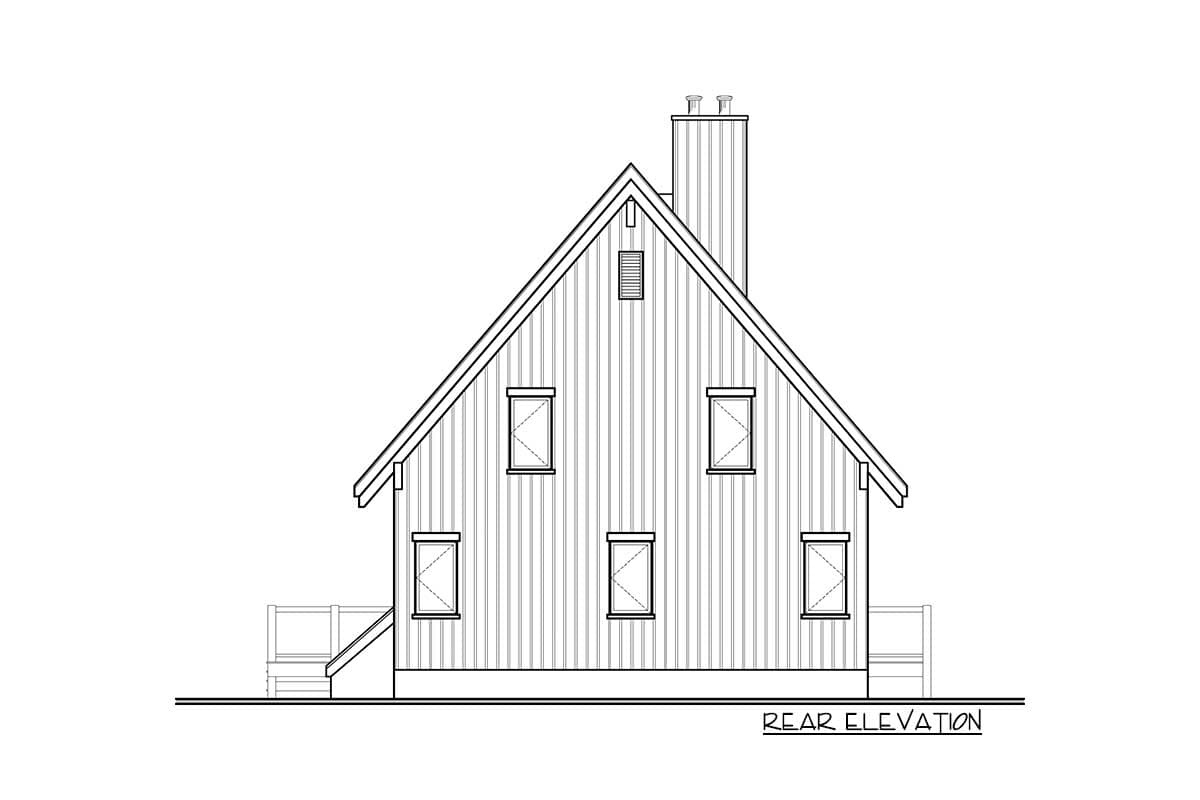

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

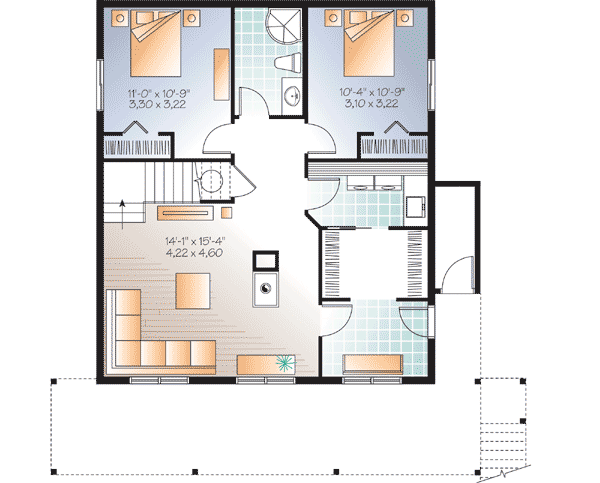

Four Season Chalet Escape - 22314DR floor plan - Basement

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

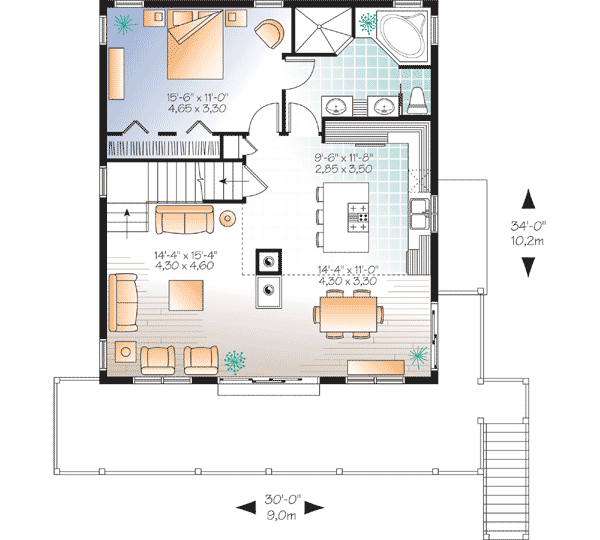

Four Season Chalet Escape - 22314DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

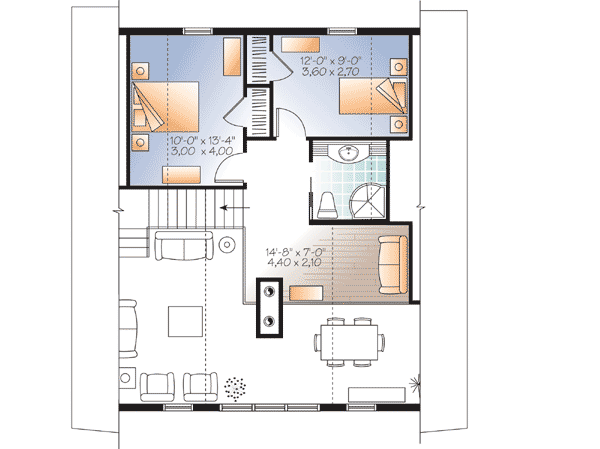

Four Season Chalet Escape - 22314DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,586 sq. ft.
Lower Level: 1,020 sq. ft.
1st Floor: 1,020 sq. ft.
2nd Floor: 546 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 3

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 30' 0"
Depth: 34' 0"
Max ridge height: 32' 1"

Ceiling Heights

Floor / Height: Lower Level / 7' 8" First Floor / 8' 0" Second Floor / 8' 0"
