Plan 21128DR Four-Season Vacation Home Plan

Four-Season Vacation Home Plan

Plan 21128DR

  • 2,219

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • A welcome retreat throughout the year, this vacation home plan can be entered from either the front stoop or the side covered porch, allowing you to step directly into the two-story family and dining rooms.
  • The open kitchen includes a pantry and an island with a circular eating counter. A fireplace radiates warmth into the family and dining rooms, and an abundance of windows lets in the light.
  • The master suite includes a walk-in closet and a private bath.
  • Upstairs, a guest suite over the garage includes its own bath and sitting room. Completing the second floor are another full bath, another bedroom and a sitting area off the hall.
  • Ceilings: 9' first floor; 8' second floor.
  • Related Plans: See house plan 21184DR for a reverse version of this design. Other related plans include 21126DR, 2105DR, 21565DR and 2106DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

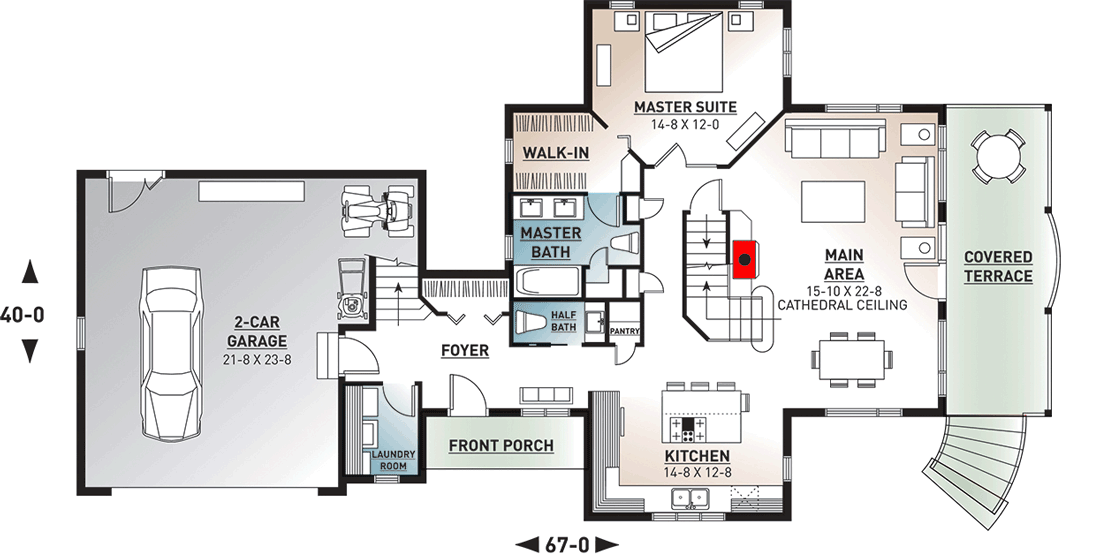

Four-Season Vacation Home Plan - 21128DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

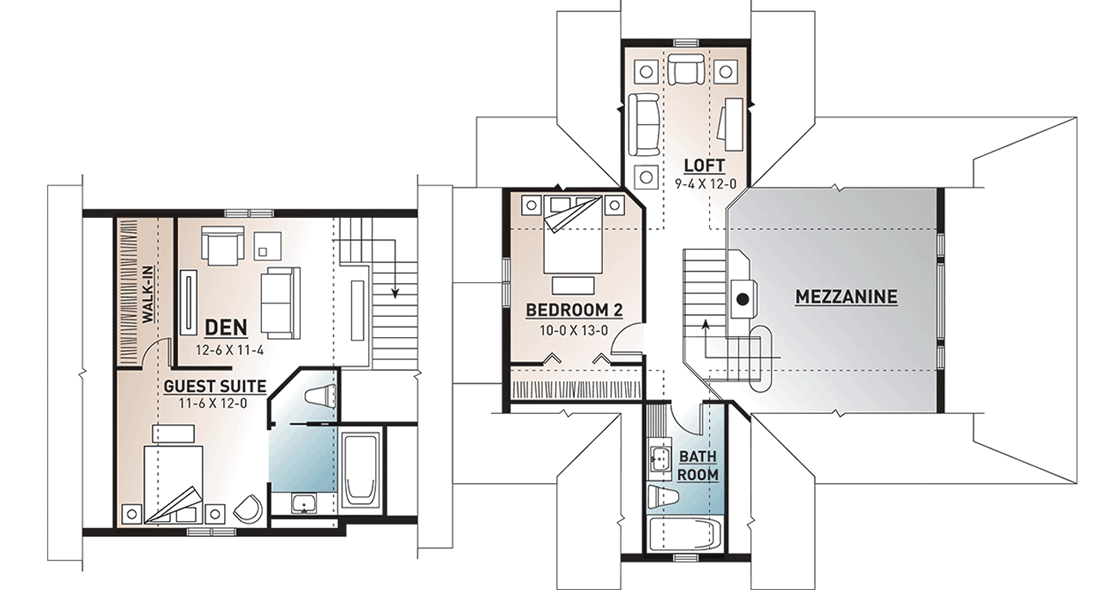

Four-Season Vacation Home Plan - 21128DR floor plan - 2nd Floor

Plan details

Four-Season Vacation Home Plan

  • 2,219

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • Reproducible Set $1,260
  • PDF - Single-Build $1,260
  • 5 Sets + PDF $1,385
  • CAD - Single-Build $1,860
  • View all purchase option online

About This Plan

  • A welcome retreat throughout the year, this vacation home plan can be entered from either the front stoop or the side covered porch, allowing you to step directly into the two-story family and dining rooms.
  • The open kitchen includes a pantry and an island with a circular eating counter. A fireplace radiates warmth into the family and dining rooms, and an abundance of windows lets in the light.
  • The master suite includes a walk-in closet and a private bath.
  • Upstairs, a guest suite over the garage includes its own bath and sitting room. Completing the second floor are another full bath, another bedroom and a sitting area off the hall.
  • Ceilings: 9' first floor; 8' second floor.
  • Related Plans: See house plan 21184DR for a reverse version of this design. Other related plans include 21126DR, 2105DR, 21565DR and 2106DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,219 sq. ft.
  • 1st Floor: 1,232 sq. ft.
  • 2nd Floor: 987 sq. ft.
  • Entry: 48 sq. ft.
  • Deck: 195 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 40' 0"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 565 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
