Four-Season Vacation Retreat with Finished Lower Level

Plan 2180DR

  • 2,800

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 1

    Cars

  • High windows, decks and two family rooms, each with a fireplace, characterize this four-season vacation retreat.
  • On the main level, the family room, dining room and kitchen flow together, separated only by an eating bar. The master suite enjoys a private bath, while another bedroom has a balcony and full bath.
  • Downstairs in the walk-out basement, the guest room includes a walk-in closet. There is also a family room, laundry room and spacious workshop-storage room.
  • Related Plans: Get an alternate version without a garage with house plan 22569DR and eliminate the finished lower level with house plan 21153DR.

Each plan includes the following:

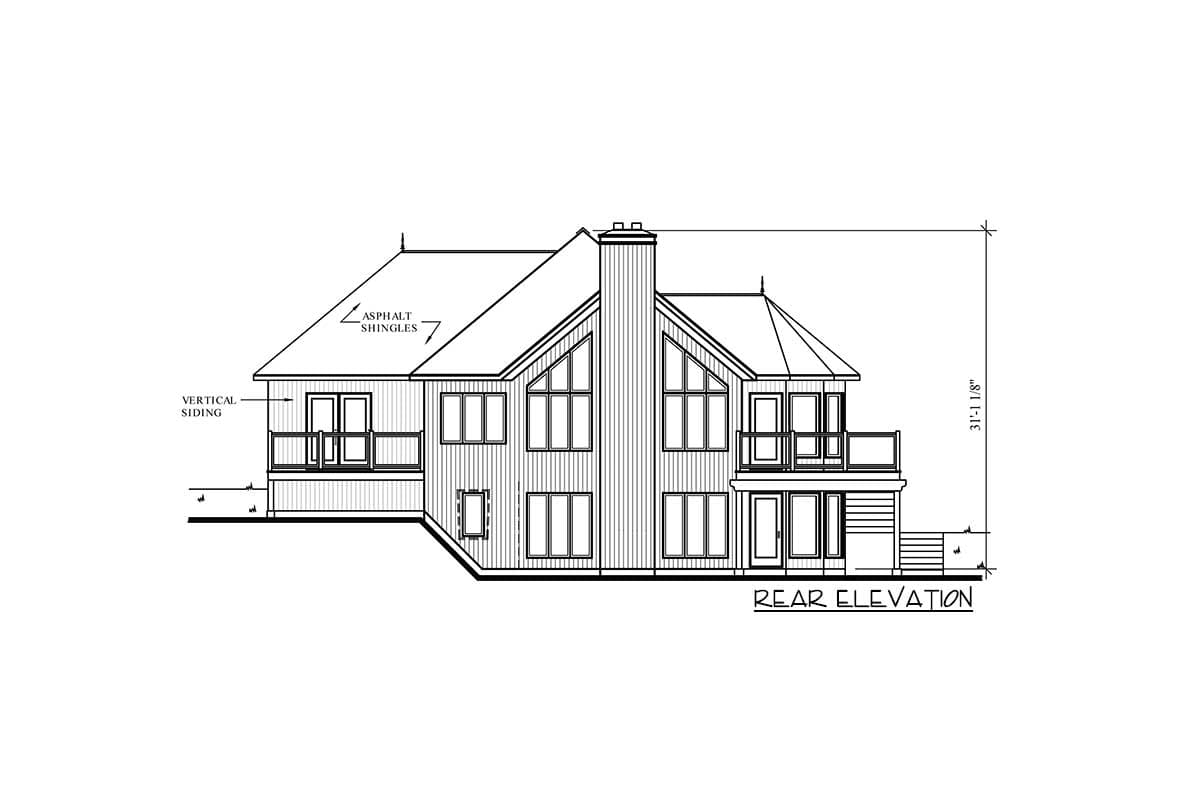

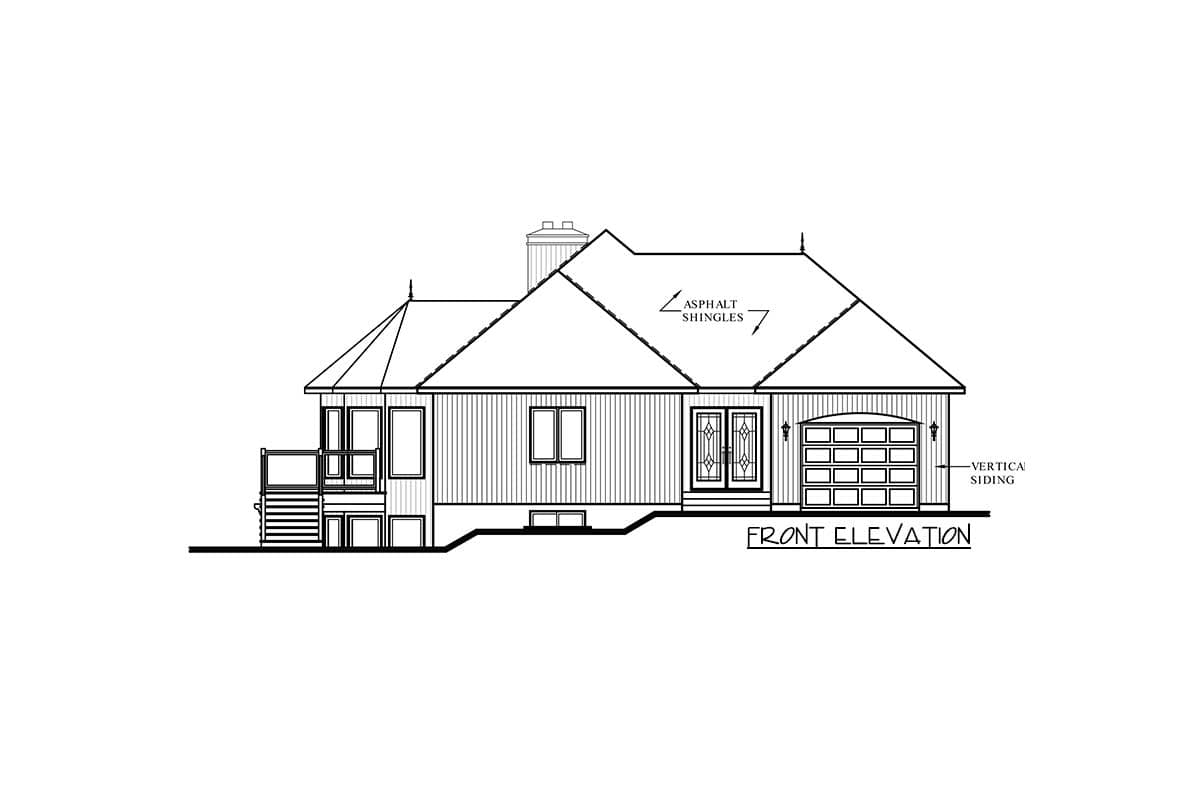

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

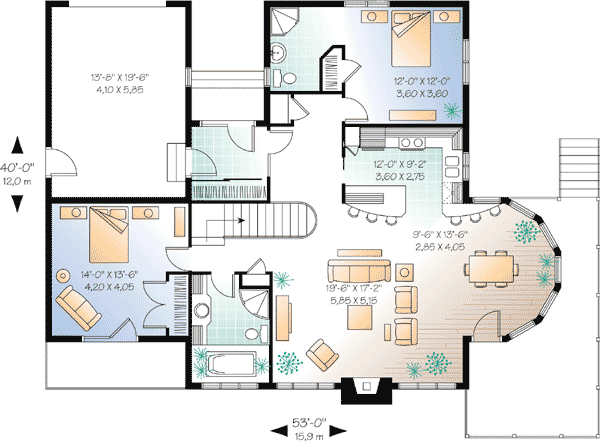

Four-Season Vacation Retreat with Finished Lower Level - 2180DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

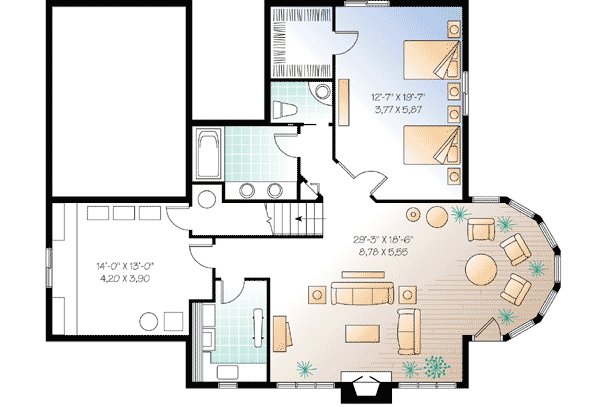

Four-Season Vacation Retreat with Finished Lower Level - 2180DR floor plan - Basement

Four-Season Vacation Retreat with Finished Lower Level

  • 2,800

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,800 sq. ft.
  • Lower Level: 1,400 sq. ft.
  • 1st Floor: 1,400 sq. ft.

Dimensions

  • Width: 53' 0"
  • Depth: 40' 0"
  • Max ridge height: 31' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 298 sq. ft.
  • Count: 1 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
