Plan 56309SM

Fourth Bedroom or Study

Pageloader

Fourth Bedroom or Study

Plan 56309SM

  • 2,486

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

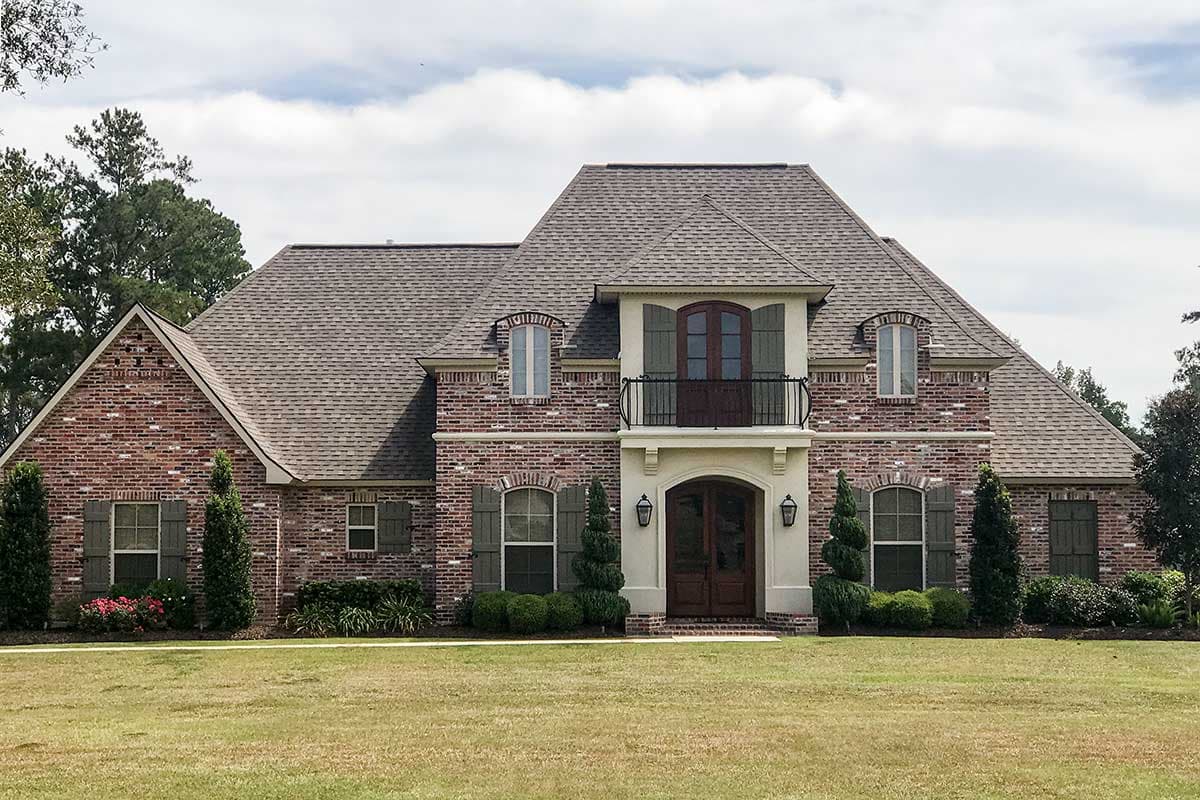

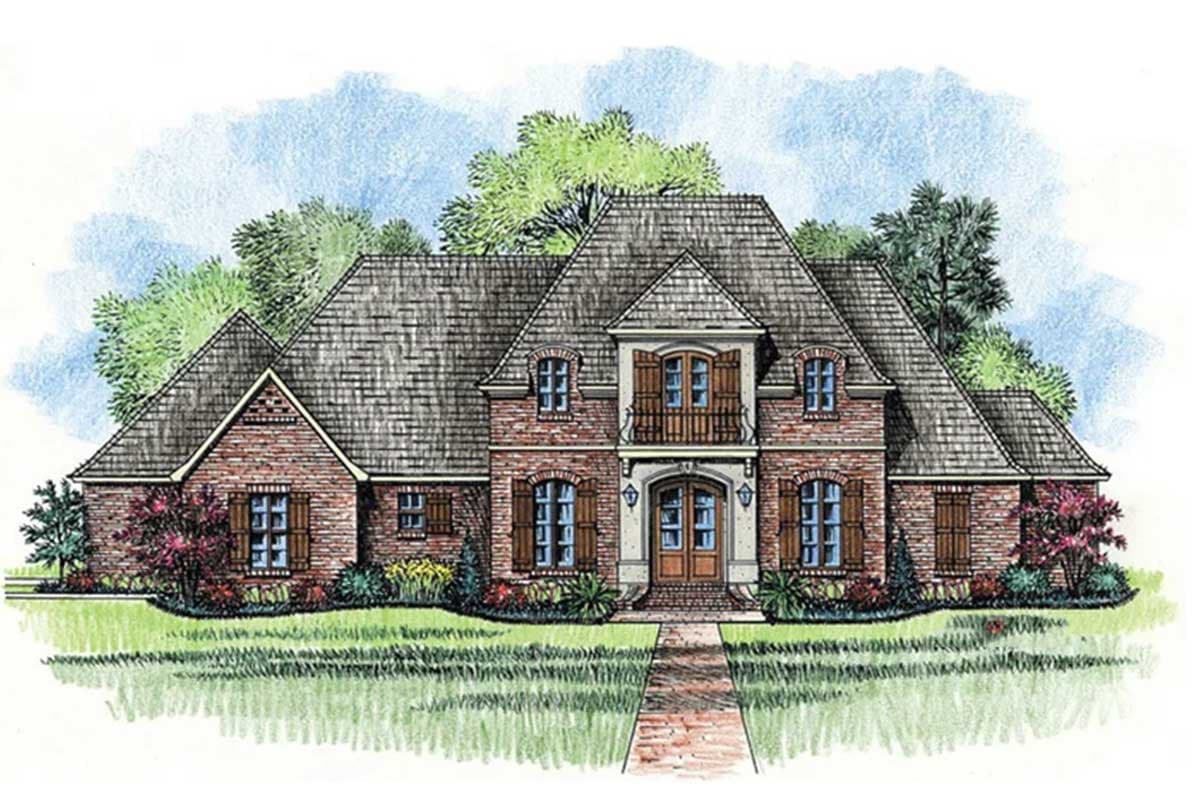

  • An elegant exterior with decorative wooden shutter adds curb appeal to this French Country home plan.

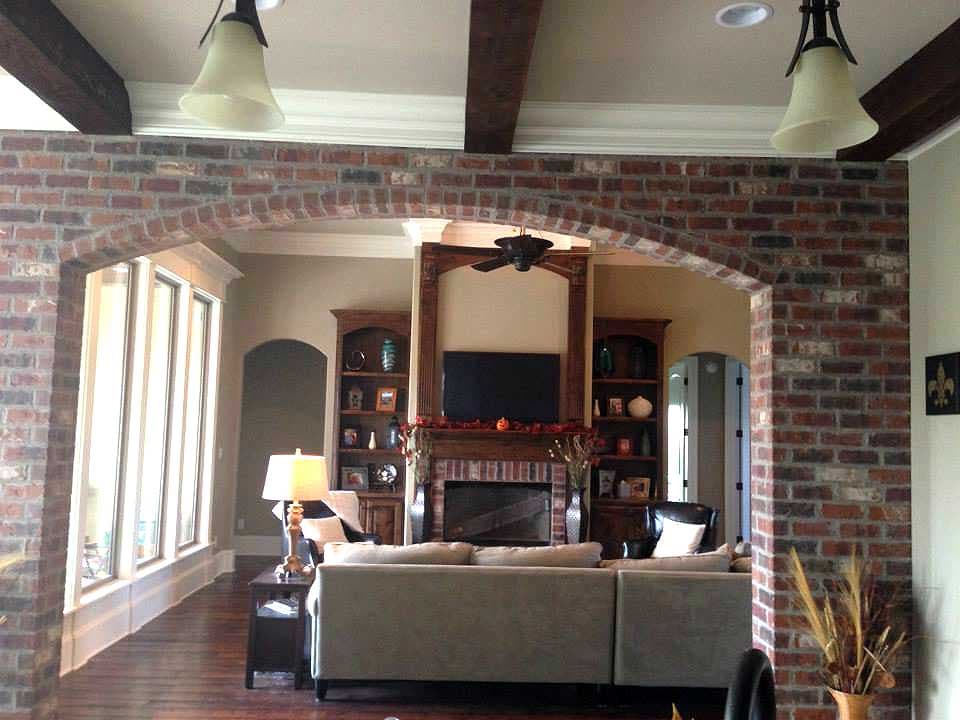

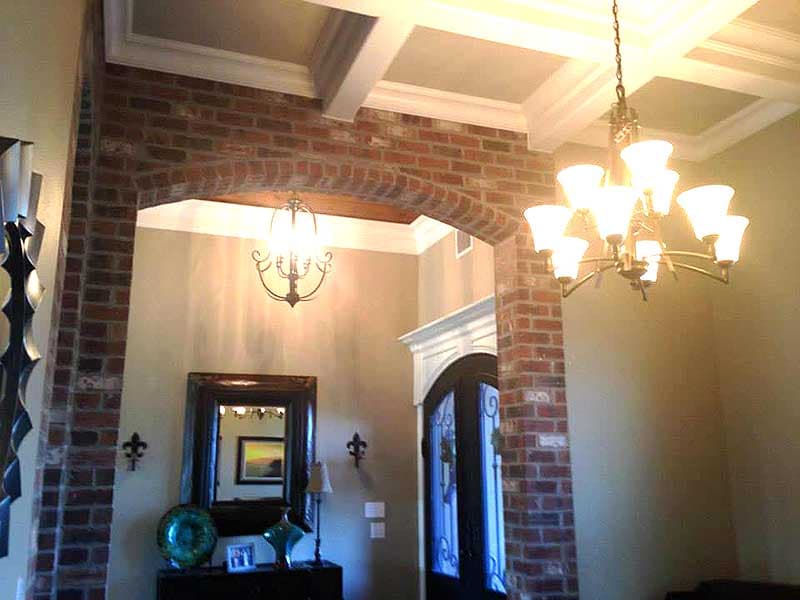

  • 12' high ceilings create volume in the foyer, dining room and family room with fireplace.

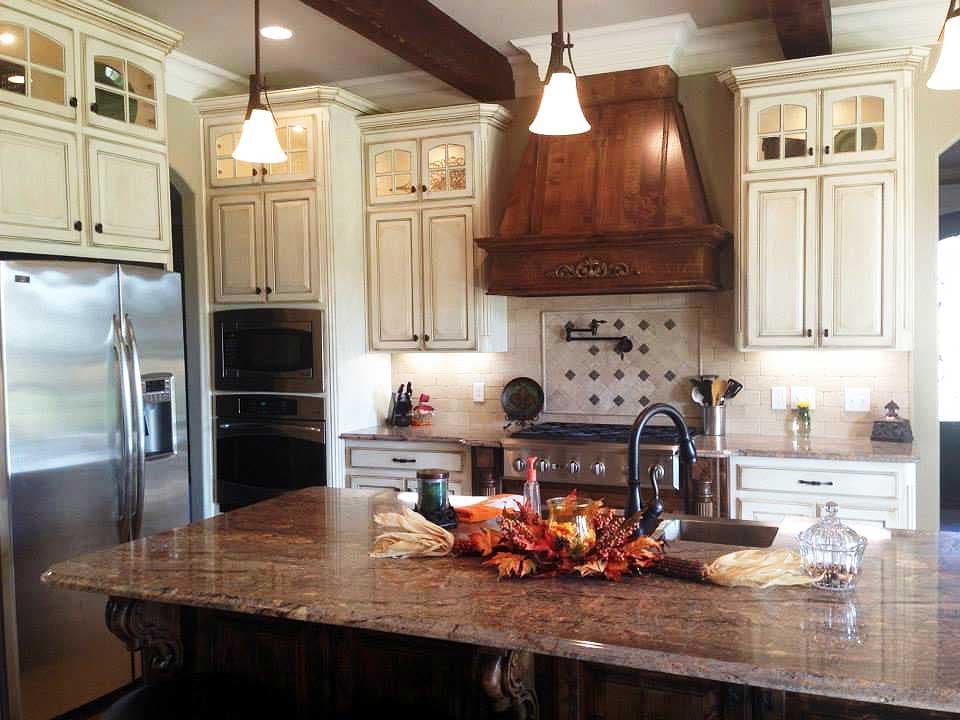

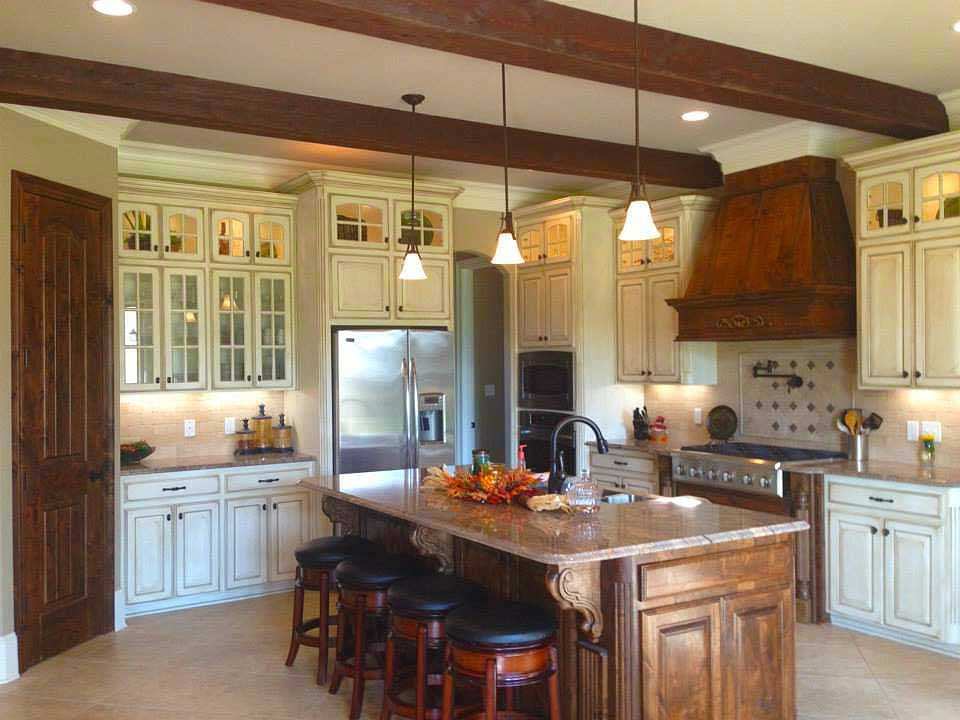

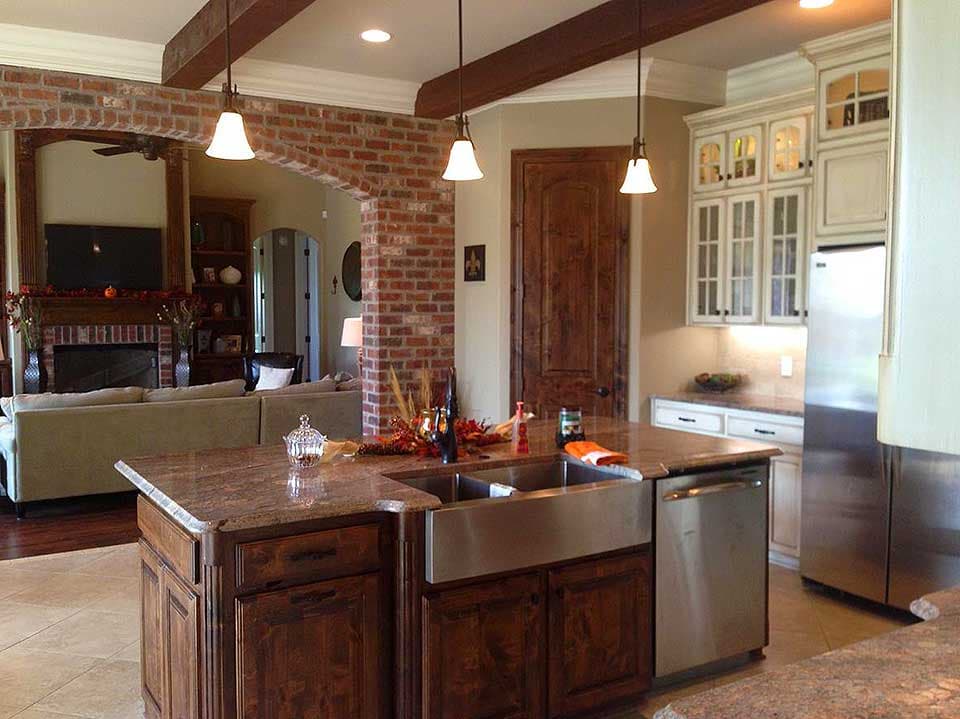

  • The large breakfast nook with its wall of windows is open to the huge kitchen with a much-desired walk-in pantry.
  • Use the bonus room as a study or fourth bedroom - owner's choice.
  • The private master suite is off by itself in the rear of the home and has a tray ceiling and door to the rear covered porch.
  • Related Plan: Gain a bonus room and build in reverse with house plan 56377SM.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

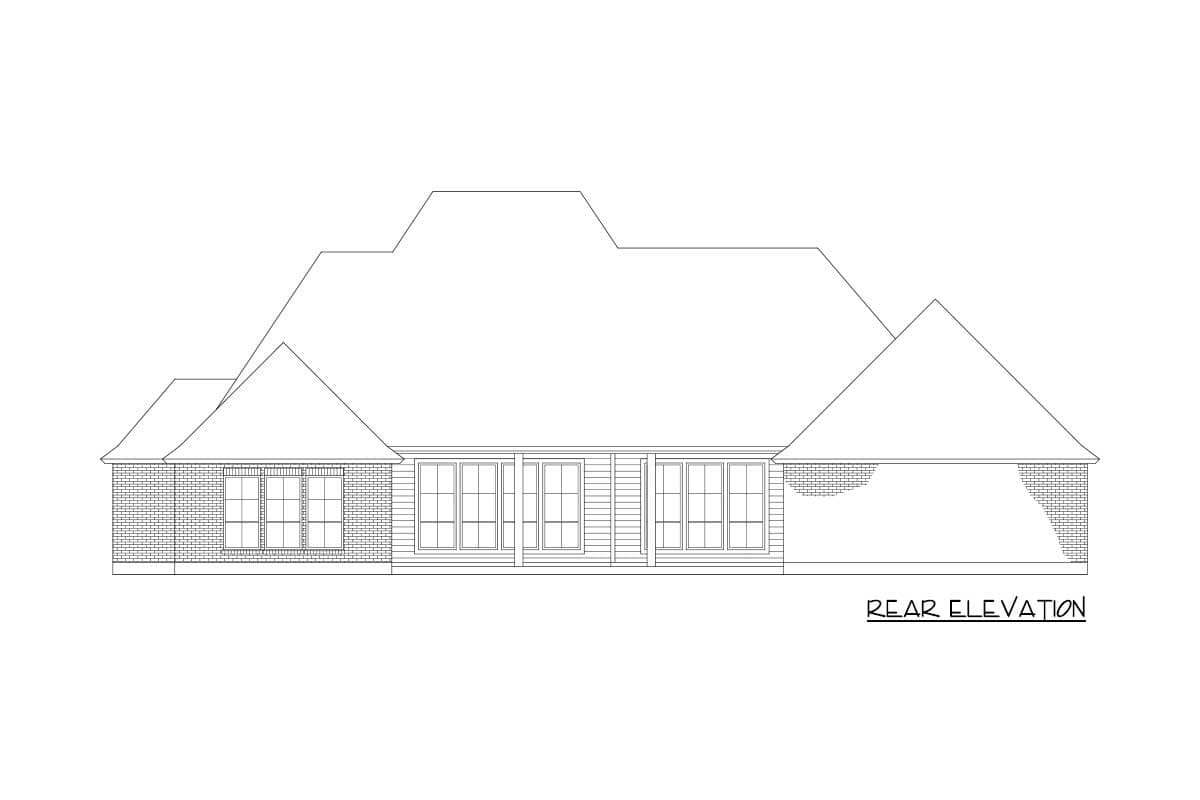

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Floor Plan

Plan details



Fourth Bedroom or Study

  • 2,486

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $975
  • 6 Sets $1,075
  • 5 Sets PLUS $1,275
  • CAD $1,975
  • CAD - multi-use $2,370
  • View all purchase option online

About This Plan

  • An elegant exterior with decorative wooden shutter adds curb appeal to this French Country home plan.
  • 12' high ceilings create volume in the foyer, dining room and family room with fireplace.
  • The large breakfast nook with its wall of windows is open to the huge kitchen with a much-desired walk-in pantry.
  • Use the bonus room as a study or fourth bedroom - owner's choice.
  • The private master suite is off by itself in the rear of the home and has a tray ceiling and door to the rear covered porch.
  • Related Plan: Gain a bonus room and build in reverse with house plan 56377SM.

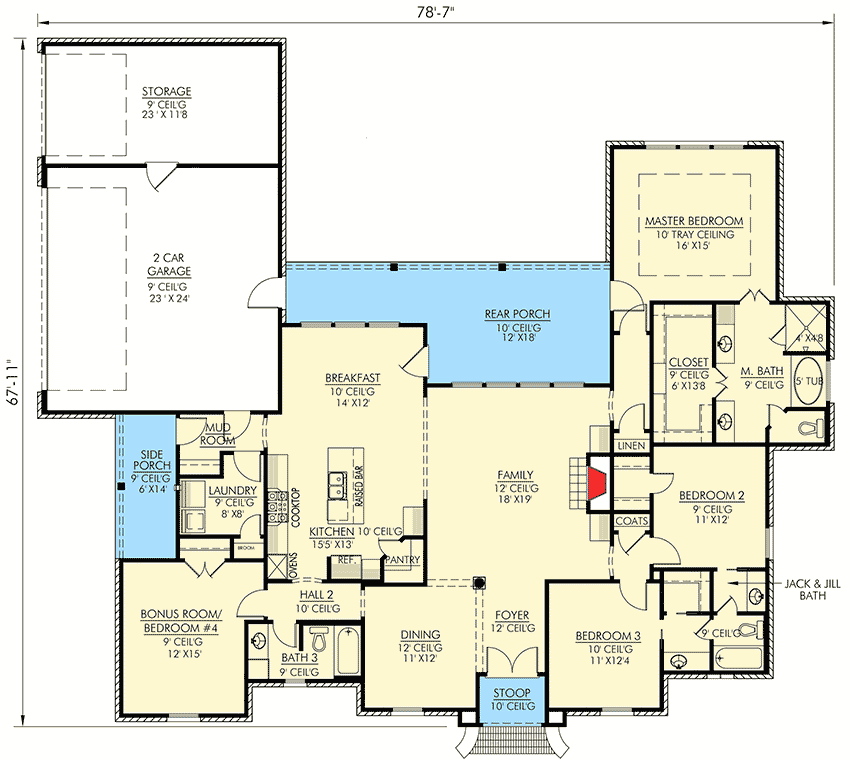

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,486 sq. ft.
  • 1st Floor: 2,486 sq. ft.
  • Porch, Combined: 300 sq. ft.
  • Storage: 268 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 78' 7"
  • Depth: 67' 11"
  • Max ridge height: 29' 11"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
