Fresh Contemporary House Plan with Split Beds

Plan 890101AH

  • 1,742

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • The sloped roof lines and corresponding window give this contemporary house plan a fresh look.
  • To the left of the formal entry, two bedrooms reside, separated by a full bathroom.
  • An open layout towards the back of the home combines the great room, dining area, and kitchen. Large windows present rearward views, and the covered porch encourages you to take a closer look.
  • The angled kitchen island anchors the space and serves as a comfortable spot to congregate when entertaining.
  • Unwind in the master bedroom, privately situated behind the 3-car garage. A tray ceiling adds elegance to the master, and the pass-through closet, with access to the laundry room, makes transferring clothes a breeze.
  • Built-in lockers in the mudroom provides a perfect drop zone for outdoor gear and backpacks.
  • Related Plan: Get an alternate version in reverse layout with house plan 890099AH.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

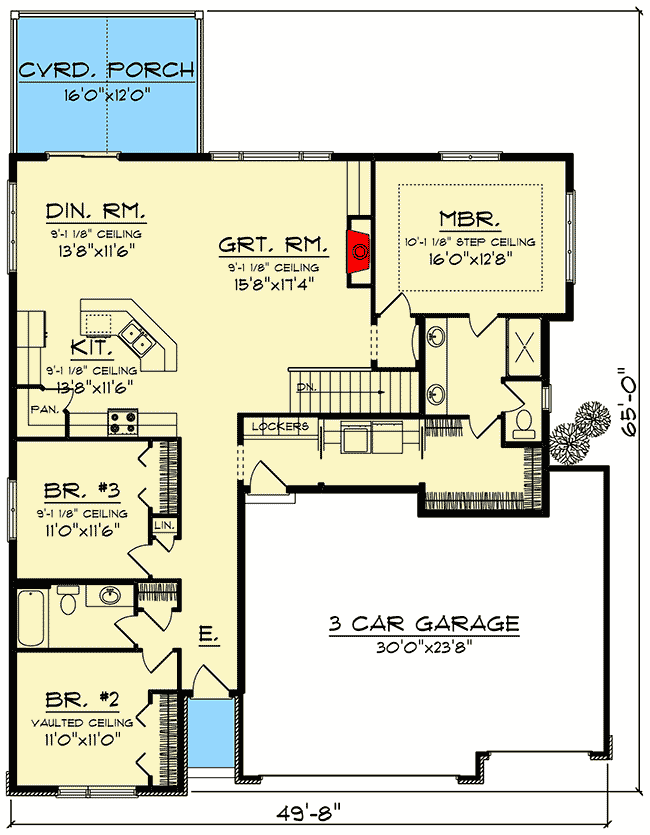

Fresh Contemporary House Plan with Split Beds - 890101AH floor plan - Main Level

Fresh Contemporary House Plan with Split Beds

  • 1,742

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,742 sq. ft.
  • 1st Floor: 1,742 sq. ft.

Dimensions

  • Width: 49' 8"
  • Depth: 65' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 697 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
