Plan 890099AH
Modern House Plan with Smart Layout
Heated S.F.
1,501
Beds
3
Baths
2
Stories
1
Cars
3
What's Included
Plan Details
  • A dramatic sloped roof above the garage and porch make this 3-bedroom, modern house plan stand out among others.
  • The interior boasts a smart layout with open-concept living and a separated master bedroom for the utmost privacy.
  • An angled kitchen island is ideal for entertaining and the fireplace in the great room lends a sense of comfort throughout the shared living space.
  • Sliding doors lead to a covered porch for outdoor enjoyment.
  • The master bedroom showcases an elegant tray ceiling, and a full bathroom with a walk-in closet.
  • The other two bedrooms are on the left side of the house with a shared bathroom in the hallway.
  • Related Plan: Get an alternate version in reverse layout with house plan 890101AH.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern House Plan with Smart Layout

  • 1,501

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

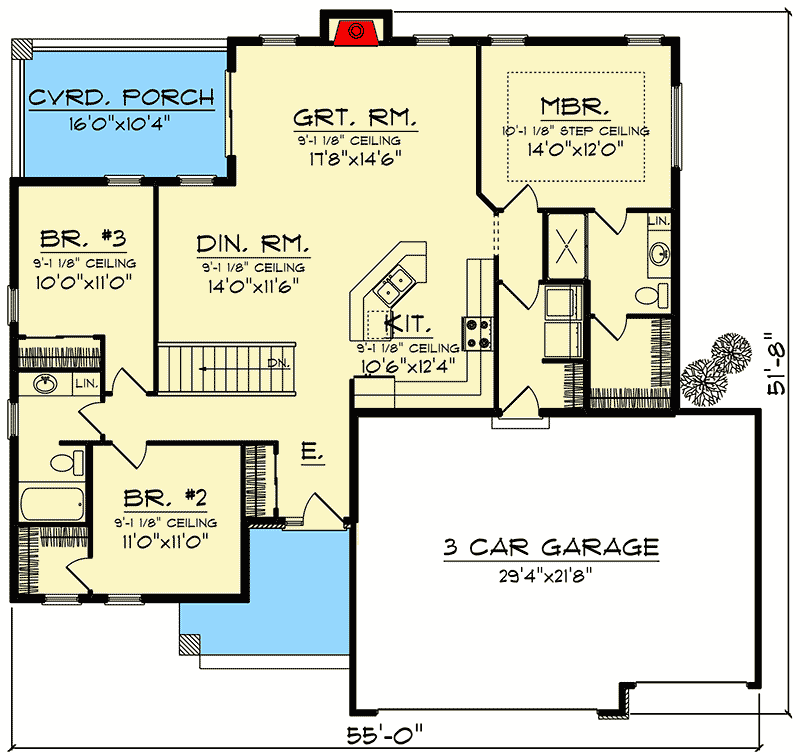

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,501 sq. ft.
  • 1st Floor: 1,501 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 51' 8"
  • Max ridge height: 19' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 639 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
