Plan 72298DA

Futuristic Split Level House Plan with Laundry Chute for the Up-sloping Lot

Name: Plan 72298DA: Futuristic Split Level House Plan with Laundry Chute for the Up-sloping Lot
Brand: Architectural Designs
SKU: 72298DA
Price: 1889.34 USD
Availability: InStock

Heated S.F.

2,474

Beds

Baths

2.5

Stories

Cars

Floor Plan

Lower Level

Main Level

2nd Floor

Plan Details

Designed for a lot that slopes upward, this split level home plan has a modern - almost futuristic - exterior. The front door is framed by two slender posts creating a welcoming minimalistic front porch.

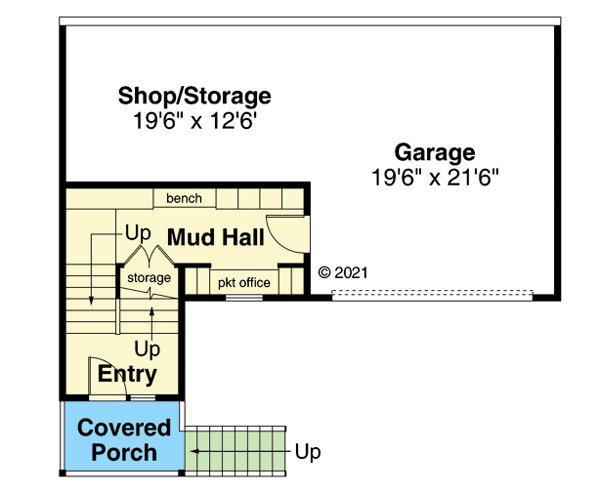

Inside, the front entry immediately presents two directions. Heading down the stairs leads to the home’s daylight basement comprised of a mud hall, the garage, and shop space. A mud hall features a bench and pocket office plus access to the under stair storage. Back at the entry and heading upwards, you enter the main living area and largest floor of the 3 story house plan.
The great room fills the center of the floor plan with a cozy fireplace on the right-hand wall. The dining room and kitchen are all opened up to each other, allowing conversations and people to flow freely.
On the left side of the floor plan sits with the utility room where as the right side of the home is dominated by the owners' suite and a quaint den in the rear.

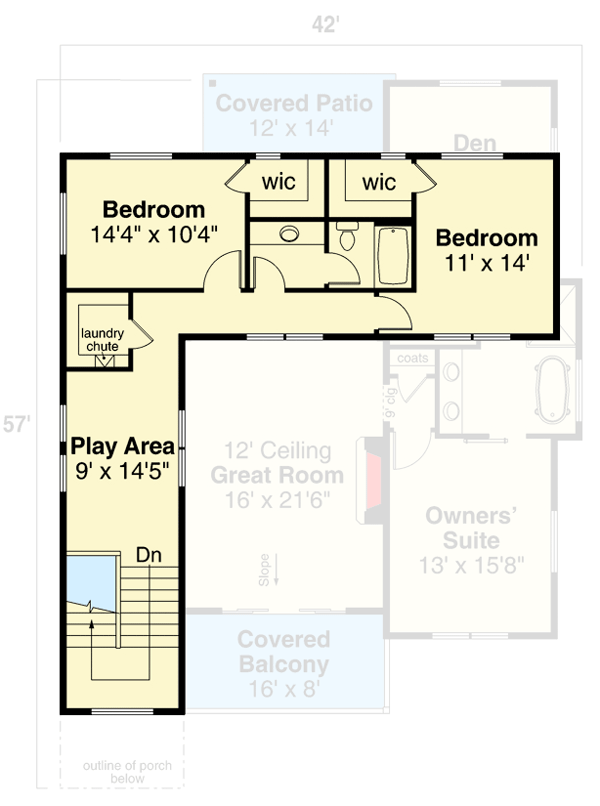

Heading even further upstairs are additional bedrooms, both feature walk in closets. Conveniently, the upper floor has a chute heading down to the utility room below making laundry a breeze.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
