Plan 9815SW

Getaway Awash with Windows

1,923 2-3 2 2
Pageloader

Getaway Awash with Windows

Plan 9815SW

  • 1,923

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Shingle siding highlighted with fishscale accents and traditional double-hung windows borrow from pleasing Craftsman styling while the heavy timber porch and deck framing topped with a clean lined glass railing bring a modern touch to the exterior of this unique home plan.
  • The main level easily transforms itself into a mother-in-law or private guest suite complete with a separate access.
  • Covered front porches, screened rear porch or the open sundeck on both levels ensures outdoor activities endure regardless of the prevailing weather.
  • The second level is totally dedicated to fulfilling the needs of the vaulted Master Suite part of which is a multi-purpose reading, hobby or exercise room and a massive sundeck.

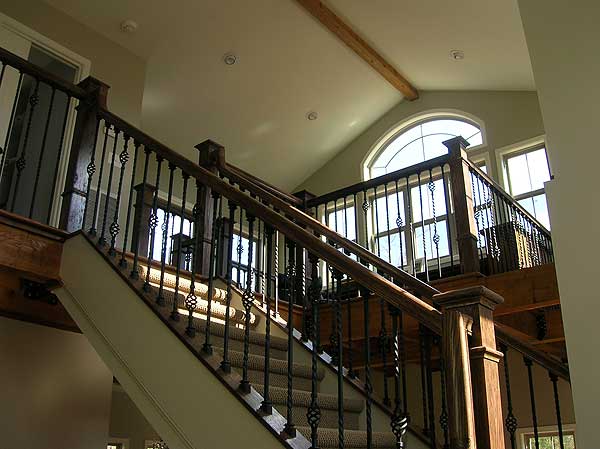

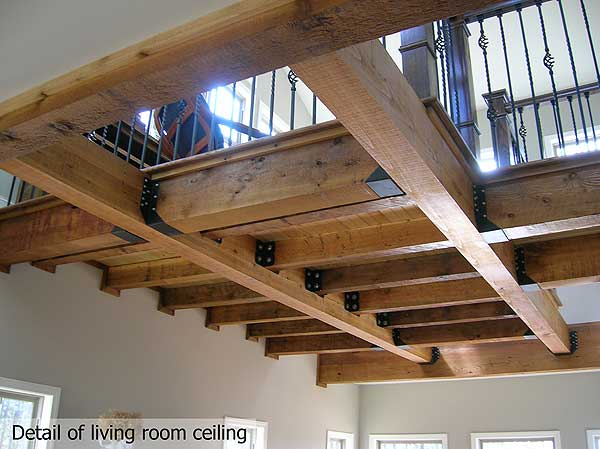

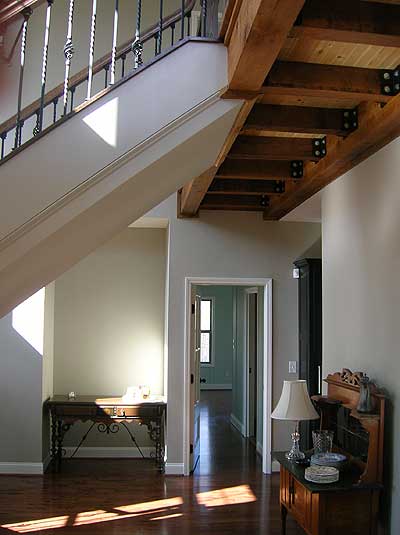

  • Access to a floating library overlooking the living/dining room is via a connecting bridge. Glass railings, exposed truss timber framing and floor beams make this a totally special and reflective space.

Each plan set includes the following:


Cover sheet with rendering
General notes and specifications
Foundation plan
Fully dimensioned floor plan - windows are called out as generic sizes
Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
Electrical
Cross sections
Details as required
All four elevations

Plans do not include interior cabinet elevations or separate window schedules

Floor Plan

Plan details



Getaway Awash with Windows

  • 1,923

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $575
  • 8 Sets $625
  • Reproducible Set $775
  • PDF - single-use $775
  • View all purchase option online

About This Plan

  • Shingle siding highlighted with fishscale accents and traditional double-hung windows borrow from pleasing Craftsman styling while the heavy timber porch and deck framing topped with a clean lined glass railing bring a modern touch to the exterior of this unique home plan.
  • The main level easily transforms itself into a mother-in-law or private guest suite complete with a separate access.
  • Covered front porches, screened rear porch or the open sundeck on both levels ensures outdoor activities endure regardless of the prevailing weather.
  • The second level is totally dedicated to fulfilling the needs of the vaulted Master Suite part of which is a multi-purpose reading, hobby or exercise room and a massive sundeck.
  • Access to a floating library overlooking the living/dining room is via a connecting bridge. Glass railings, exposed truss timber framing and floor beams make this a totally special and reflective space.

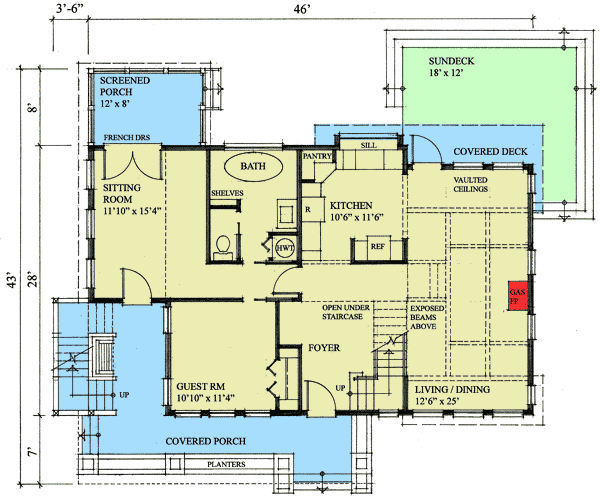

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,923 sq. ft.
  • 1st Floor: 1,169 sq. ft.
  • 2nd Floor: 754 sq. ft.
  • Screened Porch: 96 sq. ft.
  • Deck: 754 sq. ft.
  • Porch, Combined: 268 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 6"
  • Depth: 43' 6"
  • Max ridge height: 31' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
