Plan 56337SM

Graceful 4 Bedroom Acadian Home Plan - 3175 Sq Ft

Name: Plan 56337SM: Graceful 4 Bedroom Acadian Home Plan - 3175 Sq Ft
Brand: Architectural Designs
SKU: 56337SM
Price: 1445.0 USD
Availability: InStock

Heated S.F.

3,175

Beds

4 - 5

Baths

3 - 4

Stories

Cars

Floor Plan

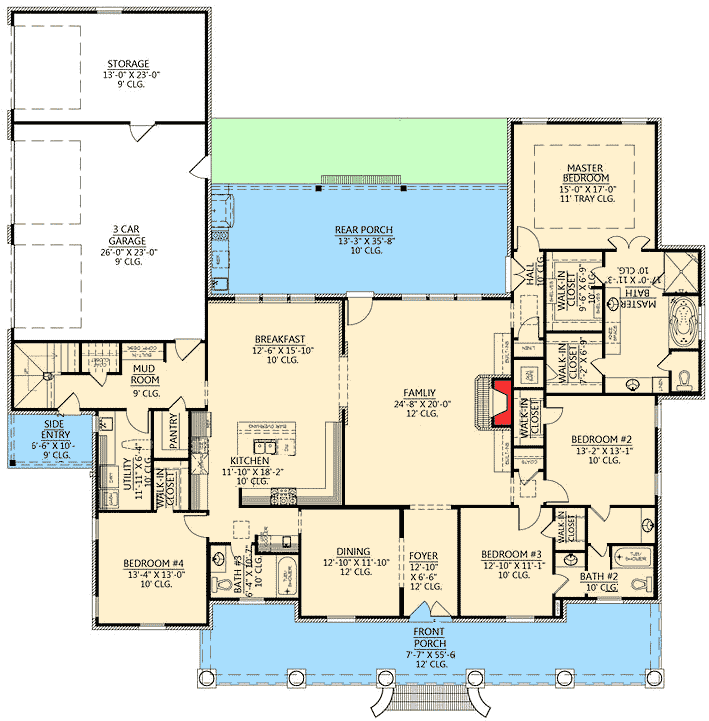

Main Level

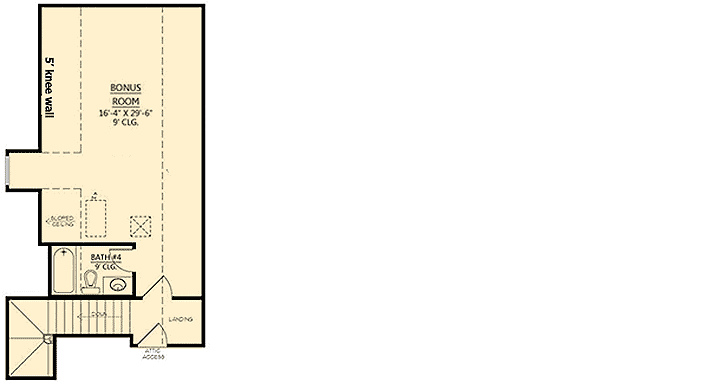

Bonus over Garage

Plan Details

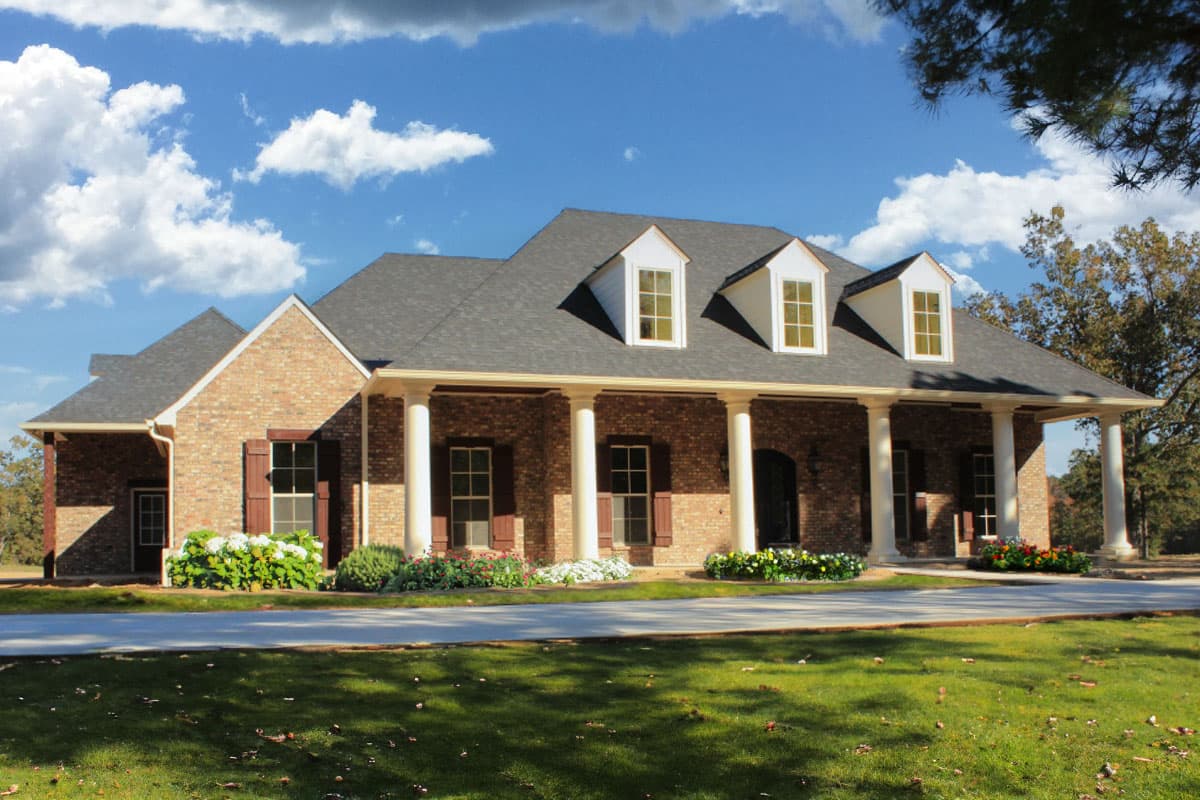

Six elegant columns support the front porch of this graceful Southern home plan.
Huge front and rear porches shelter you from the sun and give you a place to enjoy the outdoors.

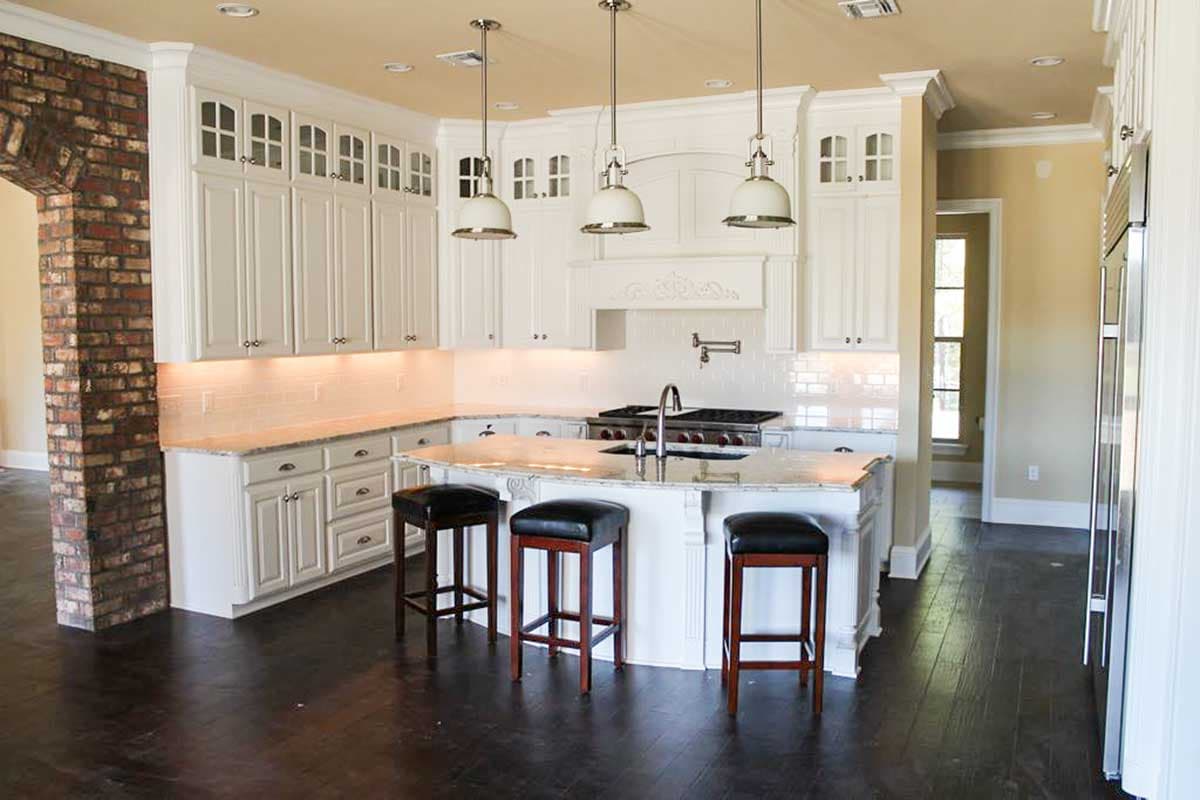

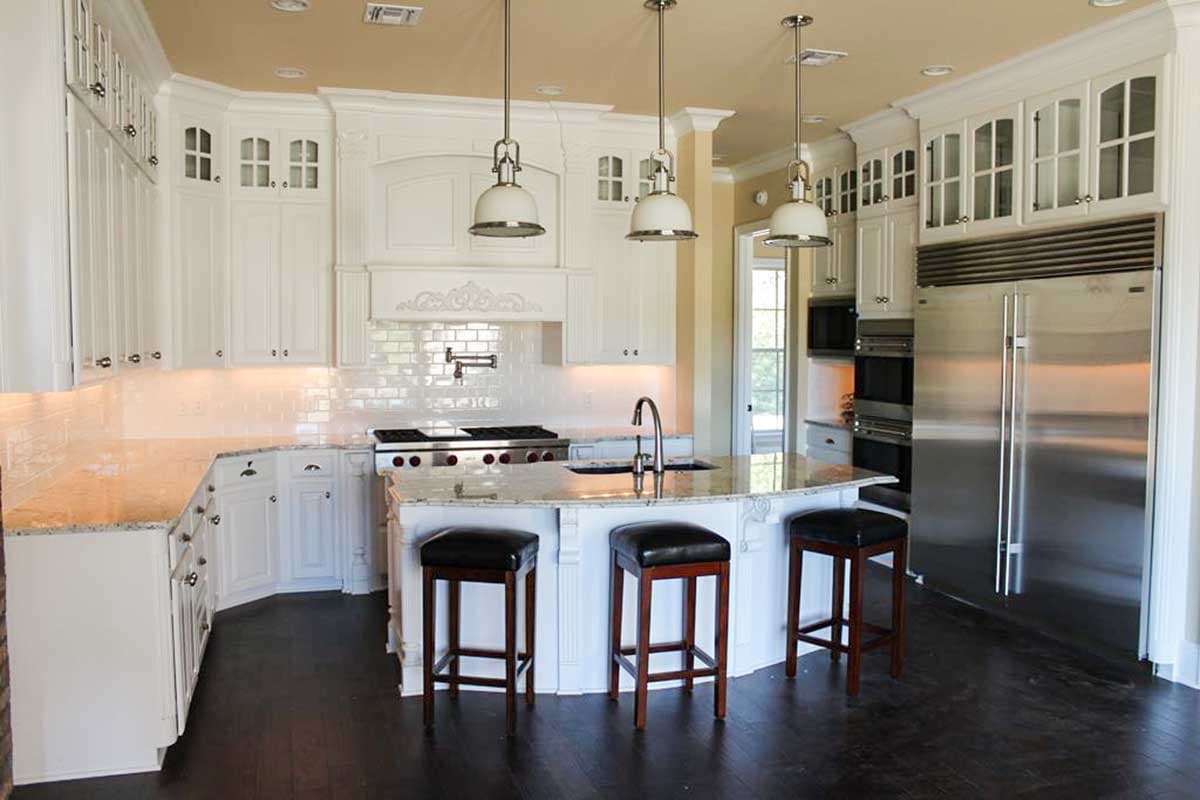

Antique pine beams top the kitchen and keeping room ceilings, adding a charming ambiance.

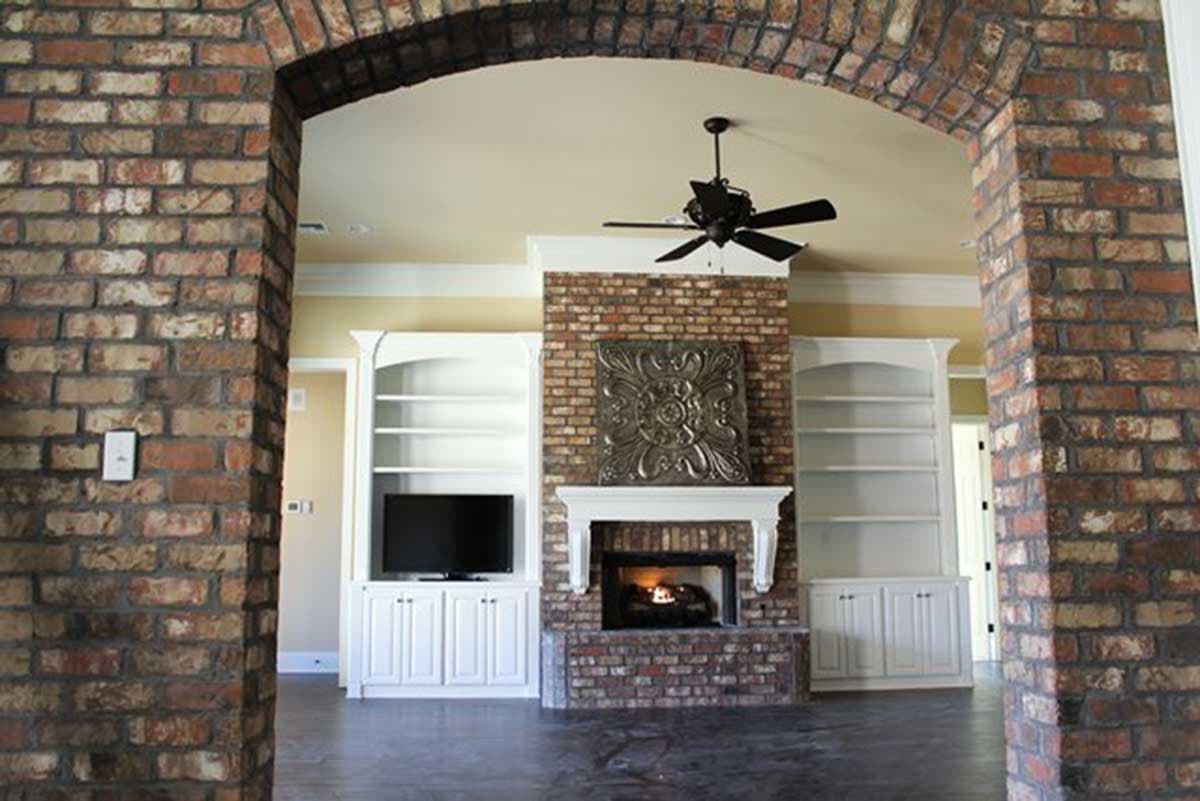

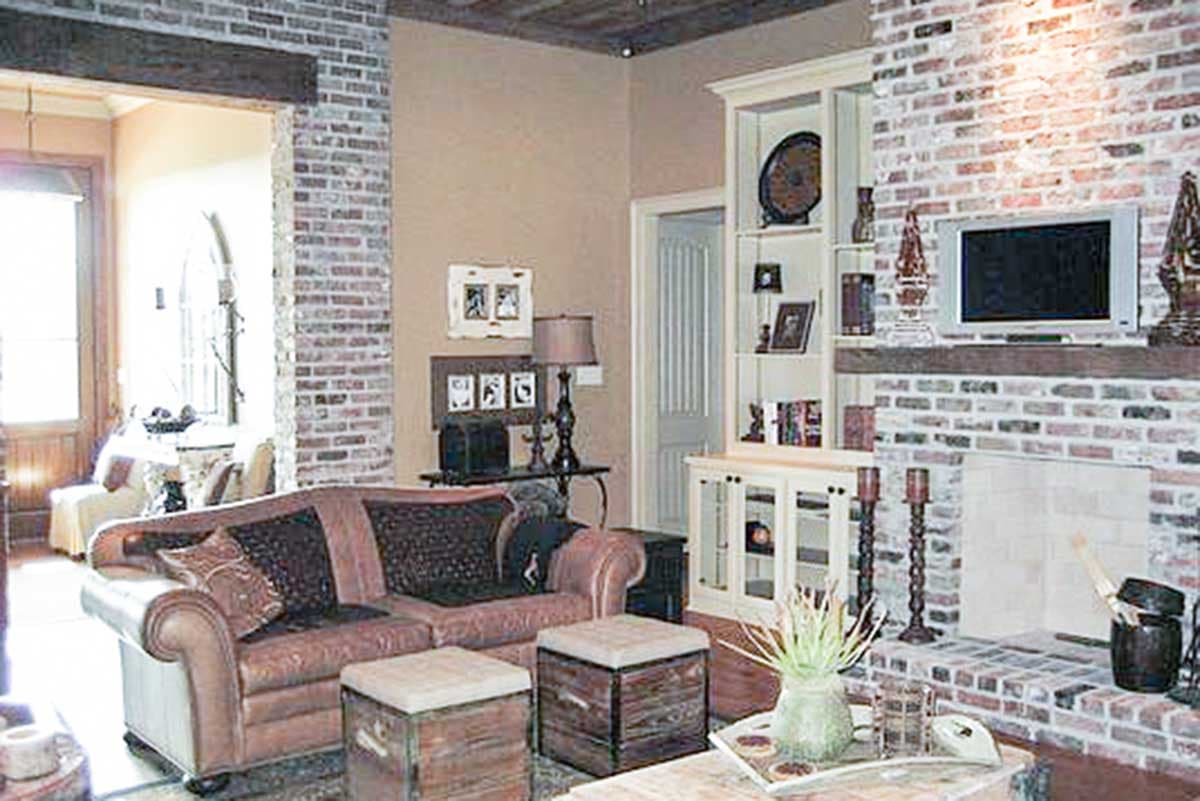

A brick arch leads from the kitchen into the family room with its 12' high ceiling.

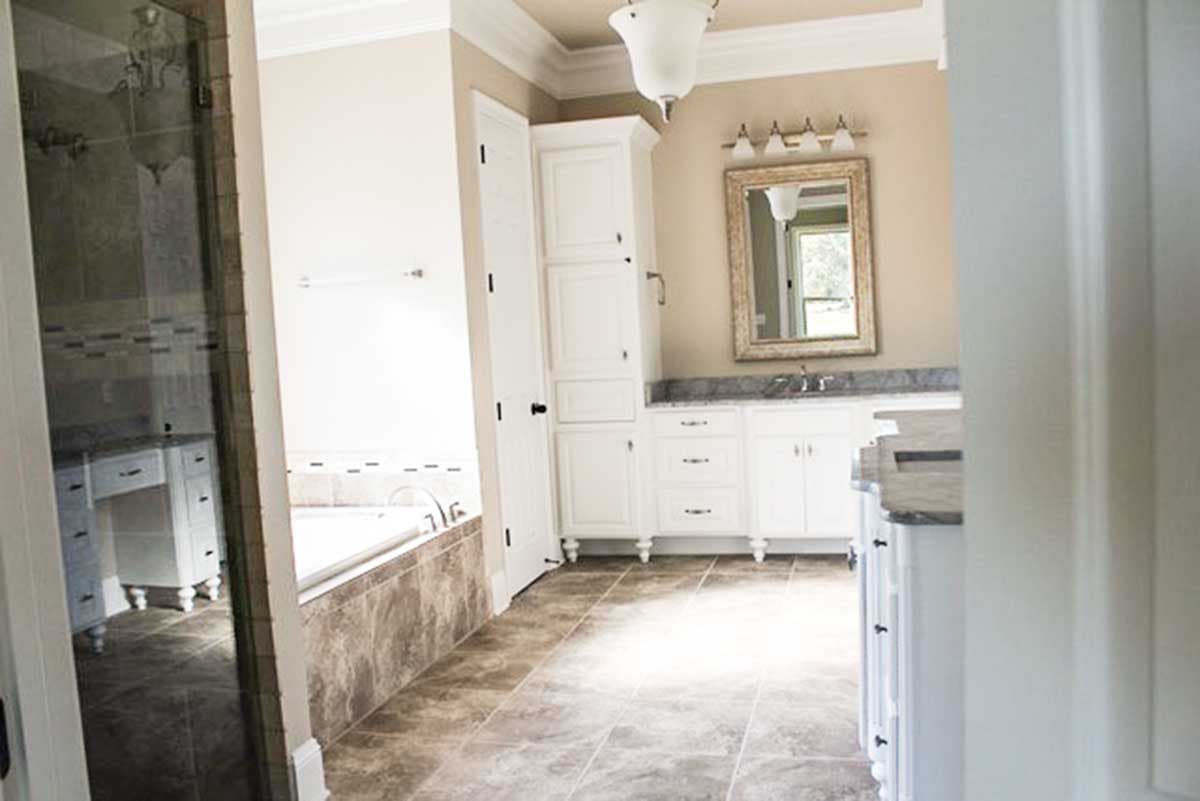

The master suite is secluded away in the rear of the home and has tray ceilings, double walk-in closets and a small safe area.
Bonus space is located over the garage
Related Plans: Remove the dormers with house plan 56449SM (2,740 sq. ft.). Downsize and get 3 beds and a 2 car garage with house plans 56364SM (2,674 sq. ft.) and 56363SM (2,779 sq. ft.).
NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
