Graceful and Elegant 4 Bed Acadian House Plan

Plan 14127KB

  • 2,609

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

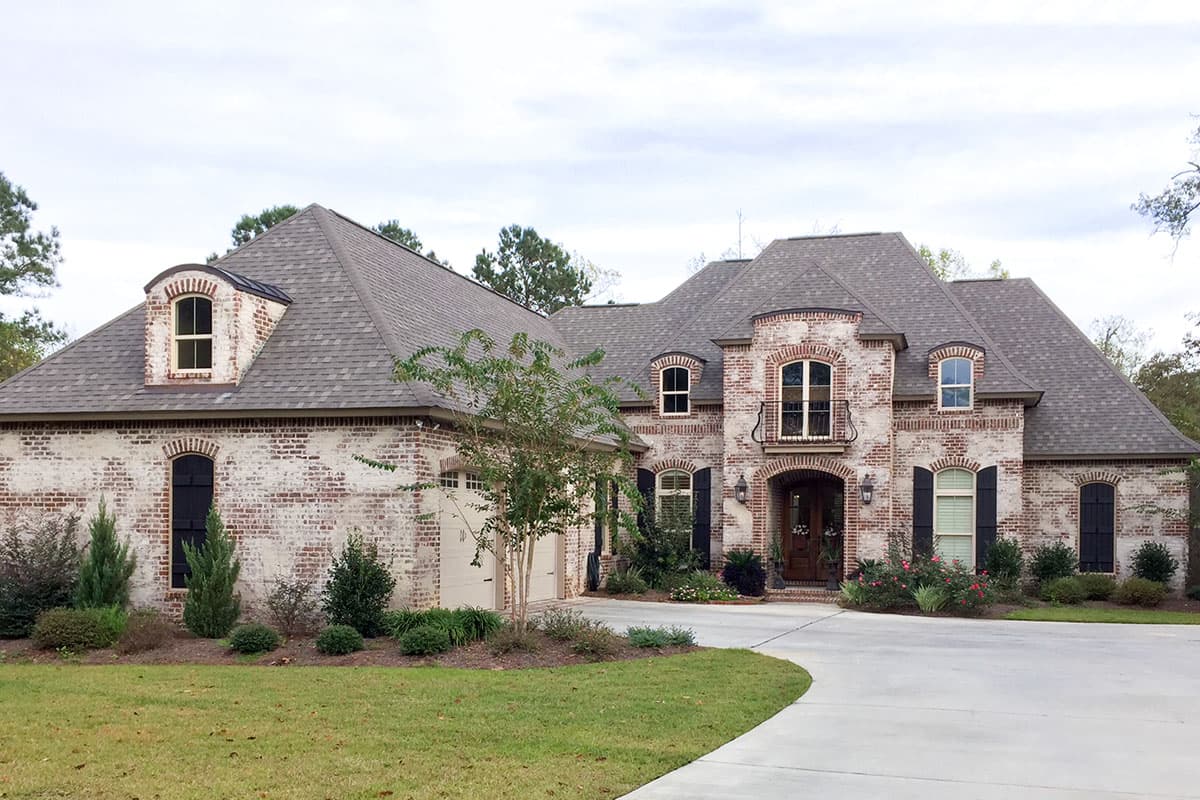

  • Here is a stunning Country French home with classic Acadian-influenced details. Wrought iron on the top balcony with dual gas lanterns make the curb appeal of this house stand out.
  • Stepping through the foyer, you are greeted by the large family room with a handsome tray ceiling and views to the rear covered porch.
  • In the kitchen (17'-3" x 15') you will find a large island and enough prep space for the most ambitious chef.
  • A large keeping room lies off to the side with a window-seated breakfast area.
  • Walk through one of two brick arches that lead to the large family room or enter the formal dining room.
  • Three bedrooms, including the master lie on one side of the house with a fourth bedroom behind the kitchen on the other side.
  • Upstairs is an optional bonus room perfectly suited for a media room.
  • But really what makes this house perfect for entertainment is the main rear porch with tall ceilings and built-in outdoor grill with easy-access fridge.

  • Front elevation drawn at 1/4" scale

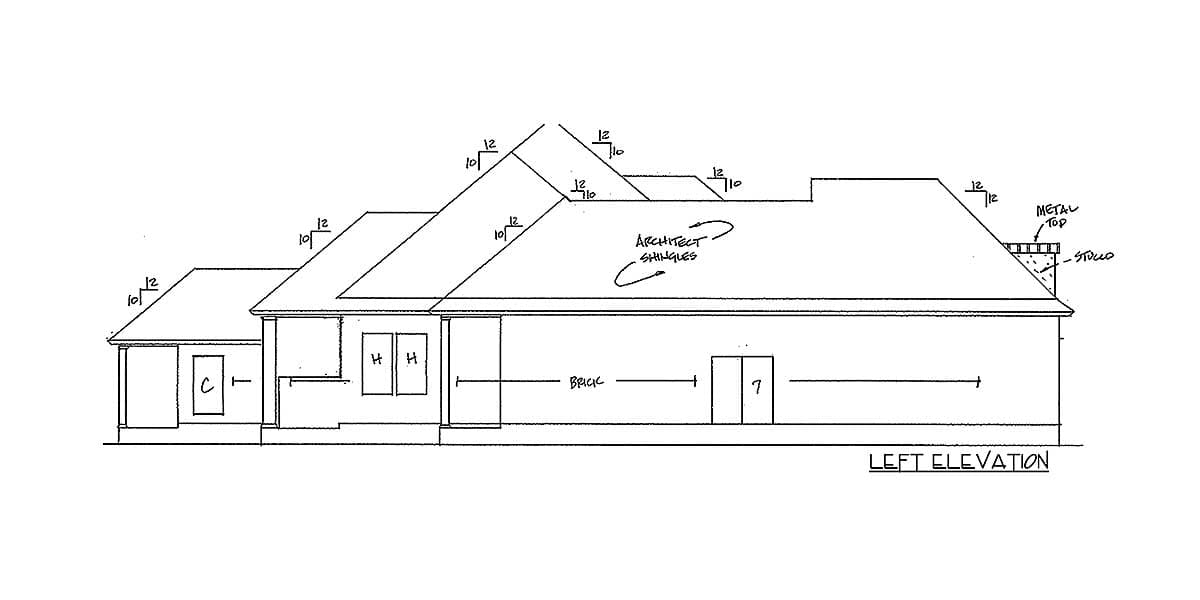

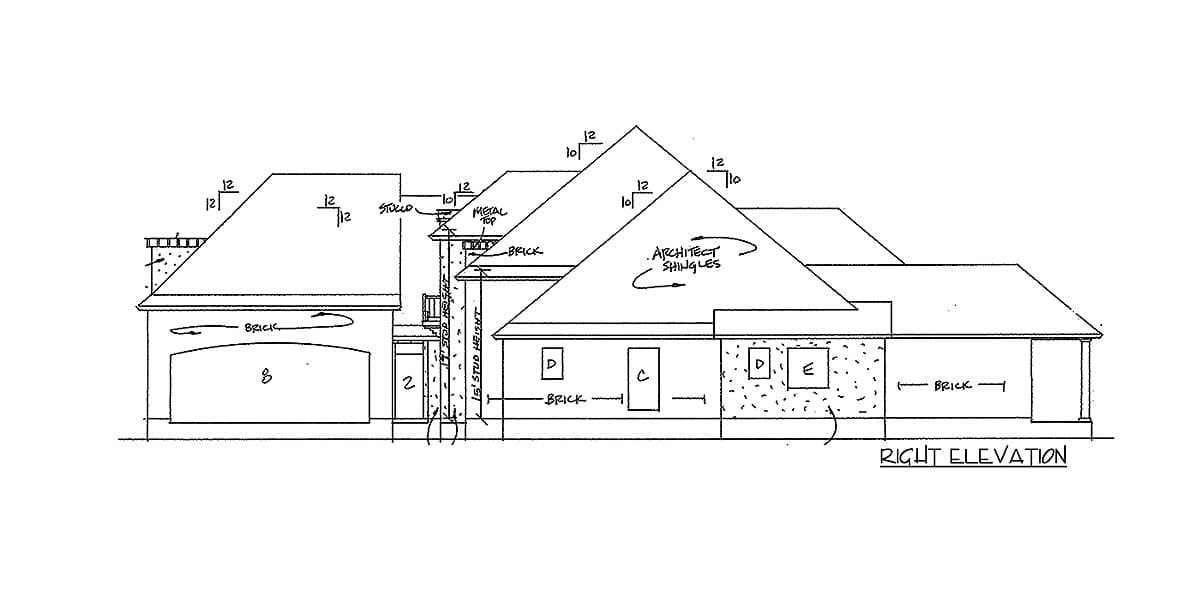

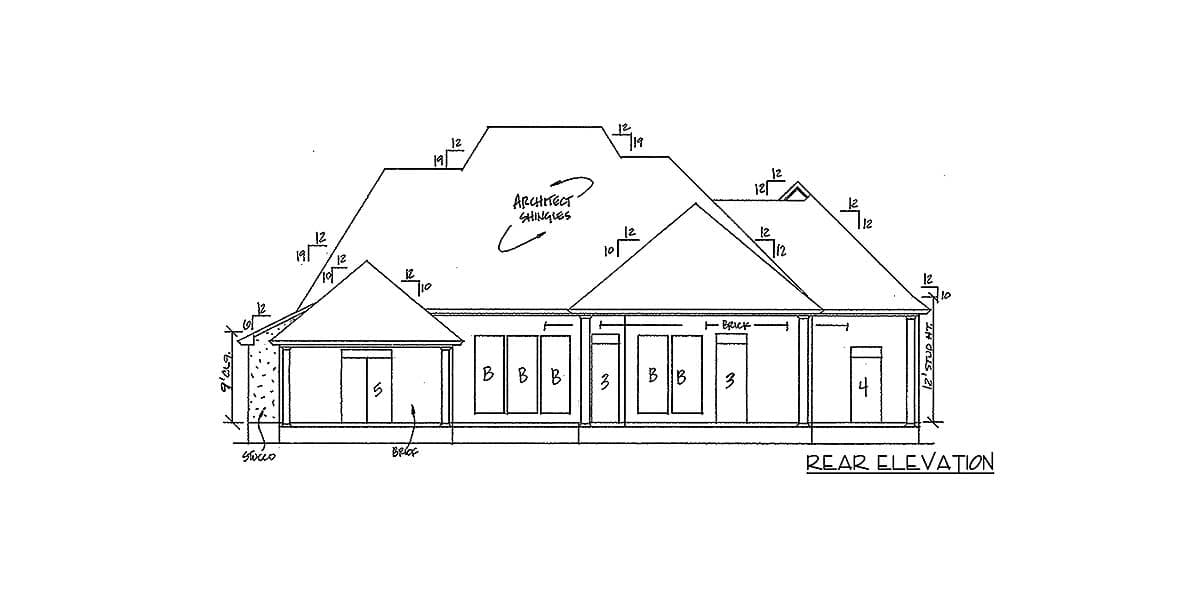

  • Rear, left and right elevations drawn at 1/8" scale
  • Fully dimensioned floor plan with door and window schedules
  • Roof plan which includes roof pitches and roof line information
  • Electrical plan
  • Kitchen cabinet elevations
  • HVAC layout, size of ducts and location of all registers
  • General construction details

Floor Plan

Plan details



Graceful and Elegant 4 Bed Acadian House Plan

  • 2,609

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $999
  • View all purchase option online

About This Plan

  • Here is a stunning Country French home with classic Acadian-influenced details. Wrought iron on the top balcony with dual gas lanterns make the curb appeal of this house stand out.
  • Stepping through the foyer, you are greeted by the large family room with a handsome tray ceiling and views to the rear covered porch.
  • In the kitchen (17'-3" x 15') you will find a large island and enough prep space for the most ambitious chef.
  • A large keeping room lies off to the side with a window-seated breakfast area.
  • Walk through one of two brick arches that lead to the large family room or enter the formal dining room.
  • Three bedrooms, including the master lie on one side of the house with a fourth bedroom behind the kitchen on the other side.
  • Upstairs is an optional bonus room perfectly suited for a media room.
  • But really what makes this house perfect for entertainment is the main rear porch with tall ceilings and built-in outdoor grill with easy-access fridge.

Floor Plans

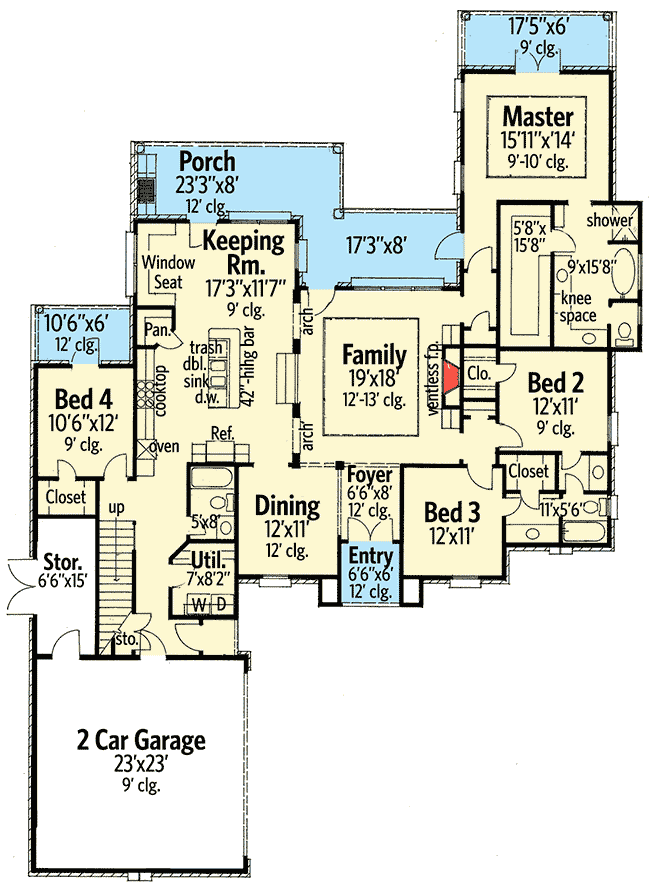

  • Main Level

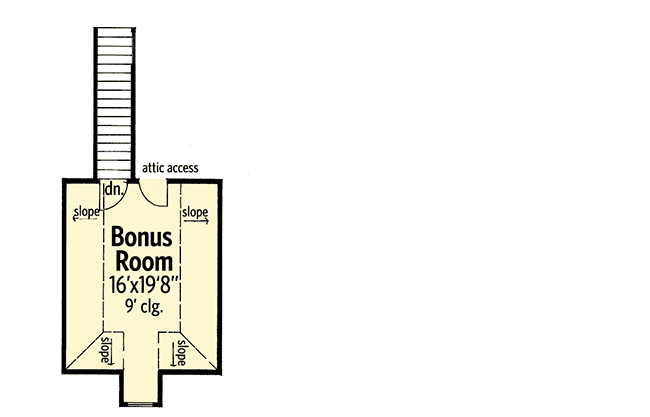

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,609 sq. ft.
  • 1st Floor: 2,609 sq. ft.
  • Storage: 111 sq. ft.
  • Porch, Combined: 461 sq. ft.
  • Bonus: 359 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 3"
  • Depth: 94' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
