Plan 333012JHB Gracious Hill Country Home Plan with Flexible Design

Gracious Hill Country Home Plan with Flexible Design

Plan 333012JHB

  • 2,933

    Heated s.f.

  • 2-3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • The graceful lines, classic groupings of windows, and welcoming front porch make this Hill Country home plan a great addition to any neighborhood.
  • The two-cook kitchen delivers two sinks, two islands, and plenty of openness. Long sight lines and windows draw you to the spacious back porch and outdoor living space.
  • The laundry (with mop sink and broom closet) and garage are just steps away.
  • All bedrooms are larger than normal, with an emphasis on the owner's needs.
  • A stunning master foyer with a vaulted ceiling sets the scene and provides access to a study. A bay window sitting nook, oversized water closet, and a beautiful tub nook are just a few of the notable features in the master suite.

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

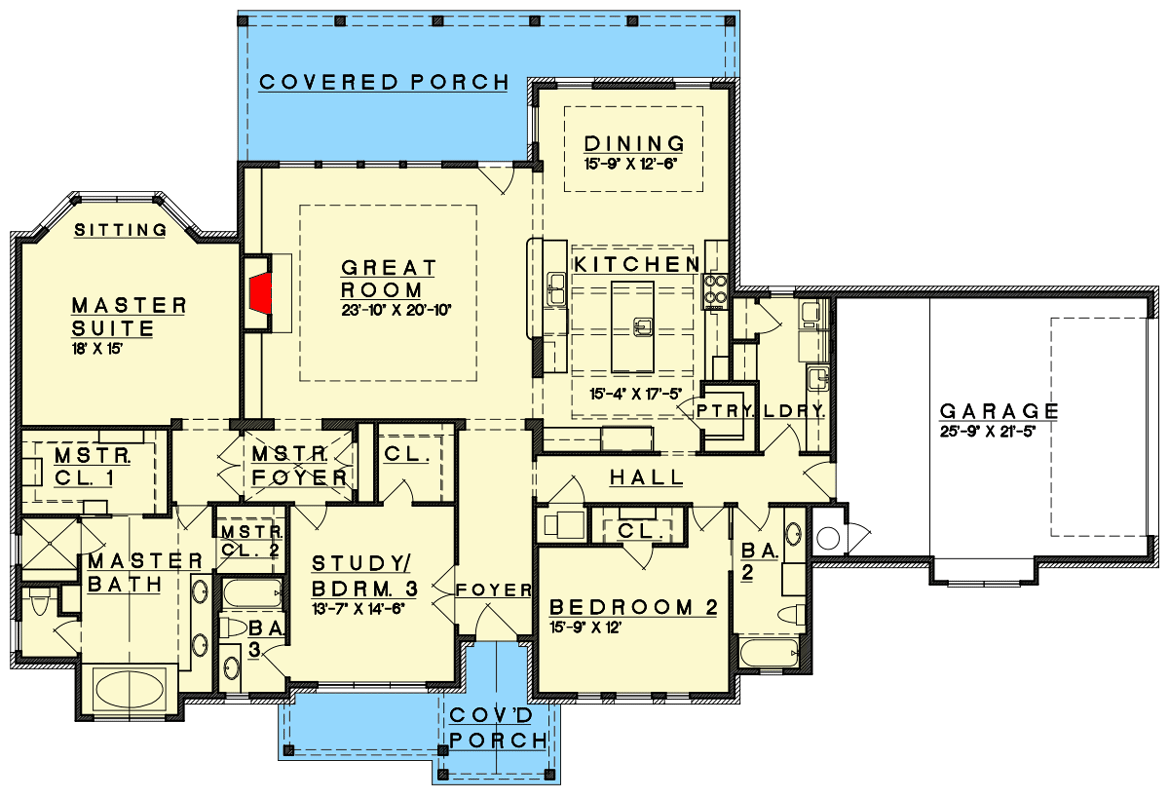

Gracious Hill Country Home Plan with Flexible Design - 333012JHB floor plan - Main Level

Plan details

Gracious Hill Country Home Plan with Flexible Design

  • 2,933

    Heated s.f.

  • 2-3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • 5 Sets $1,700
  • 8 Sets $1,850
  • View all purchase option online

About This Plan

  • The graceful lines, classic groupings of windows, and welcoming front porch make this Hill Country home plan a great addition to any neighborhood.
  • The two-cook kitchen delivers two sinks, two islands, and plenty of openness. Long sight lines and windows draw you to the spacious back porch and outdoor living space.
  • The laundry (with mop sink and broom closet) and garage are just steps away.
  • All bedrooms are larger than normal, with an emphasis on the owner's needs.
  • A stunning master foyer with a vaulted ceiling sets the scene and provides access to a study. A bay window sitting nook, oversized water closet, and a beautiful tub nook are just a few of the notable features in the master suite.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,933 sq. ft.
  • 1st Floor: 2,933 sq. ft.
  • Porch, Rear: 394 sq. ft.
  • Porch, Front: 167 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 94' 10"
  • Depth: 63' 11"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
