Plan 23740JD

Grand Craftsman House Plan

Name: Plan 23740JD: Grand Craftsman House Plan
Brand: Architectural Designs
SKU: 23740JD
Price: 2900.0 USD
Availability: InStock

Heated S.F.

4,599

Beds

Baths

Stories

Cars

Floor Plan

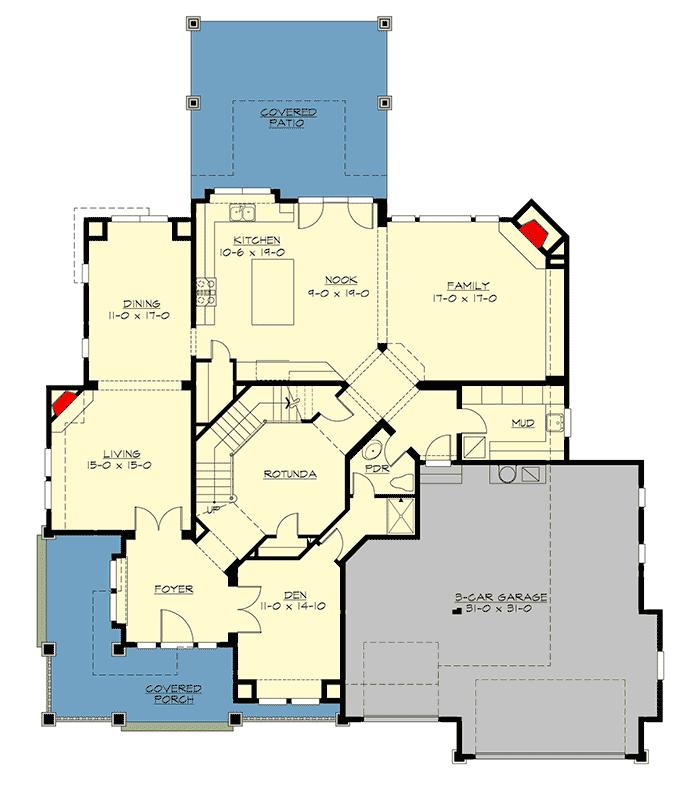

Main Level

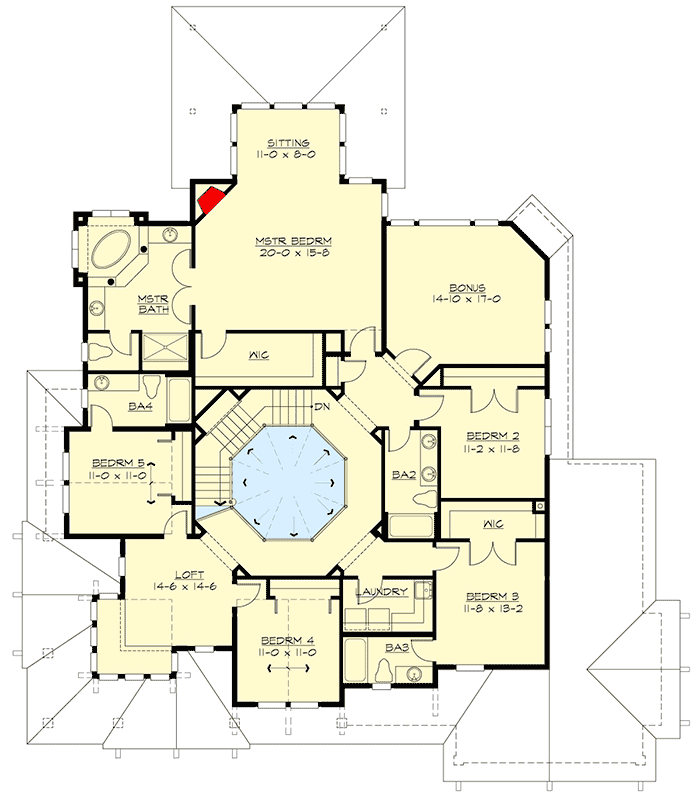

2nd Floor

Plan Details

This grand Craftsman house plan is brimming with gorgeous features that add up to an impressive house.

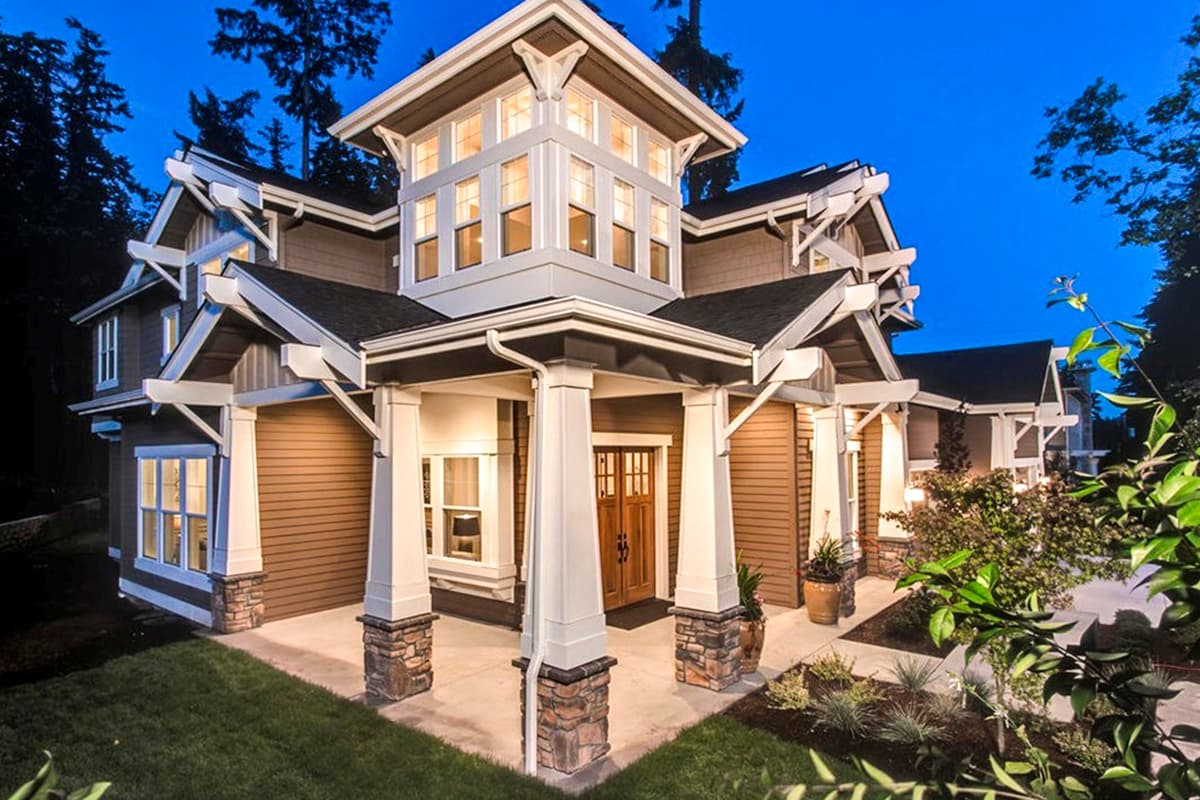

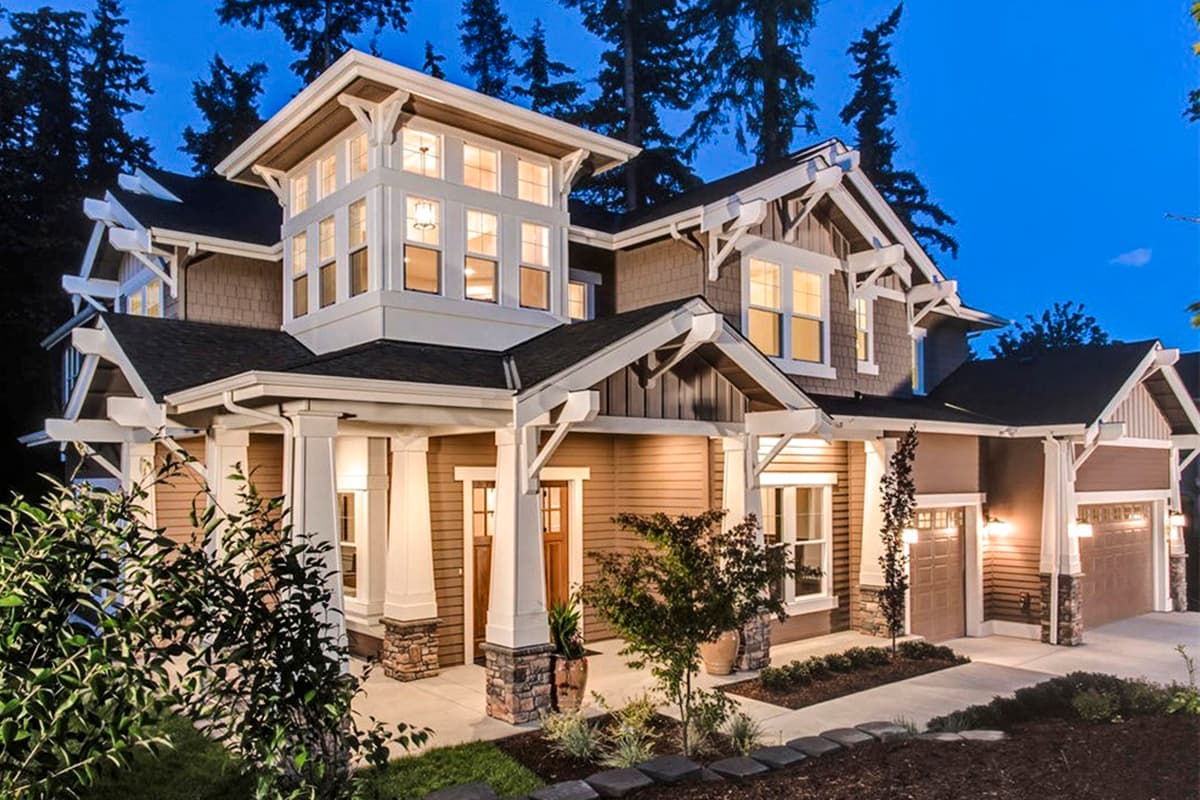

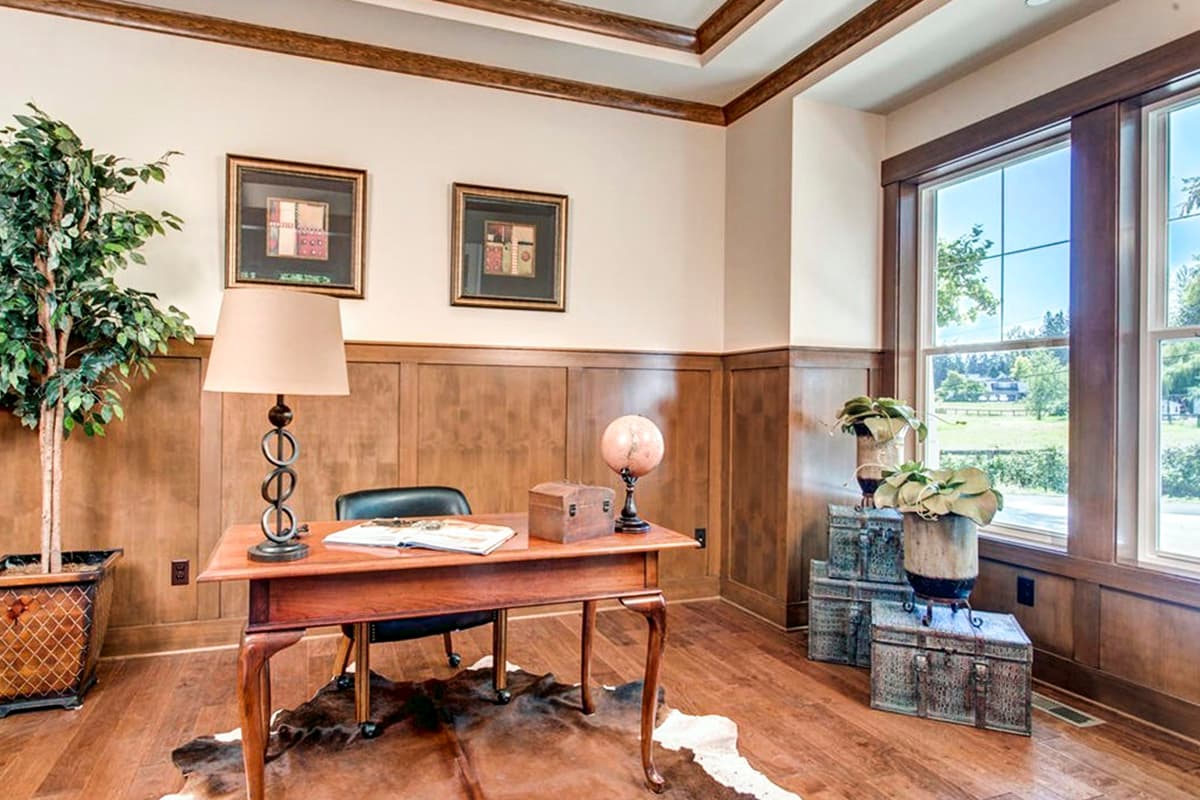

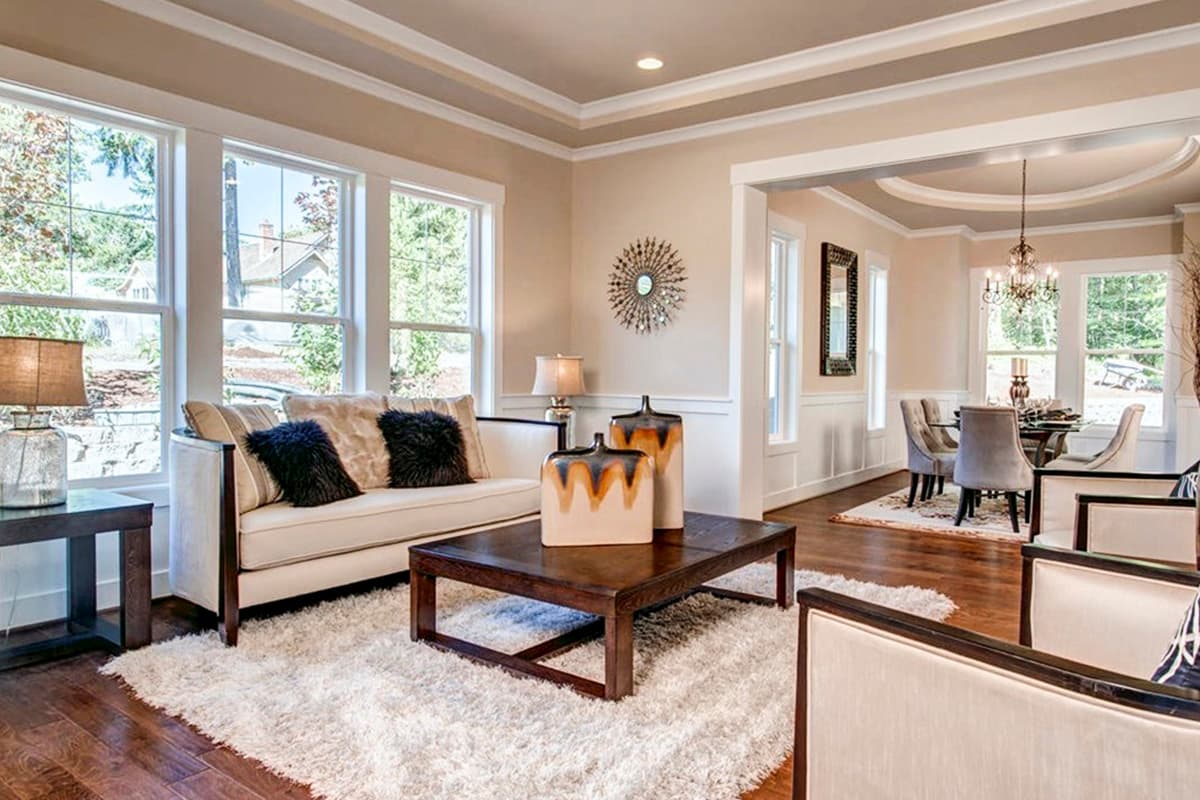

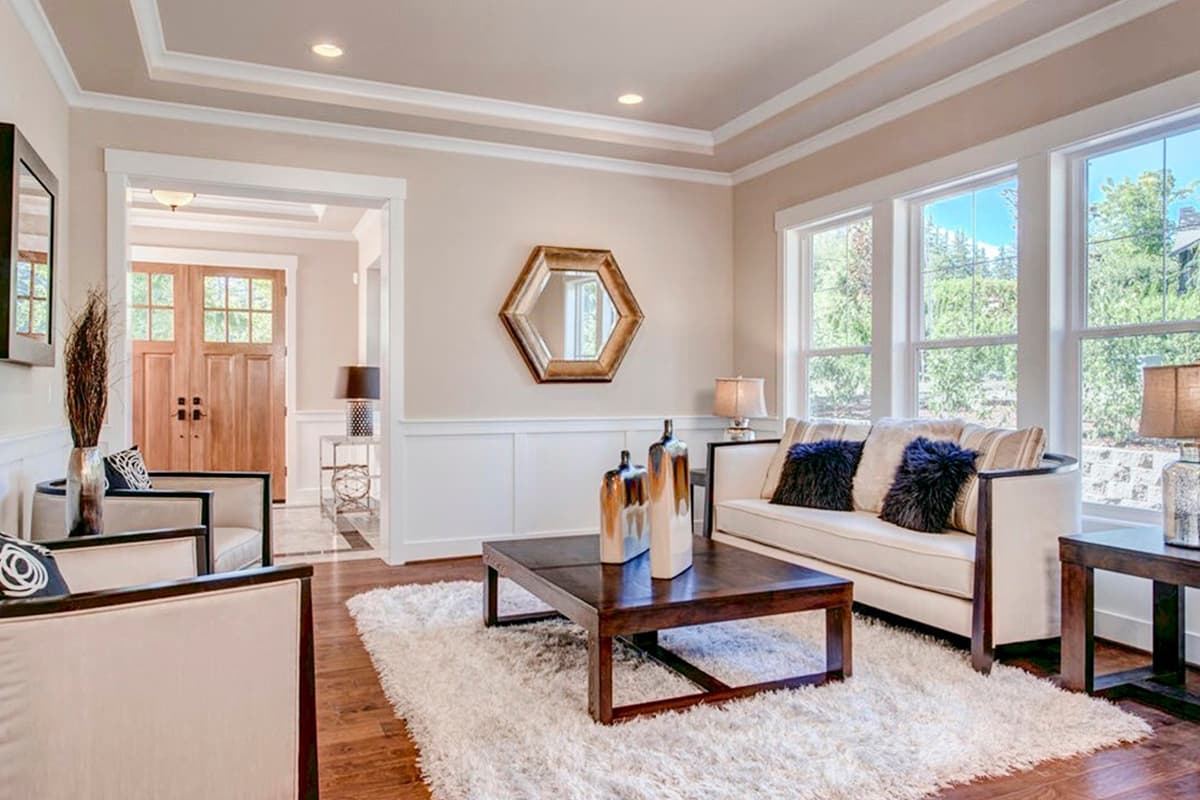

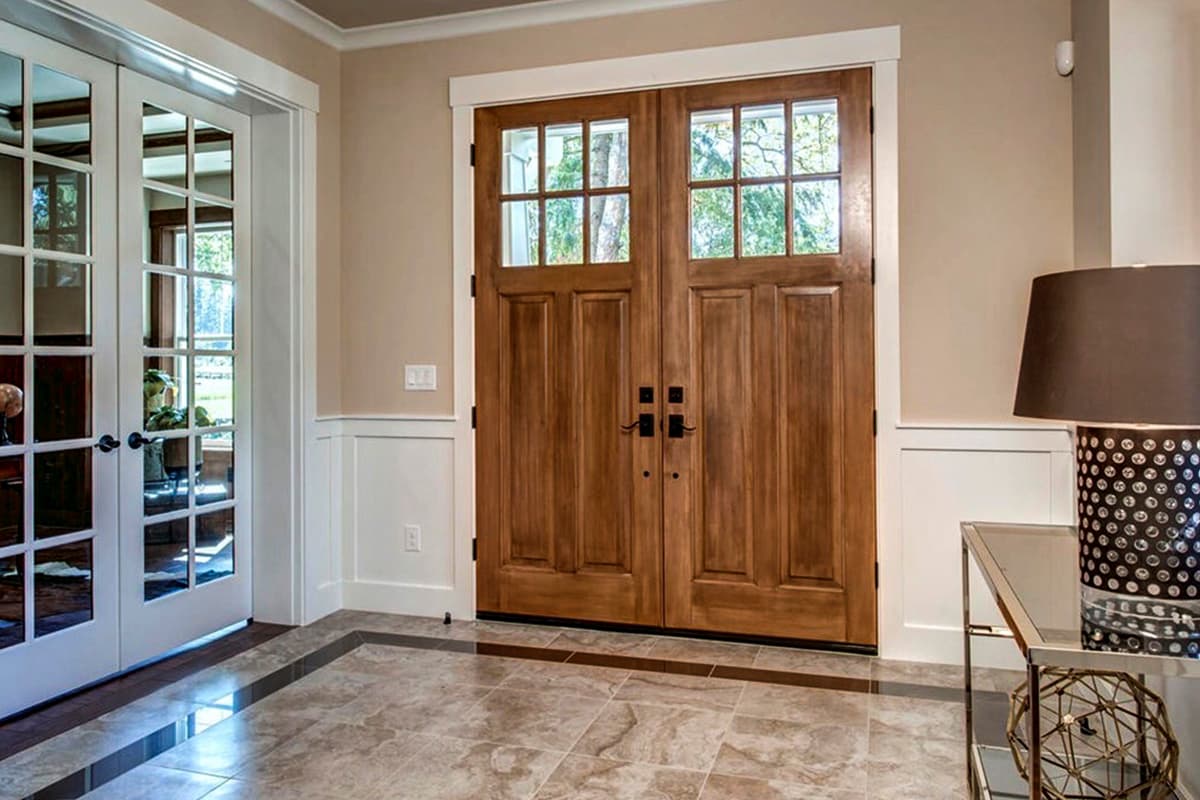

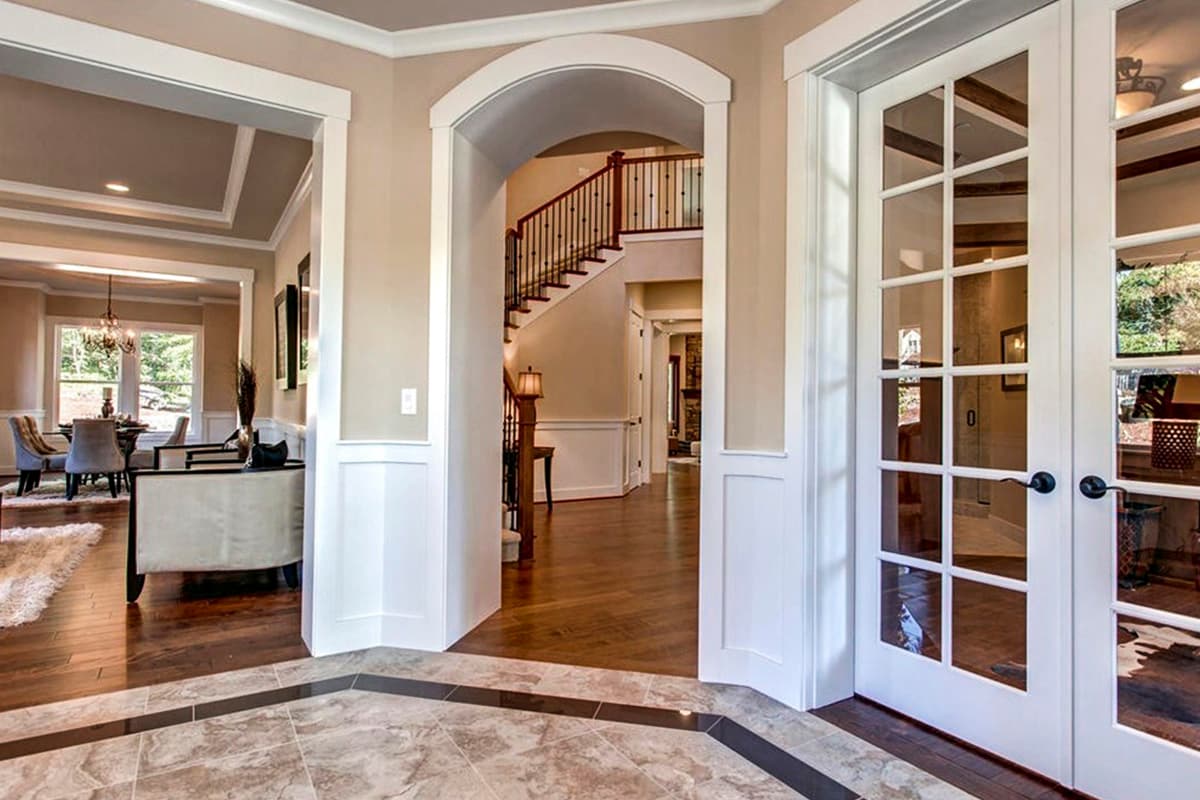

A wrap-around front porch surrounds the large foyer where you can head right to the den with its attached bathroom, or back to the formal living room with its corner fireplace.

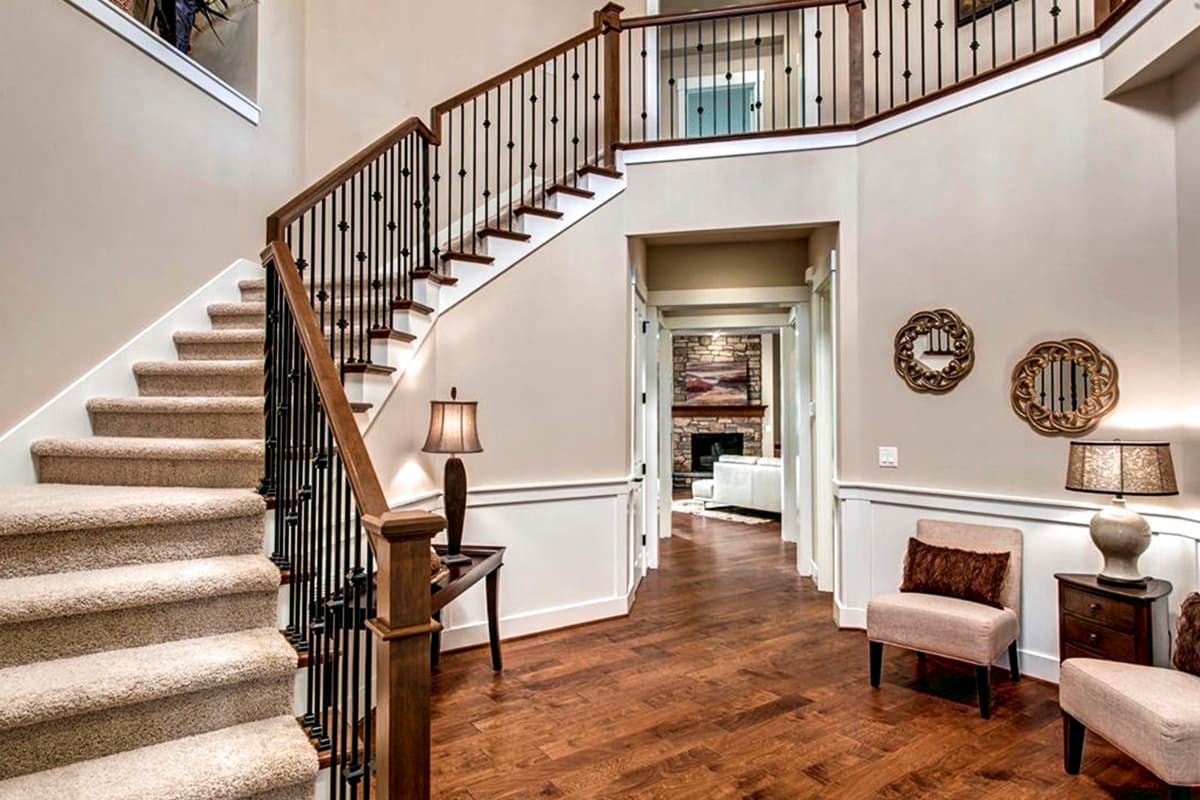

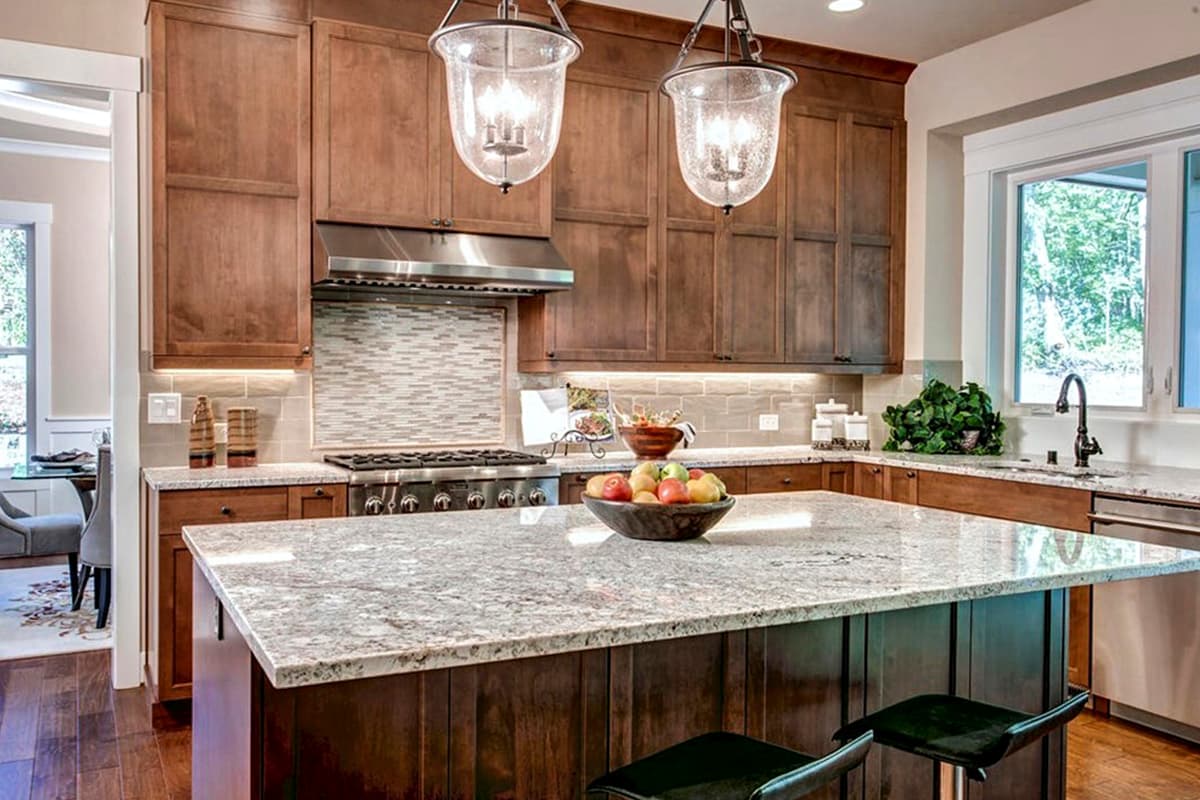

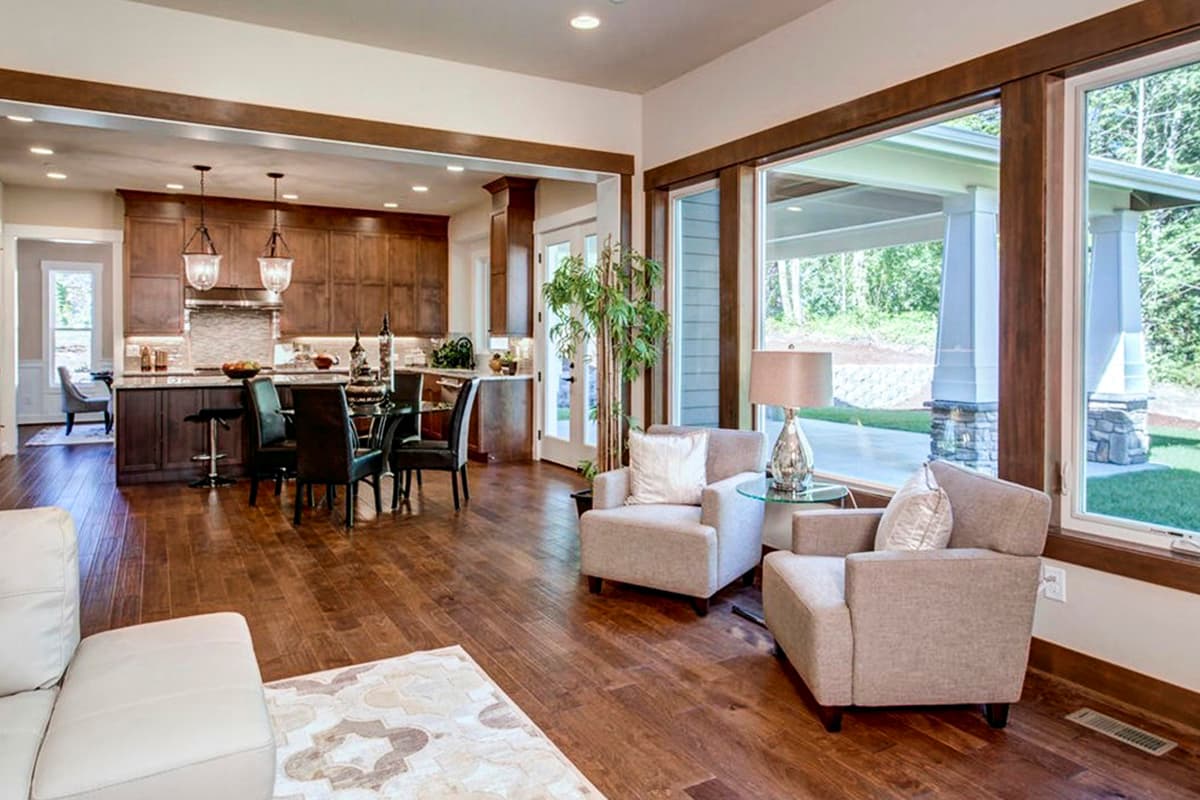

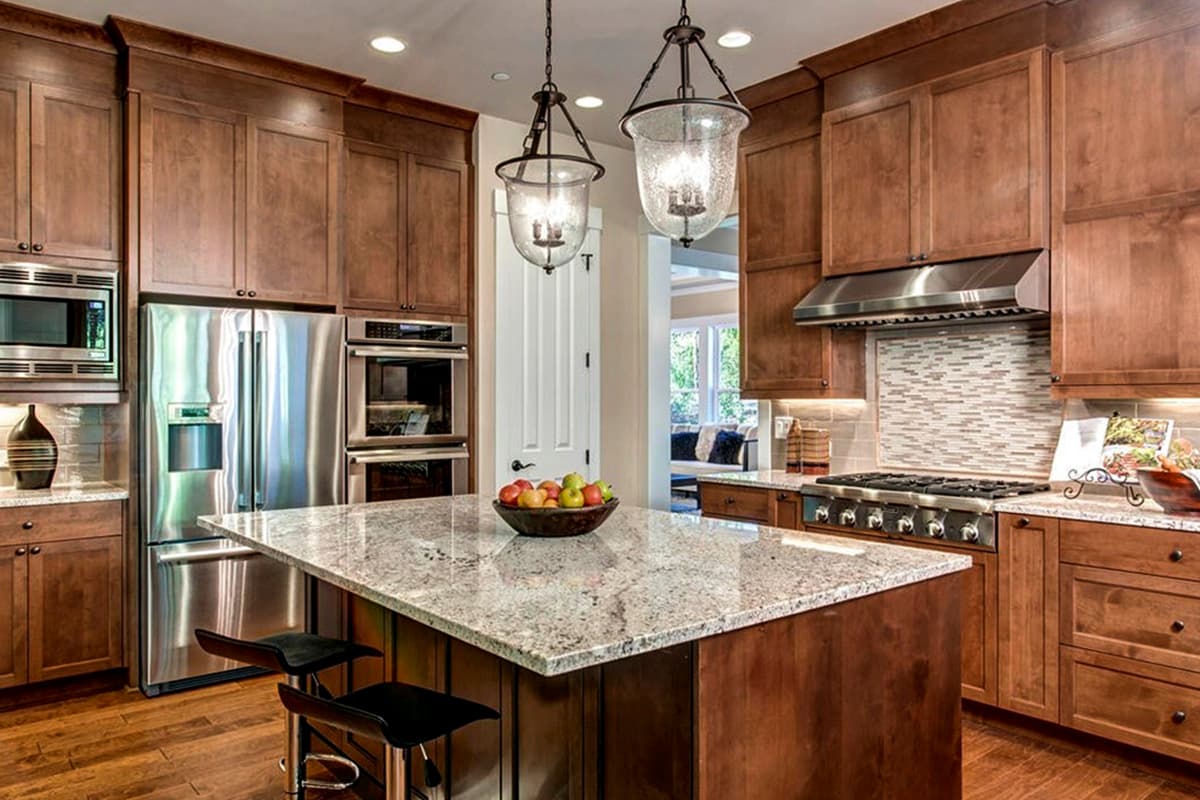

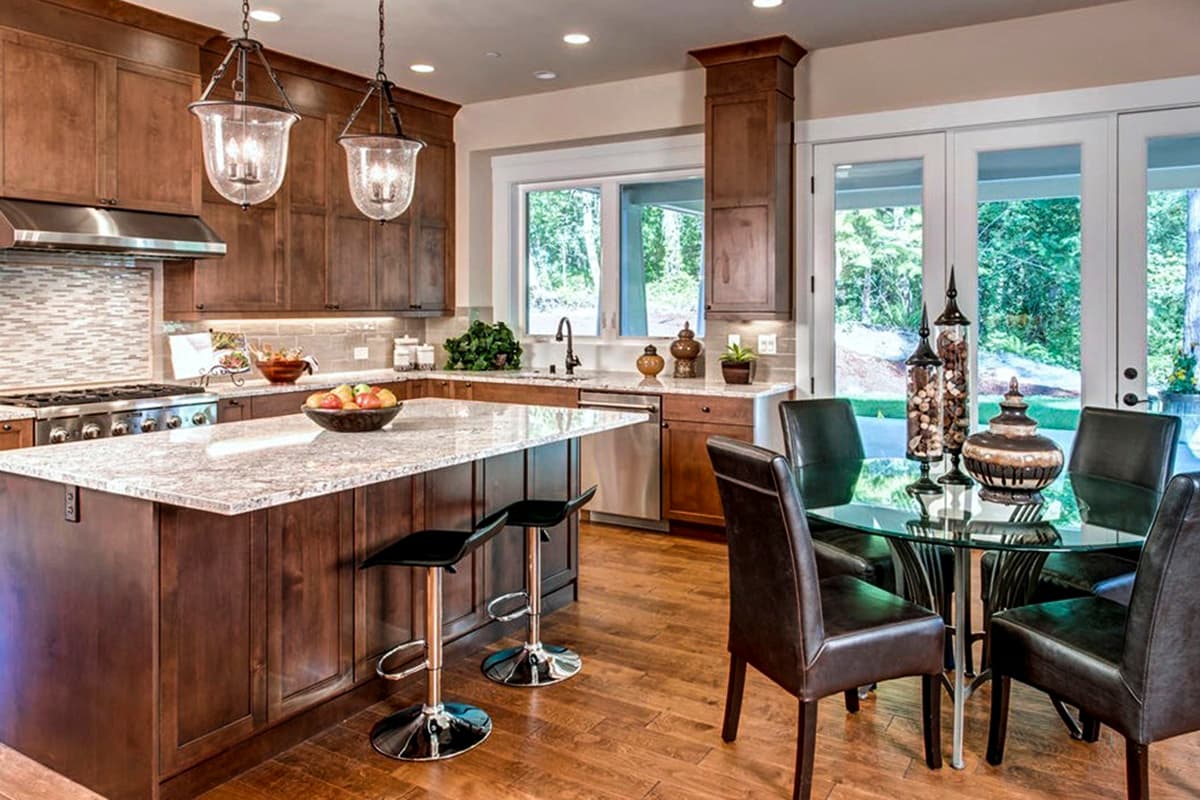

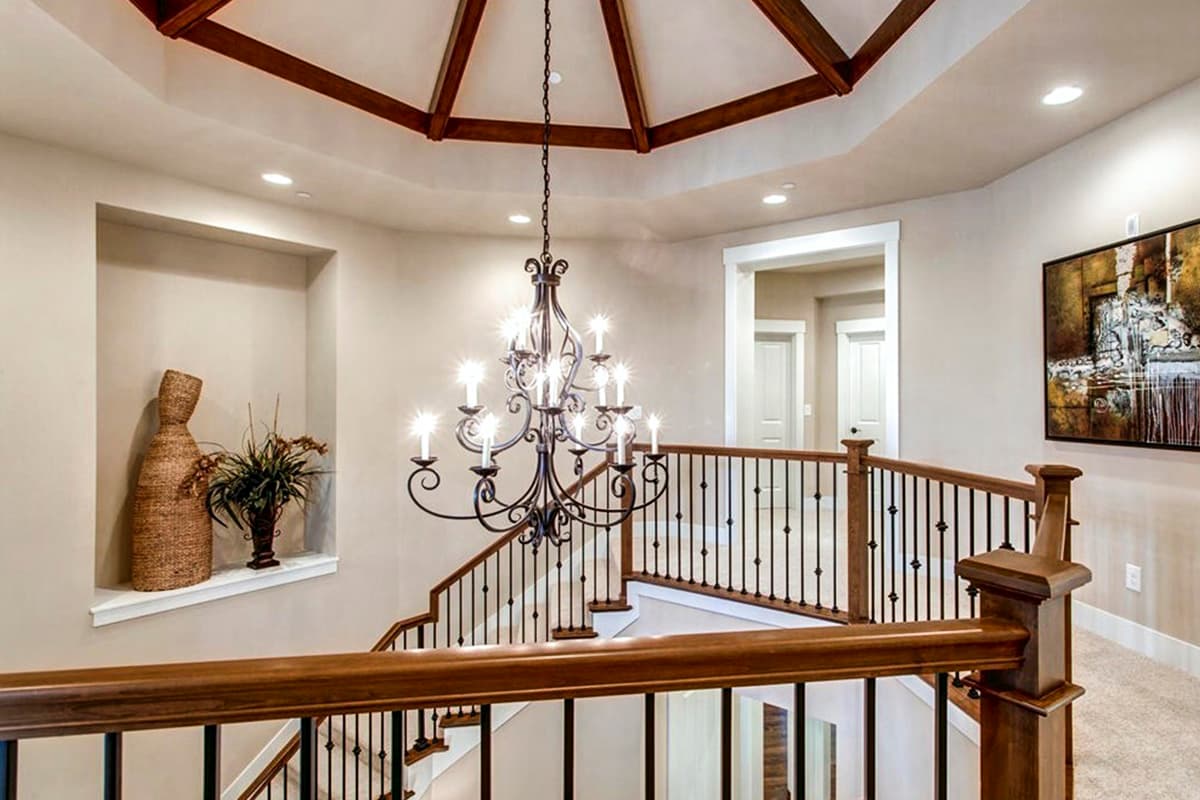

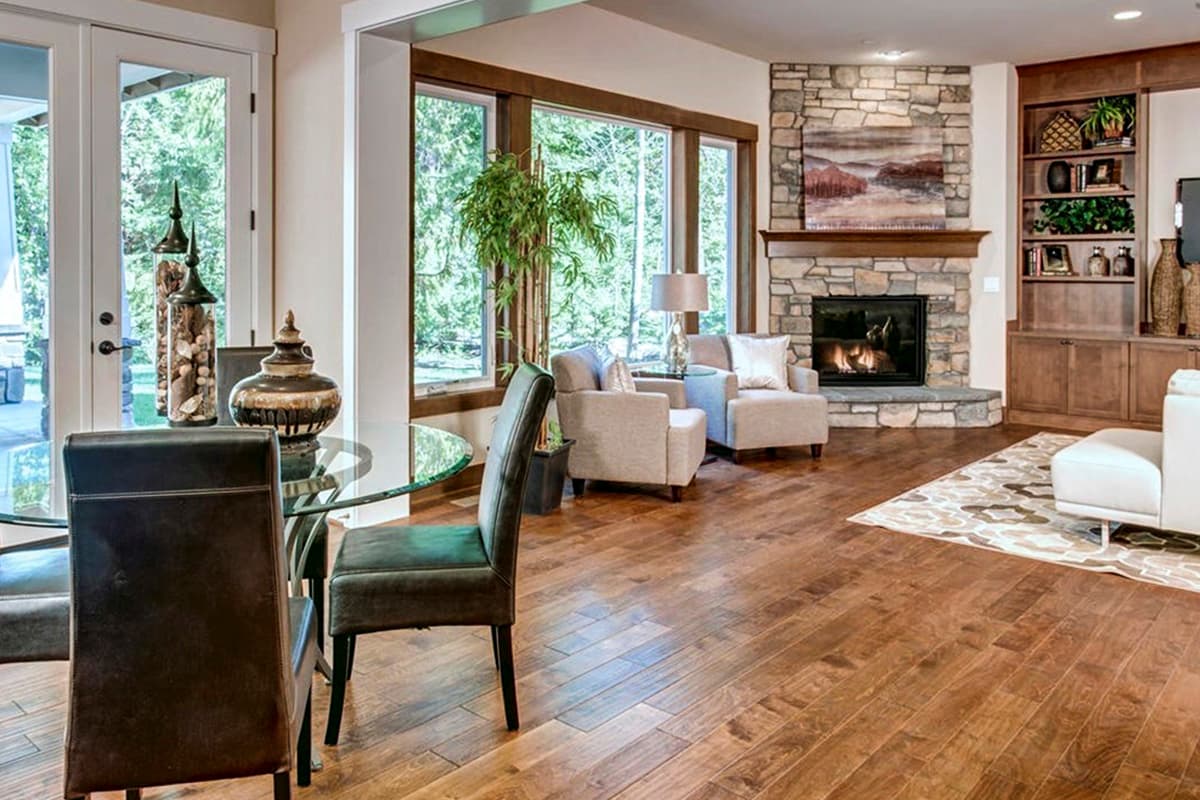

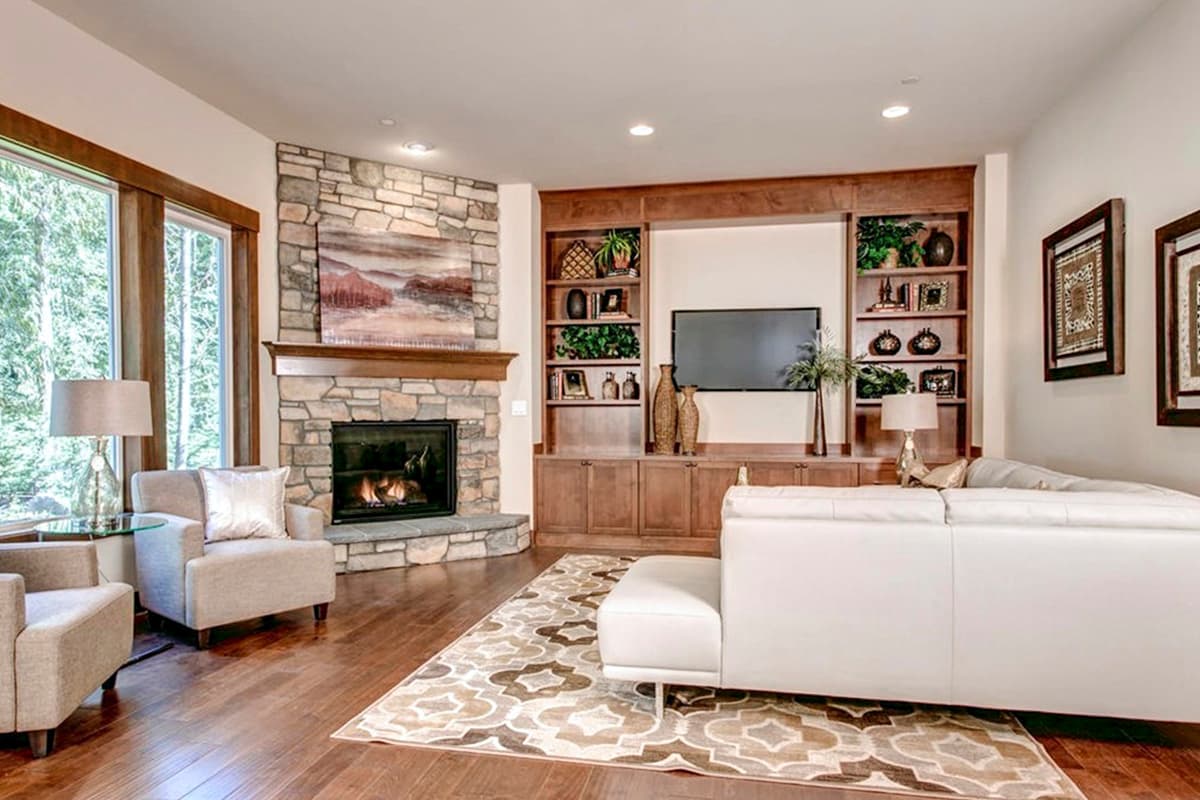

The octagonal rotunda rises up two stories and continues on to the informal area of the home comprised of the family room, nook and kitchen.
The second floor builds out over the garage to give you a huge amount of square footage with five bedrooms, all a generous size.
Open railing in the hall lets you look down into the rotunda below.

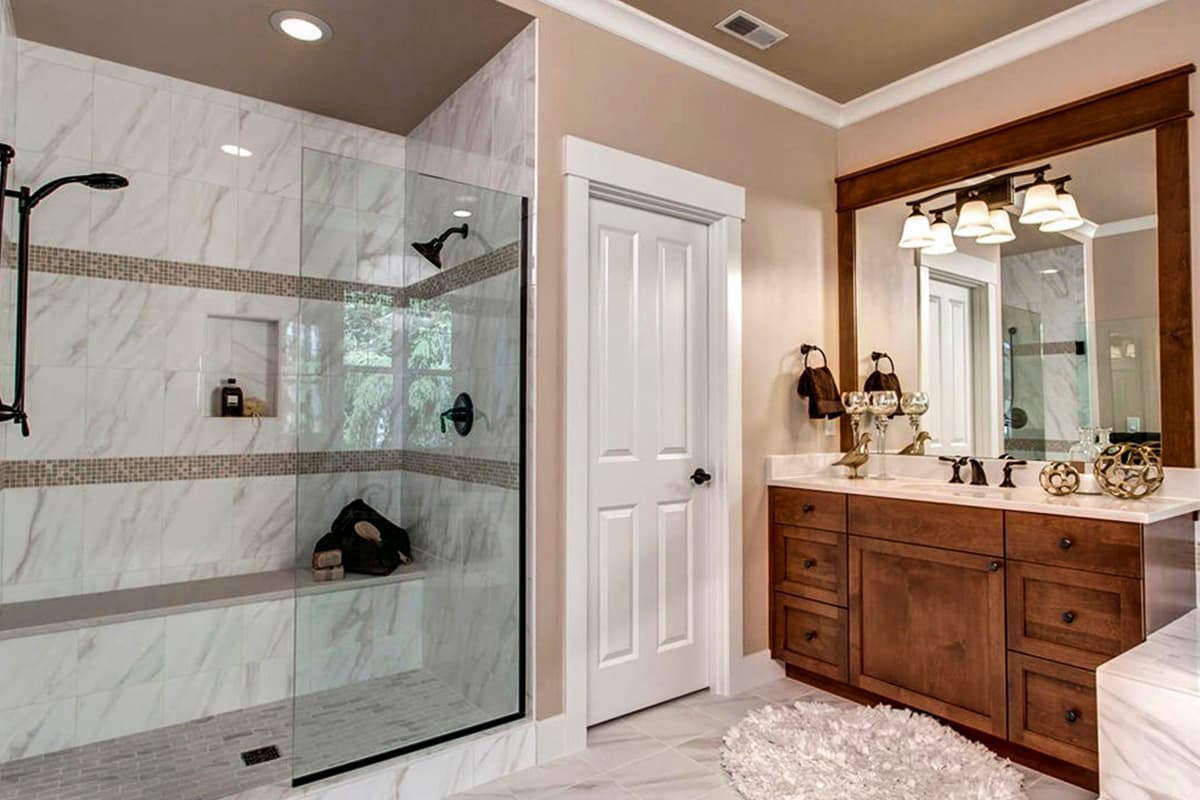

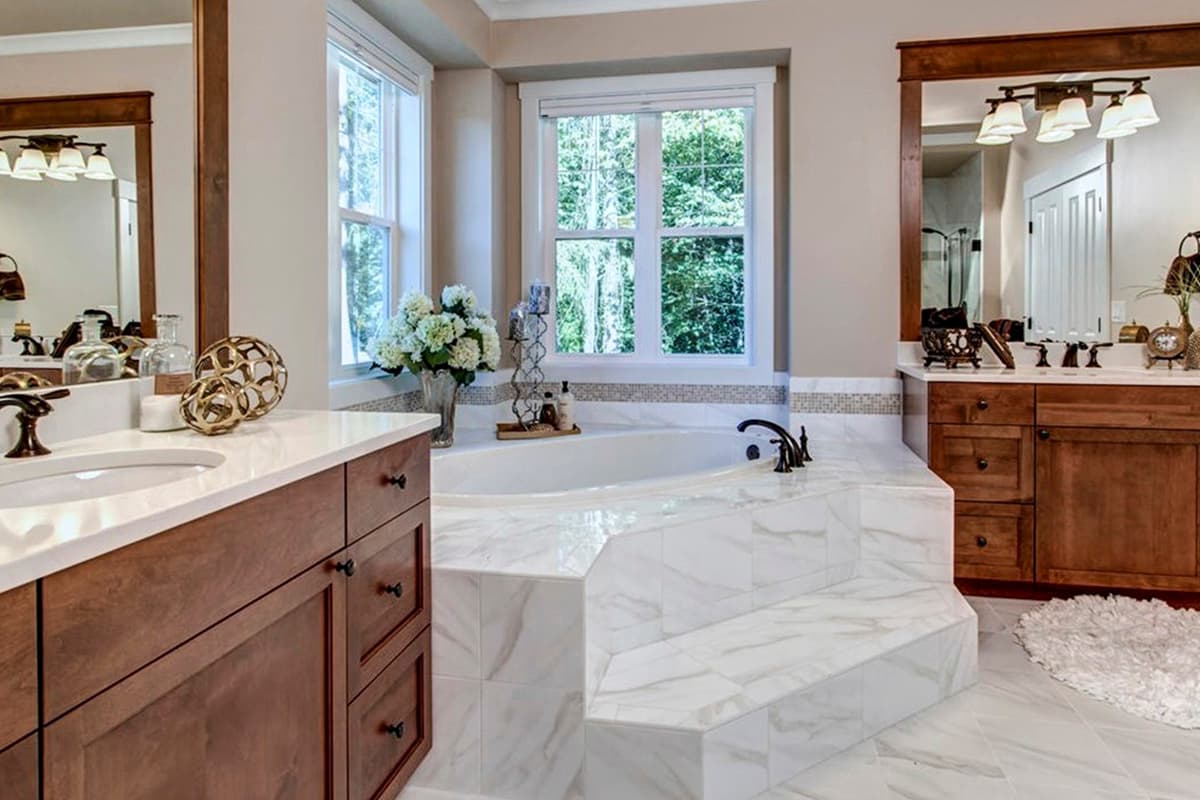

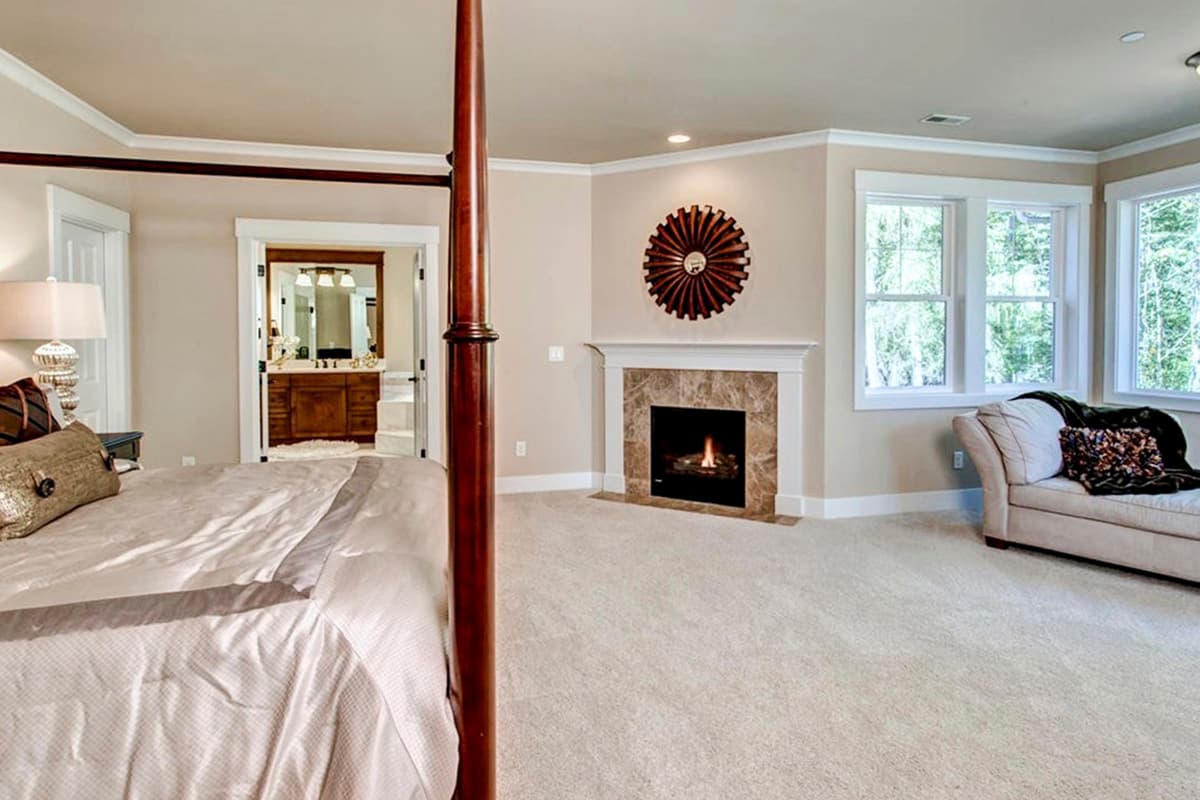

The opulent master bedroom has it all - a romantic fireplace, a sitting area with glass on three sides and a gorgeous bathroom with a grand soaking tub framed by columns.
In the reading loft, transom windows brighten the whole area.

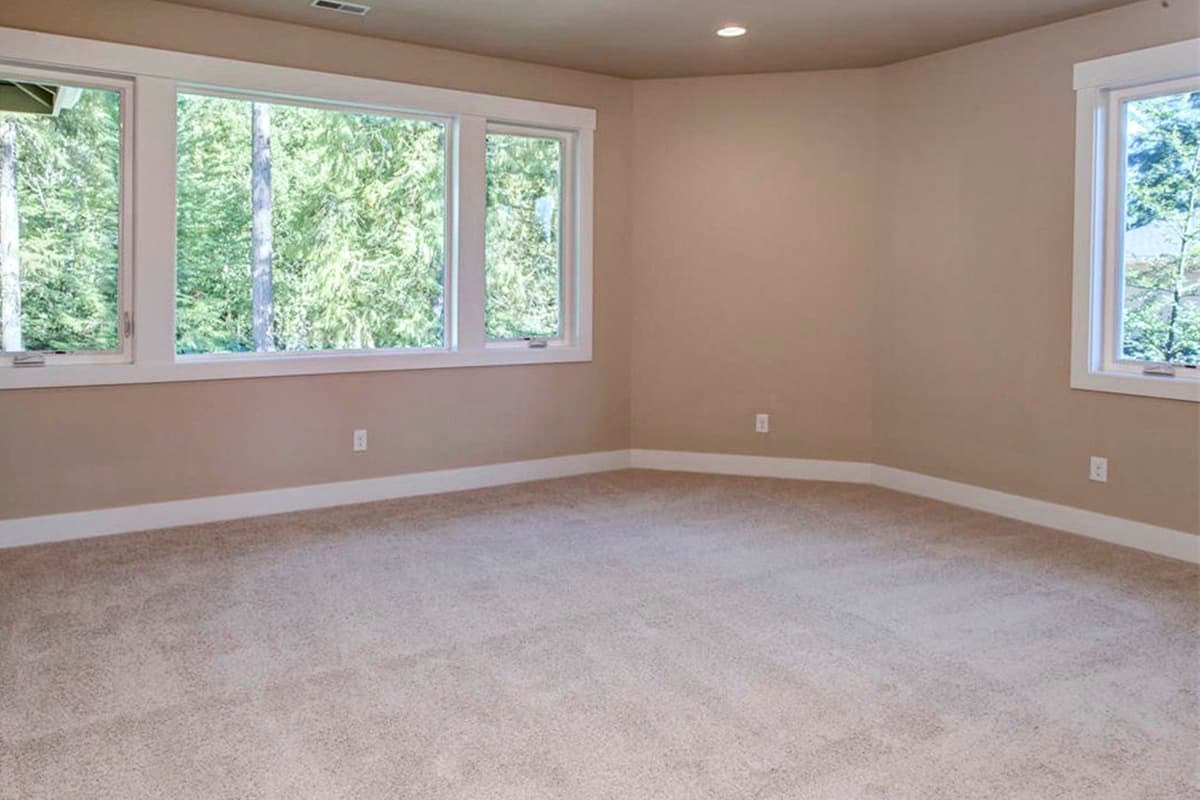

The bonus room is included in the second floor square footage.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

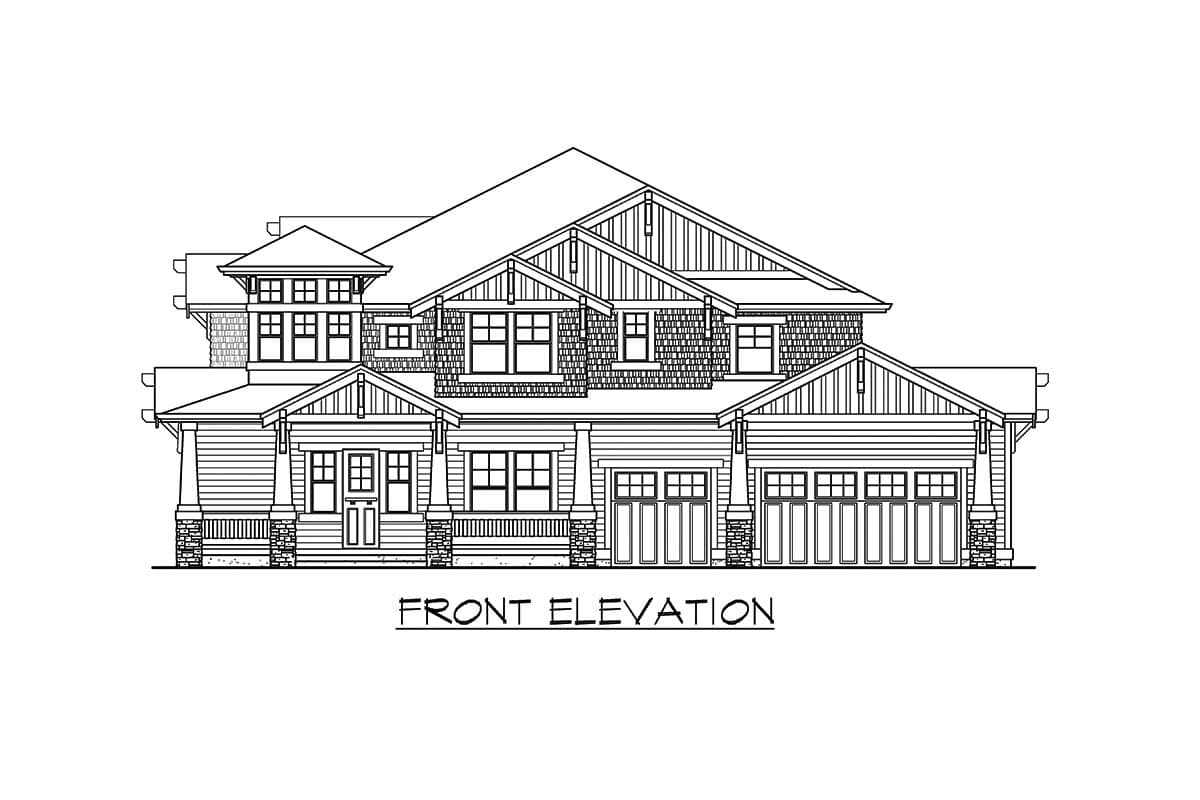

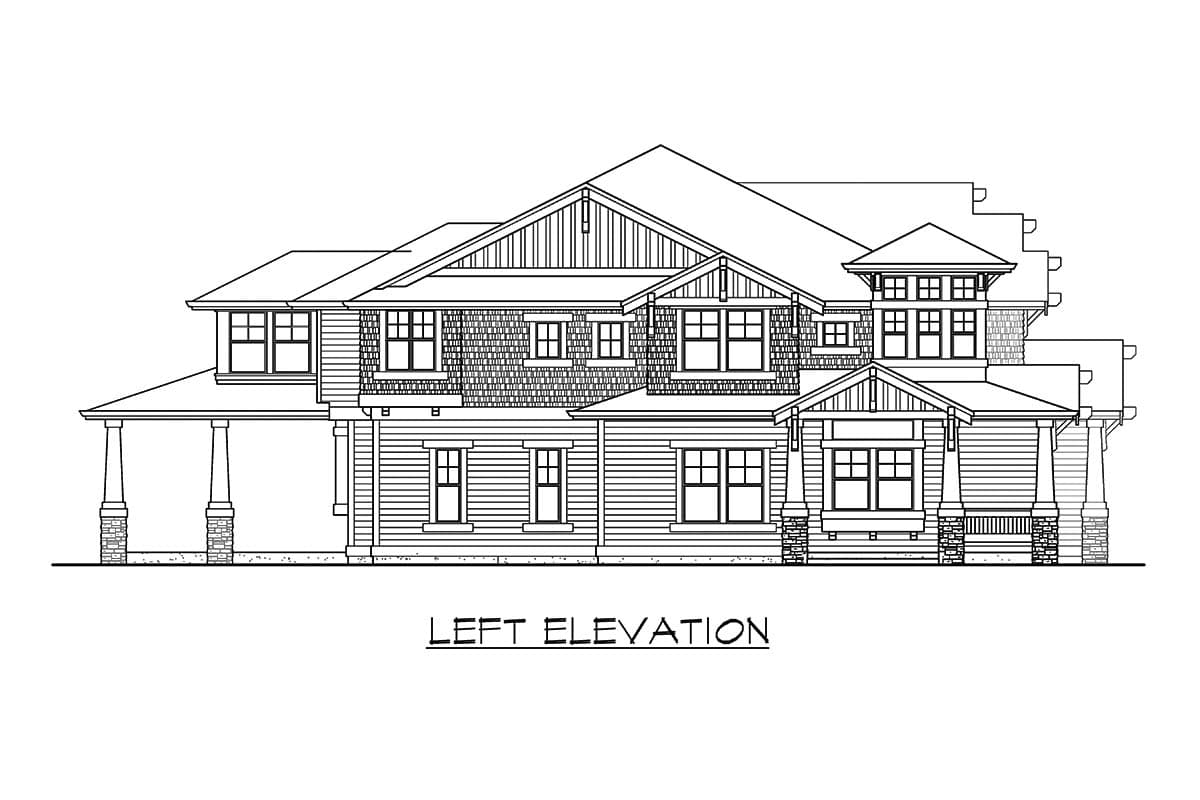

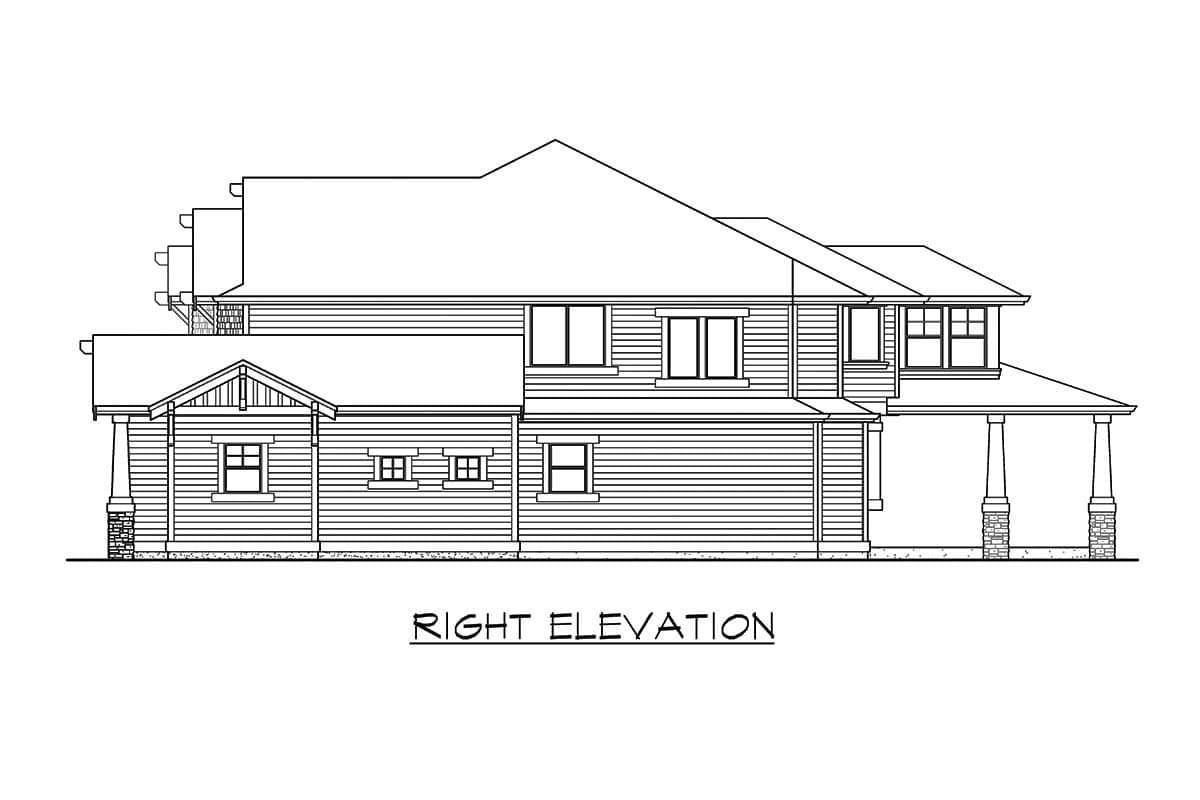

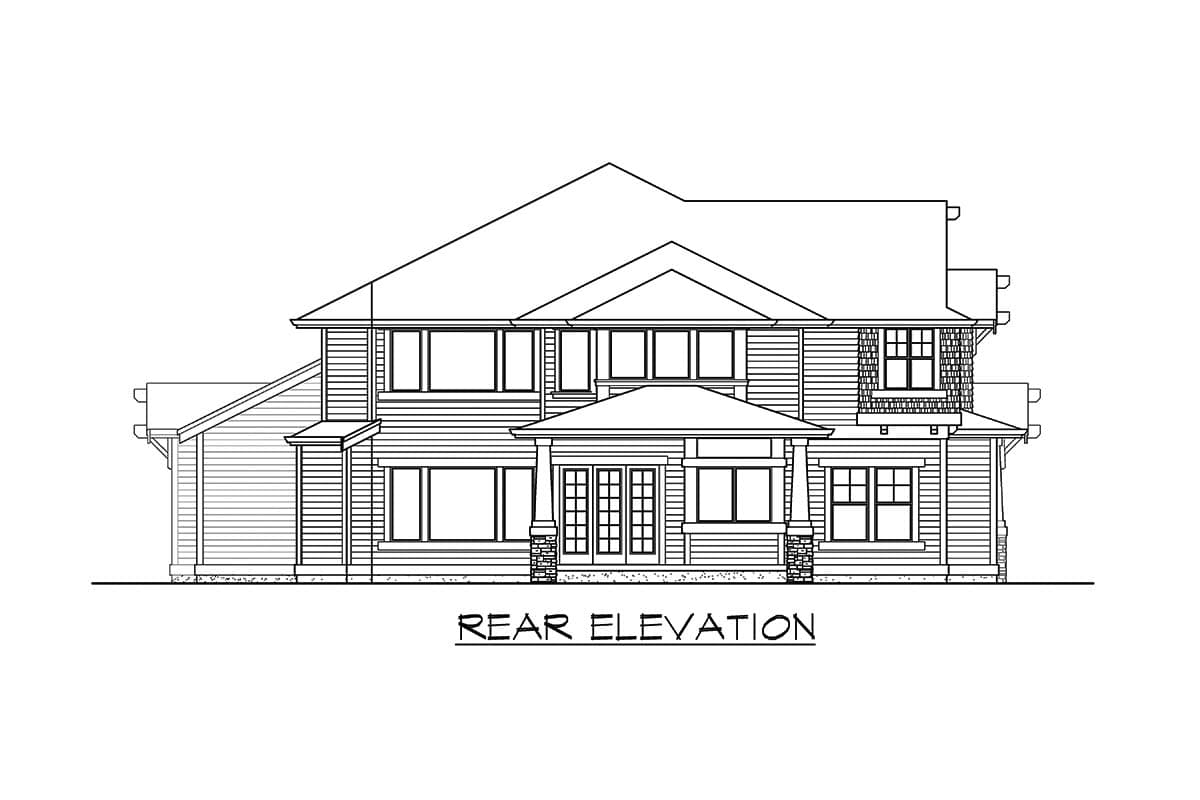

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
