Plan 69141AM Grand Interior, Plus Outdoor Living and Kitchen

6,497 5 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Grand Interior, Plus Outdoor Living and Kitchen

Plan 69141AM

  • 6,497

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

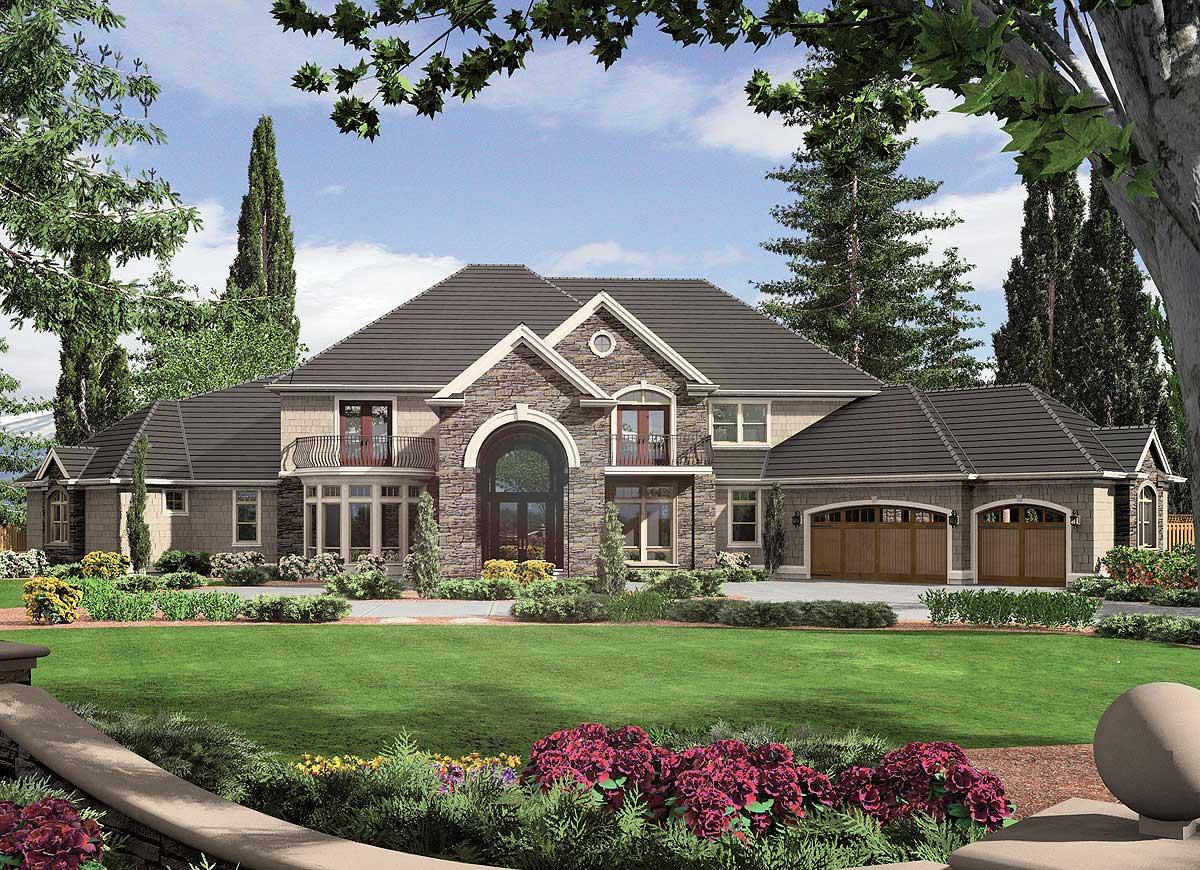

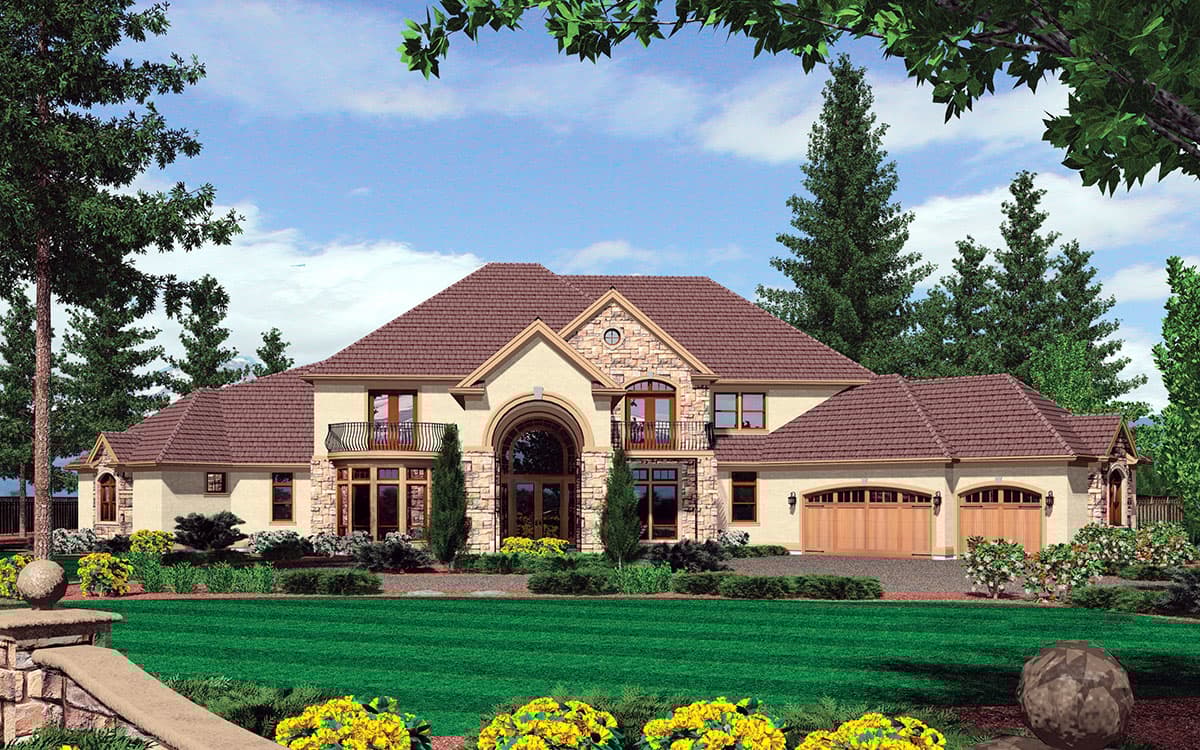

  • The angled wings of this home provide it with a nice perspective and add interest to its already splendid appeal. The floor plan allows for both formal and informal gatherings.
  • From the two-story foyer, you can easily reach both the formal living and dining rooms. Both are adorned with decorative columns at their entries.

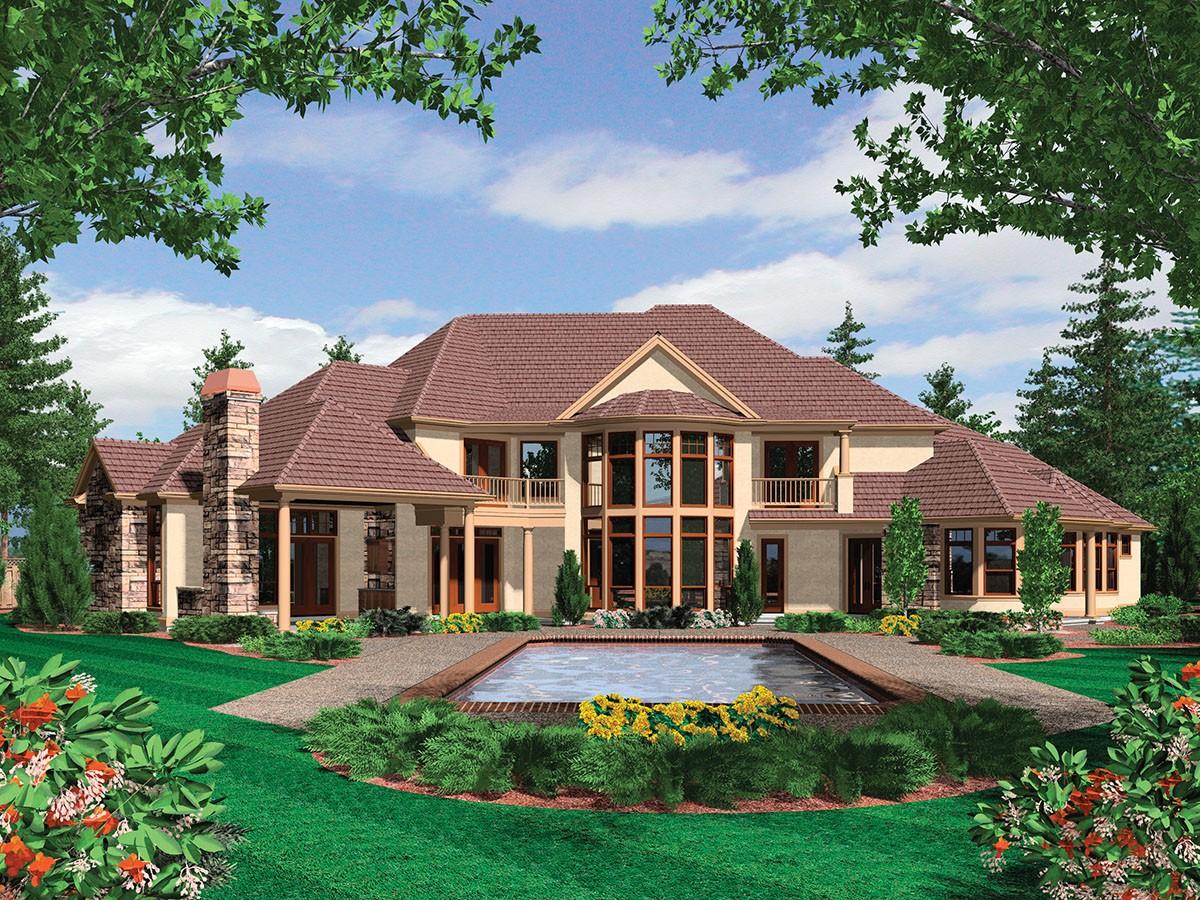

  • The dining room has hutch space; the living room features a huge curved window area overlooking the rear yard and accesses an outdoor living space with fireplace and outdoor kitchen that is also near the family room.
  • The kitchen and nook lie between the informal and formal spaces'look for a huge walk-in food pantry here, as well as a butler's pantry connecting it to the formal dining room.
  • The opposite wing holds an office with built-ins and curved window, and the master suite, which features a sitting alcove with fireplace, a wet bar and a bath with huge walk-in shower, a spa garden tub, and three walk-in closets.
  • Upper-level bedrooms (there are four) have private baths and walk-in closets. All bedrooms have space for a stackable washer/dryer in their baths, in addition to a large laundry room on the main level.
  • Each bedroom also has a private balcony or patio area.
  • A media center on the upper level opens from double doors in the hall.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

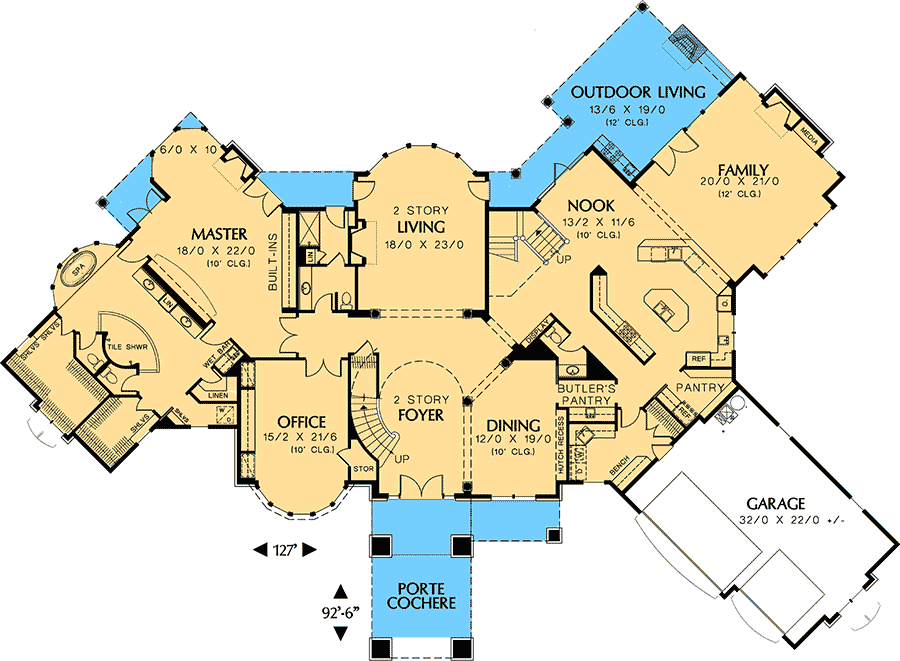

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Interior, Plus Outdoor Living and Kitchen - 69141AM floor plan - Main Level

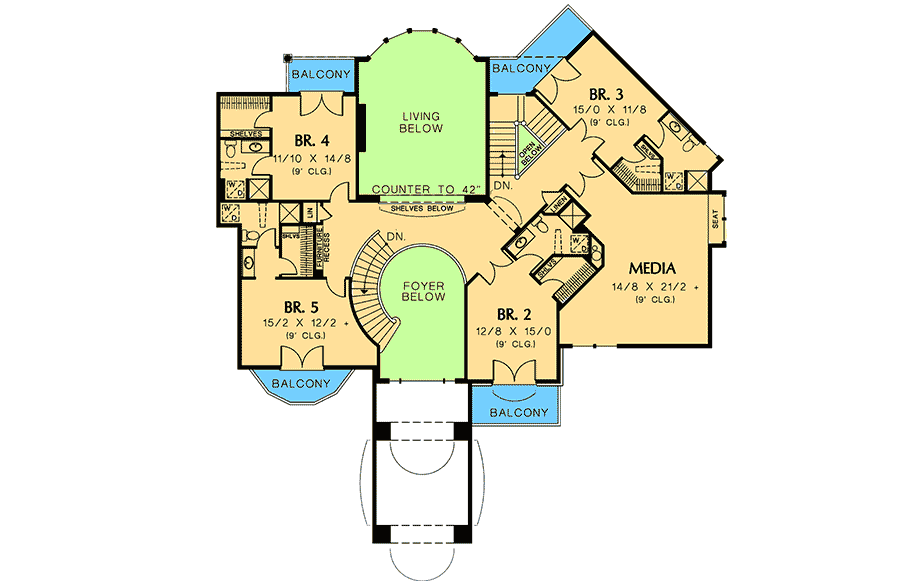

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Interior, Plus Outdoor Living and Kitchen - 69141AM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,497 sq. ft.
  • 1st Floor: 4,404 sq. ft.
  • 2nd Floor: 2,093 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 127' 0"
  • Depth: 92' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 704 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Grand Interior, Plus Outdoor Living and Kitchen

  • 6,497

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,846
  • 5 Sets $3,046
  • 5 Sets + PDF $3,096
  • CAD + PDF - Unlimited Build $5,692
  • View all purchase option online

About This Plan

  • The angled wings of this home provide it with a nice perspective and add interest to its already splendid appeal. The floor plan allows for both formal and informal gatherings.
  • From the two-story foyer, you can easily reach both the formal living and dining rooms. Both are adorned with decorative columns at their entries.
  • The dining room has hutch space; the living room features a huge curved window area overlooking the rear yard and accesses an outdoor living space with fireplace and outdoor kitchen that is also near the family room.
  • The kitchen and nook lie between the informal and formal spaces'look for a huge walk-in food pantry here, as well as a butler's pantry connecting it to the formal dining room.
  • The opposite wing holds an office with built-ins and curved window, and the master suite, which features a sitting alcove with fireplace, a wet bar and a bath with huge walk-in shower, a spa garden tub, and three walk-in closets.
  • Upper-level bedrooms (there are four) have private baths and walk-in closets. All bedrooms have space for a stackable washer/dryer in their baths, in addition to a large laundry room on the main level.
  • Each bedroom also has a private balcony or patio area.
  • A media center on the upper level opens from double doors in the hall.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,497 sq. ft.
  • 1st Floor: 4,404 sq. ft.
  • 2nd Floor: 2,093 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 127' 0"
  • Depth: 92' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 704 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
