Plan 66380WE

Grand Mediterrean Estate House Plan with 2-Bedroom Apartment - 8364 Sq Ft

Name: Plan 66380WE: Grand Mediterrean Estate House Plan with 2-Bedroom Apartment - 8364 Sq Ft
Brand: Architectural Designs
SKU: 66380WE
Price: 5202.00 USD
Availability: InStock

Heated S.F.

8,364

Beds

Baths

5.5+

Stories

Cars

Floor Plan

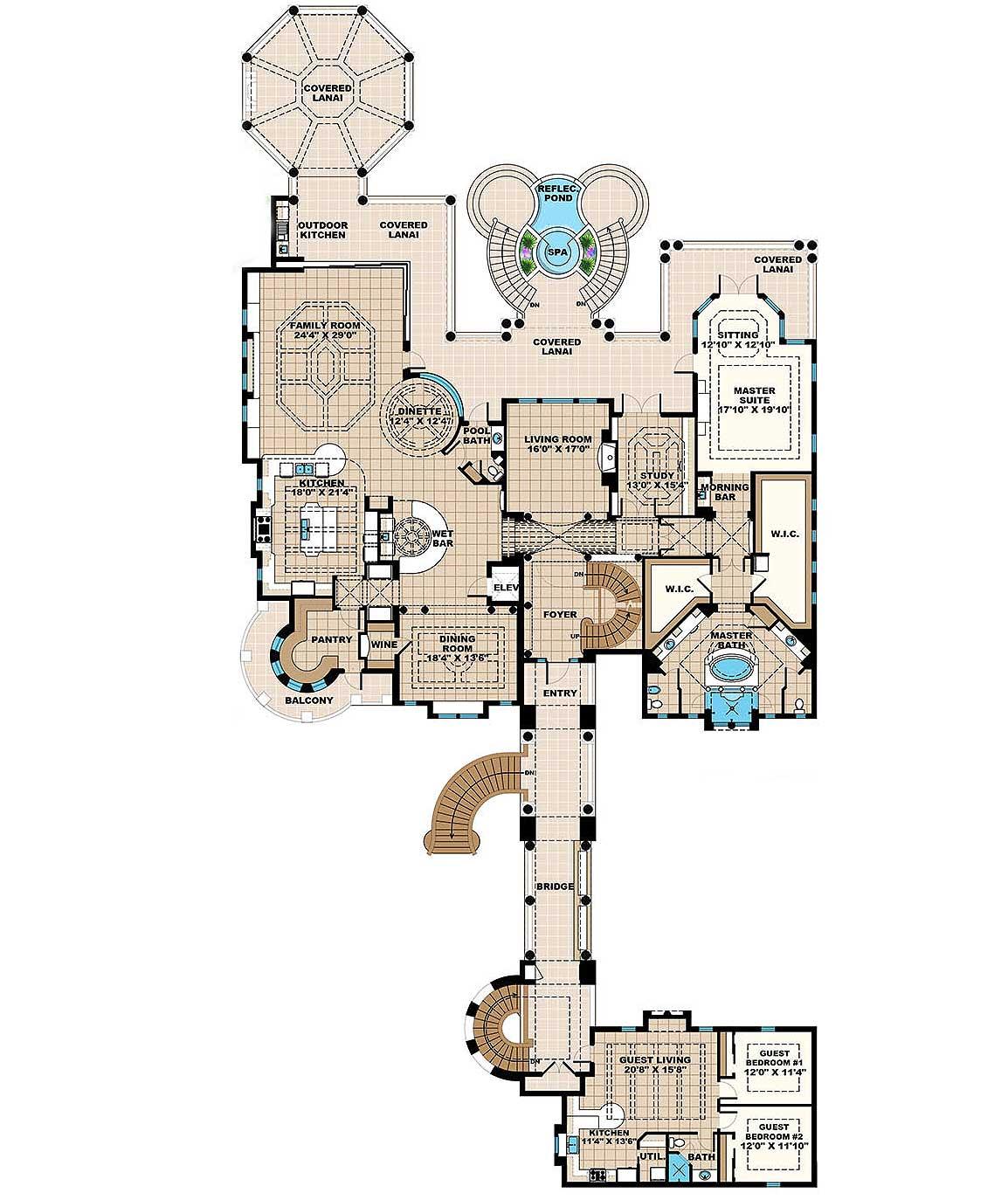

Main Level

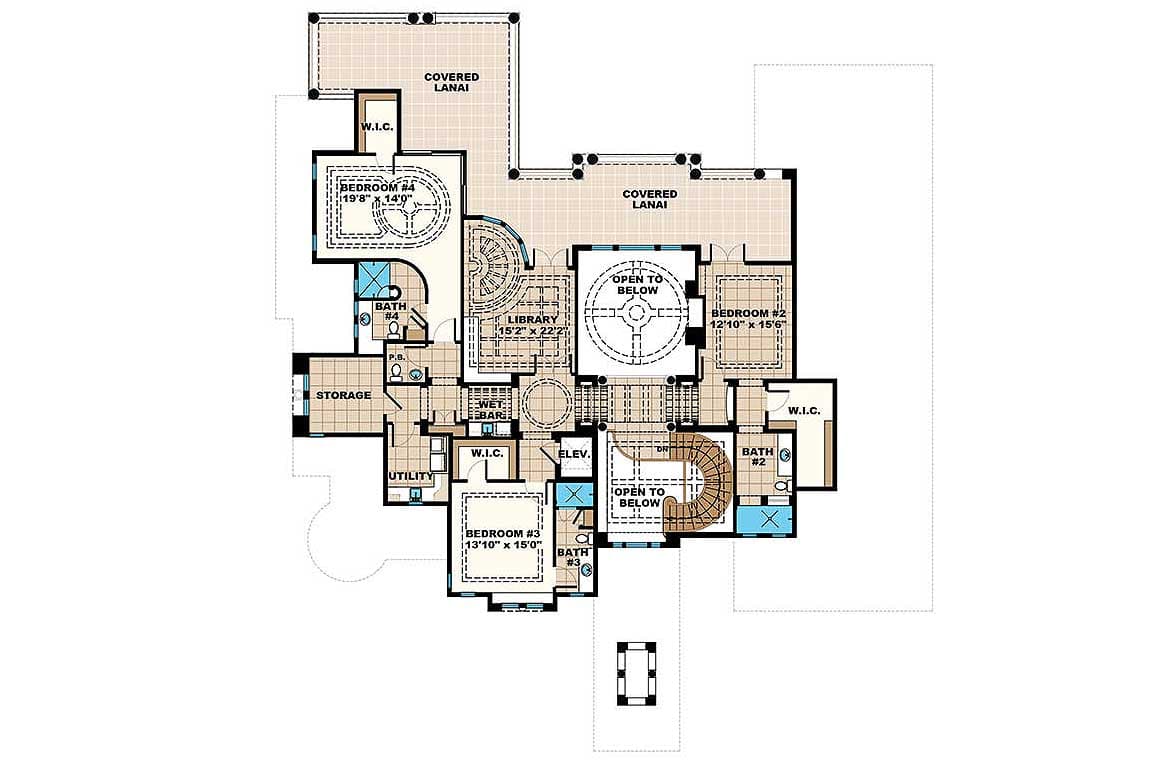

2nd Floor

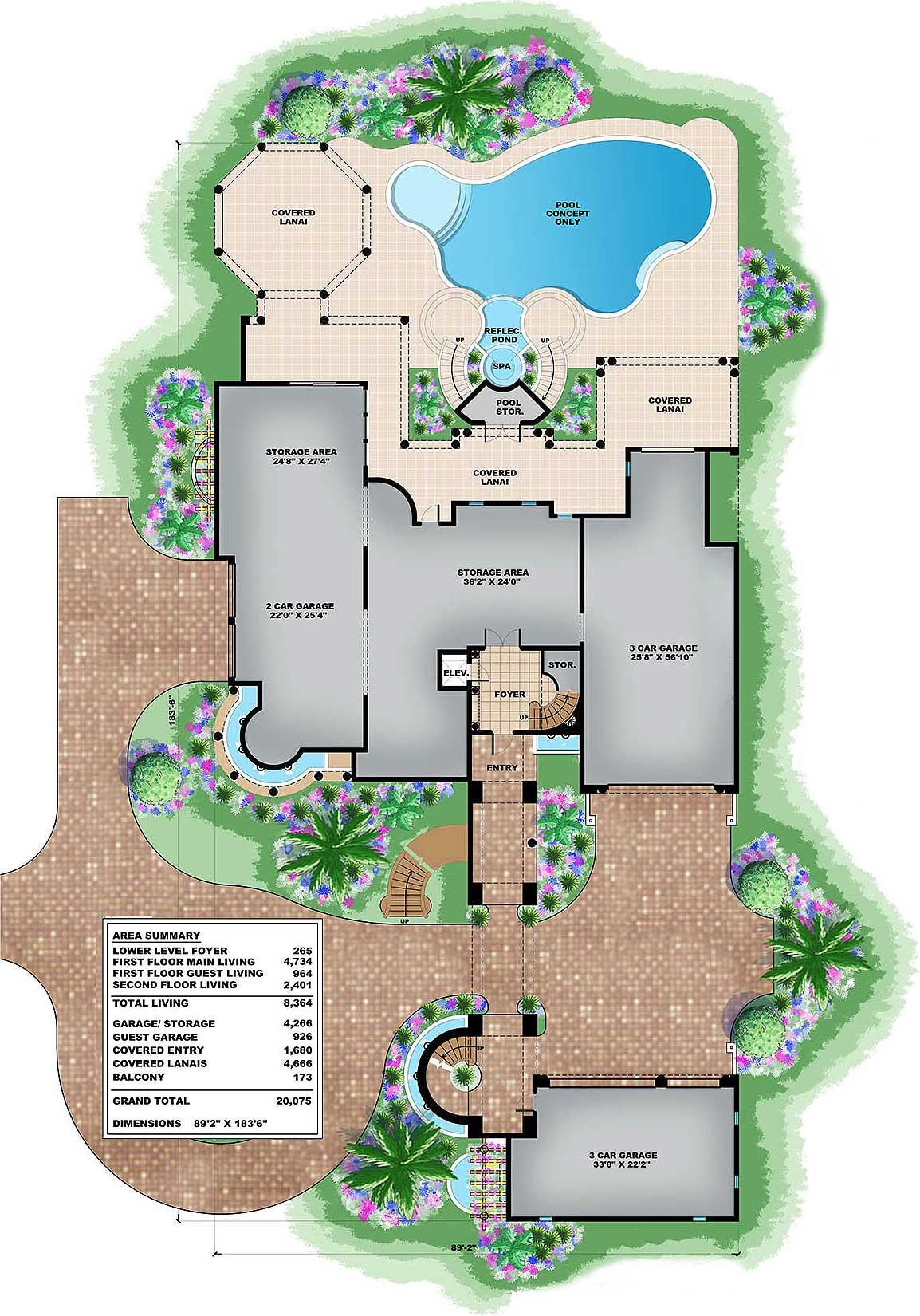

Ground Level

Plan Details

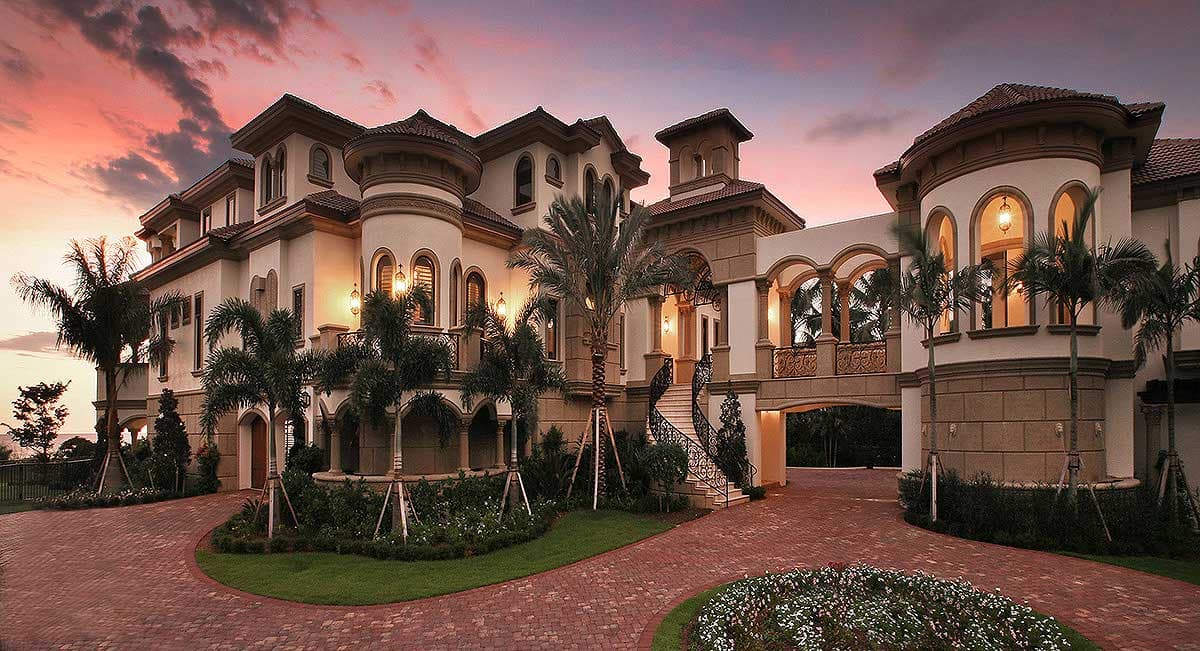

Splendidly detailed inside and out, this grand Mediterranean house plan is truly estate-size.
Every luxurious amenity has been designed into the home from the residential elevator to the wine cellar to a first floor guest apartment.
Stunning ceiling treatments crown most rooms in the house and there are an abundance of built-ins.
Even the outdoor space is spectacular with an outdoor kitchen for grilling and twin curved staircases that lead to a reflection pond and spa.
The grand master suite is truly opulent and comes with a sitting room, morning bar for your coffee and a striking master bathroom that would rival any spa.
The gourmet kitchen is a chef's dream and has views of the family room and circular dinette.
Follow the footbridge across from the main house to enter the guest or in-law suite with two bedrooms and a kitchen of its own.
On the luxurious second floor, a beautiful library and three bedrooms suites all have access to the huge covered balcony.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
