Plan 21089DR
Great Views
Heated S.F.
1,516
Beds
3
Baths
2
Stories
2
What's Included
Plan Details
  • Family and guests are able to enjoy the great views from any room in this contemporary vacation house plan through a multitude of windows.
  • The wrap-around deck is accessible from both the living room and front.
  • A soaring ceiling and a fireplace enhance the light-filled living room. The adjacent dining room and open access kitchen create a large living area.
  • Two first floor bedrooms share a bath and laundry on the main floor.
  • Upstairs you'll find the large and private master suite. You'll enjoy views below from the railing at the top of the stairs.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Great Views

  • 1,516

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

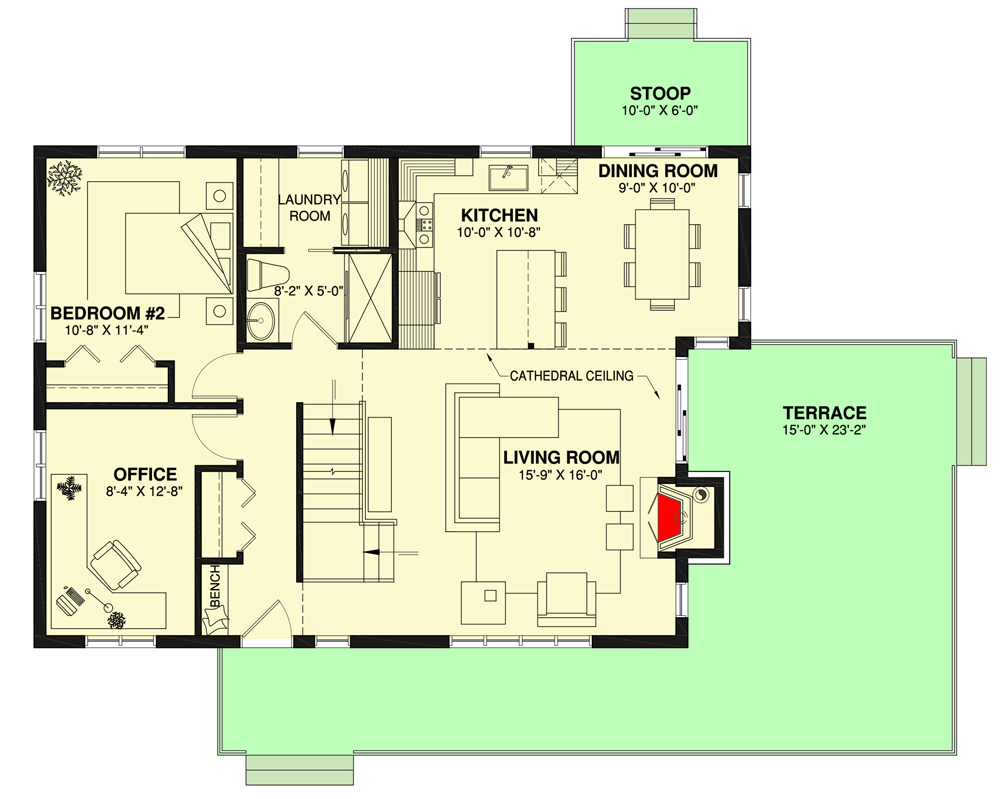

  • Main Level

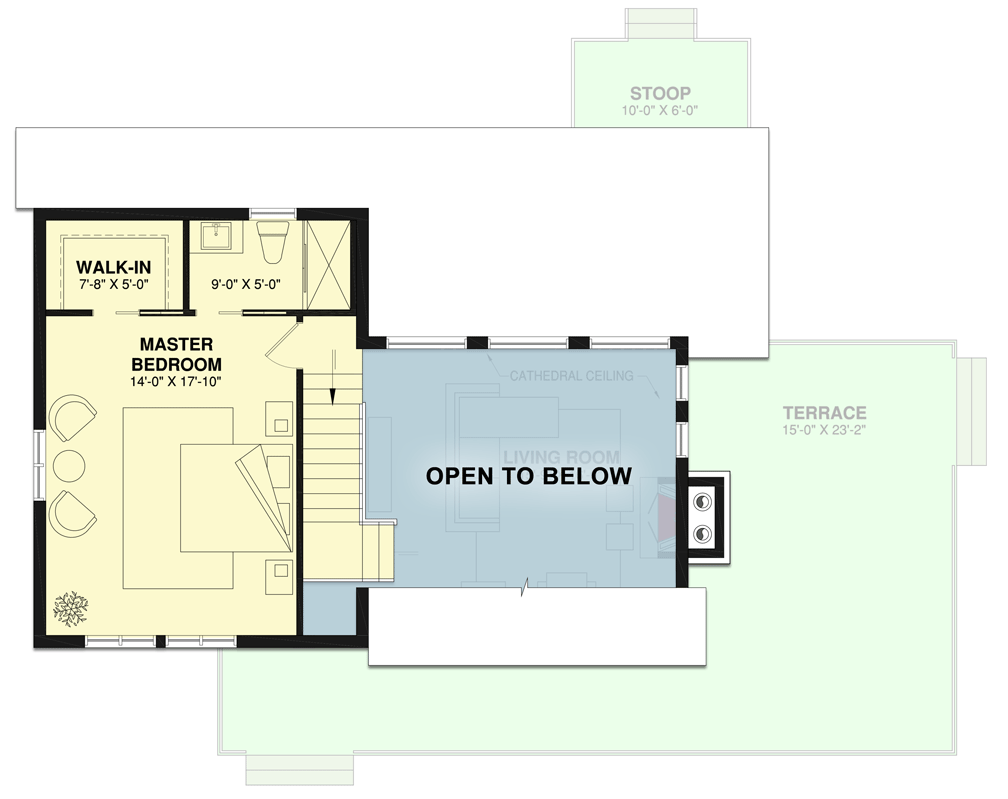

  • 2nd Floor

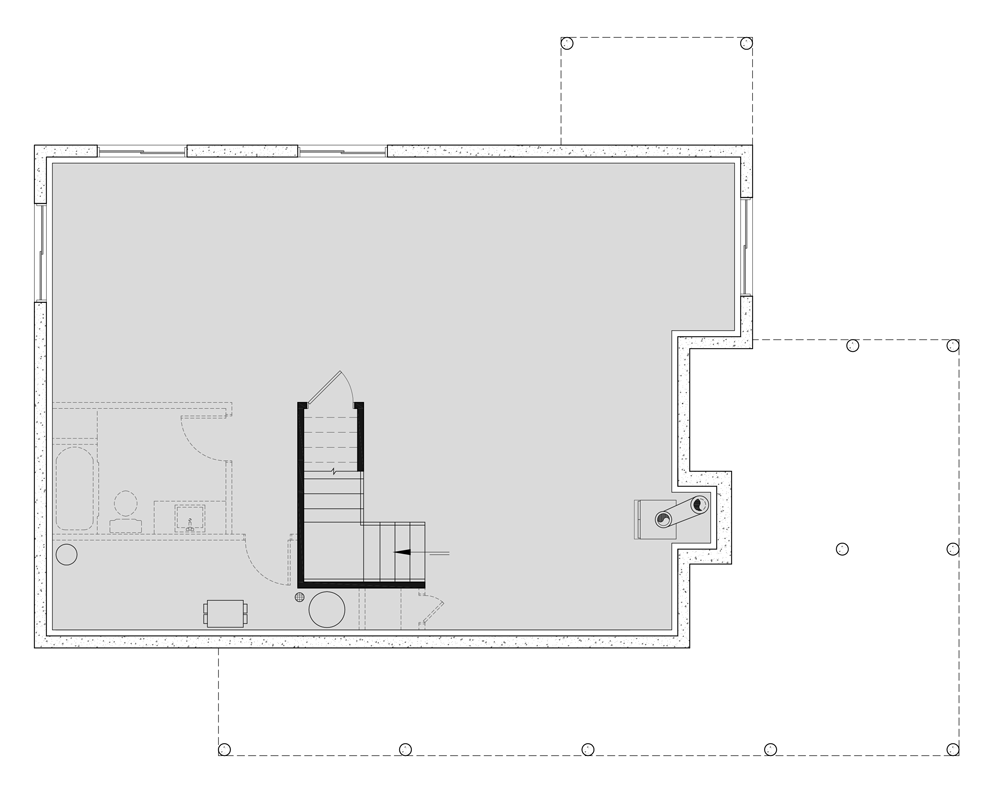

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 1,516 sq. ft.
  • 1st Floor: 1,062 sq. ft.
  • 2nd Floor: 454 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 28' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
