Plan 80832PM Handsome 3 Bed Split Level House Plan

2,326 3 1.5 - 2.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Handsome 3 Bed Split Level House Plan

Plan 80832PM

  • 2,326

    Heated s.f.

  • 3

    Beds

  • 1.5 - 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A sunken foyer is just two steps from the formal living and dining area in this handsome split-level house plan.
  • The two-way fireplace keeps both rooms warm.
  • The kitchen is on the same level and has an open rail that overlooks the sunken family room that is five steps down.
  • A quiet den and the utility room are also on this level along with the garage.
  • Climb the stairs to the upper floor where you'll find the three bedrooms and two bathrooms.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

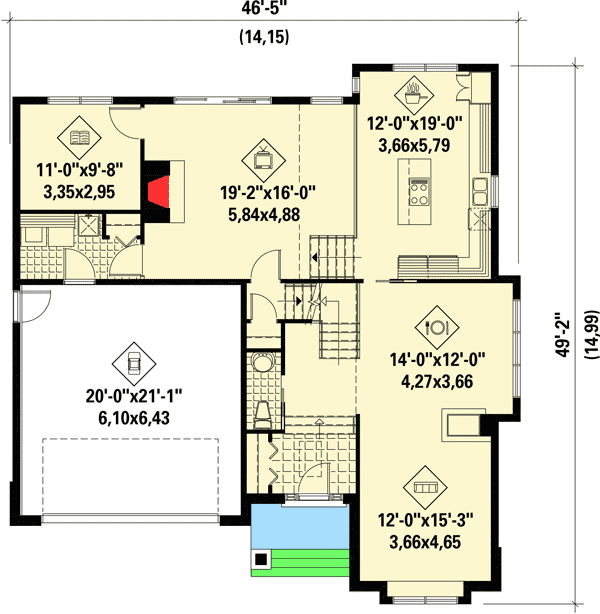

Handsome 3 Bed Split Level House Plan - 80832PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

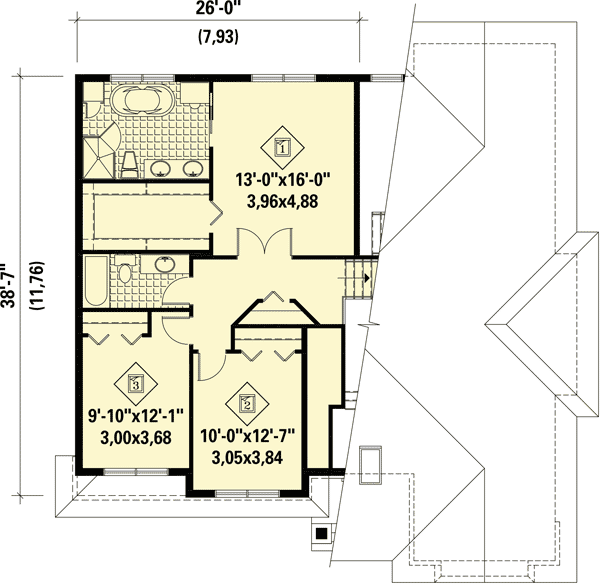

Handsome 3 Bed Split Level House Plan - 80832PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,326 sq. ft.
  • 1st Floor: 1,386 sq. ft.
  • 2nd Floor: 940 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 5"
  • Depth: 49' 2"
  • Max ridge height: 29' 11"

Garage

  • Type: Attached
  • Area: 447 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Handsome 3 Bed Split Level House Plan

  • 2,326

    Heated s.f.

  • 3

    Beds

  • 1.5 - 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,326 sq. ft.
  • 1st Floor: 1,386 sq. ft.
  • 2nd Floor: 940 sq. ft.

Dimensions

  • Width: 46' 5"
  • Depth: 49' 2"
  • Max ridge height: 29' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 447 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
