Plan 69677AM
Handsome Craftsman House Plan - 2493 Sq Ft
Heated S.F.
2,493
Beds
3
Baths
2.5
Stories
1
Cars
3
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 69677AM comes to life in Montana

House Plan 69677AM comes to life in Montana

43

Photos

Photos
Floor Plan

Plan 69677AM

Main Level
slide image 0
Basement Stairs
slide image 1

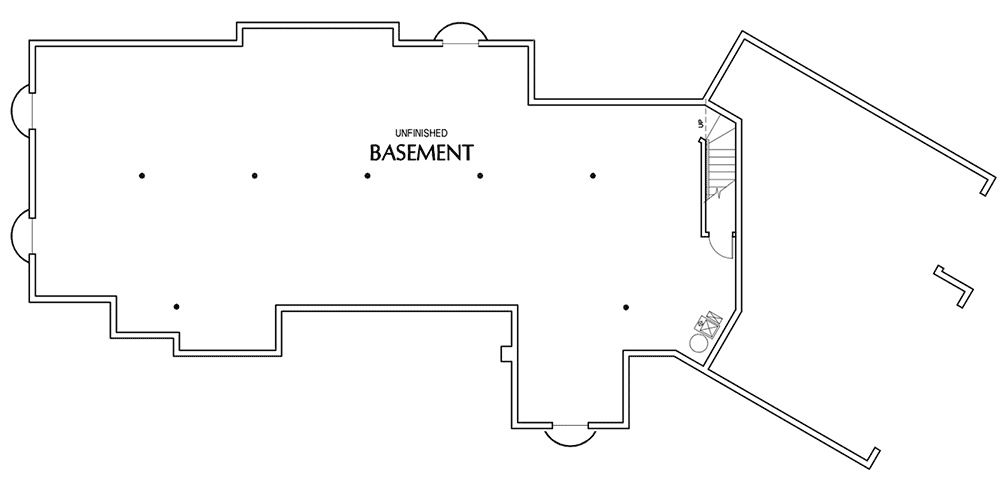

Unfinished Basement
slide image 2

Plan 69677AM

1-800-854-7852

1-262-521-4596

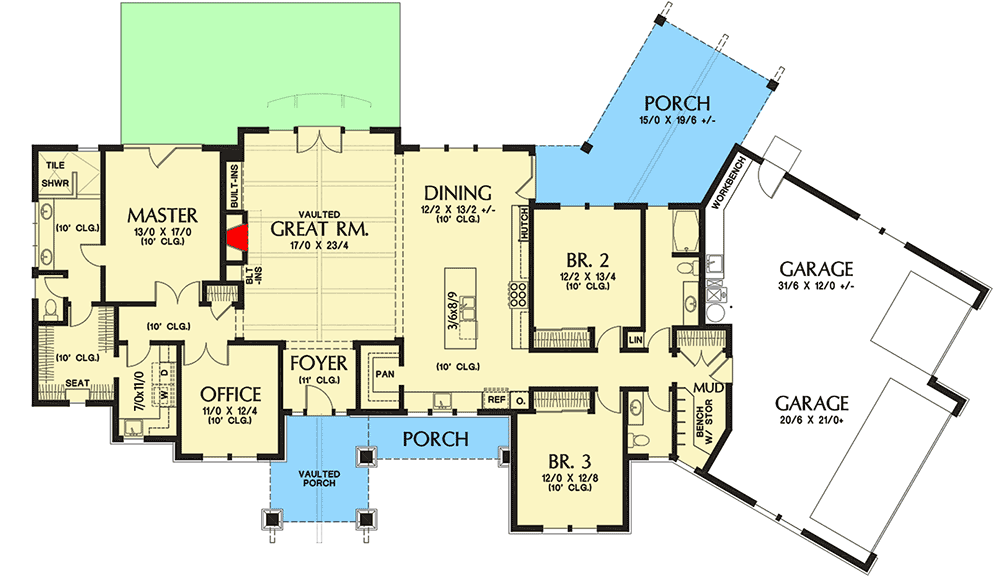

Main Level
floor plan image Main Level

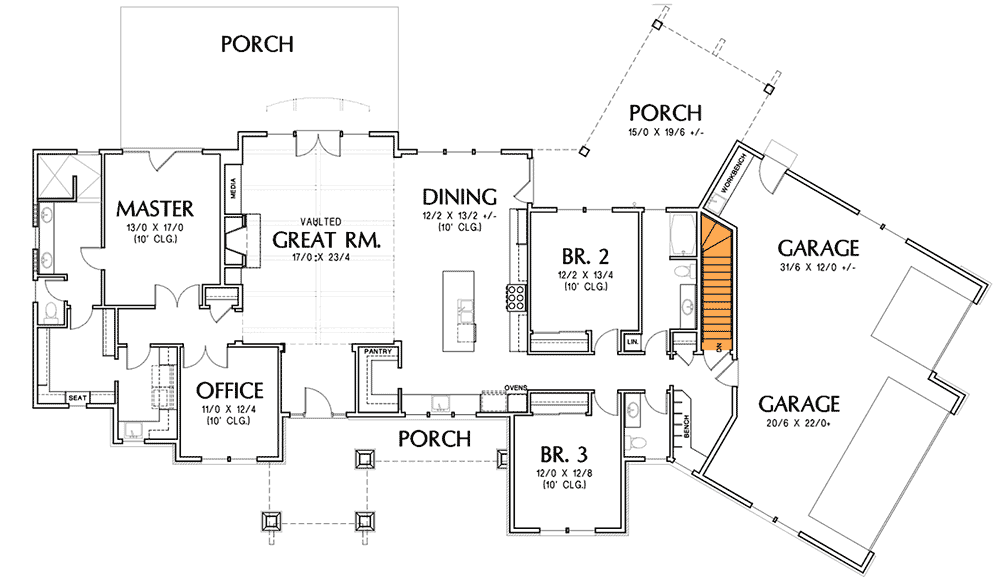

Basement Stairs
floor plan image Basement Stairs
Unfinished Basement
floor plan image Unfinished Basement
Plan Details
  • Cascading gables create beautiful roof lines on this handsome Craftsman house plan.
  • The well-planned layout includes a gorgeous vaulted great room with a beamed ceiling that is open to the dining room and spacious kitchen.
  • There is a walk-in food storage pantry and two sinks in the kitchen (14'8" by 15'10") so you have your choice of views.
  • Split bedrooms give you an isolated master retreat on the left side of the home and a roomy master bath (7'10" by 19'10").
  • The master walk-in closet (9' by 9'2") even has a window seat so you can sit down to put on your shoes for the day.
  • Notice the handy door from the closet right into the laundry room (7' by 11') - a wonderful convenience.
  • And even the mud room is well organized with bench seating and cubbies.
  • The 3-car garage has a large workshop area for all your projects.
  • Related Plans: Get more room with house plans 69582AM (2,910 sq. ft.) and 69761AM (3,064 sq. ft.).
What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,493 sq. ft.

1st Floor

2,493 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

107' 3"

Depth

62' 2"

Max Ridge Height

22' 10"

Garage

Type

Attached

Area

977 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Plan Collections

Square Footage Breakdown

Total Heated Area

2,493 sq. ft.

1st Floor

2,493 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

107' 3"

Depth

62' 2"

Max Ridge Height

22' 10"

Garage

Type

Attached

Area

977 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Plan Collections
