Hill Country Craftsman Plan with Drive-through Tandem Garage - 2497 Sq Ft

Heated S.F.
2,497
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 333004JHB

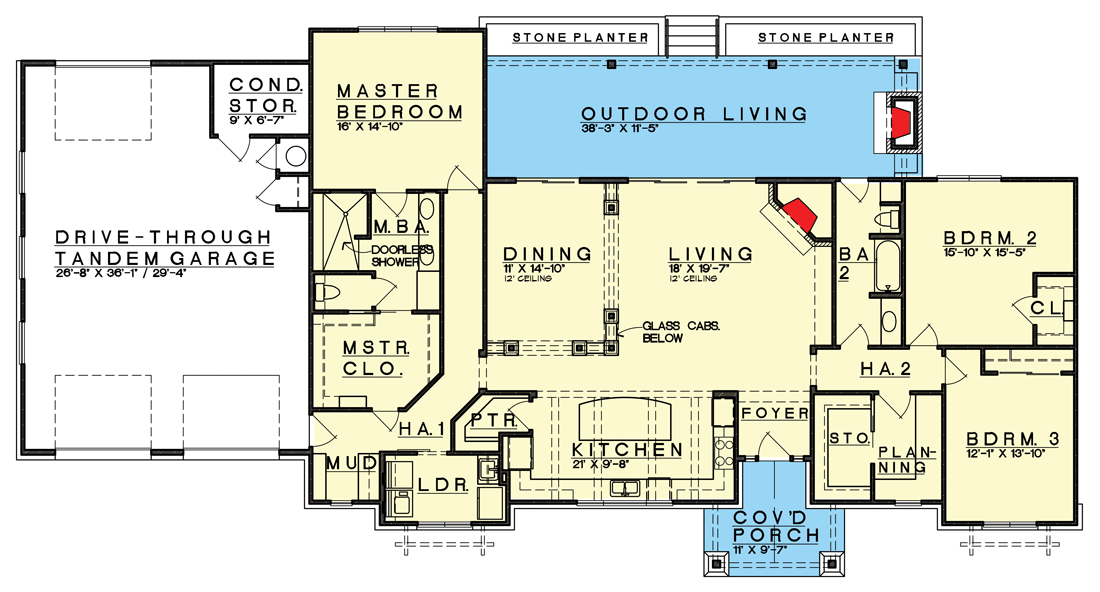

Main Level
Main Level

Plan 333004JHB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 333004JHB: Hill Country Craftsman Plan with Drive-through Tandem Garage - 2497 Sq Ft - Floor Plan - Main Level - Craftsman, Hill Country, New American, Ranch

Plan Details

  • Timber beams, inside and out, define this Hill Country House Plan that allows the homeowner to enjoy one-level living.

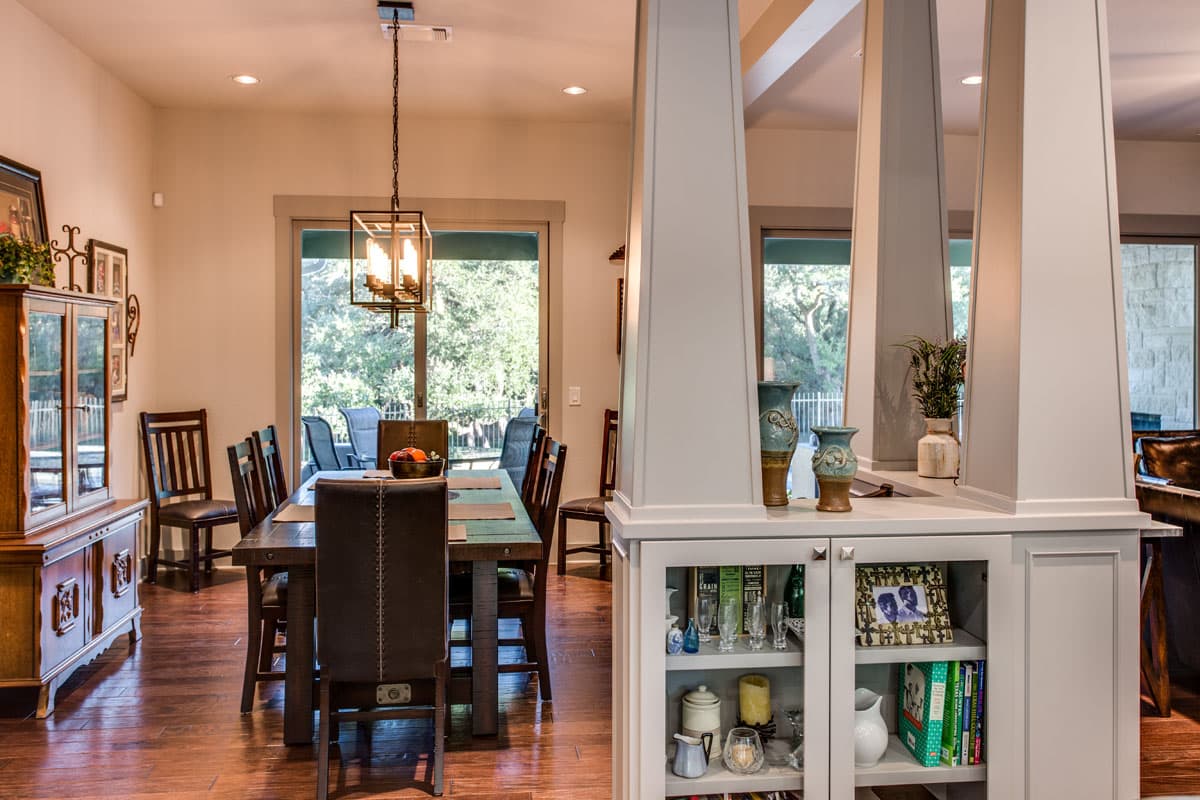

  • Craftsman detailing in the dining room allow it to stand out without being closed off.

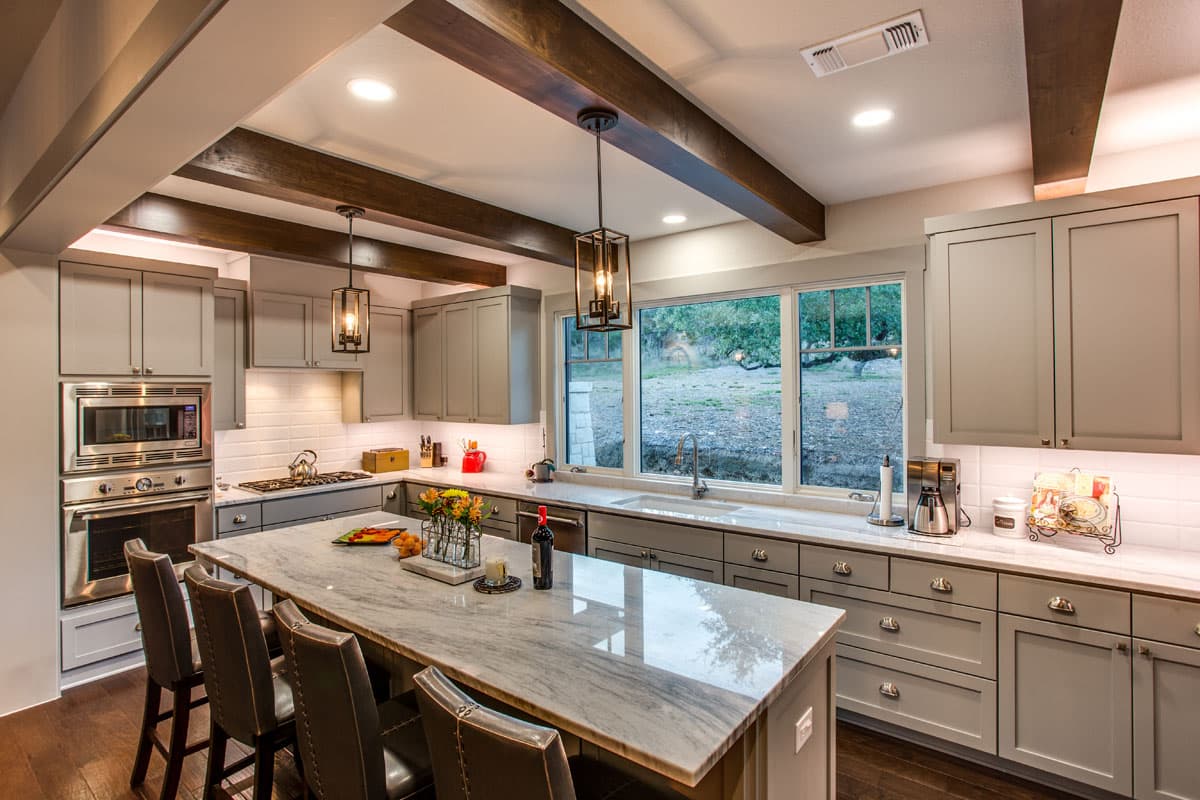

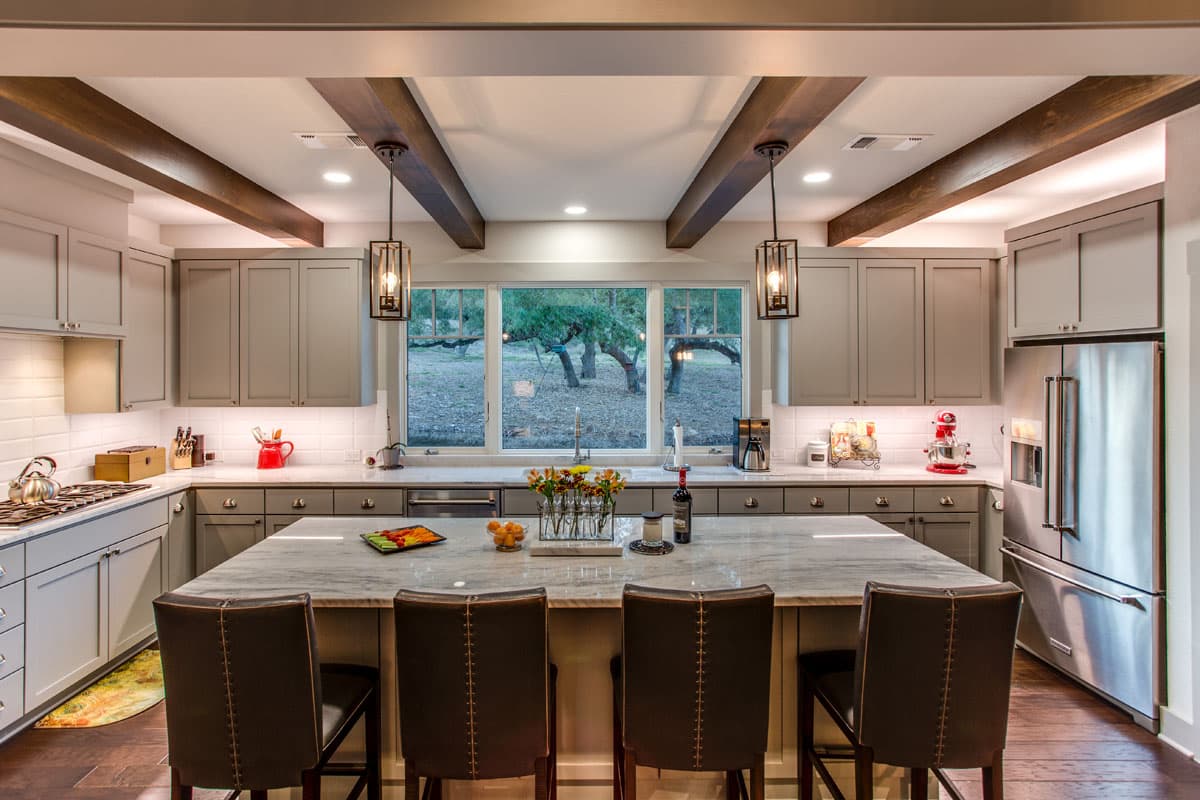

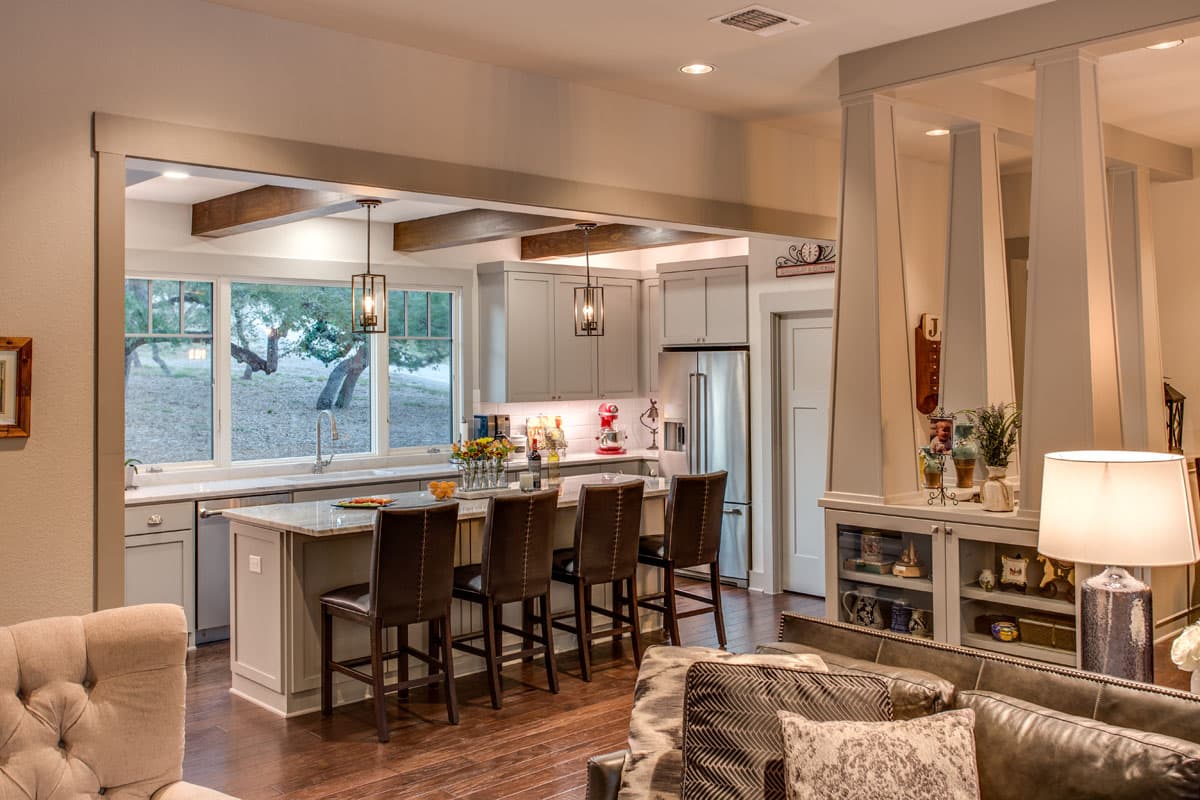

  • A forward-facing picture window rests above the kitchen sink, while a prep island lends plenty of workspace.

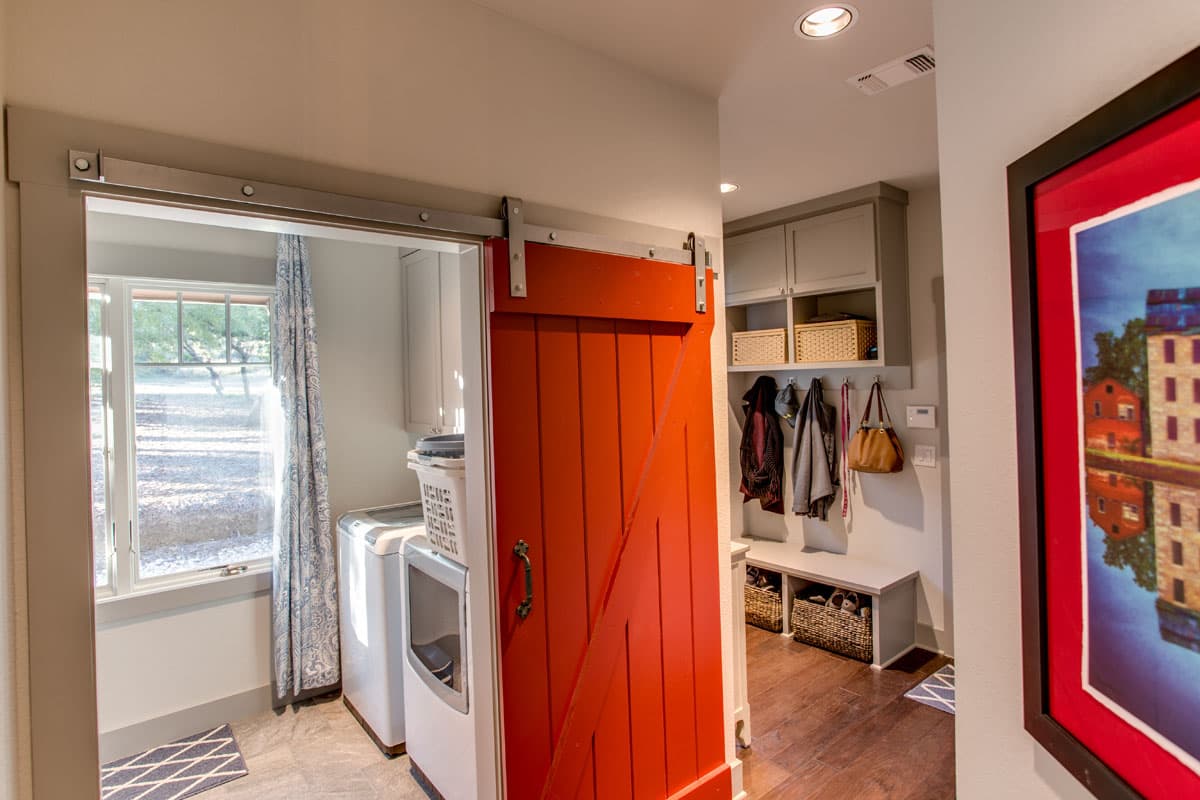

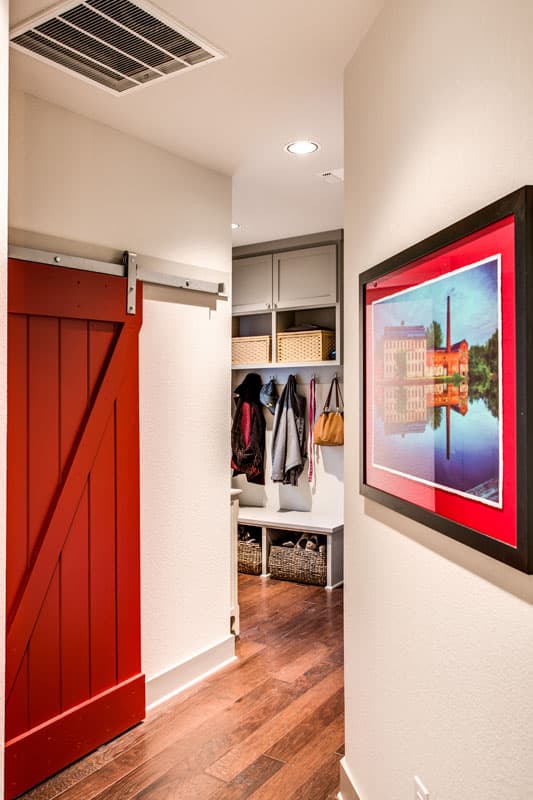

  • The dedicated storage closet in the garage, attic, walk-in pantry, and drop zone in the mudroom offer an abundance of storage space throughout the home.

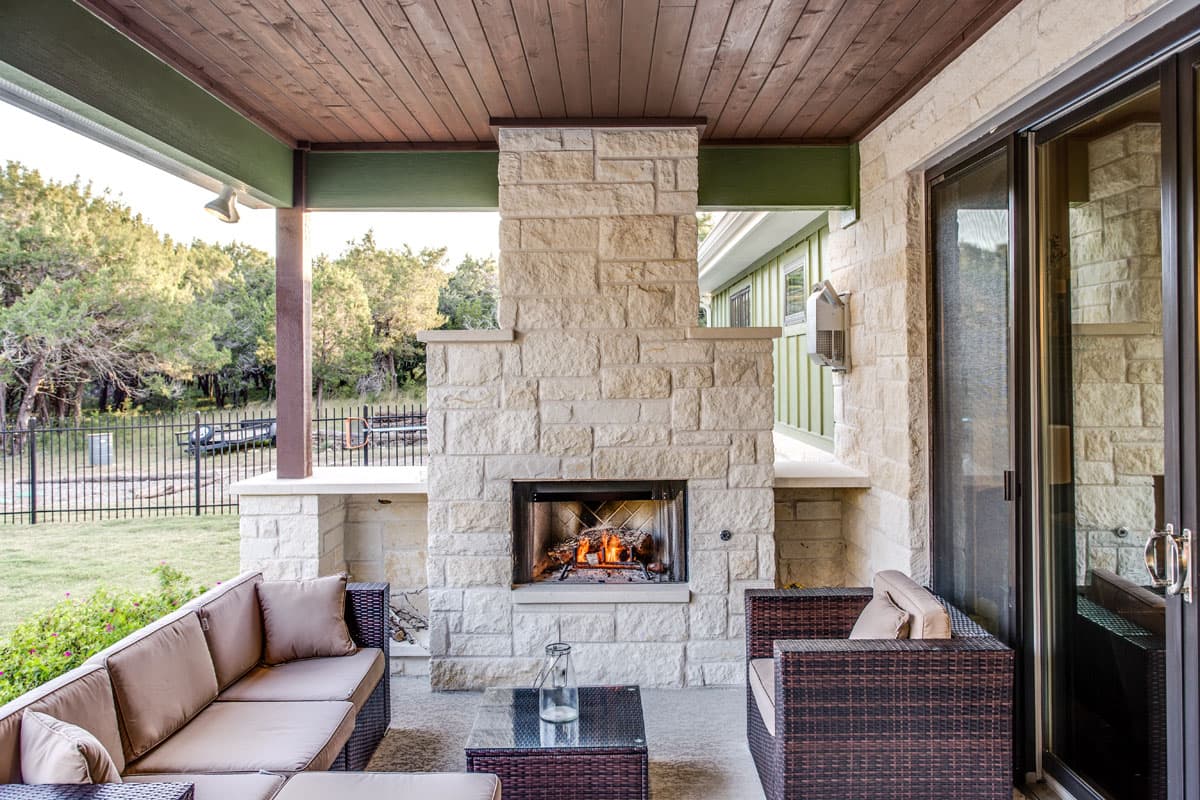

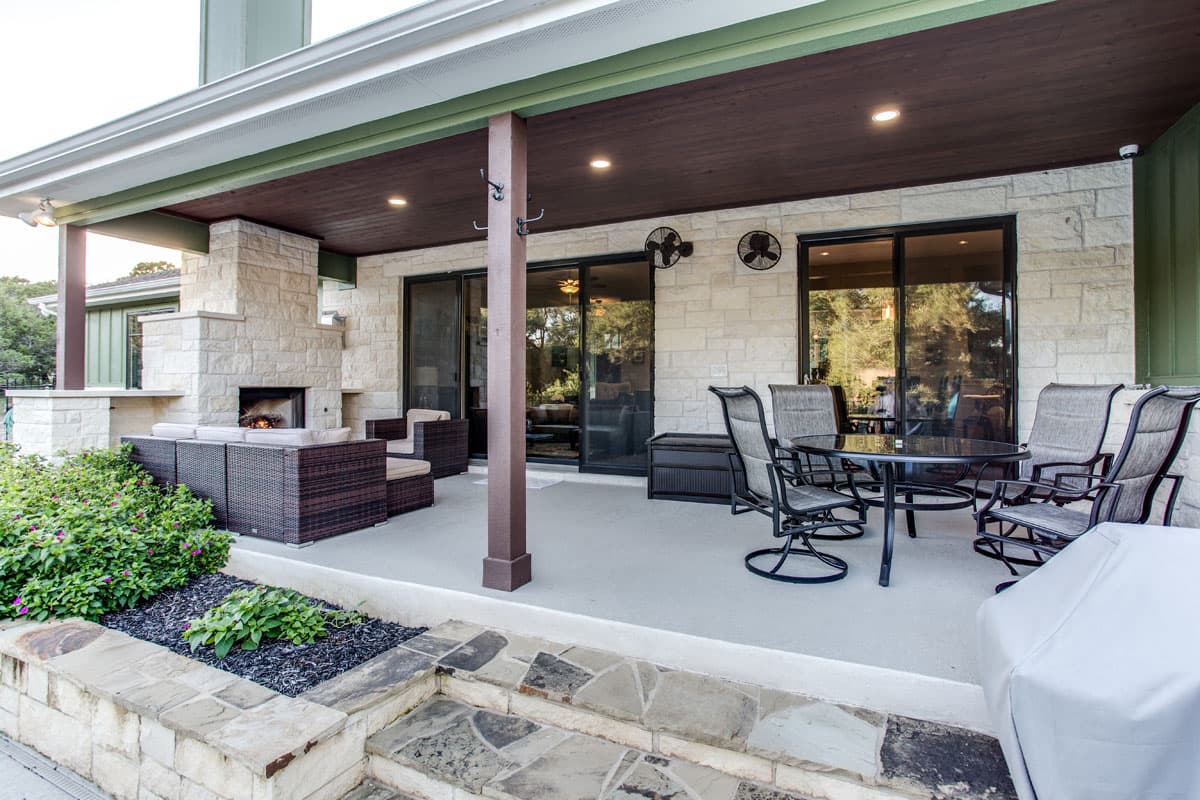

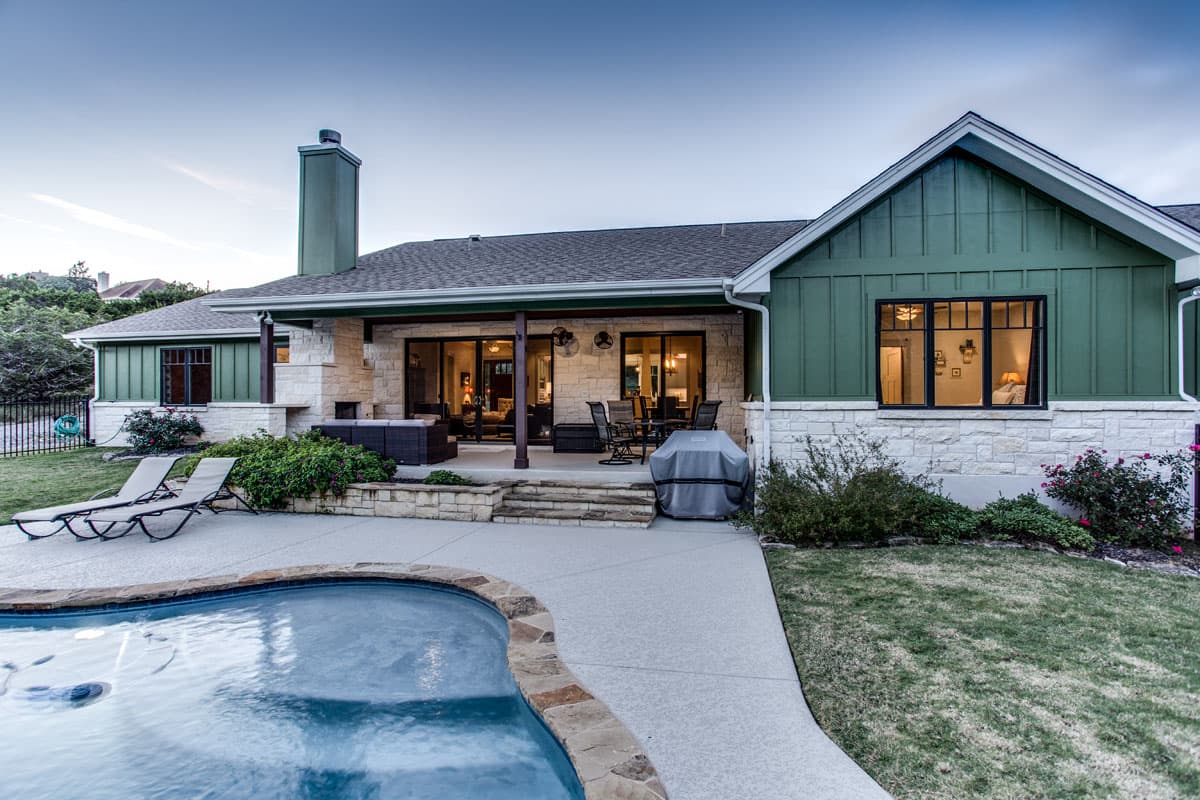

  • The pool bath, outdoor fireplace, and 11’-deep porch facilitate outdoor living, and a drive-through tandem garage can be used for projects and cars.
  • With overhead doors on both ends, you get drive-through access on the left bay of the 961 square foot garage.

What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,497 sq. ft.

1st Floor

2,497 sq. ft.

Porch, Front

110 sq. ft.

Porch, Rear

468 sq. ft.

Storage

67 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

99' 11"

Depth

51' 5"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

961 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Hill Country

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Tandem Garage

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,497 sq. ft.

1st Floor

2,497 sq. ft.

Porch, Front

110 sq. ft.

Porch, Rear

468 sq. ft.

Storage

67 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

99' 11"

Depth

51' 5"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

961 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Hill Country

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Tandem Garage

Walk-in Pantry

Plan Collections

Photo Gallery
