Plan 36550TX
Hill Country House Plan for a Narrow Lot
Heated S.F.
3,685
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 36550TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36550TX

1-800-854-7852

1-262-521-4596

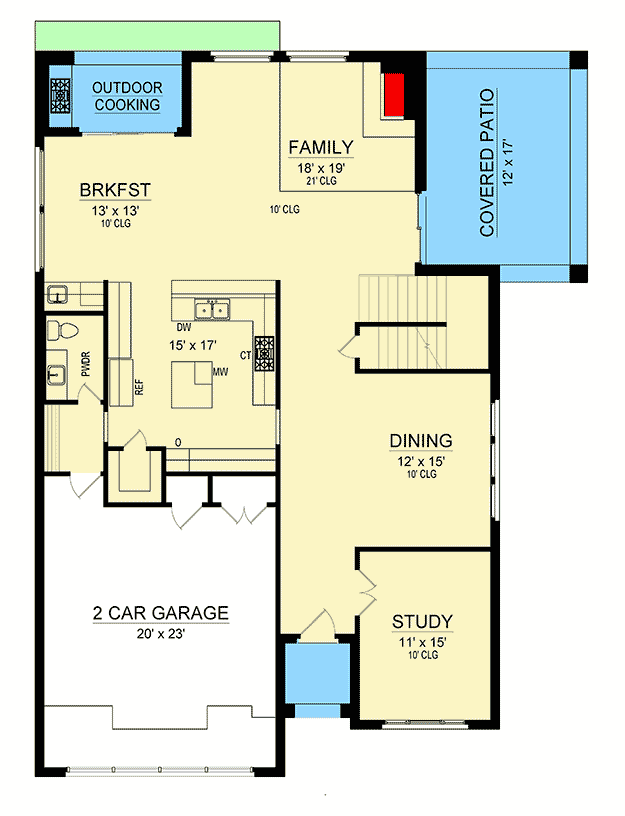

Main Level
floor plan image Main Level

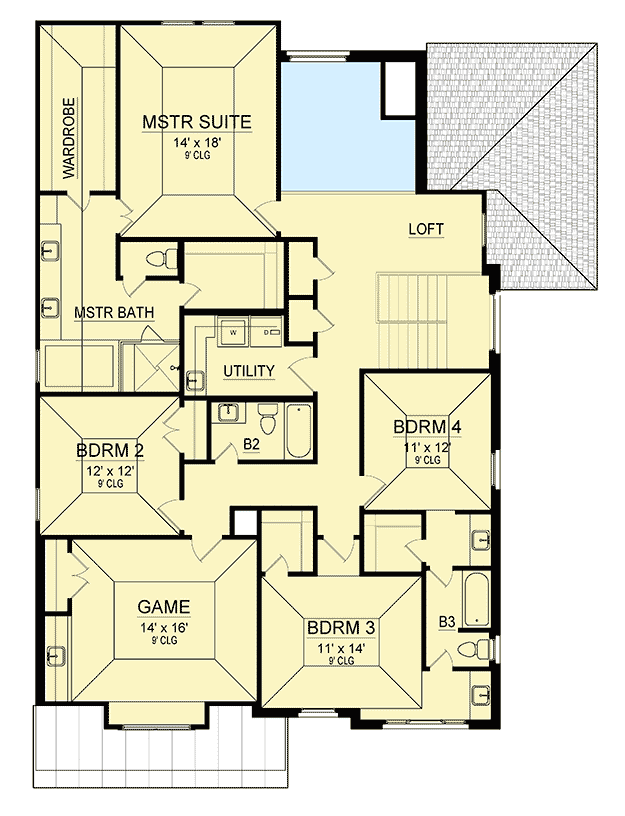

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Coming in at just 40' wide, this Hill Country house plan fits well on a narrow lot.
  • 10' high ceilings and an open floor plan maximize the feeling of spaciousness.
  • The big family room at the back of the house has a two story ceiling that rises up to 21' for a dramatic effect.
  • There's a generous amount of counter space and a large walk-in pantry in the high-end kitchen, where the sink overlooks the informal breakfast nook and the outdoor cooking porch.
  • Another, larger side patio has lots of room for entertaining and table and chairs.
  • The second floor is even bigger than the first floor and features four large bedrooms, a loft with open railing and a gorgeous game room with wet bar.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

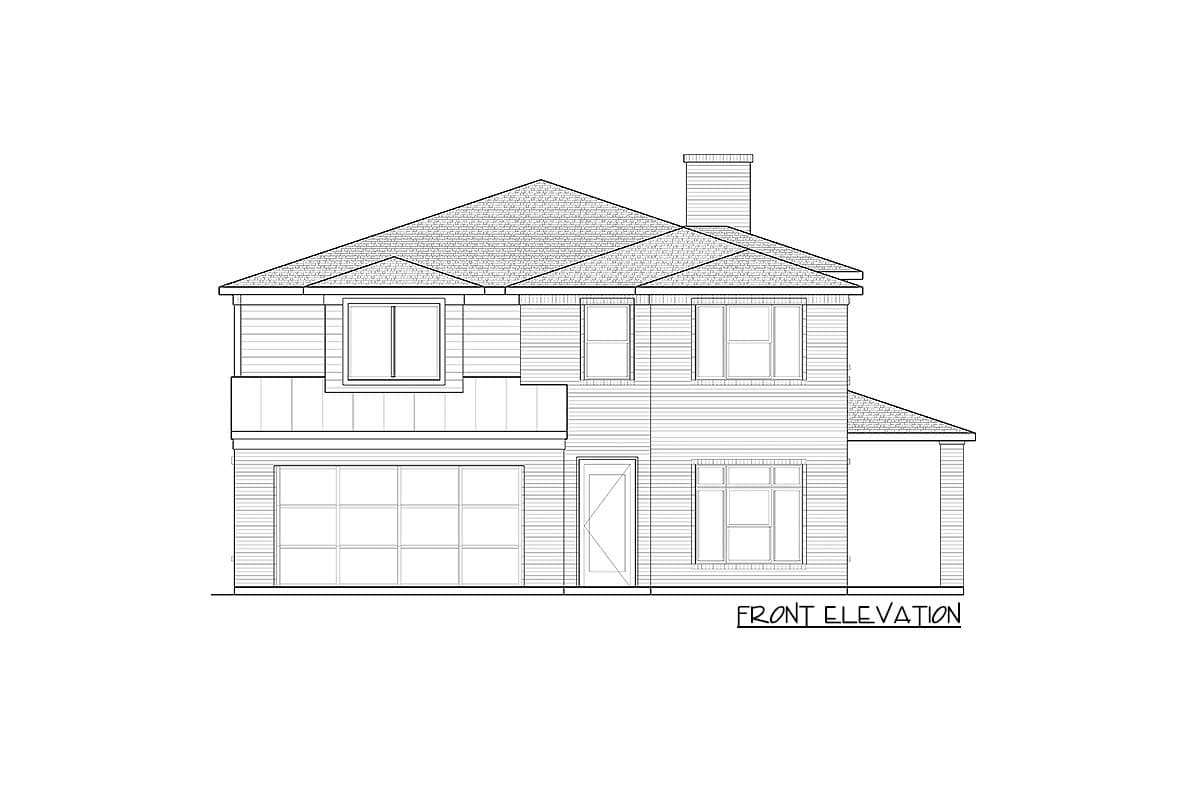

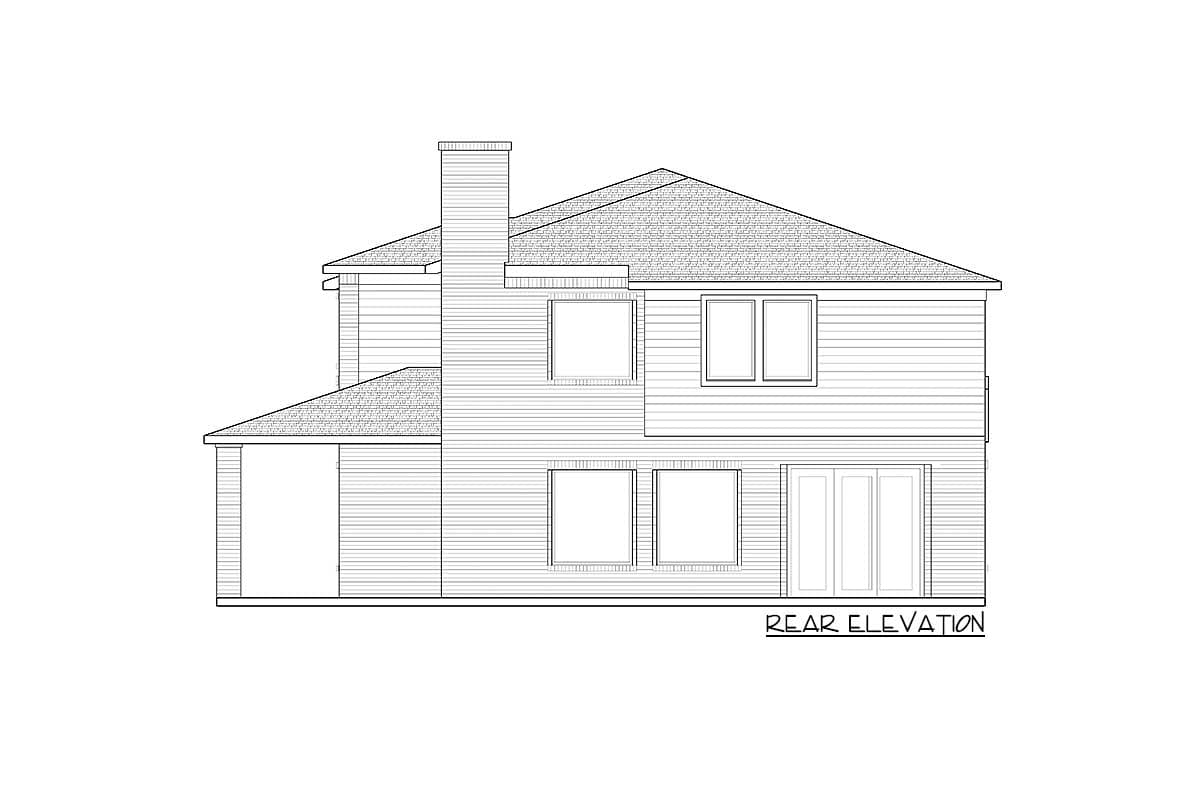

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

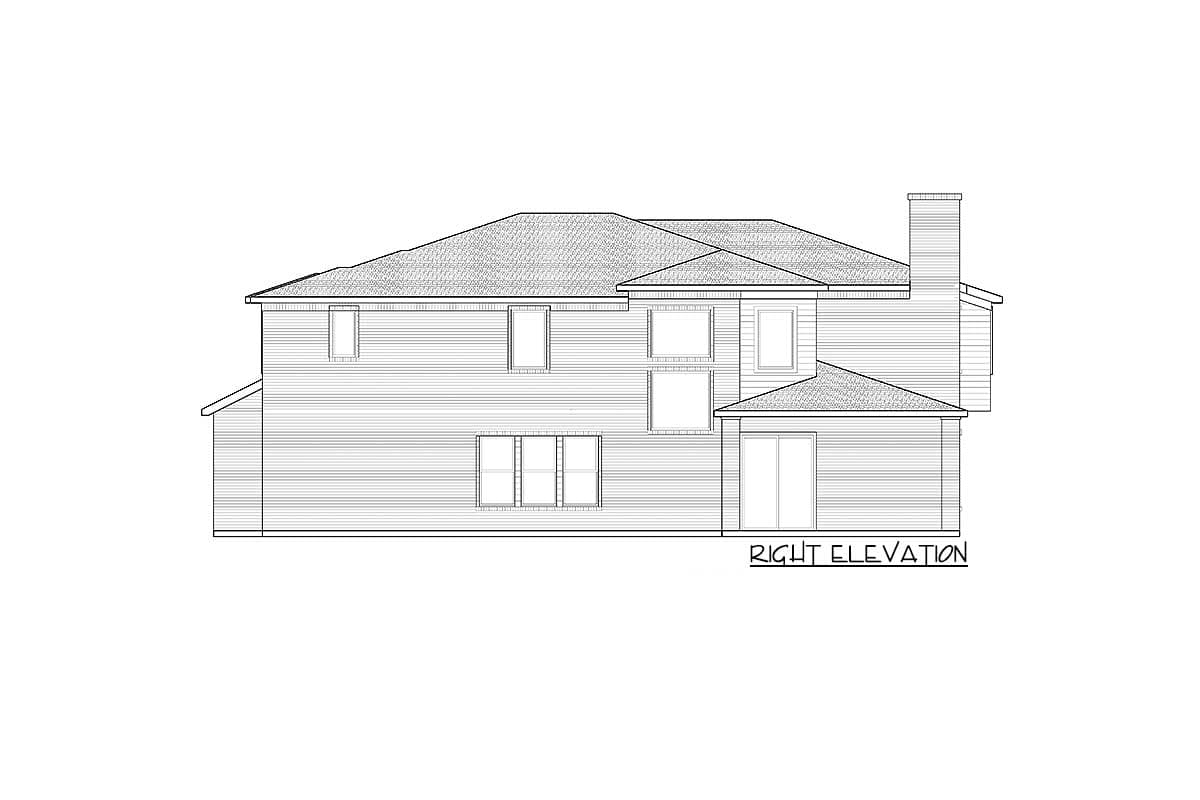

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,685 sq. ft.

1st Floor

1,635 sq. ft.

2nd Floor

2,050 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

61' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

539 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Hill Country

Plan Collections

Square Footage Breakdown

Total Heated Area

3,685 sq. ft.

1st Floor

1,635 sq. ft.

2nd Floor

2,050 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

61' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

539 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Plan Collections
