Plan 51875HZ

Hill Country House Plan with Home Office and Keeping Room - 3078 Sq Ft

Heated S.F.
3,078
Beds
3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 51875HZ

Main Level
Main Level
Basement Stairs
Basement Stairs

Plan 51875HZ

M-F 9am-5pm EST |

1-203-761-8500

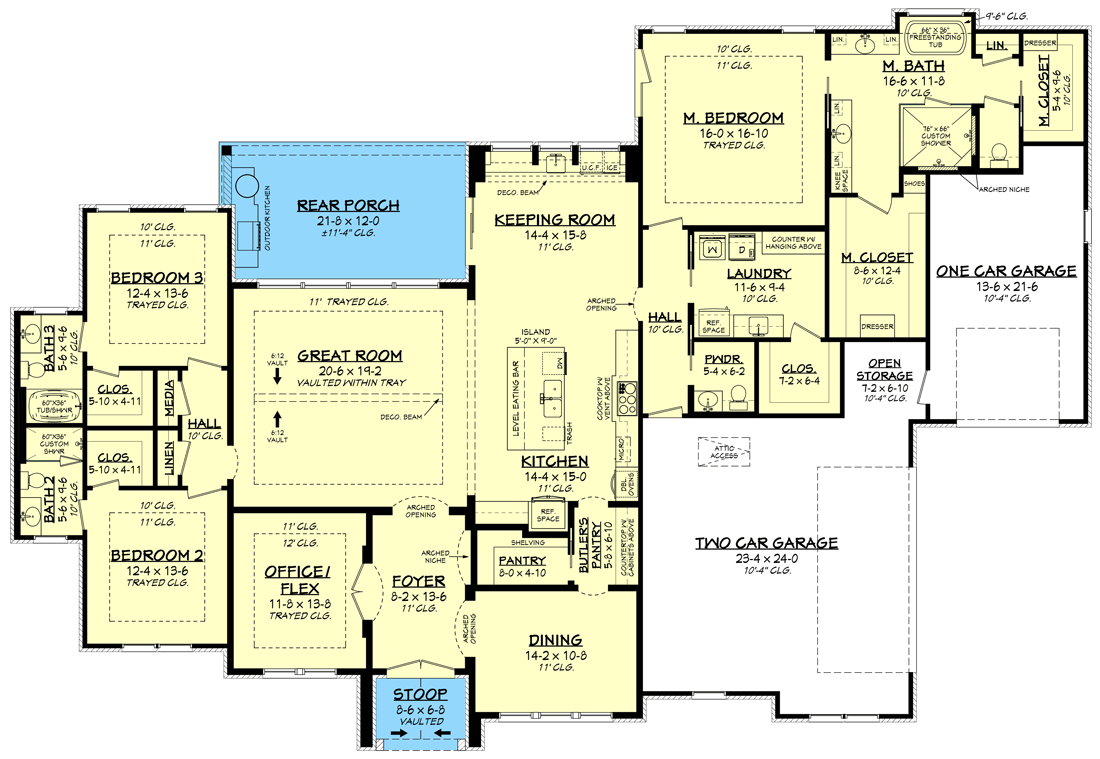

Main Level

Plan 51875HZ: Hill Country House Plan with Home Office and Keeping Room - 3078 Sq Ft - Floor Plan - Main Level - European, Hill Country, Mediterranean, Ranch, Southern, Spanish, Transitional

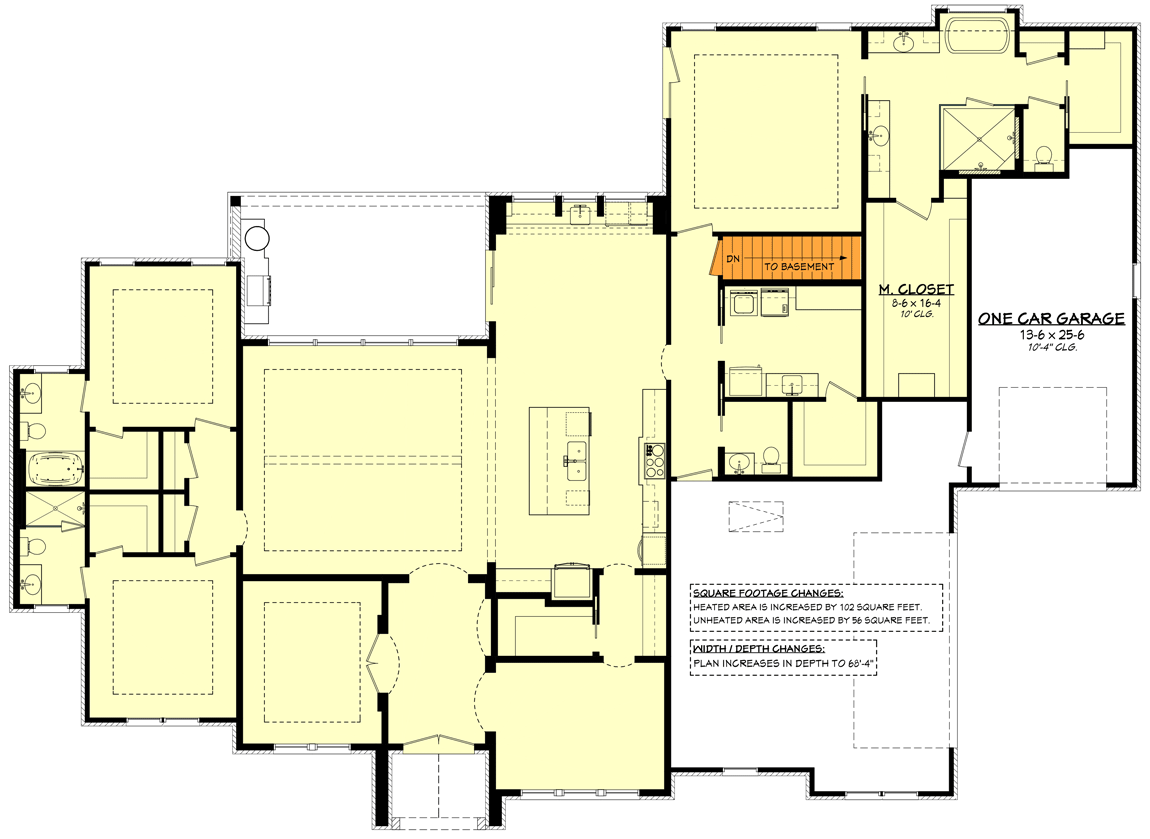

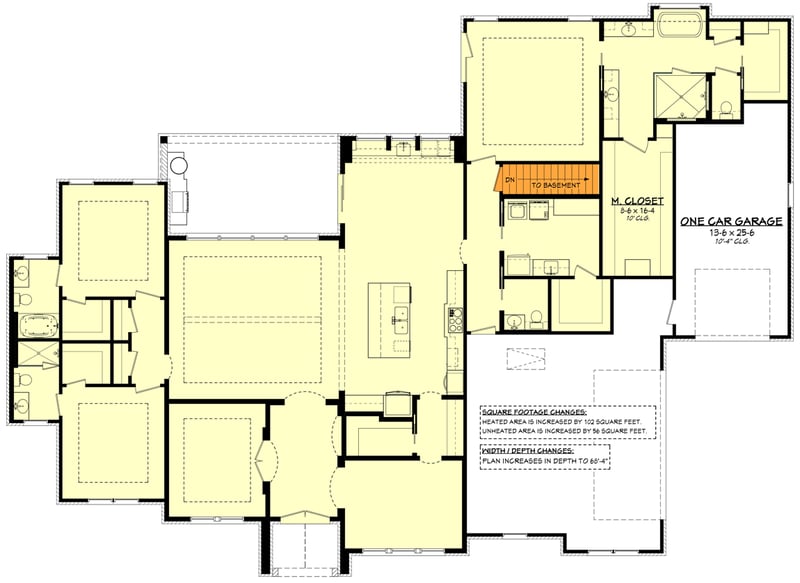

Basement Stairs

Plan 51875HZ: Hill Country House Plan with Home Office and Keeping Room - 3078 Sq Ft - Floor Plan - Basement Stairs - European, Hill Country, Mediterranean, Ranch, Southern, Spanish, Transitional

Plan Details

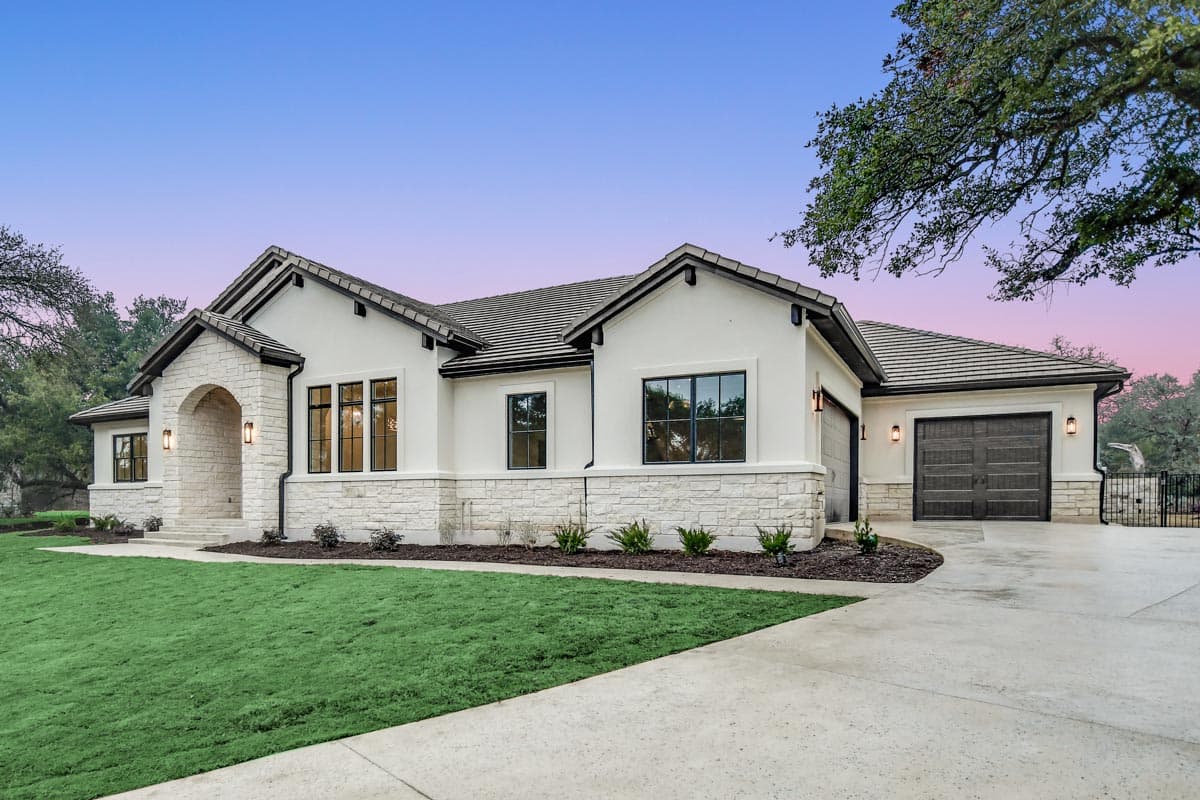

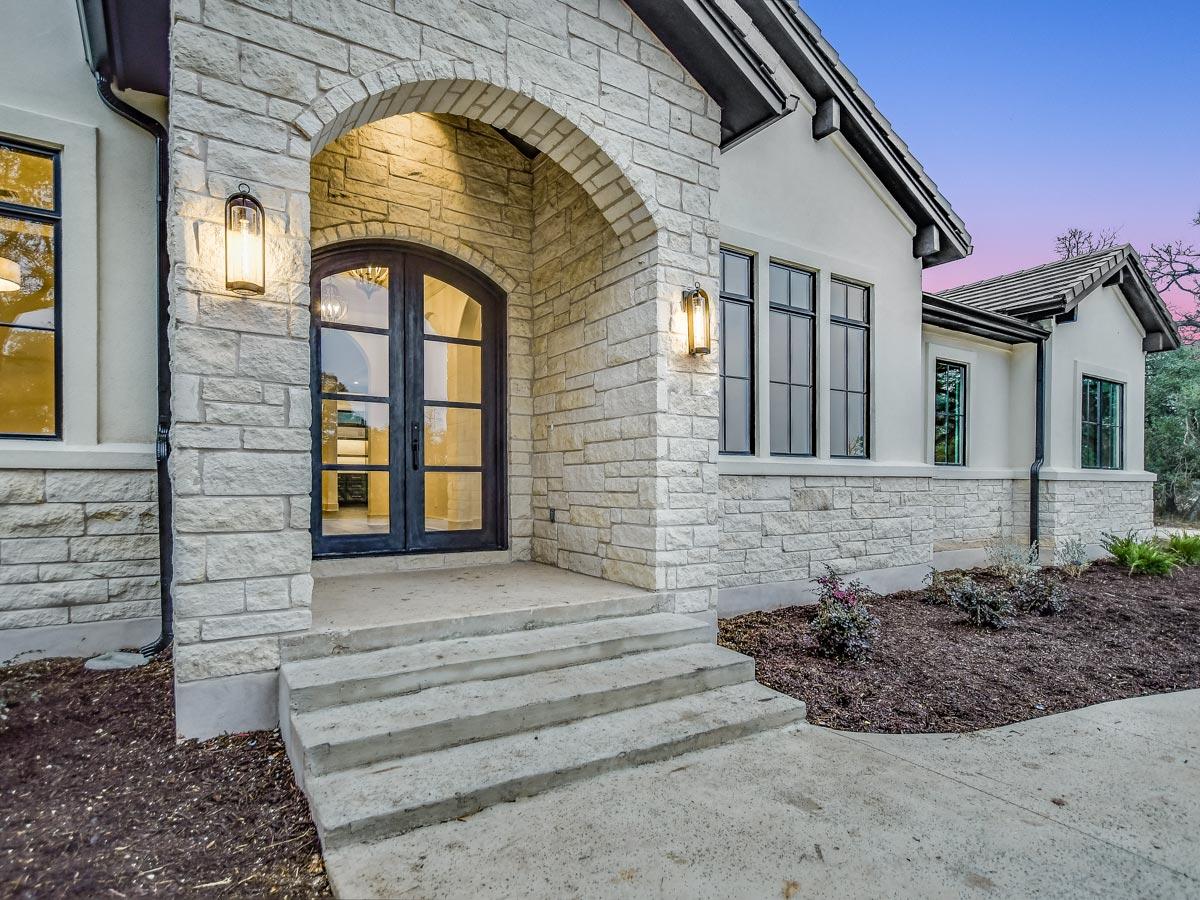

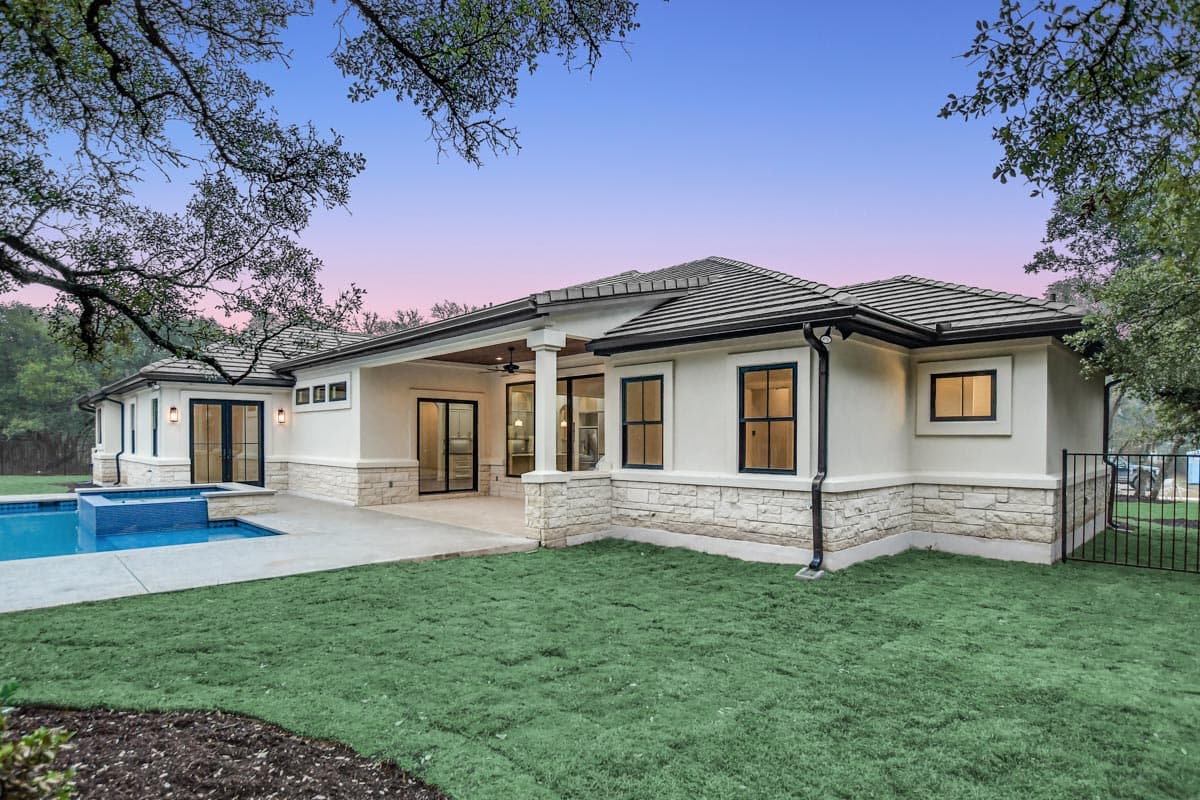

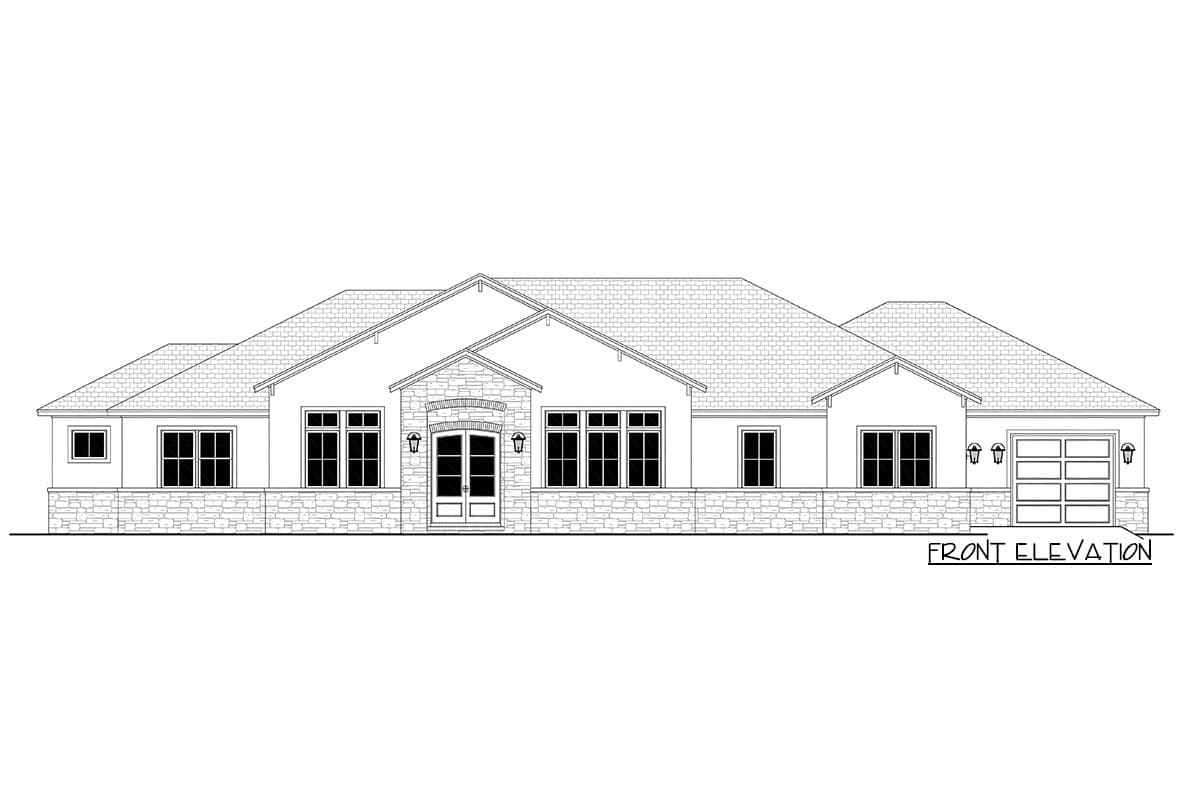

  • This modern hill country house plan has stone and stucco on the exterior with bracketed eves and windows galore combining to give it great curb appeal.

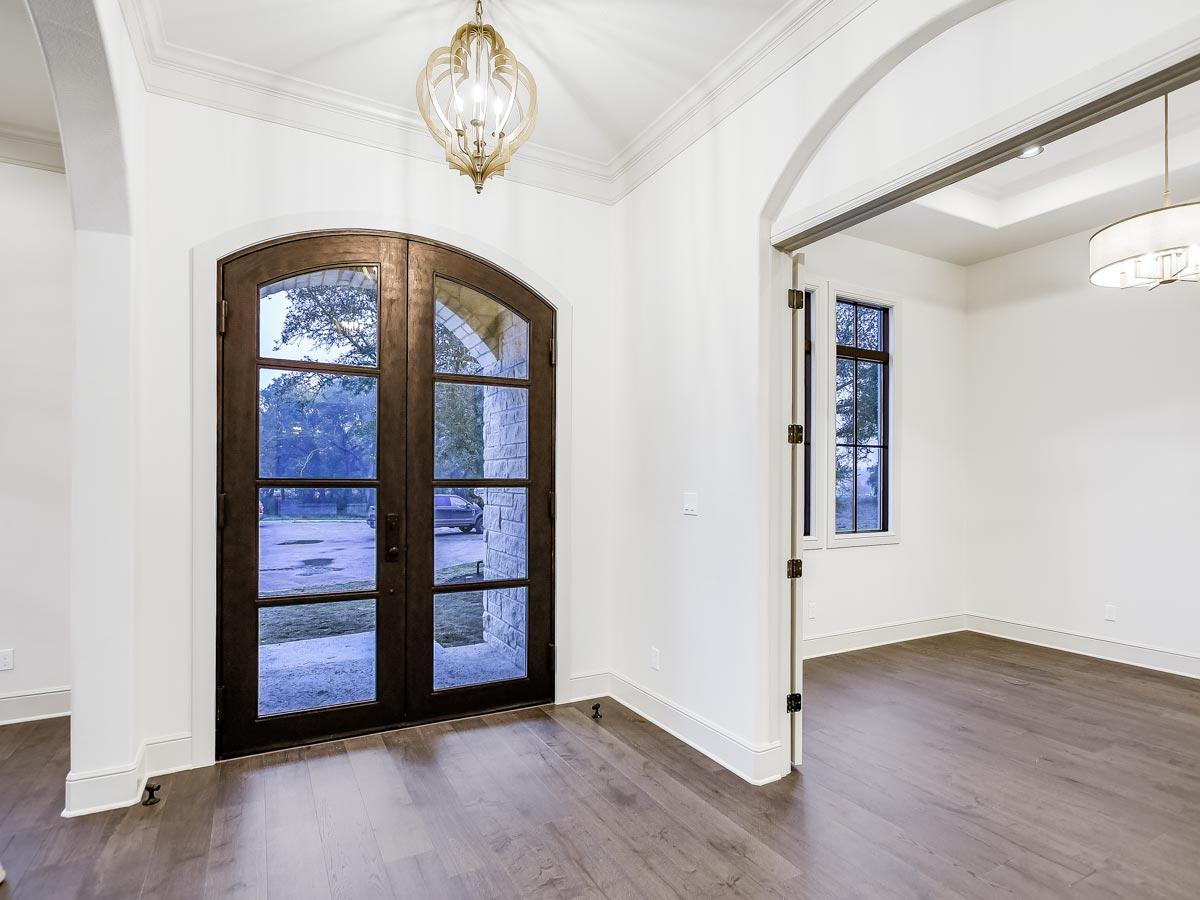

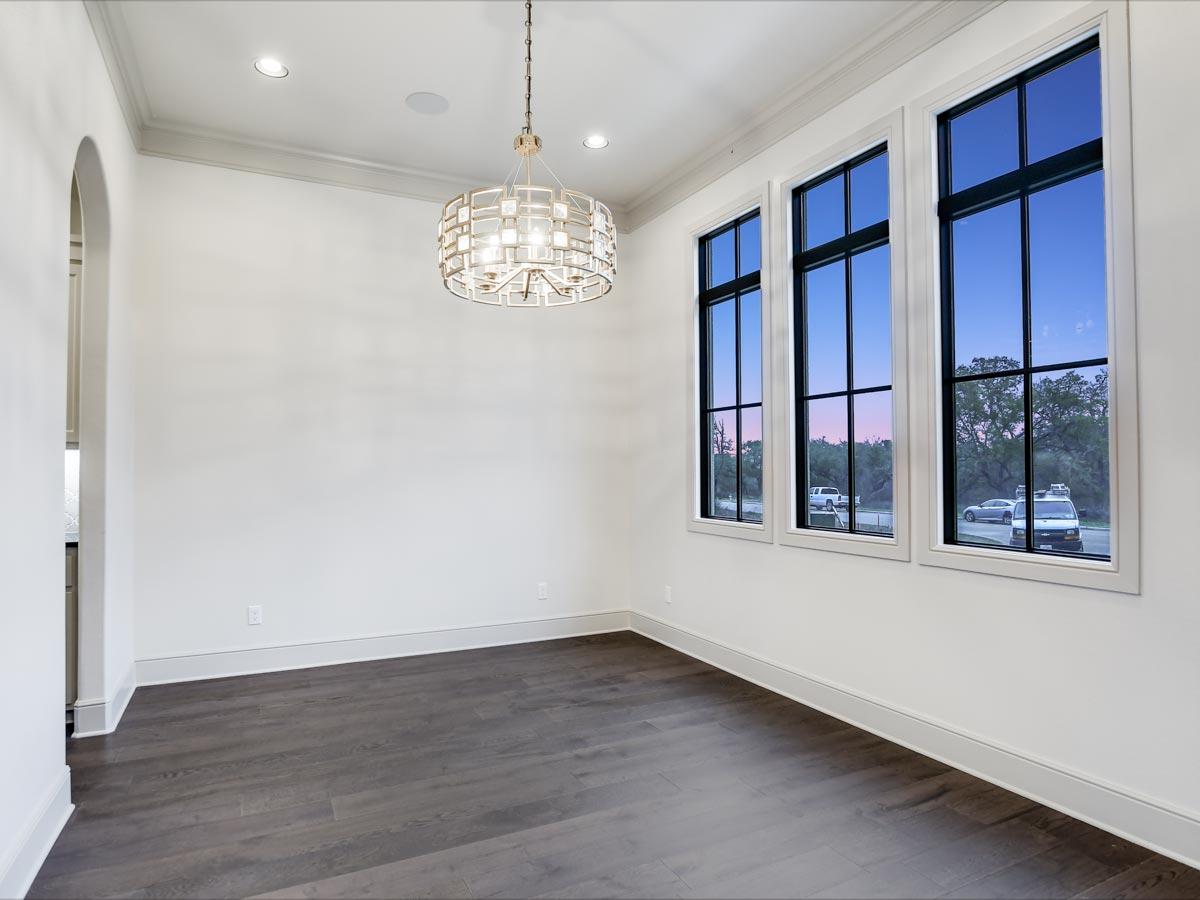

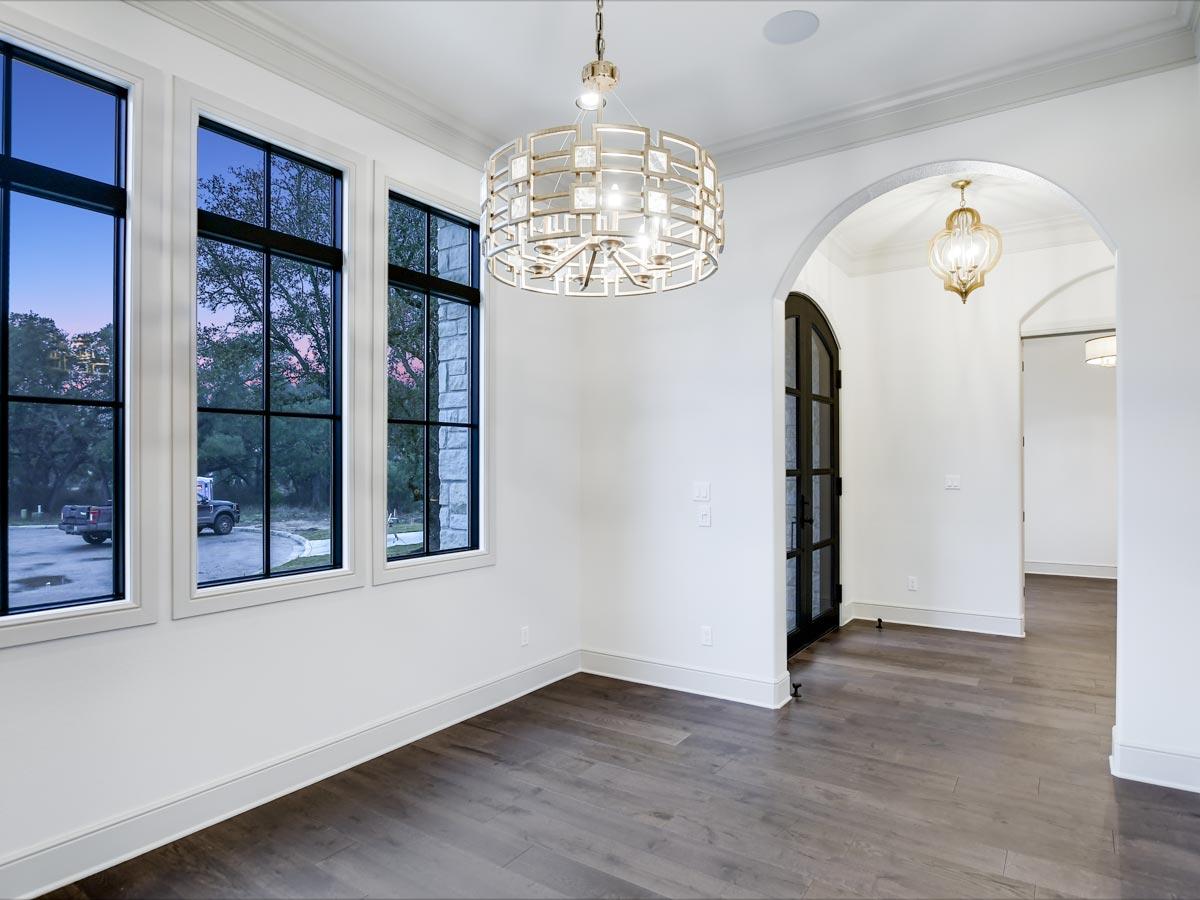

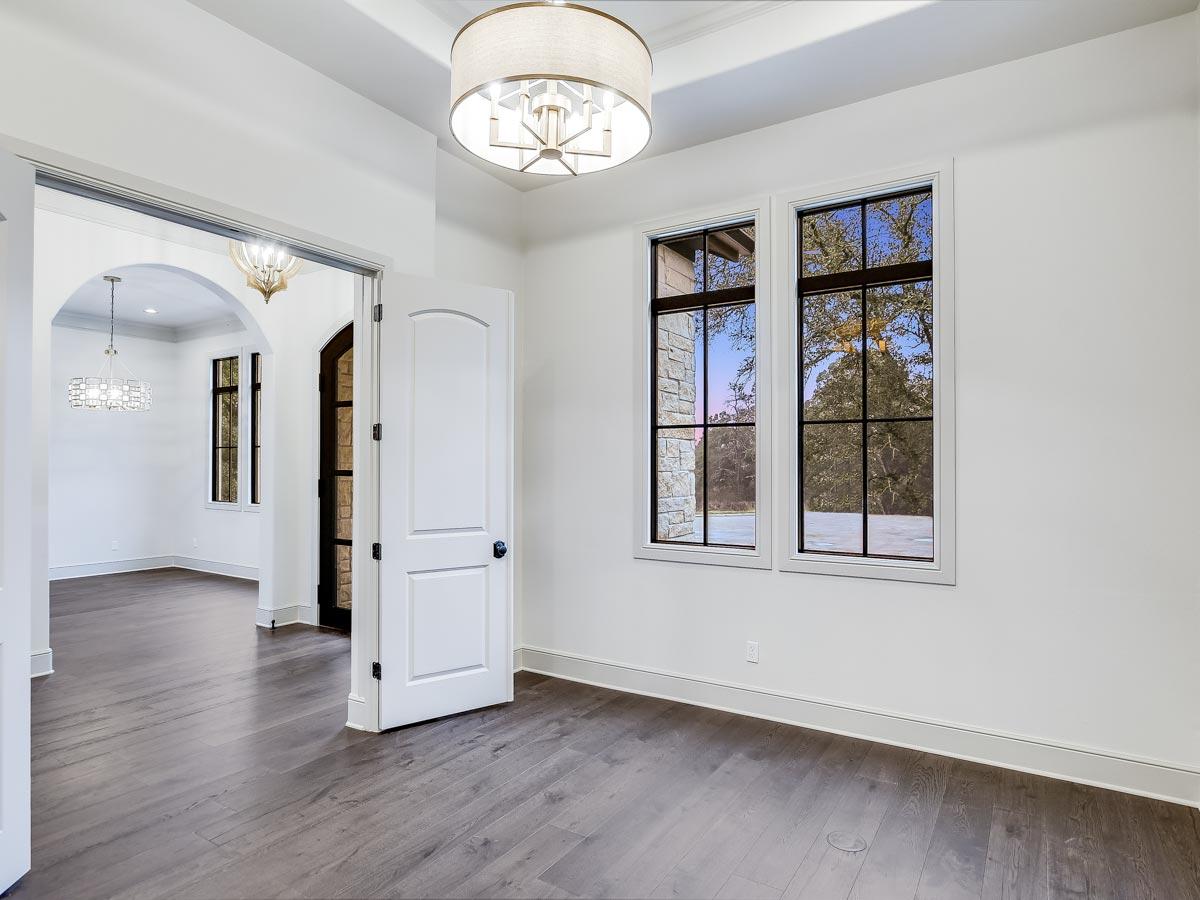

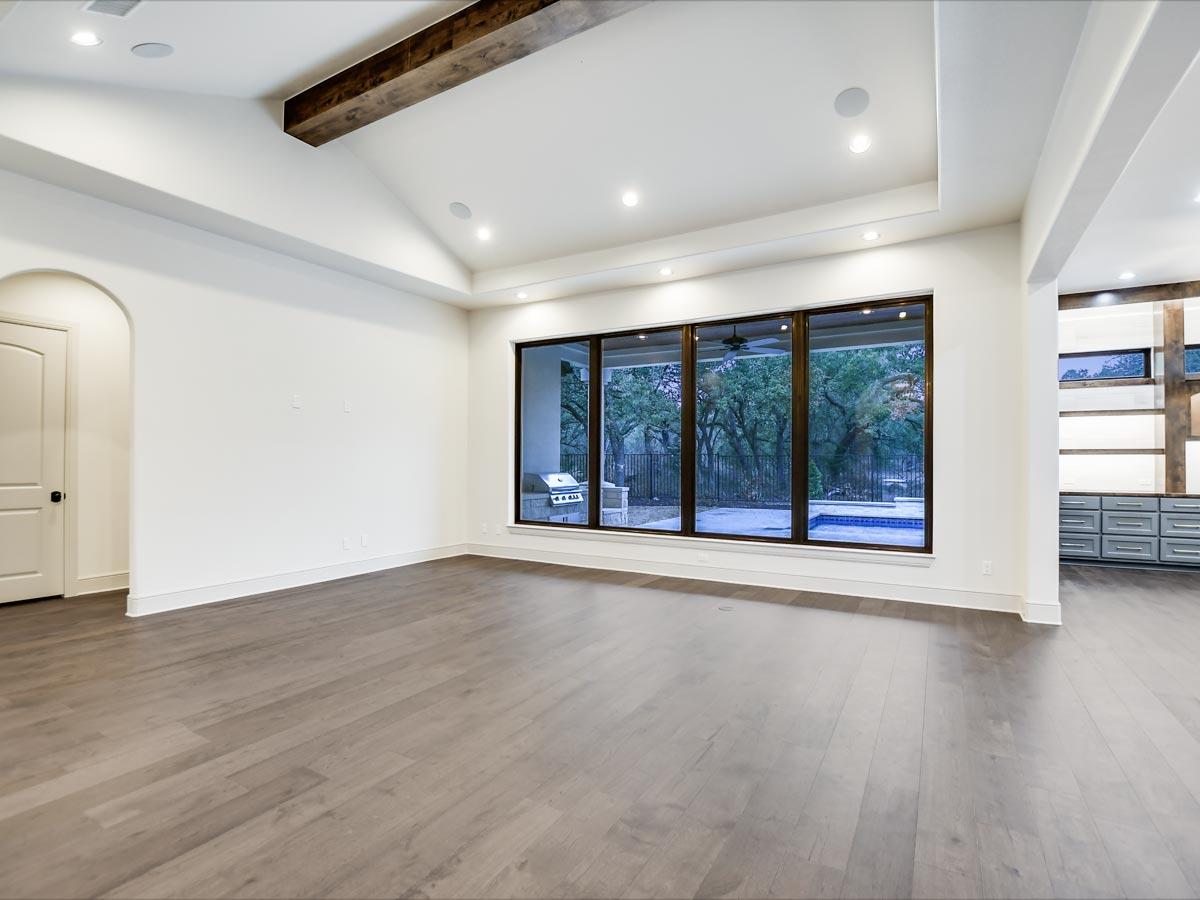

  • The stunning arched entryway leads you into a foyer that is framed by a home office and formal dining room. Straight ahead, a vaulted ceiling rests above the vast great room, perfect for entertaining.

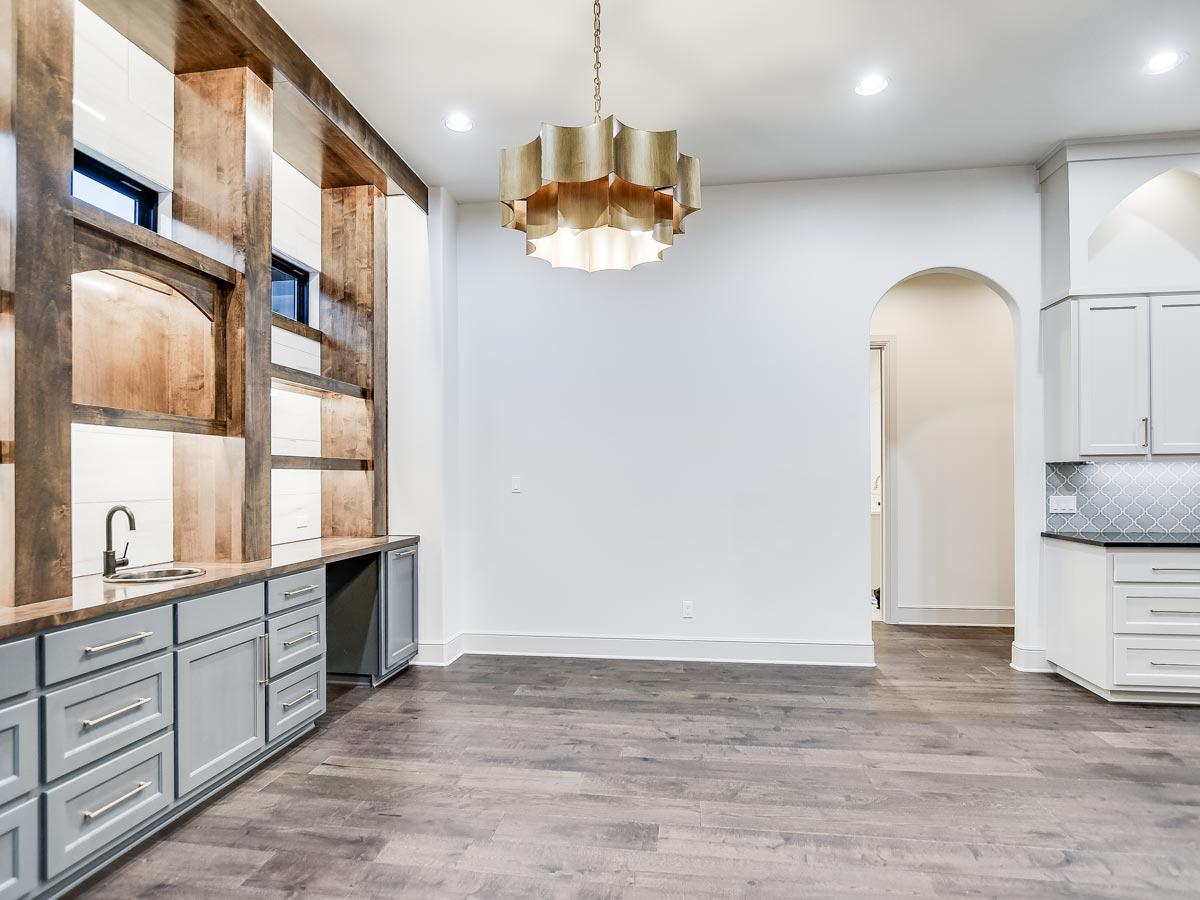

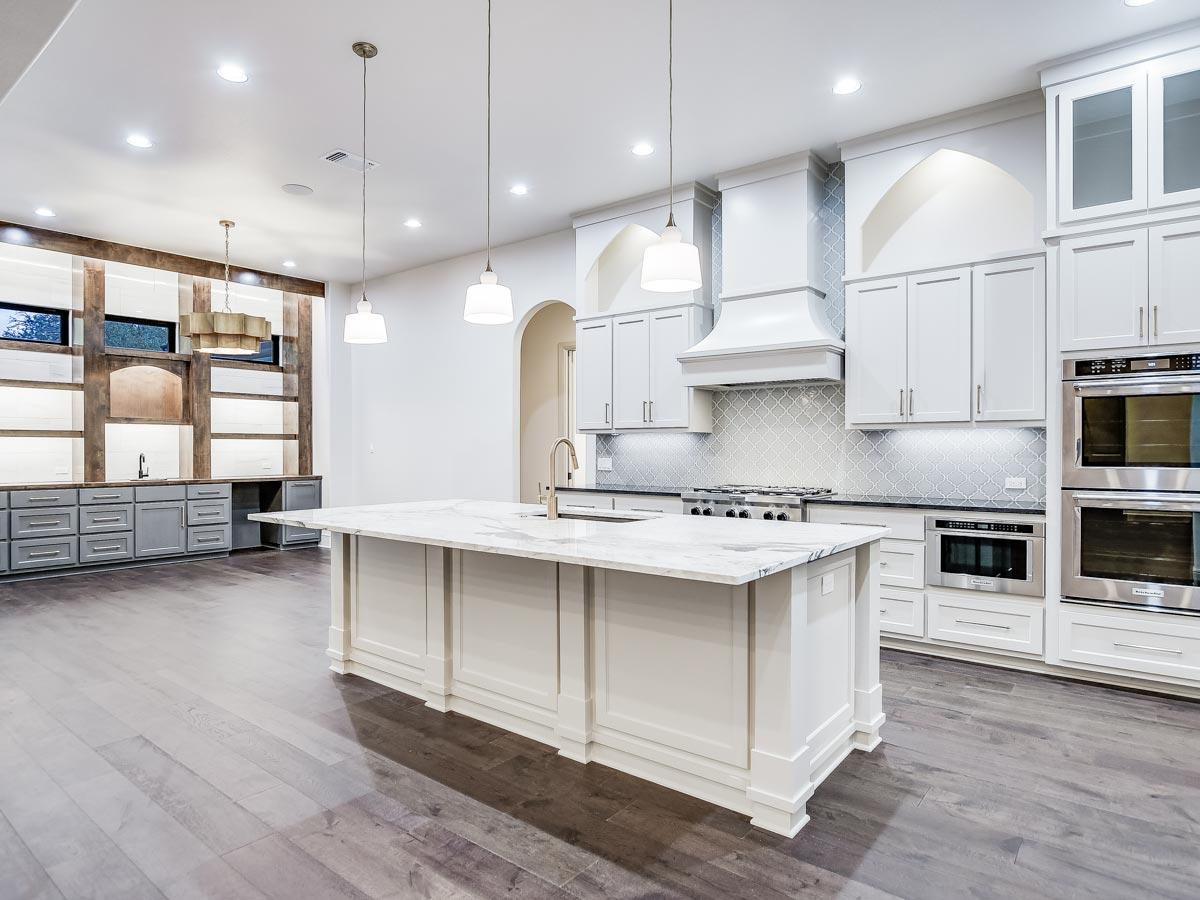

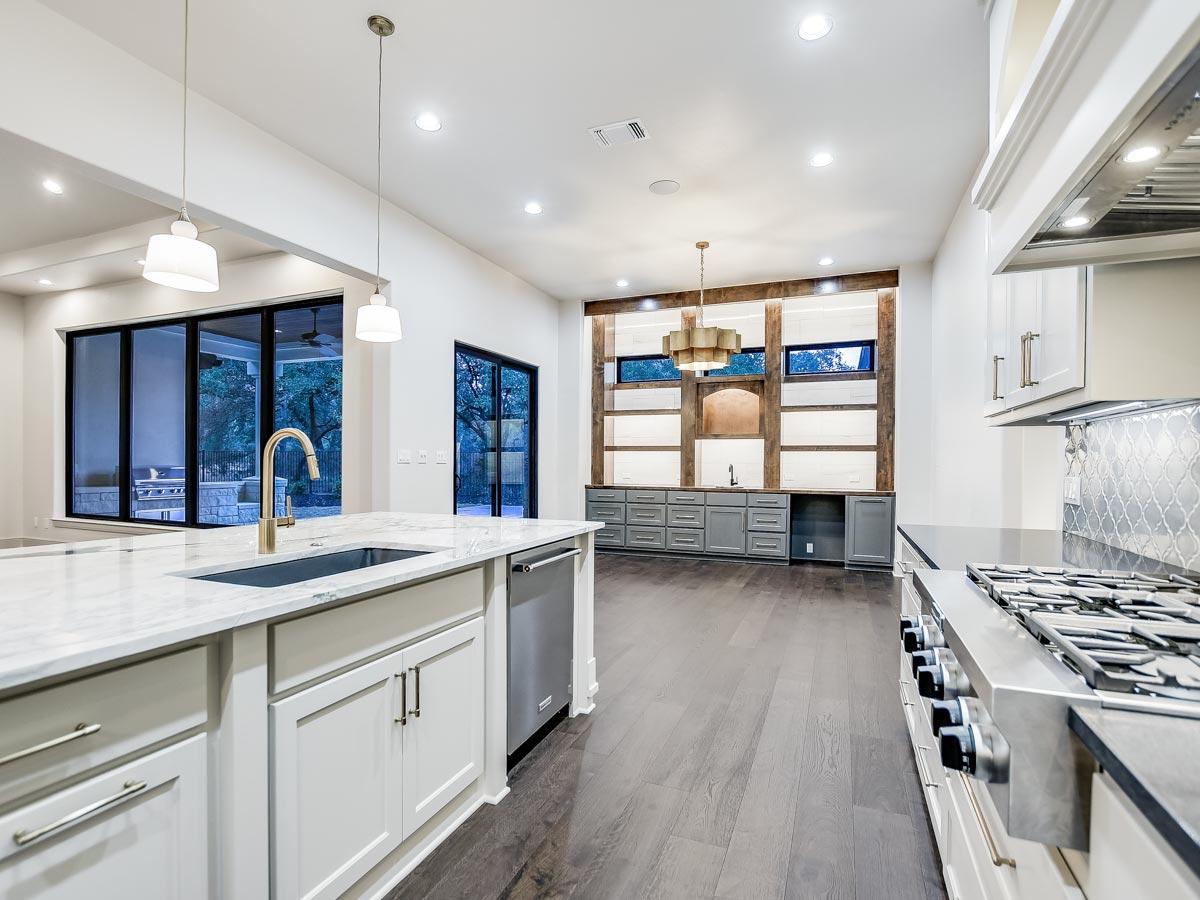

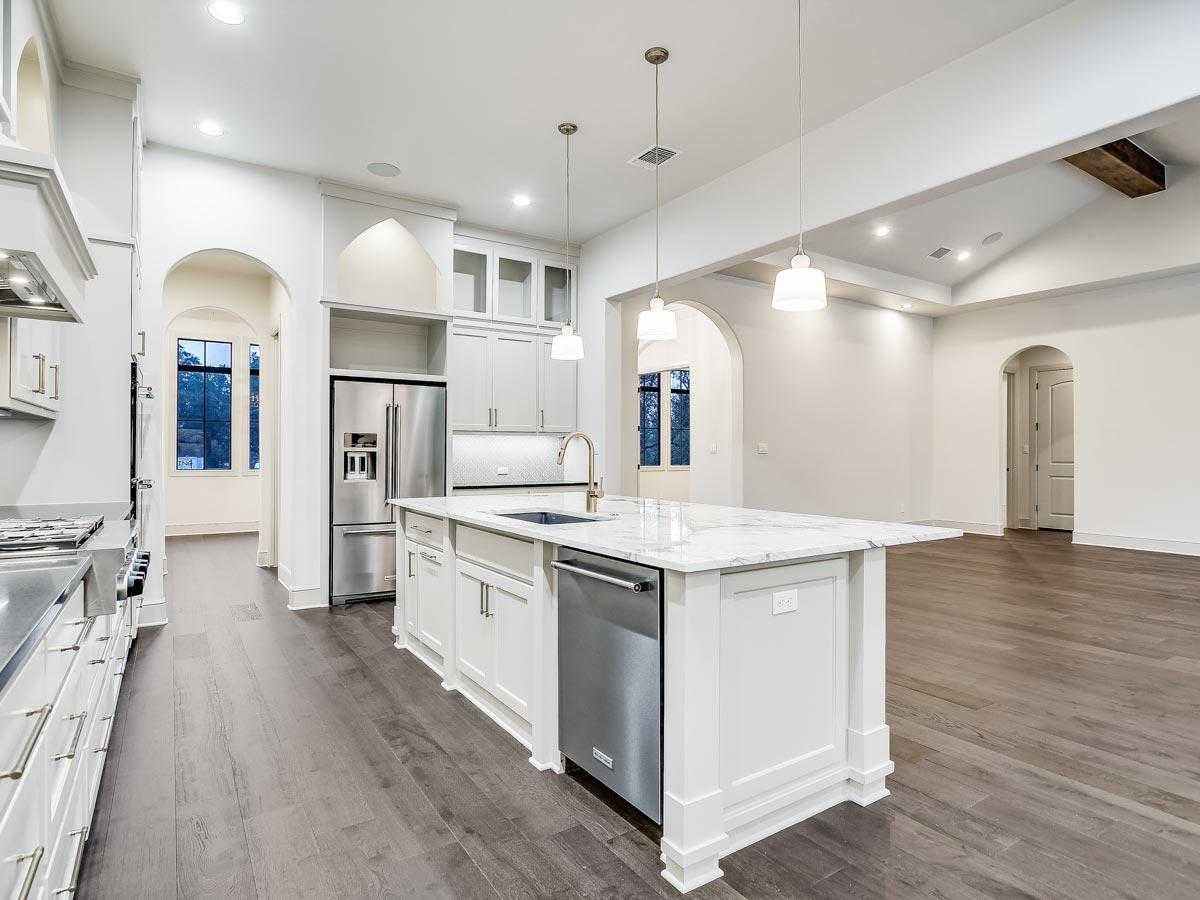

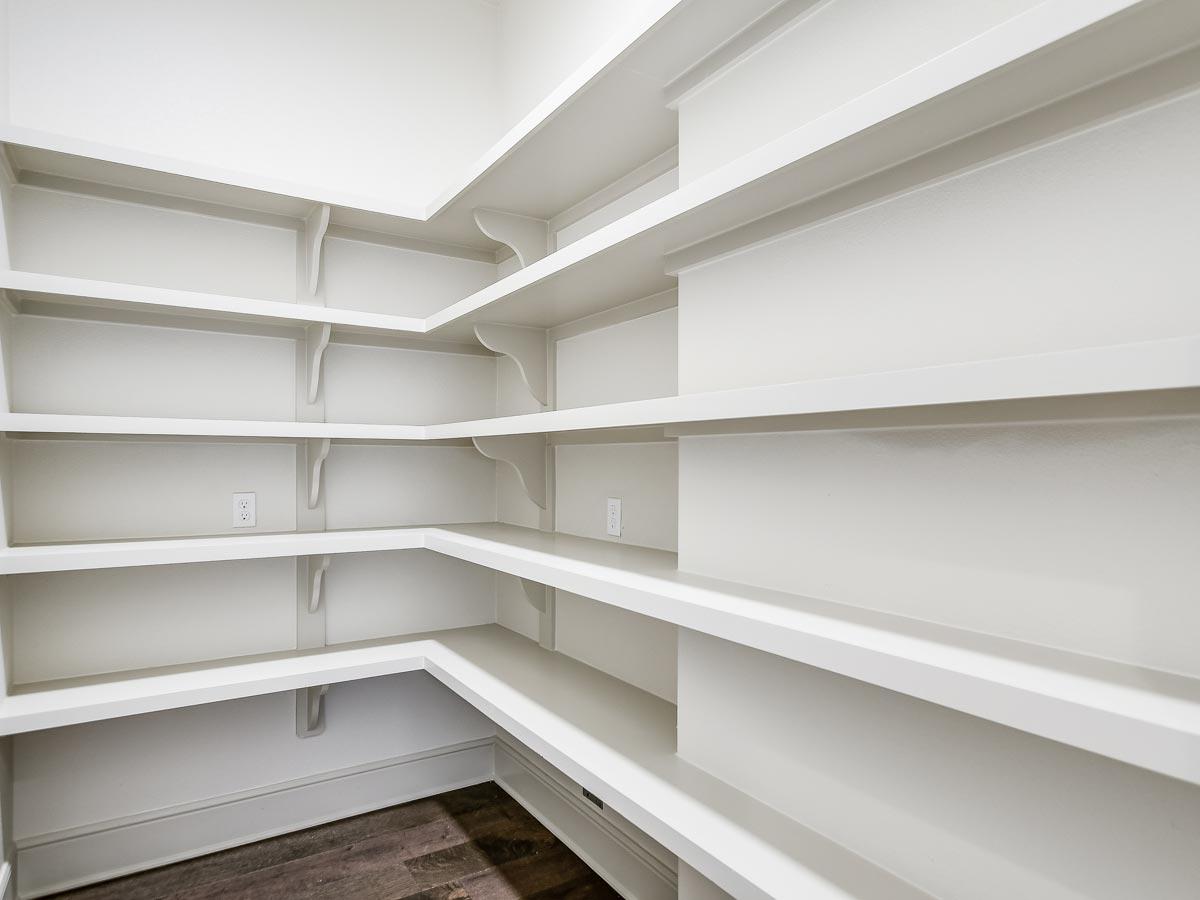

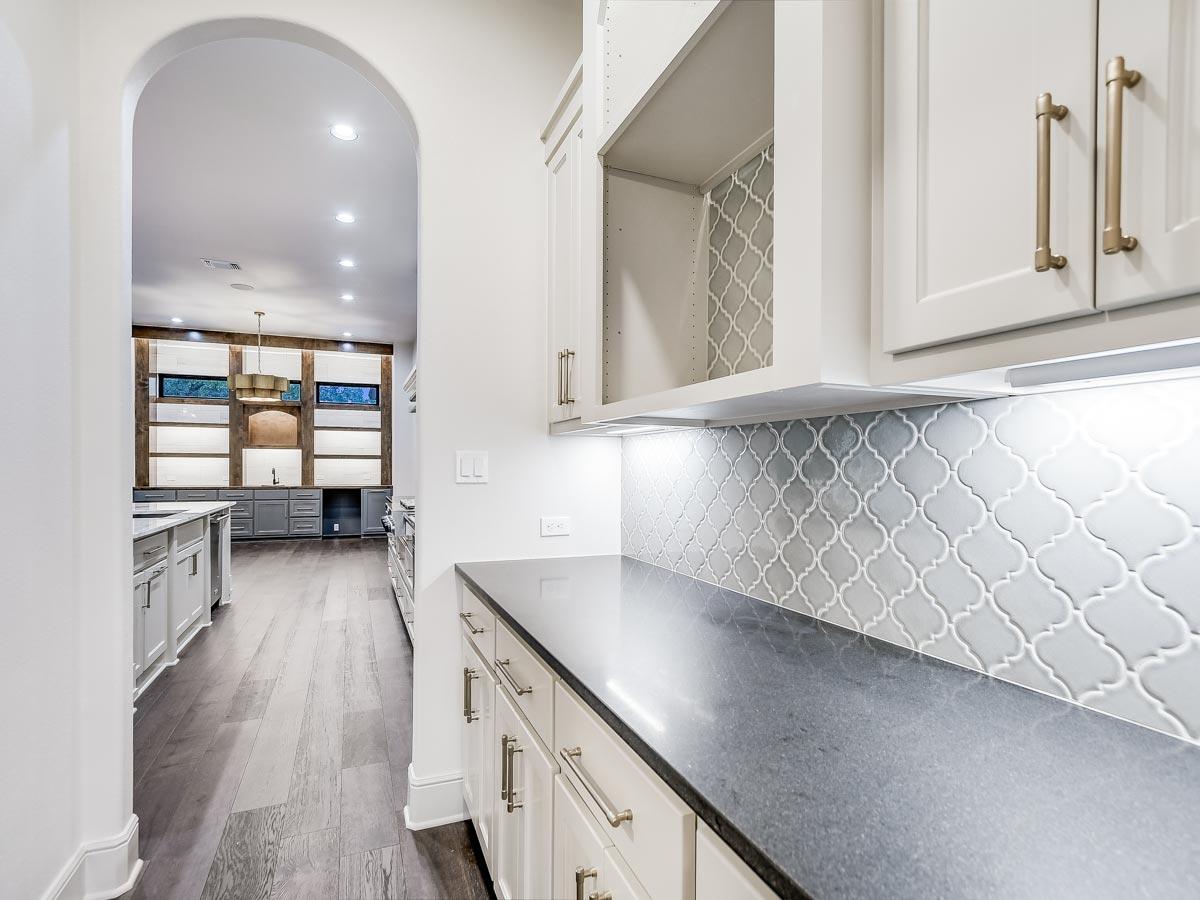

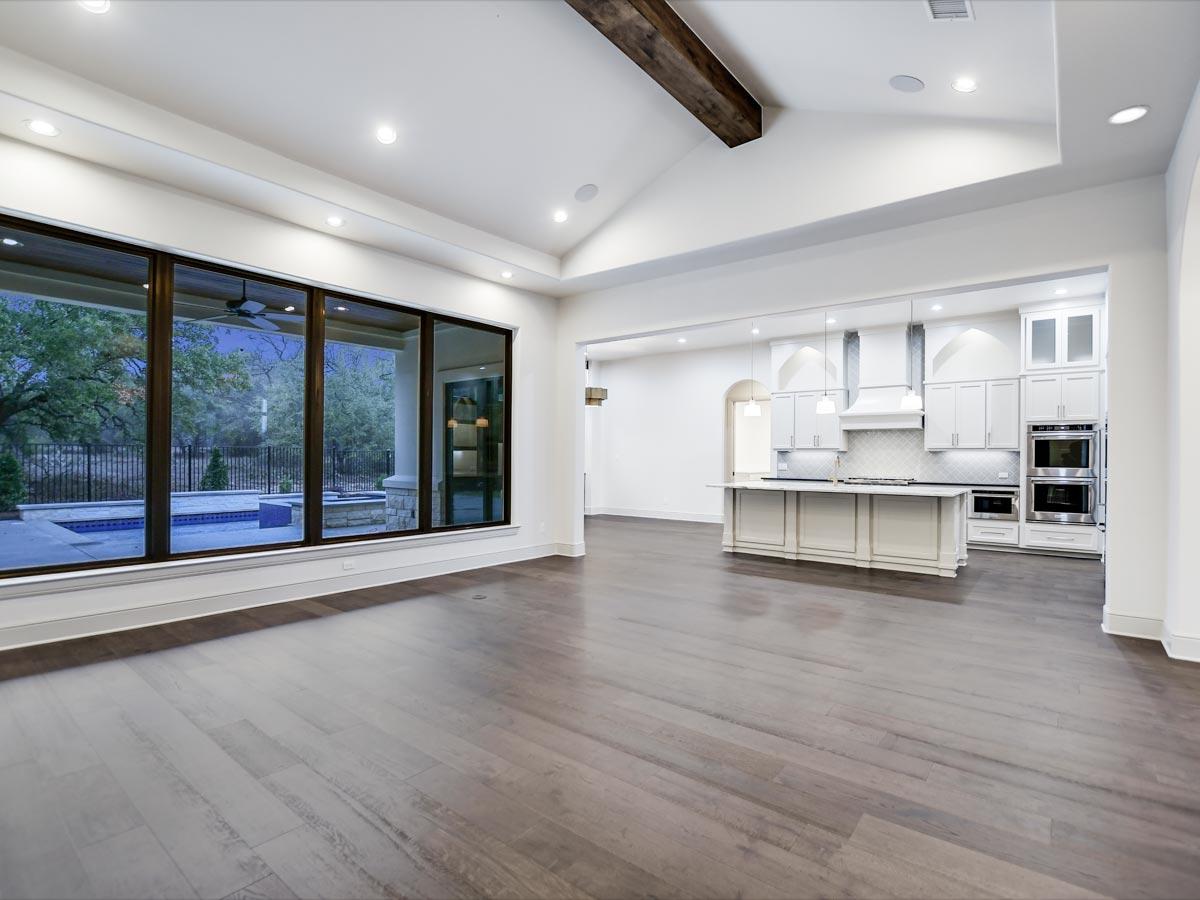

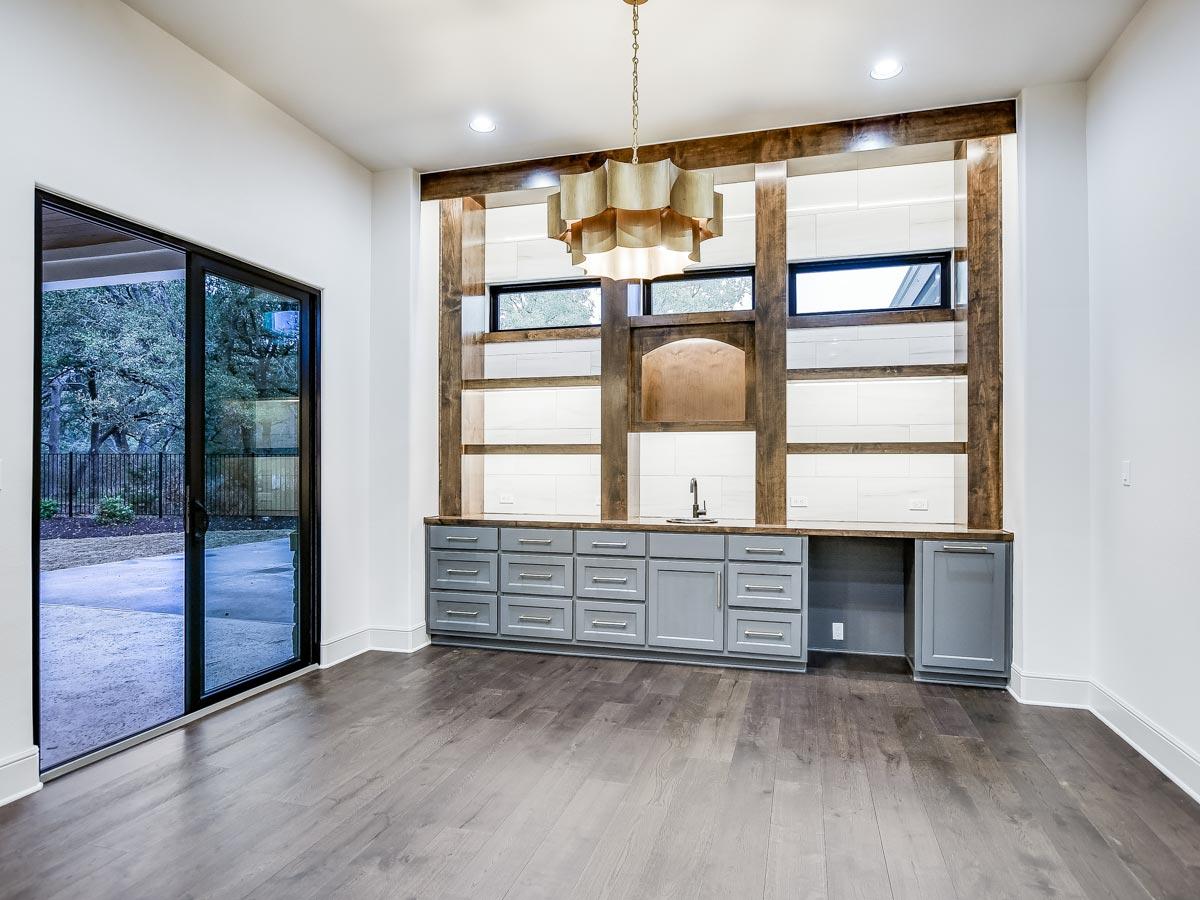

  • All of your favorite amenities can be found in this kitchen, including a large 5' by 9' island with an eating bar, walk-in (and butler's) pantry, and a cozy keeping room with a wet bar.

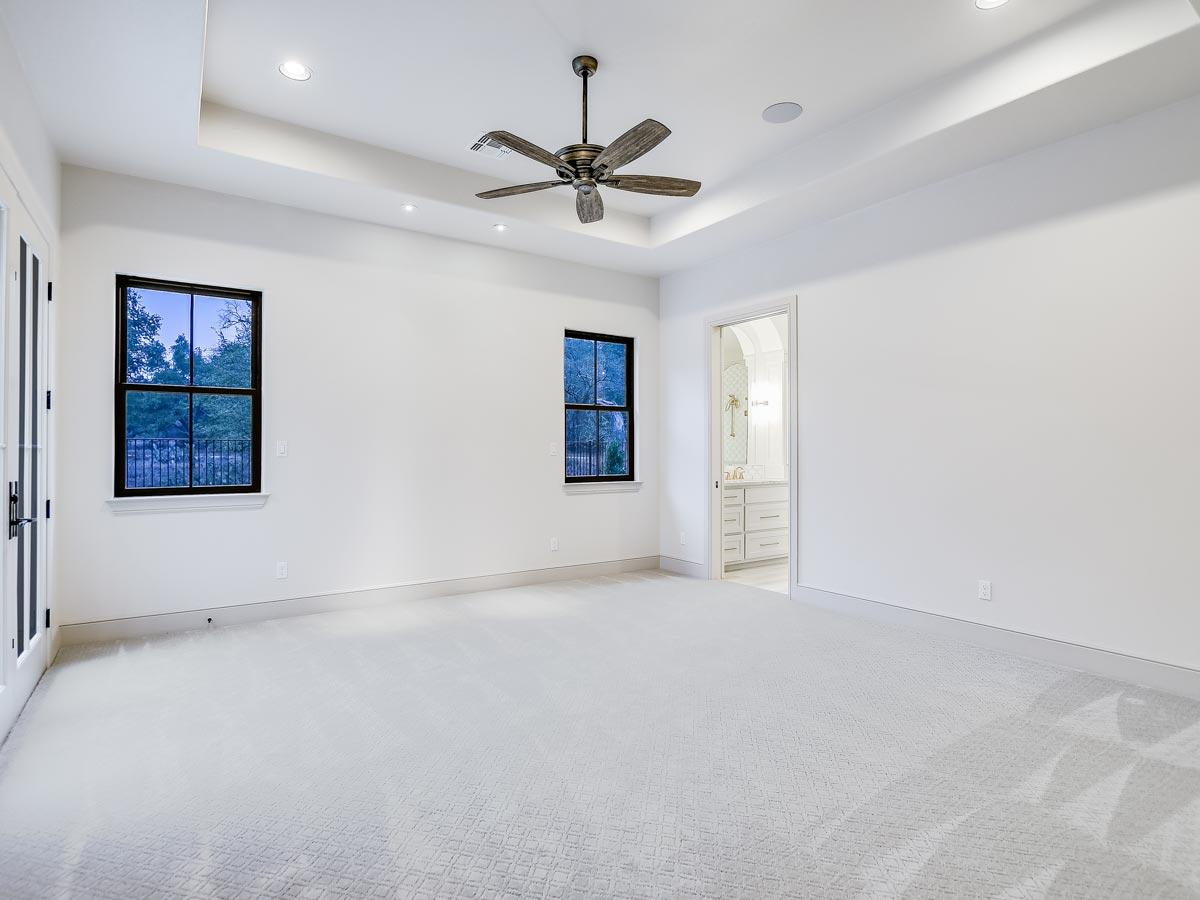

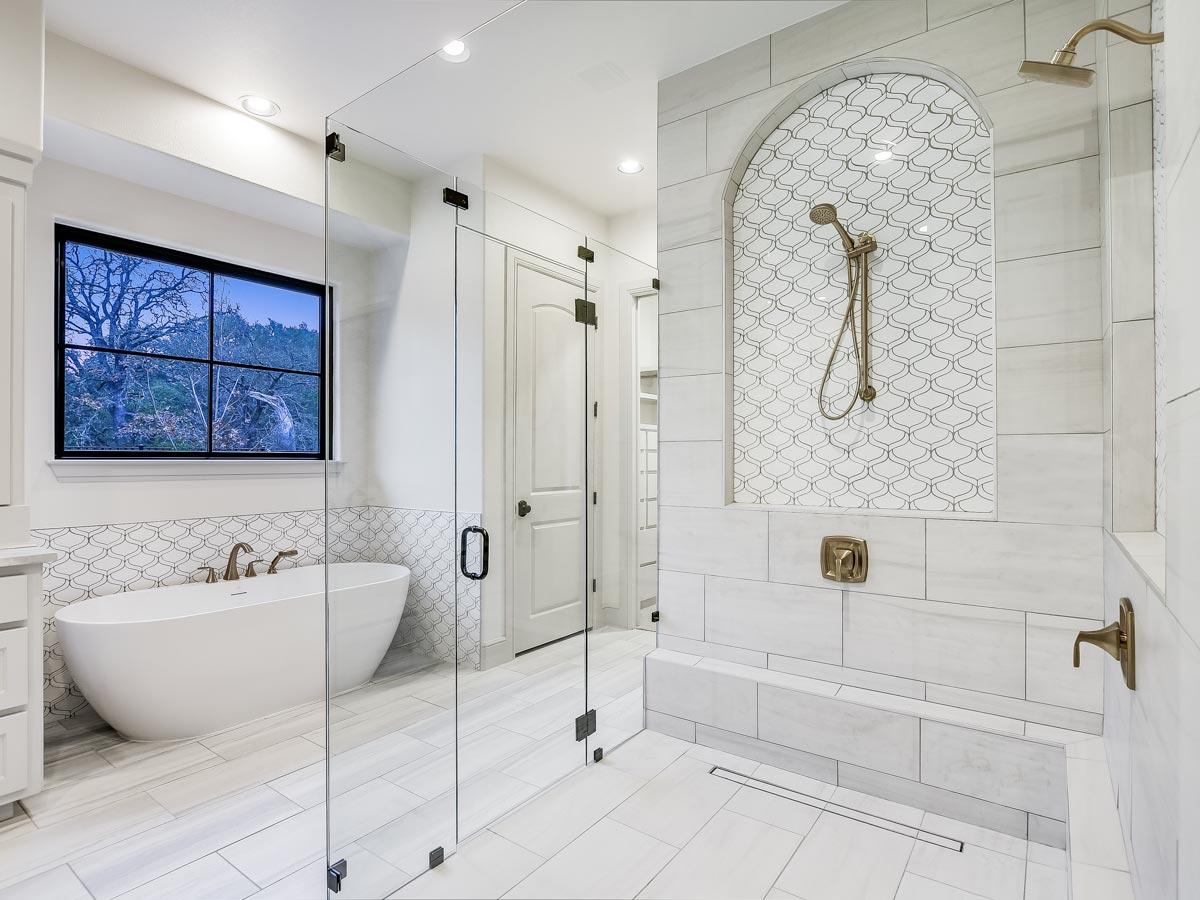

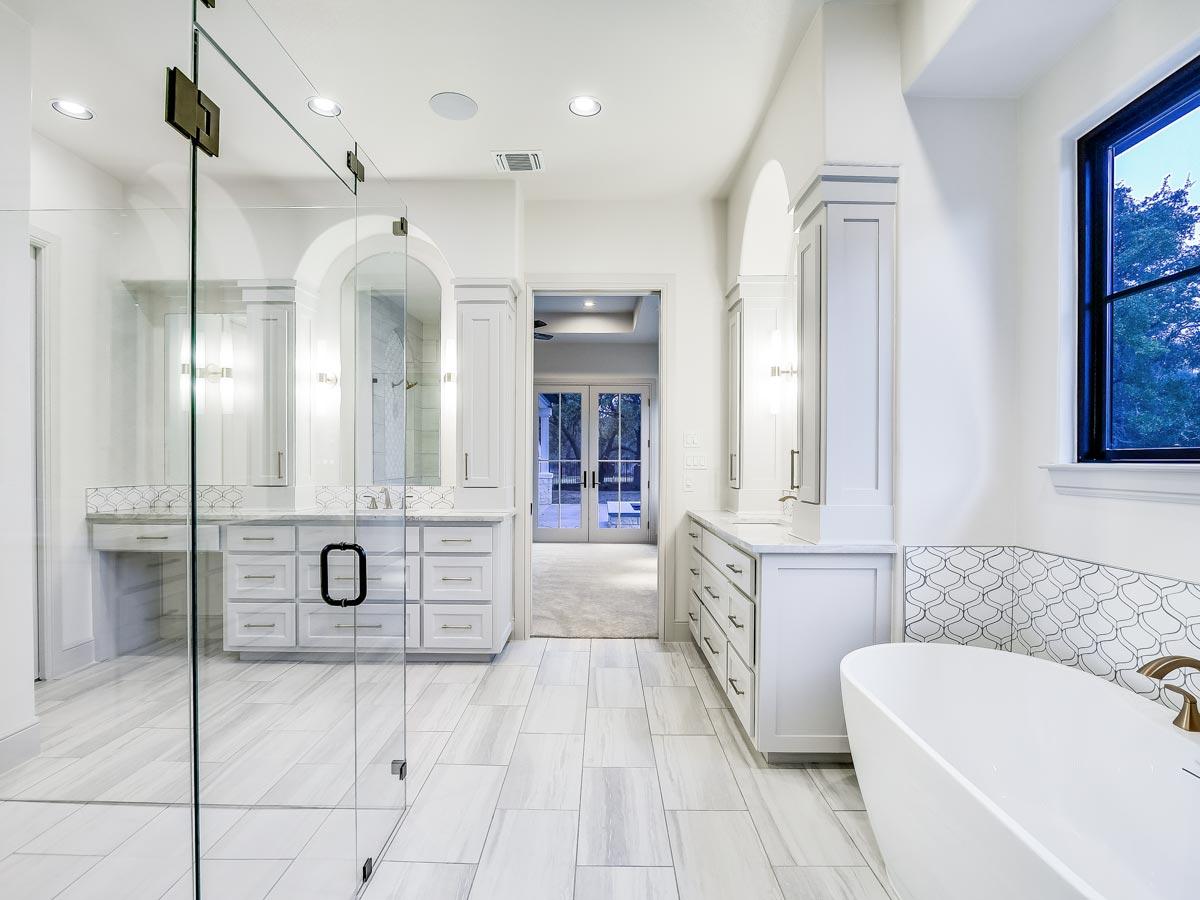

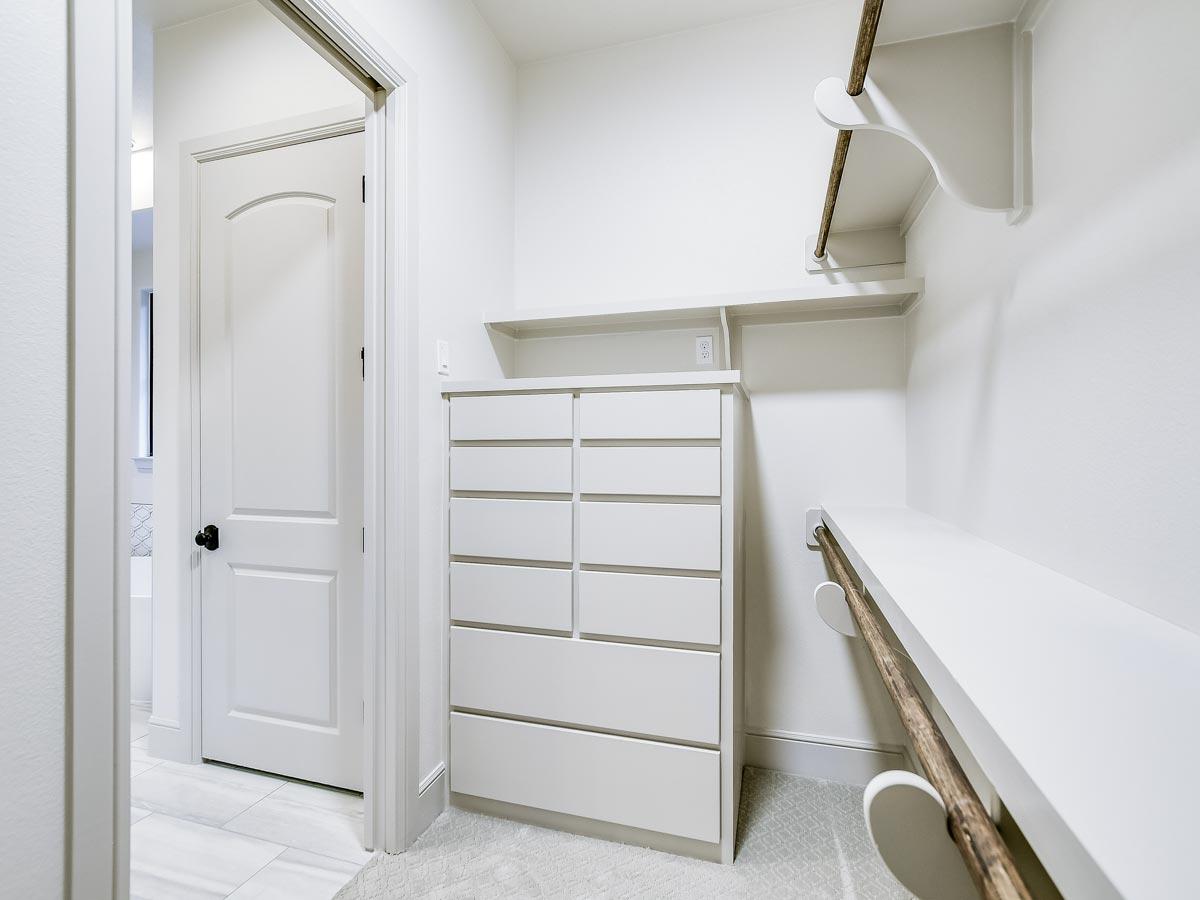

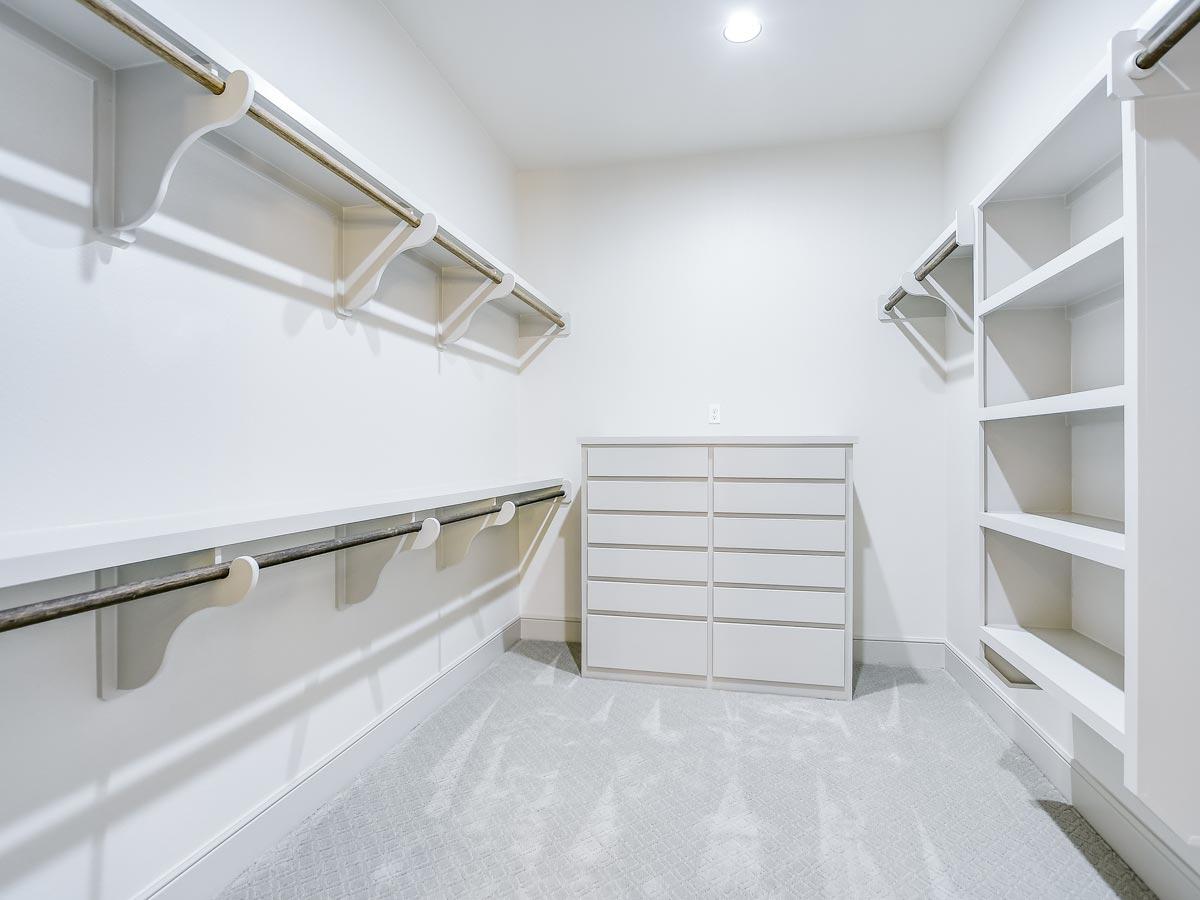

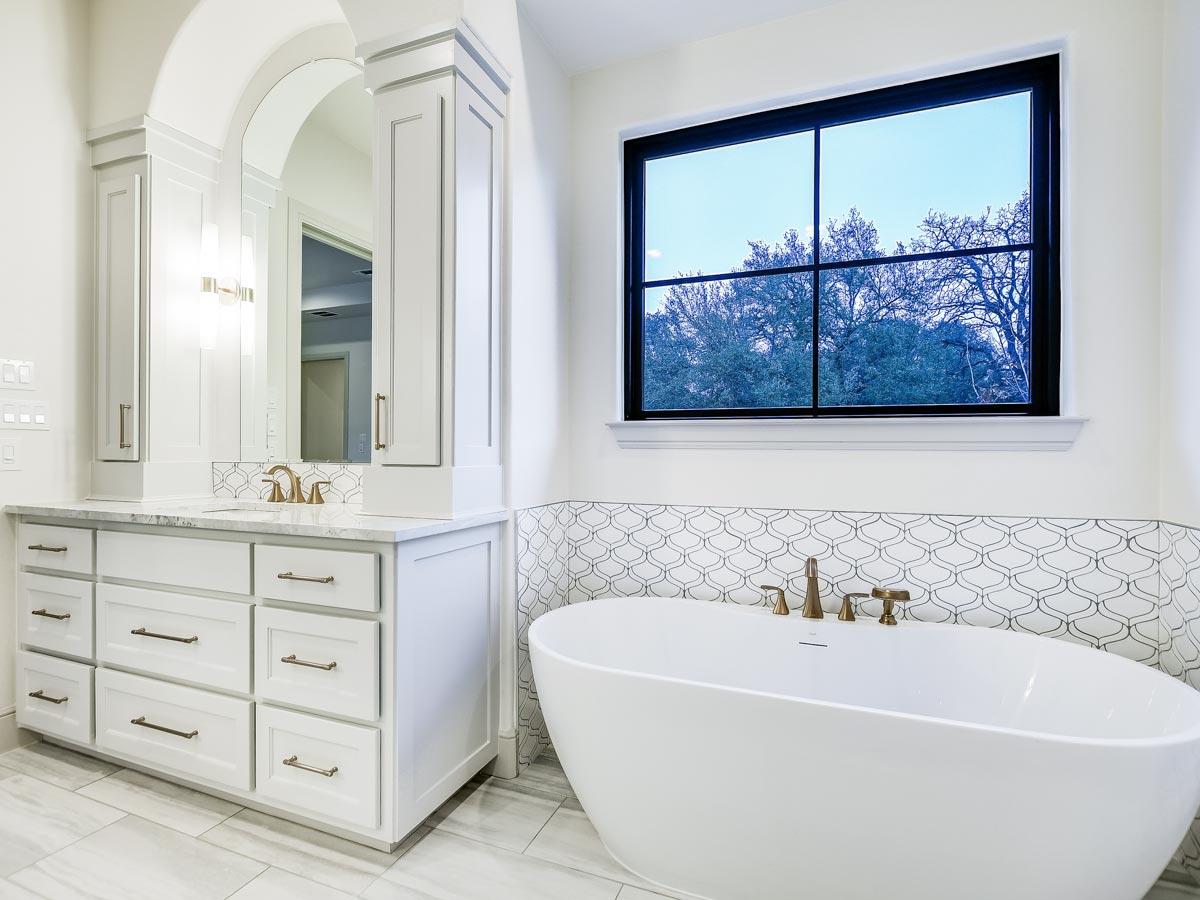

  • The master bedroom is privately located behind the 3-car garage, and boasts two sizable walk-in closets, a freestanding tub, custom shower, and toilet room.

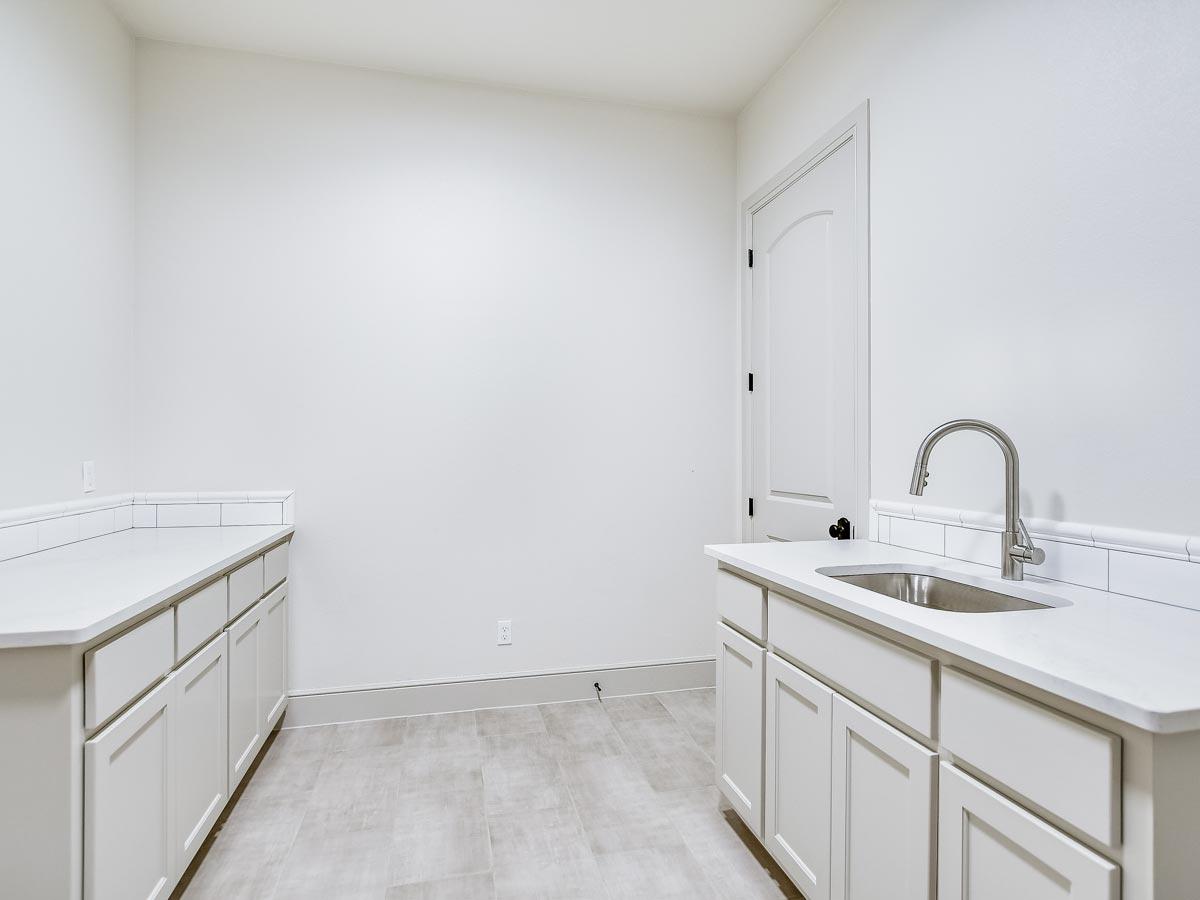

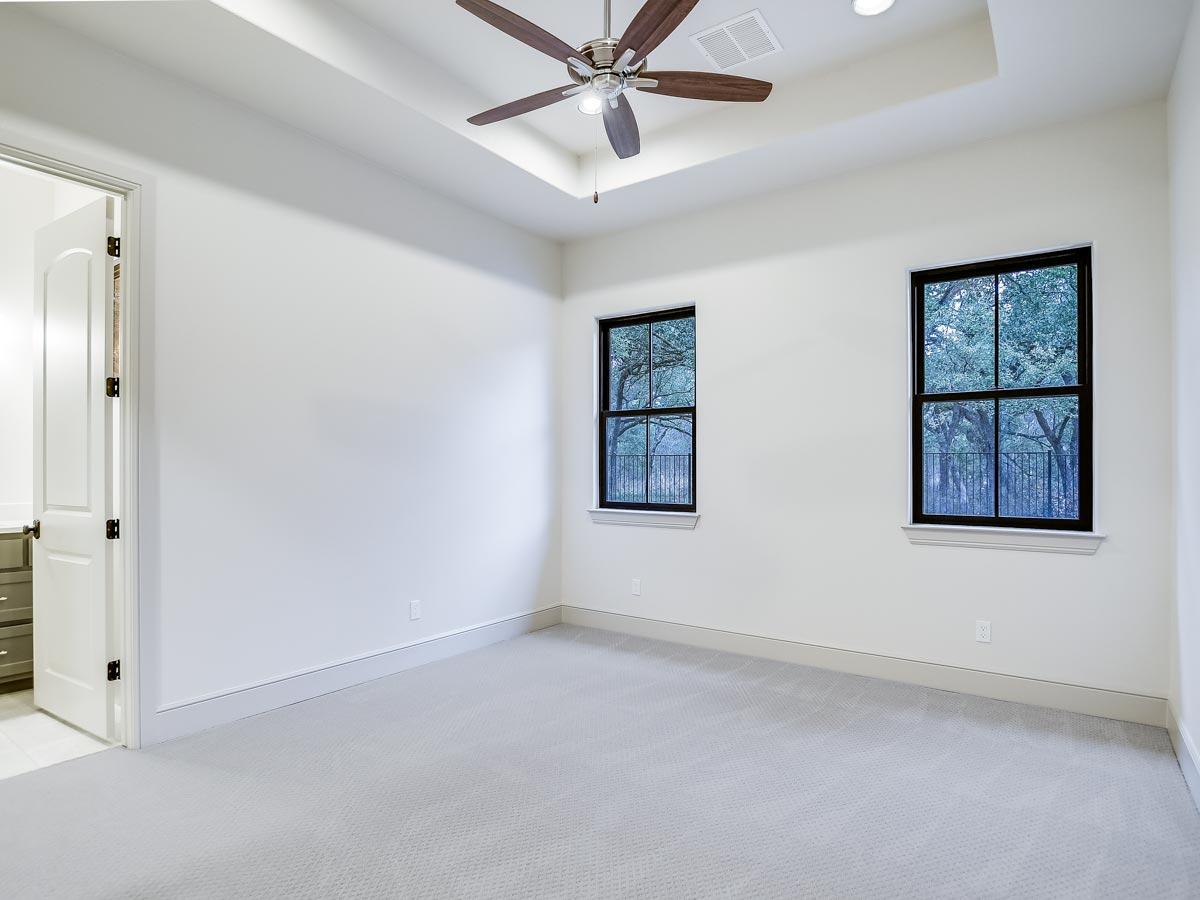

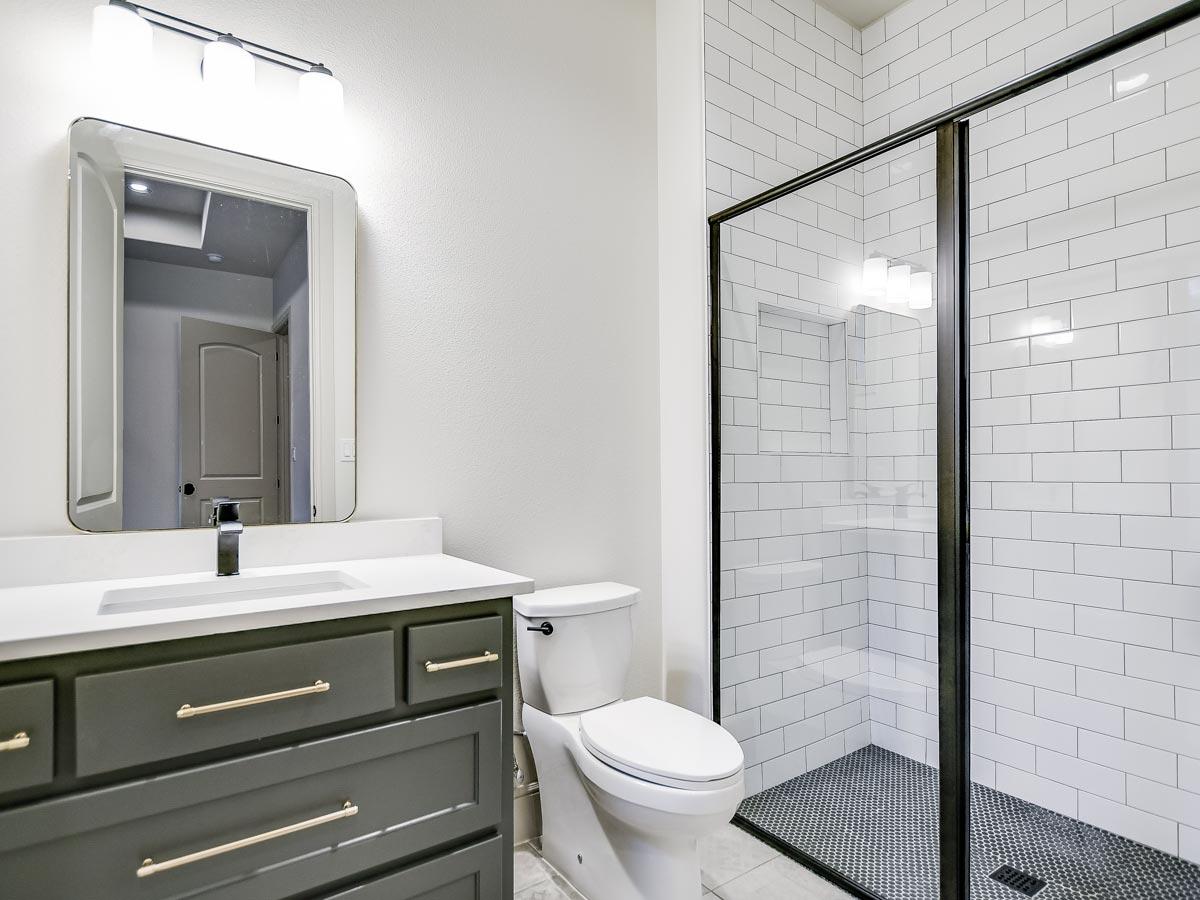

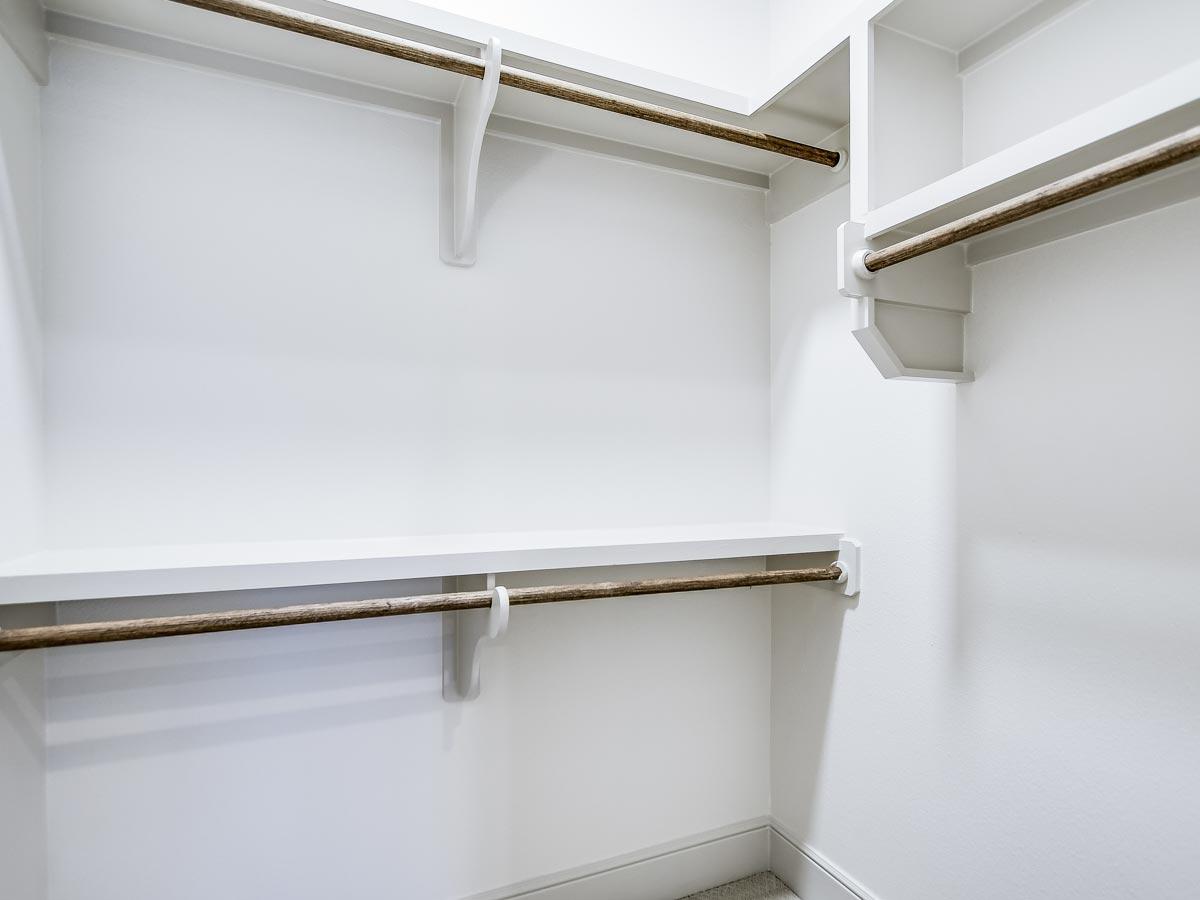

  • Each of the remaining bedrooms are a good size and include a full bath and walk-in closet. The sizable laundry room boasts a second refrigerator and large walk-in closet to capitalize on storage space.

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index and design data
Page 2  Foundation plan
Page 3  Detailed floor plan(includes window sizes, ceiling joist size and directions, beam sizes and plumbing fixture locations, etc.)

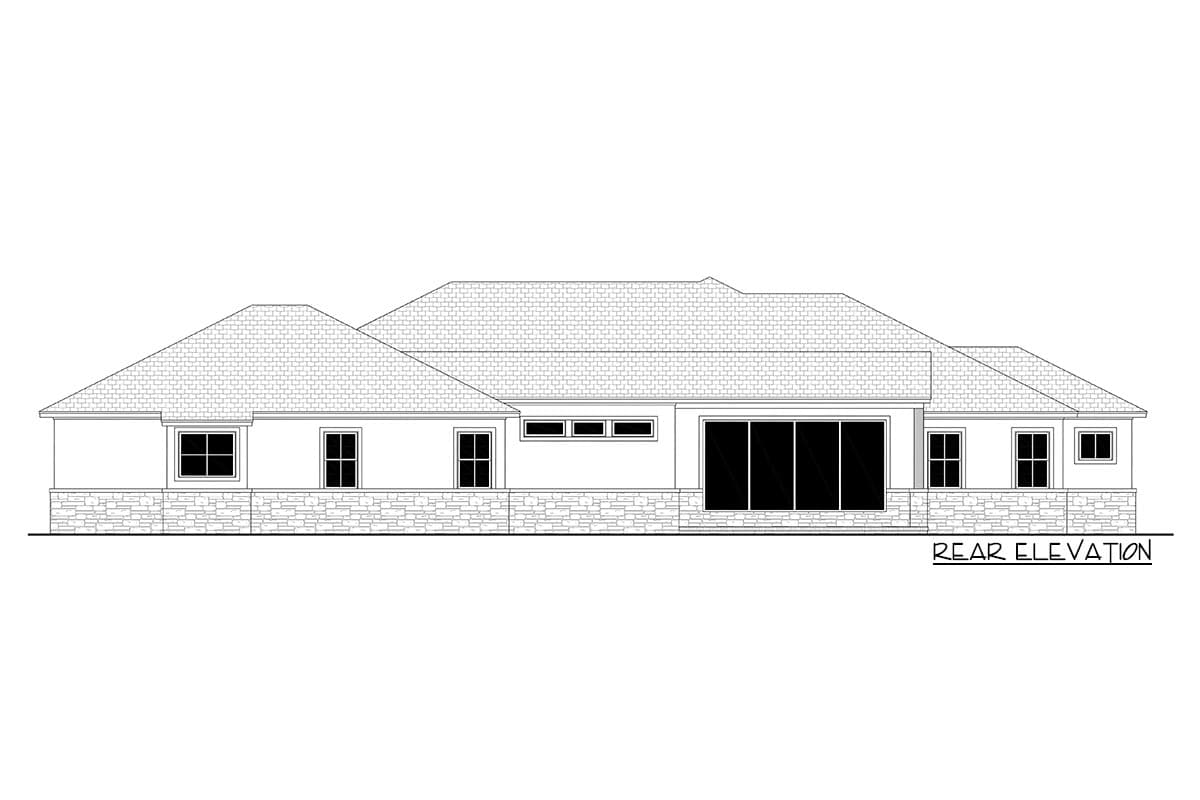

Page 4  Front and rear exterior views with additional details

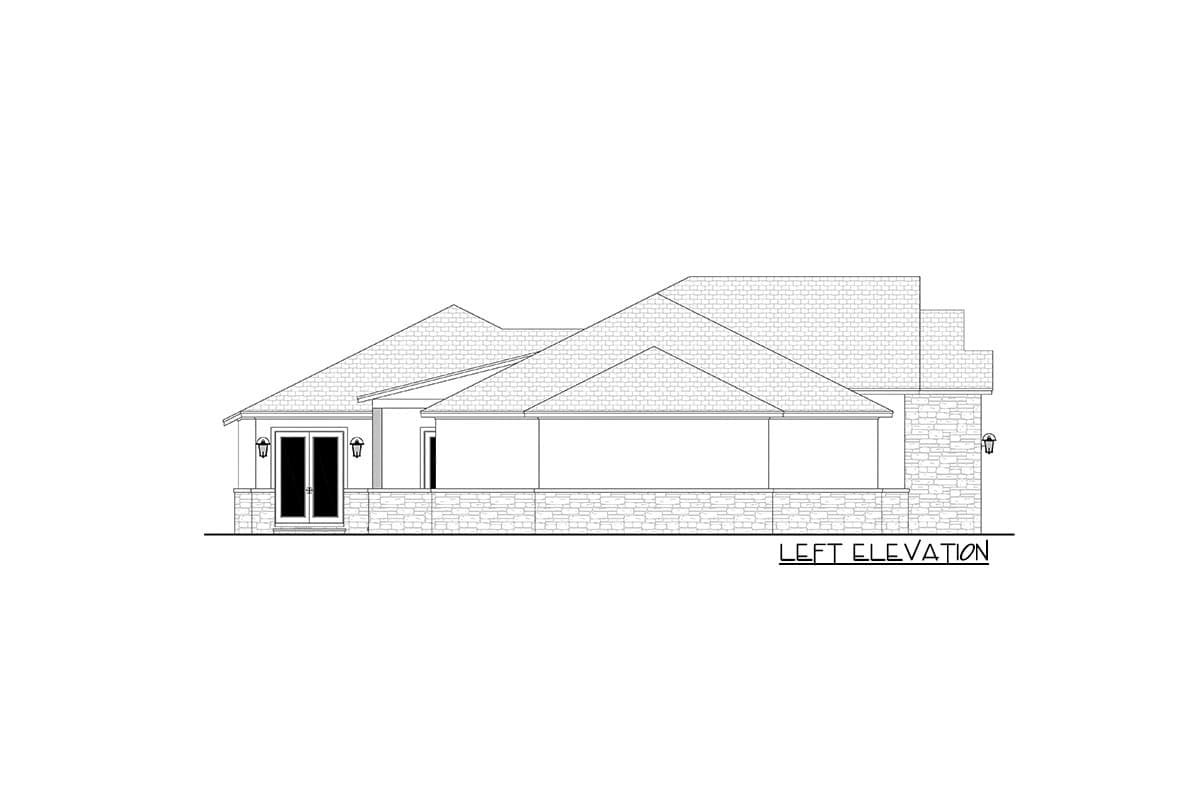

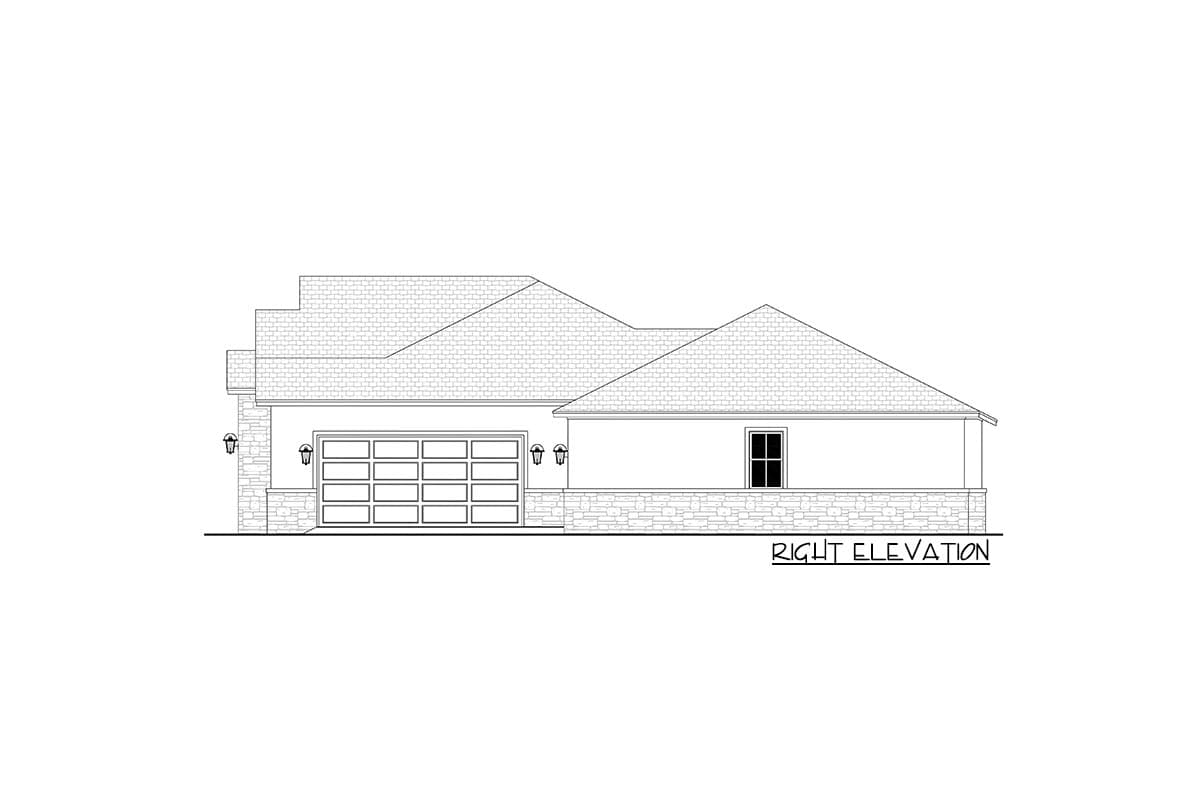

Page 5  Right and left exterior views with additional details
Page 6  Cross Sections, roof plan and cornice details
Page 7  Kitchen cabinet views and foundation details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,078 sq. ft.

1st Floor

3,078 sq. ft.

Porch, Front

64 sq. ft.

Porch, Rear

250 sq. ft.

Storage

51 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

94' 0"

Depth

64' 4"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

917 sq. ft.

Count

3 Cars

Entry Location

Side, Front, Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

European

Hill Country

Mediterranean

Ranch

Southern

Spanish

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Home Office

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Two Story Great Room

Wet Bar

Plan Collections
