Home Plan With Unique Angled Back

Plan 22338DR

  • 1,688

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • A unique angled rear living area is the distinguishing figure in this three bedroom home plan with a contemporary exterior and exciting interior.
  • Off the entry is an enclosed dining room which would be equally comfortable as a home office.
  • Also near the entrance, you'll enjoy having a utility room with a laundry area, sink and counter with a shower / toilet area behind a sliding door.
  • The spacious angled living room forms its own wing bathed in light.
  • A spacious kitchen is generous enough to fit a 56"x 56" island.
  • Upstairs, the master suite comes complete with a bank of closets and a walk-through closet provides private access to the generous bathroom which includes a shower/bath room to keep warmth and humidity contained, a privacy toilet room and large vanity.
  • Two additional bedrooms complete the sleeping chambers.
  • Additional space is available by developing the basement.
  • The roof is a truss design.
  • Related Plan: Add an attached garage with house plan 22386DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

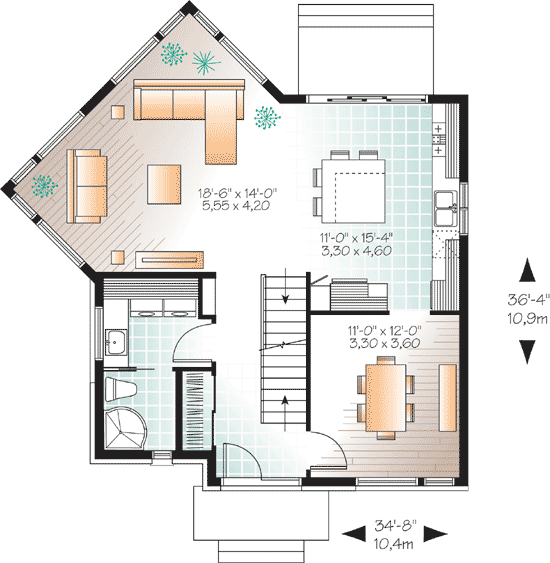

Home Plan With Unique Angled Back - 22338DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

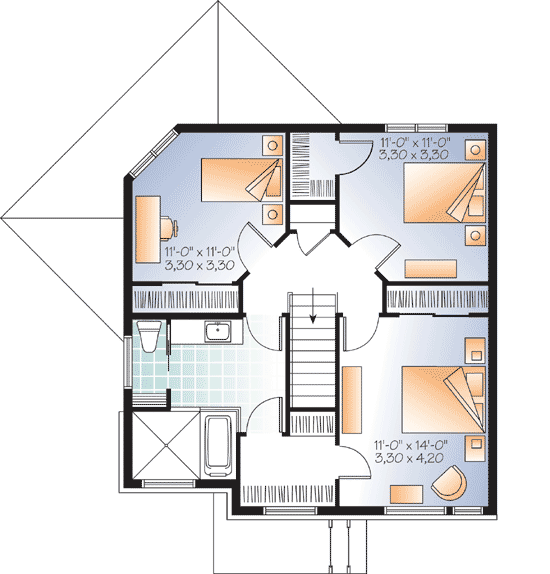

Home Plan With Unique Angled Back - 22338DR floor plan - 2nd Floor

Plan details

Architectural Style

Plan Collections



Home Plan With Unique Angled Back

  • 1,688

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,130
  • Reproducible Set $1,130
  • 5 Sets + PDF $1,255
  • CAD - Single-Build $1,730
  • View all purchase option online

About This Plan

  • A unique angled rear living area is the distinguishing figure in this three bedroom home plan with a contemporary exterior and exciting interior.
  • Off the entry is an enclosed dining room which would be equally comfortable as a home office.
  • Also near the entrance, you'll enjoy having a utility room with a laundry area, sink and counter with a shower / toilet area behind a sliding door.
  • The spacious angled living room forms its own wing bathed in light.
  • A spacious kitchen is generous enough to fit a 56"x 56" island.
  • Upstairs, the master suite comes complete with a bank of closets and a walk-through closet provides private access to the generous bathroom which includes a shower/bath room to keep warmth and humidity contained, a privacy toilet room and large vanity.
  • Two additional bedrooms complete the sleeping chambers.
  • Additional space is available by developing the basement.
  • The roof is a truss design.
  • Related Plan: Add an attached garage with house plan 22386DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,688 sq. ft.
  • 1st Floor: 898 sq. ft.
  • 2nd Floor: 790 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 8"
  • Depth: 36' 4"
  • Max ridge height: 26' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
