Plan 18716CK

Informal Mountain Living

Heated S.F.
2,427
Beds
3
Baths
2.5
Stories
2
Cars
2
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 18716CK modified with attached garage.

House Plan 18716CK modified with attached garage.

11

Photos

build gallery item - House Plan 18716CK built in Virginia with attached garage

House Plan 18716CK built in Virginia with attached garage

60

Photos

build gallery item - House Plan 18716CK comes to life in Tennessee

House Plan 18716CK comes to life in Tennessee

7

Photos

Customer Photos

Floor Plan

Plan 18716CK

Main Level
Main Level
2nd Floor
2nd Floor
Detached Garage
Detached Garage

Plan 18716CK

M-F 9am-5pm EST |

1-203-761-8500

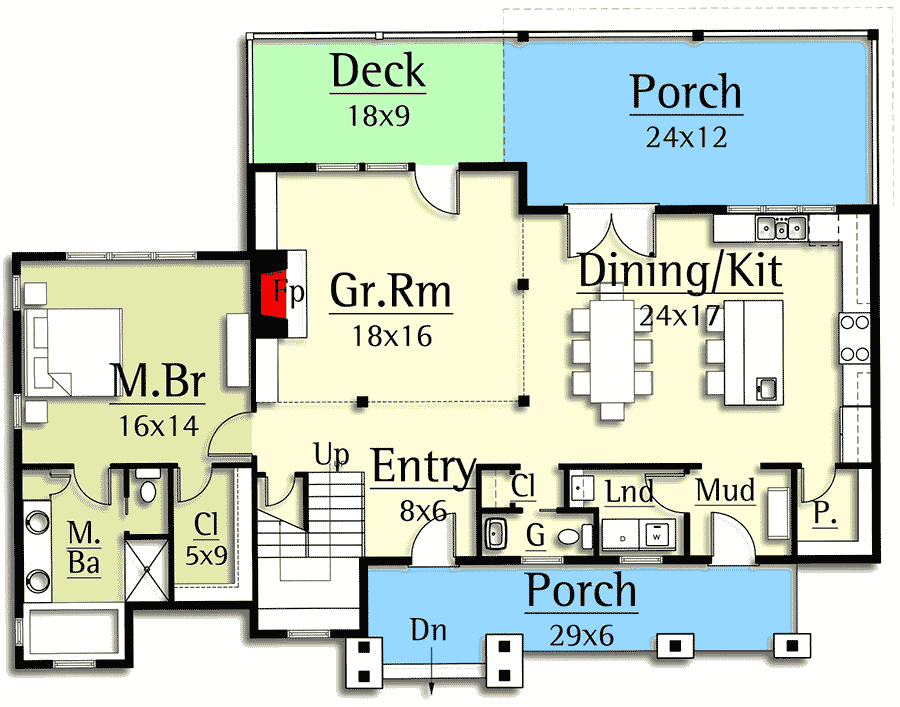

Main Level

Plan 18716CK: Informal Mountain Living - Floor Plan - Main Level - Craftsman, Hill Country, Modern Farmhouse, Mountain, Rustic, Vacation

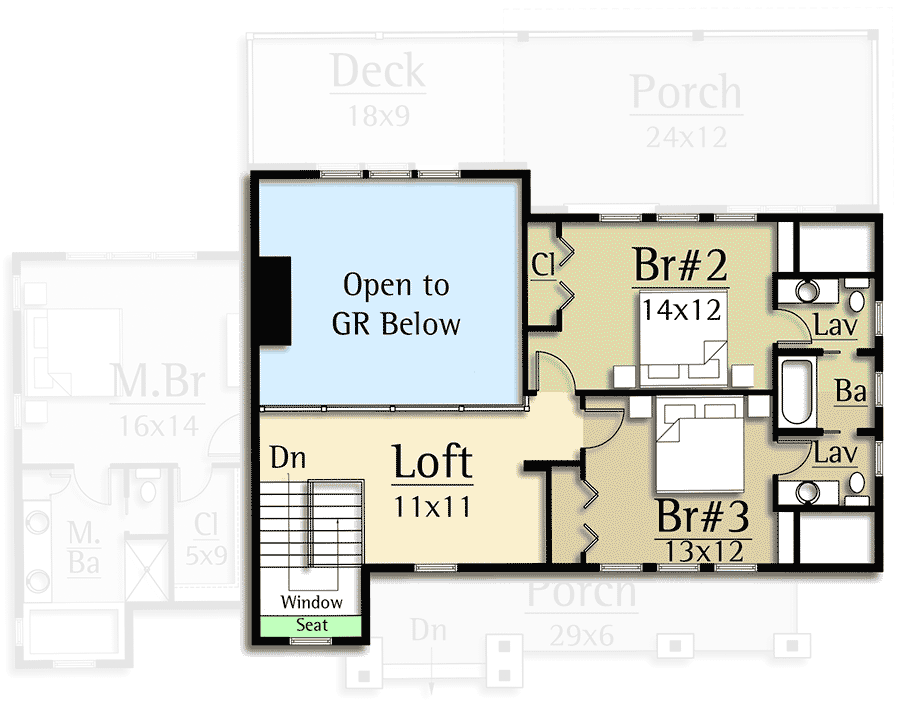

2nd Floor

Plan 18716CK: Informal Mountain Living - Floor Plan - 2nd Floor - Craftsman, Hill Country, Modern Farmhouse, Mountain, Rustic, Vacation

Detached Garage

Plan 18716CK: Informal Mountain Living - Floor Plan - Detached Garage - Craftsman, Hill Country, Modern Farmhouse, Mountain, Rustic, Vacation

Plan Details

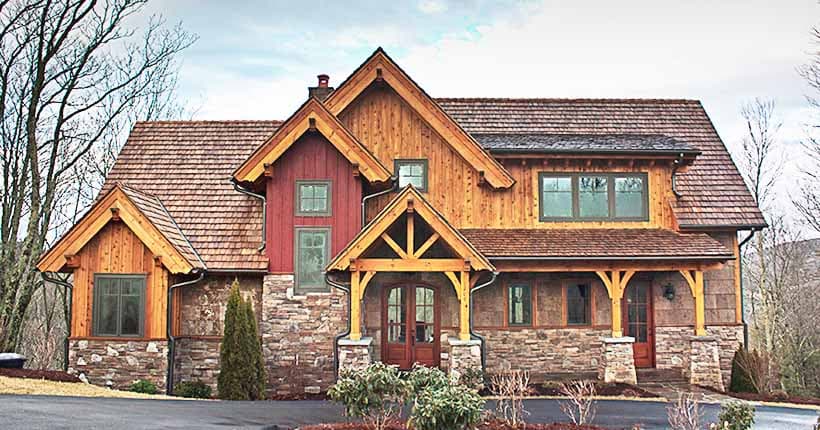

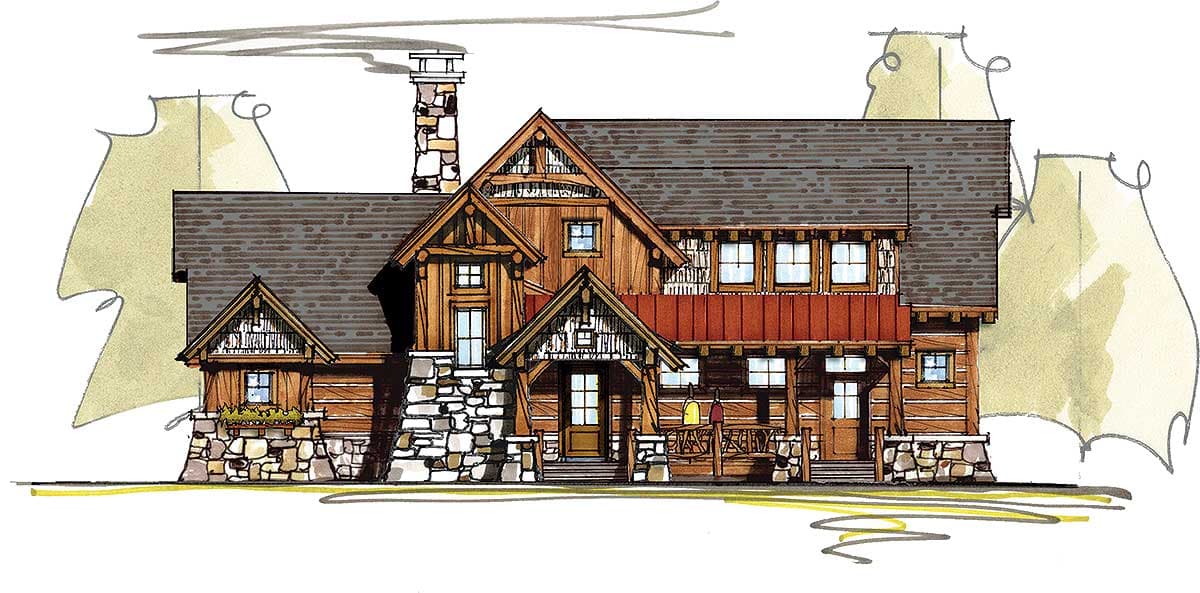

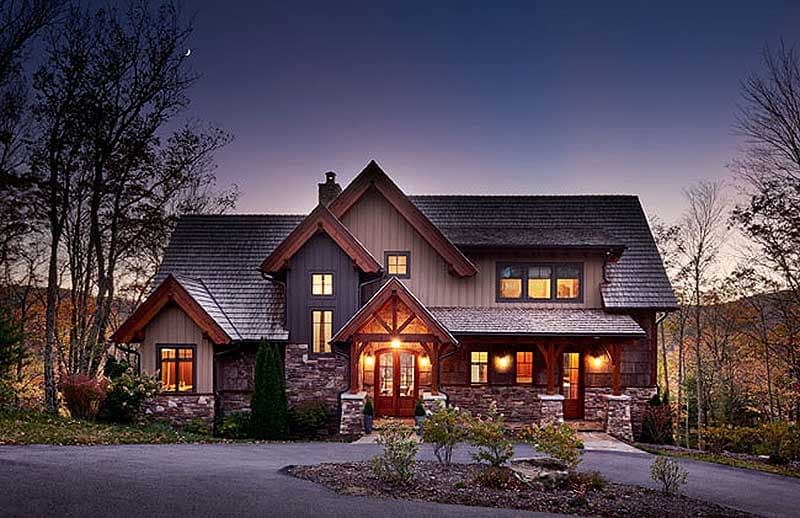

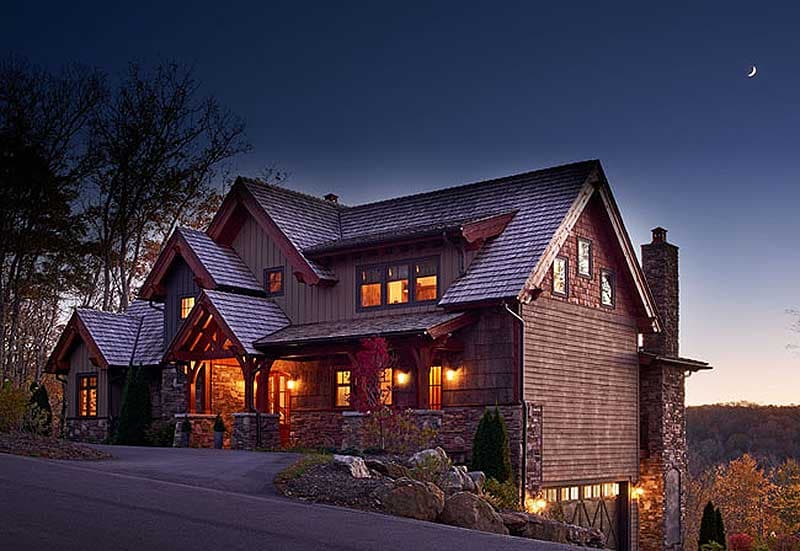

  • Log siding with stone detailing combined with 2x6 exterior walls makes for an energy-efficient rustic home plan.

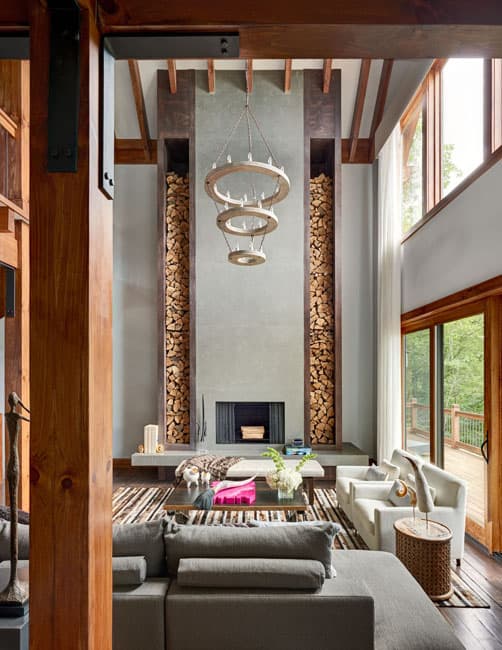

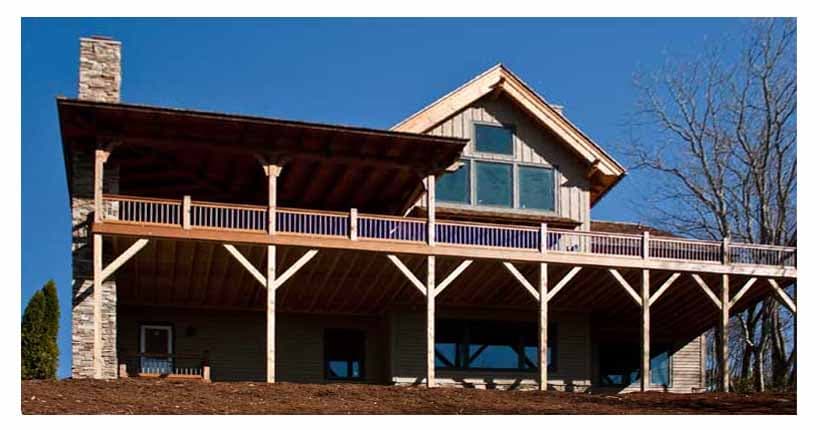

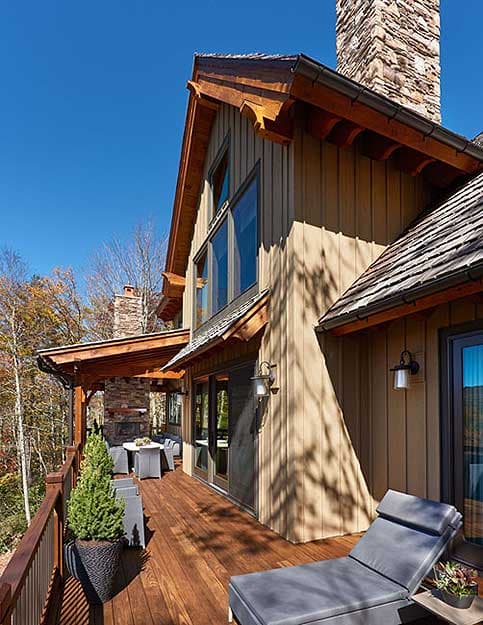

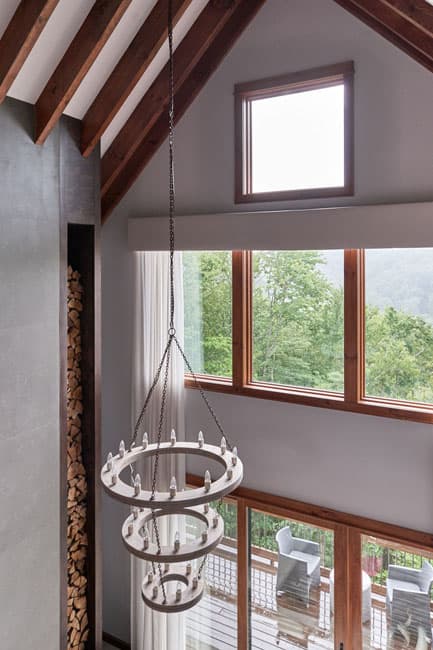

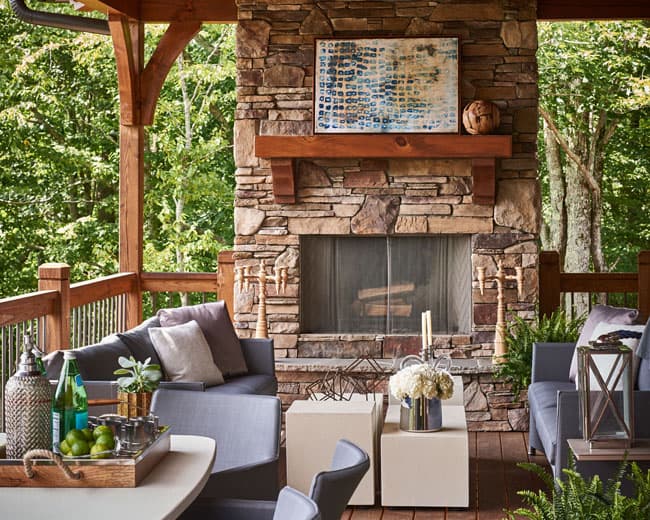

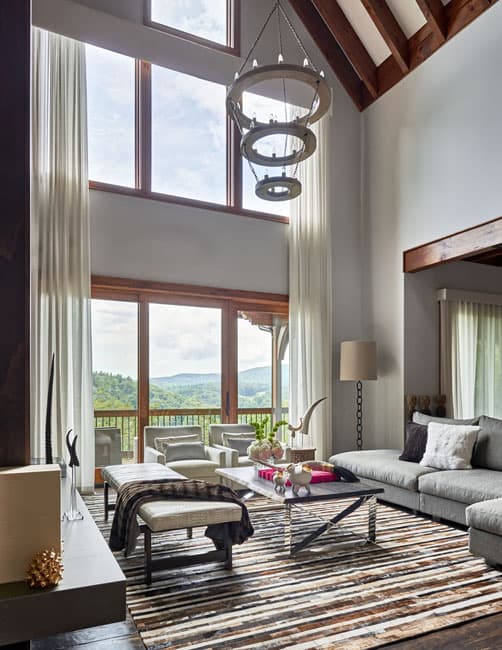

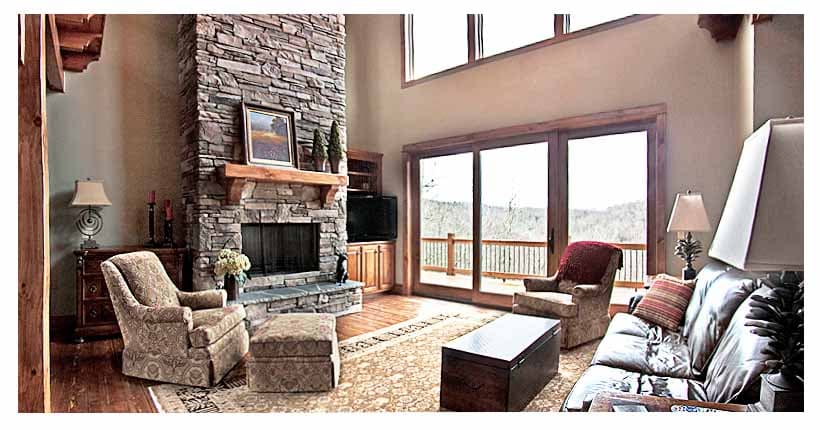

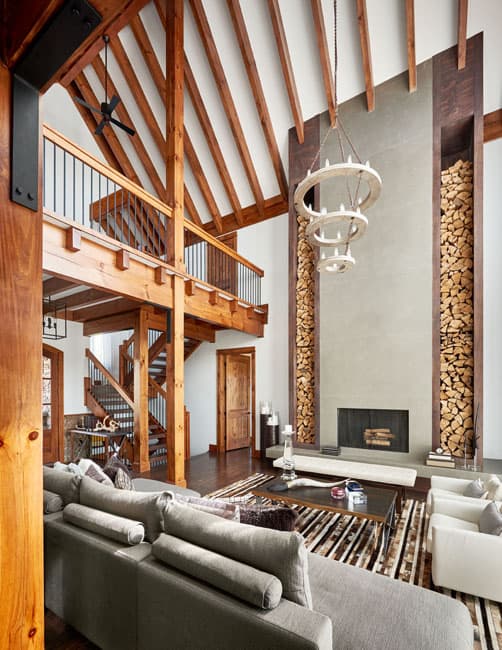

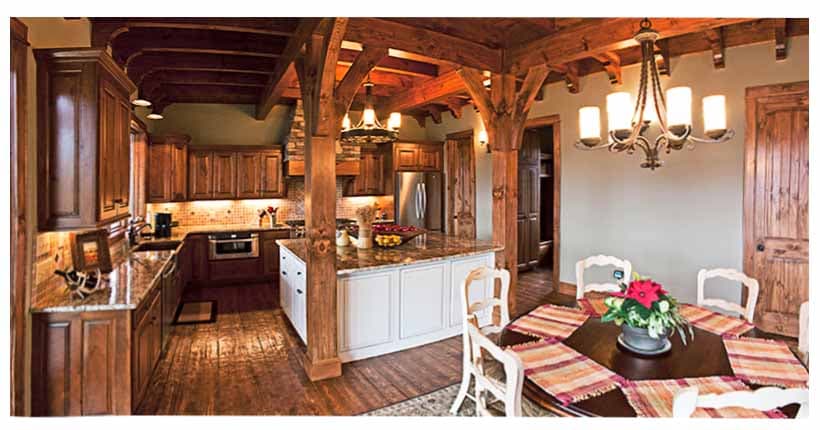

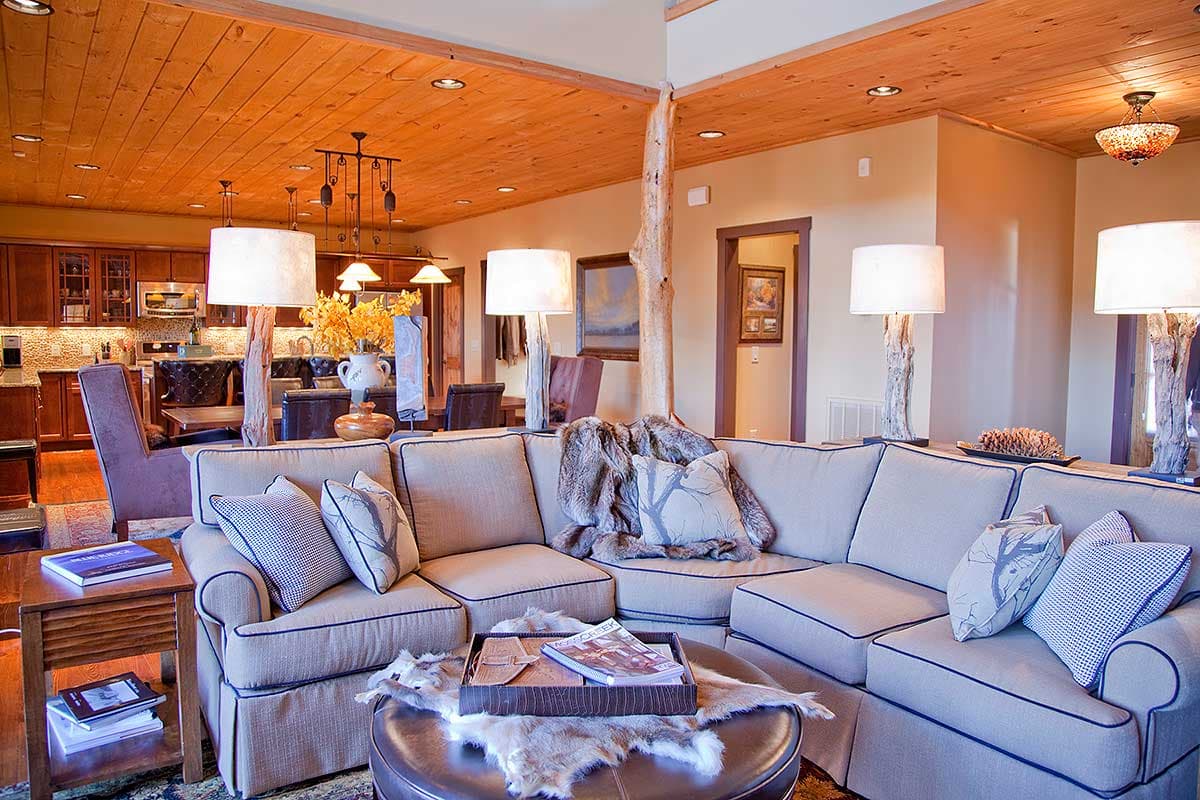

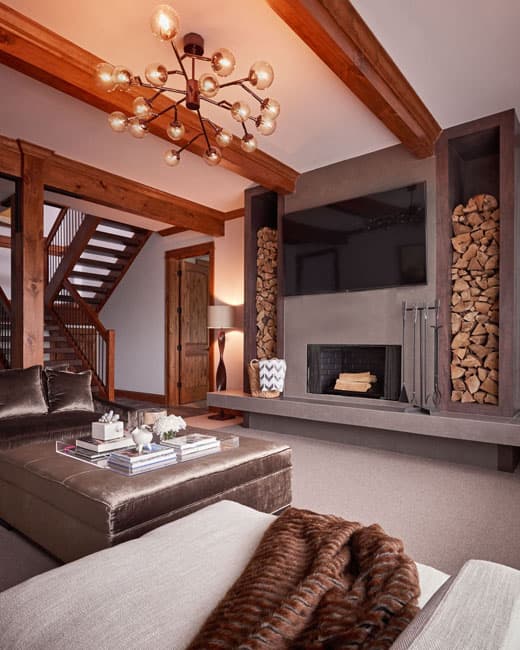

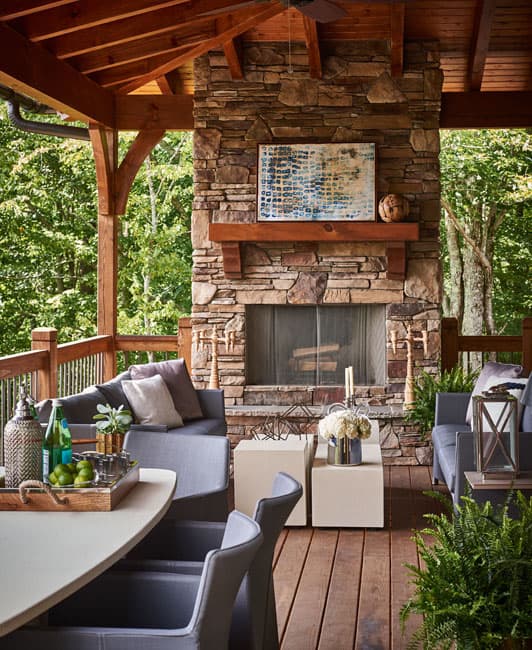

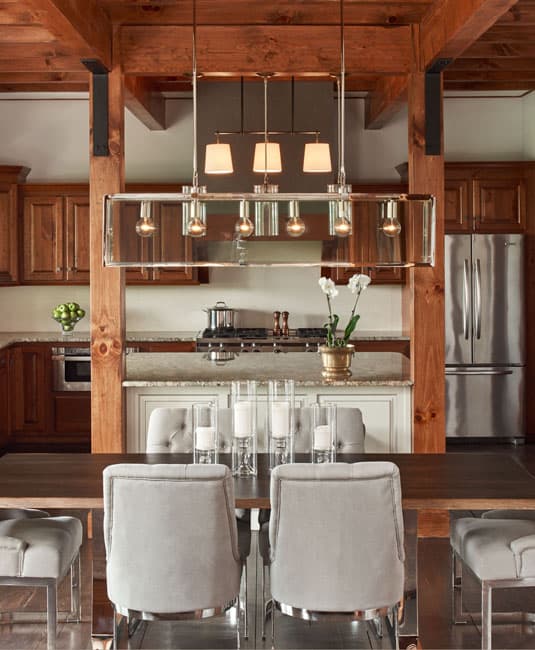

  • While the outside of this Mountain home plan is rustic, the inside has one huge main living area in a wonderfully informal layout - no formal dining rooms here! Instead you get a big, open room so that everyone in the kitchen can see straight through to the great room fireplace. This 2-story space features a fireplace and built-ins and has access to the 9' deep open-air deck and nearby 12' deep covered porch.

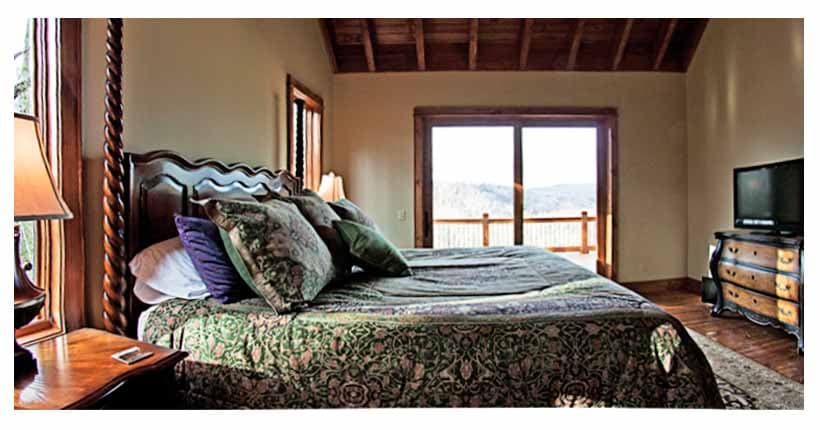

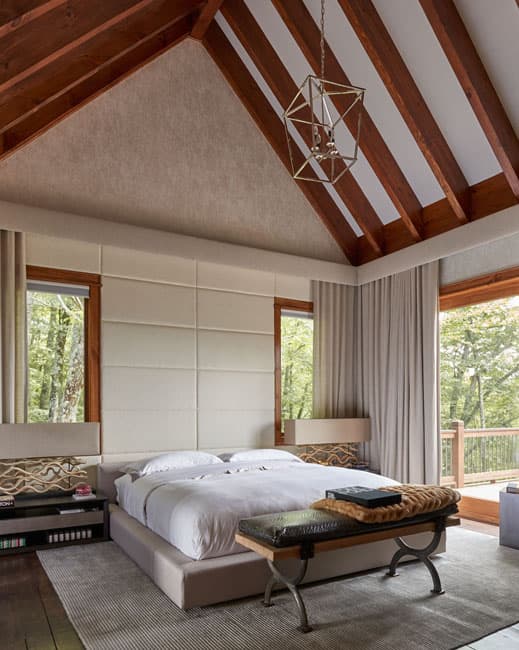

  • A first floor master suite gives you convenience, privacy and views to the back.

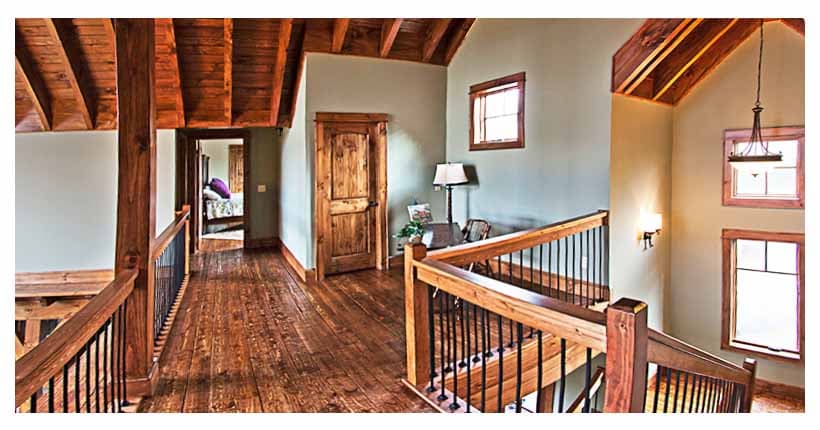

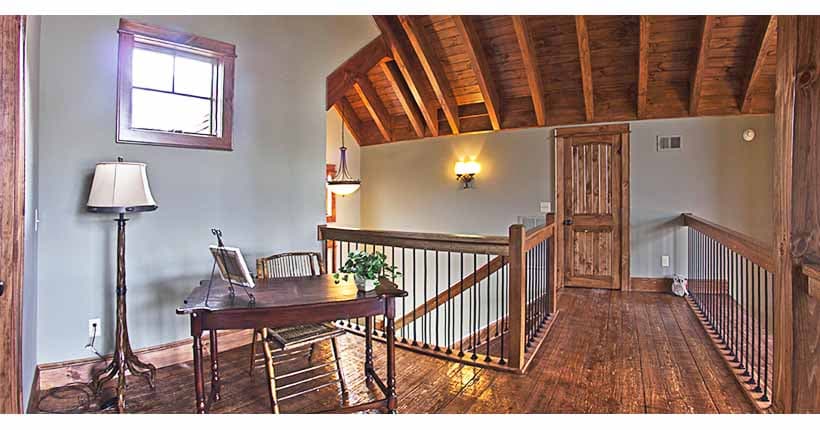

  • On the upper level, a loft overlooks the great room below. It makes a great sitting room for the two bedrooms on this level.
  • This plan comes with a 2-car detached garage.
  • Related Plan: Get round windows on house plan 18711CK.

What's Included

This plan has 17 sheets as follows:
  1. Cover sheet
  2. Foundation plan
  3. Main floor plan
  4. Upper floor plan
  5. Roof pan
  6. Upper floor framing plan
  7. Roof framing plan
  8. Ceiling beam layout
  9. Roof beam layout

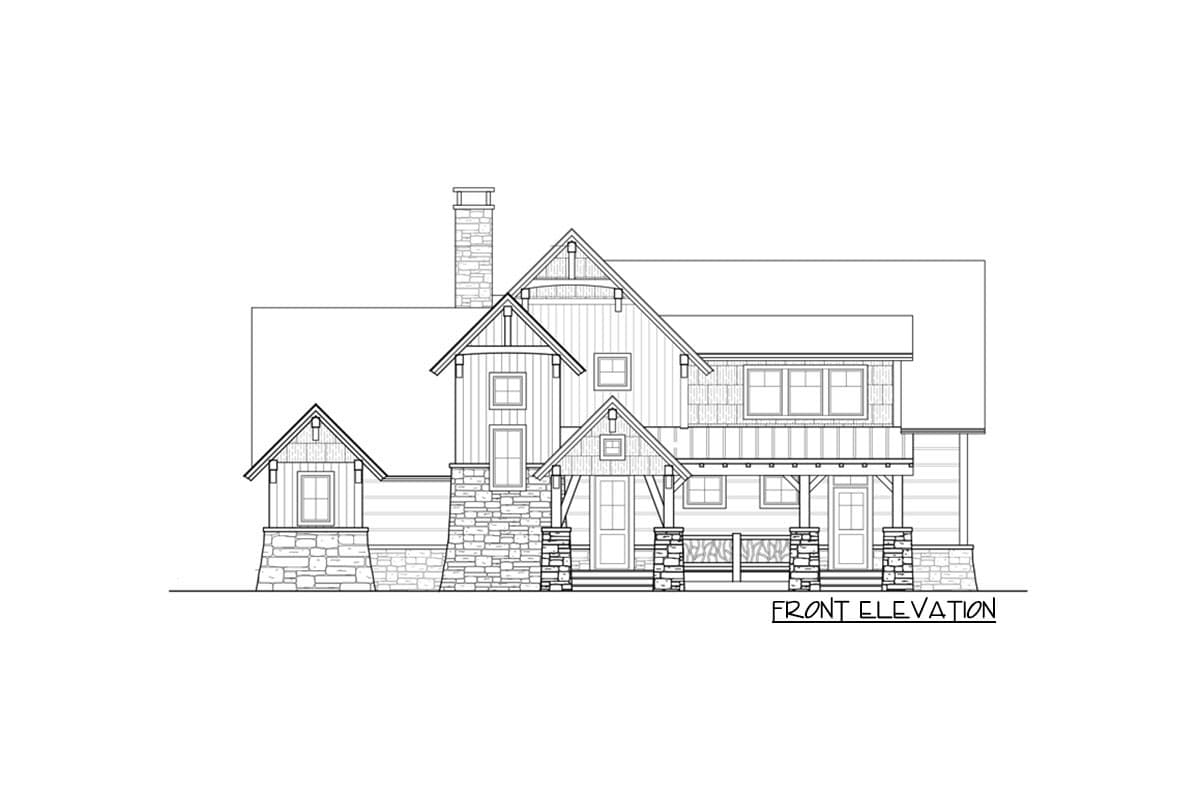

  10. Front elevation

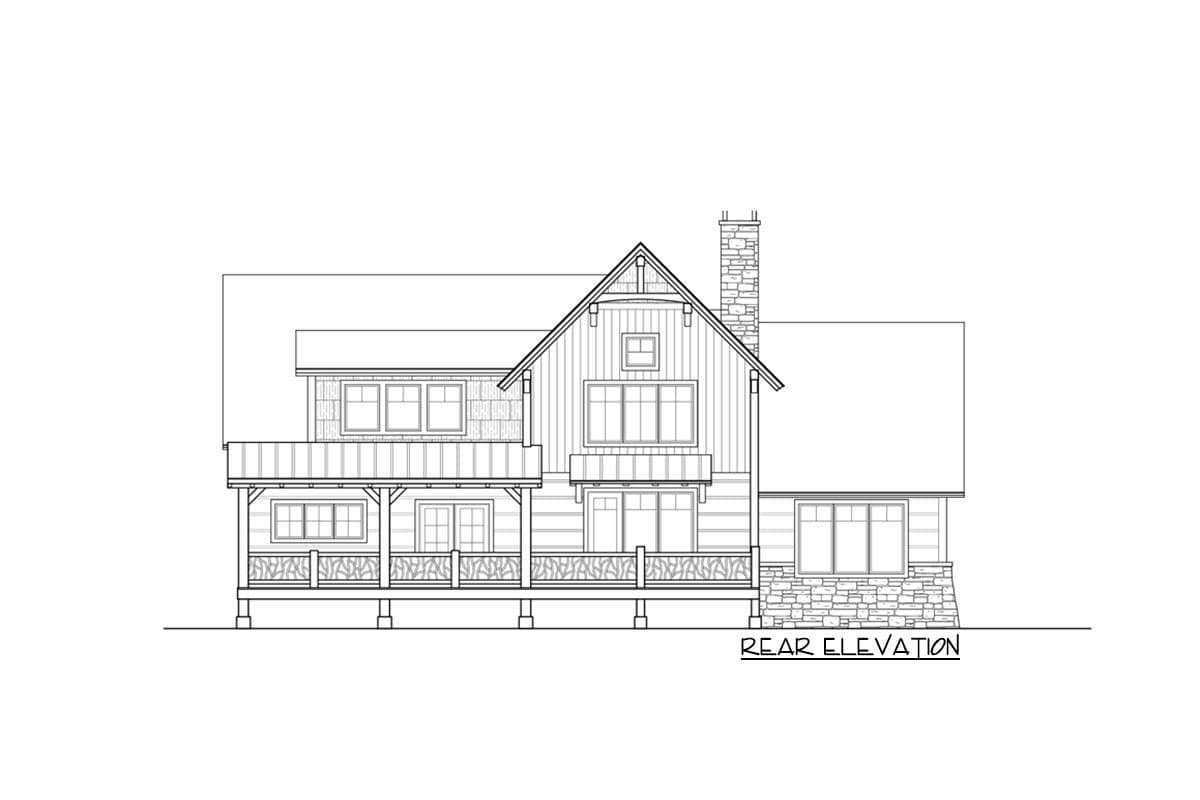

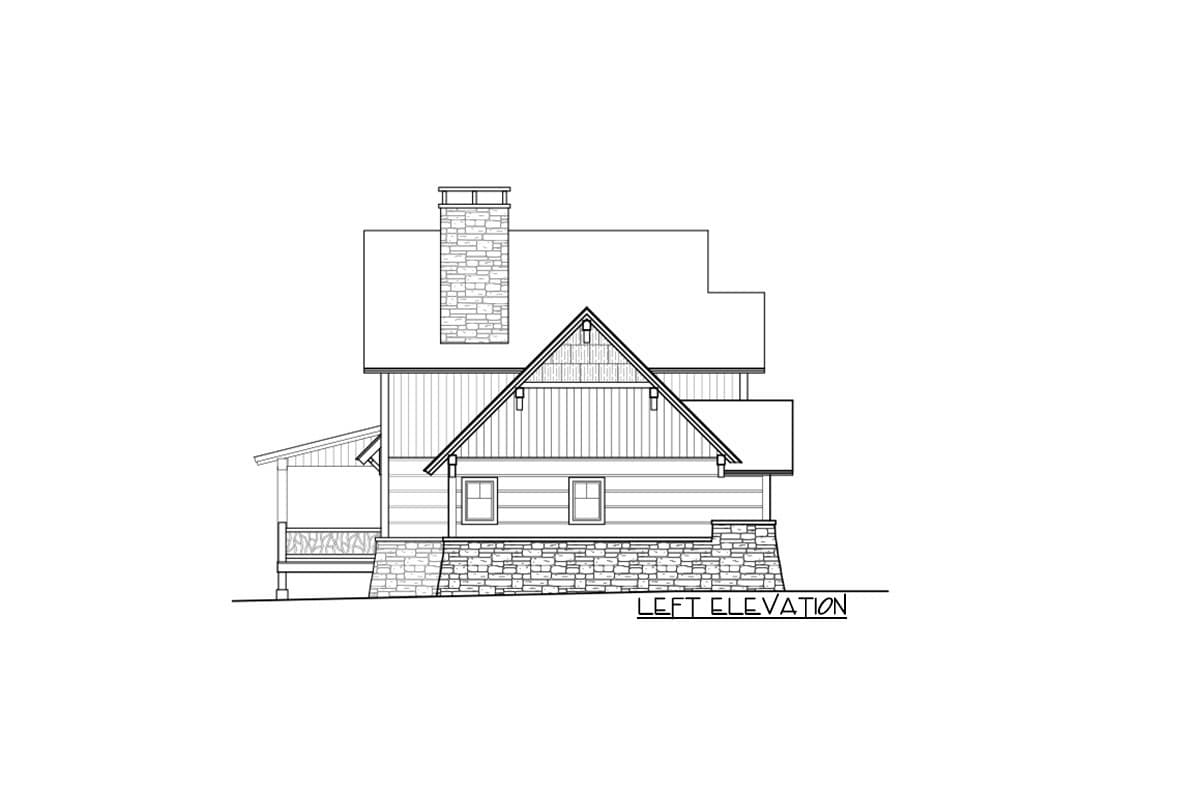

  11. Left and rear elevations

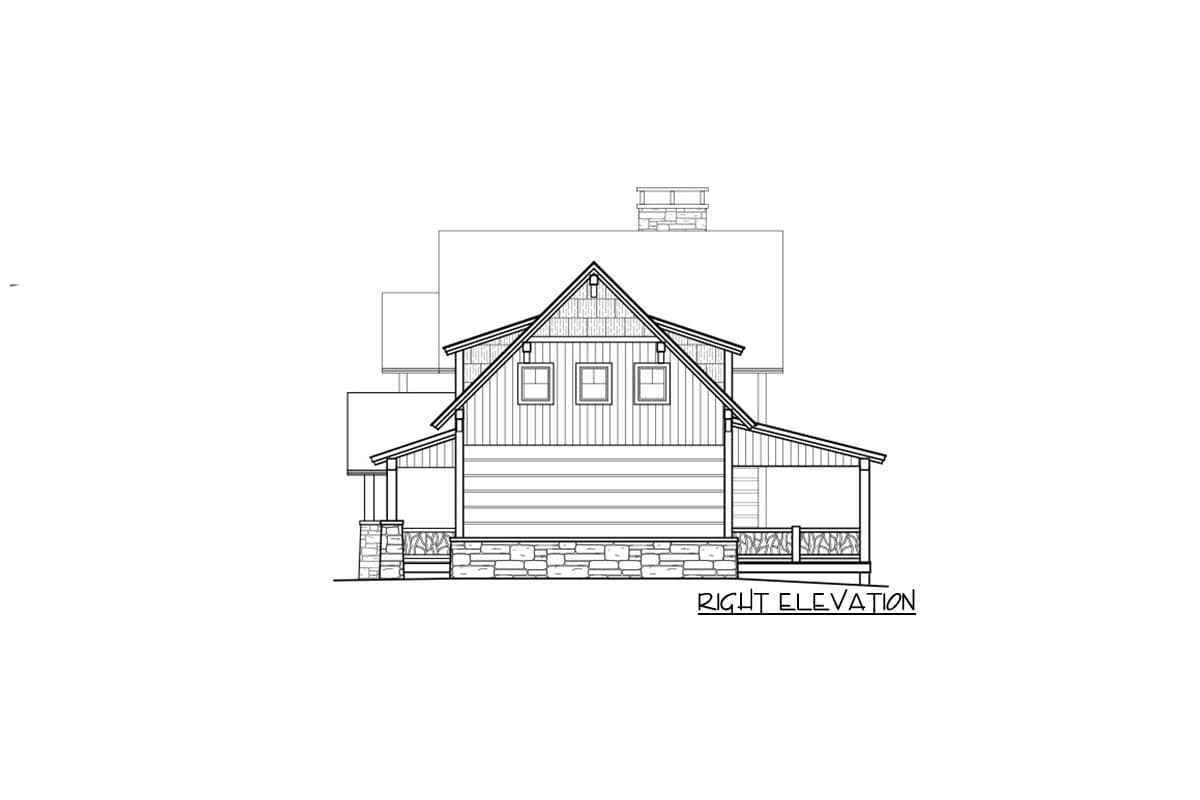

  12. Right elevation
  13. Building sections
  14. Building sections
  15. Building details
  16. Main floor electrical
  17. Upper floor electrical

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,427 sq. ft.

1st Floor

1,607 sq. ft.

2nd Floor

820 sq. ft.

Porch, Combined

464 sq. ft.

Deck

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

44' 7"

Max Ridge Height

27' 10"

Garage

Type

Detached

Area

624 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

Hill Country

Modern Farmhouse

Mountain

Rustic

Vacation

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
