Plan 9819SW
Inviting Great Room
Heated S.F.
1,741
Beds
2-3
Baths
2
Stories
2
What's Included
Plan Details
  • The great room in this compact narrow lot cottage house plan boasts a wood stove, partially vaulted ceilings, window seats, access through French doors to a partially covered wrap around sundeck, access to a side screened porch via folding French doors, all while being open to the adjacent kitchen . An abundance of windows and glass door openings transforms this expansive space into a truly inviting ever evolving multipurpose environment.
  • The vaulted second floor is dedicated to two bedrooms, one a massive open studio bedroom with access to a large private covered balcony. The ceilings on this floor level flatten out at a voluminous ten foot height.
  • The daylight basement plan is a totally open unfinished space awaiting your personal development, whether it be additional bedrooms, recreational space, home theatre media room or hobby / workshop. The separate private entrance easily transforms this level into an in-law suite, a home office or business space.
  • Related Plan: For an alternate version, see house plan 9818SW.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

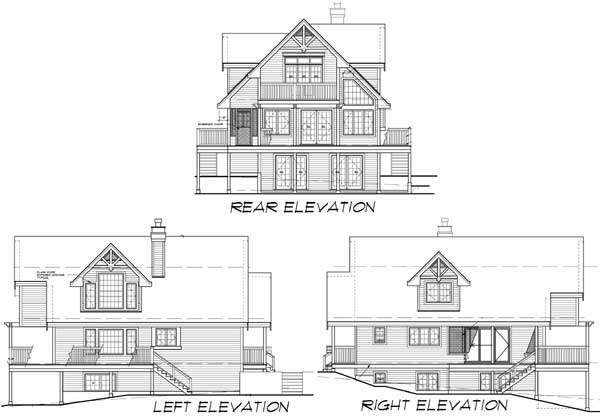

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Inviting Great Room

  • 1,741

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

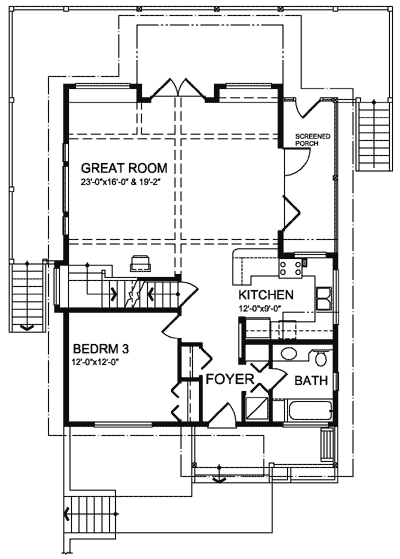

  • Main Level

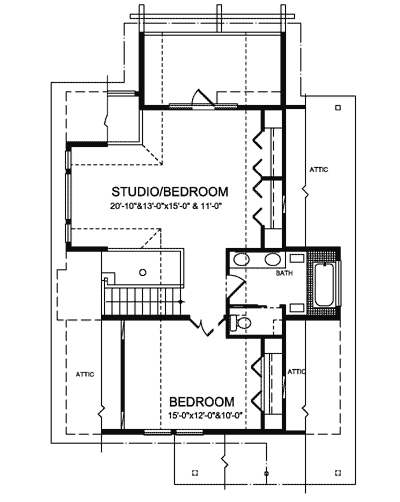

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,741 sq. ft.
  • 1st Floor: 978 sq. ft.
  • 2nd Floor: 763 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 50' 6"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Inviting Great Room

  • 1,741

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

Inviting Great Room

  • 1,741

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,741 sq. ft.
  • 1st Floor: 978 sq. ft.
  • 2nd Floor: 763 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 50' 6"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
