Plan 35398GH

King of the Mountain

3,307 3 3 1 3
Pageloader

King of the Mountain

Plan 35398GH

  • 3,307

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Feel like the king of the mountain in your own mountain lodge with two story windows geared to take advantage of your views.
  • On the main level, lots of open decks provide space to sit and enjoy the views and the sun.
  • The focal point of the great room is the warm fireplace where you can relax and enjoy the views from the two-story windows.
  • Windows surround the dining room with light and close proximity to the kitchen makes serving a breeze.
  • Two walk-in closets and a spa bath pamper the owners who also have their own access to the deck.

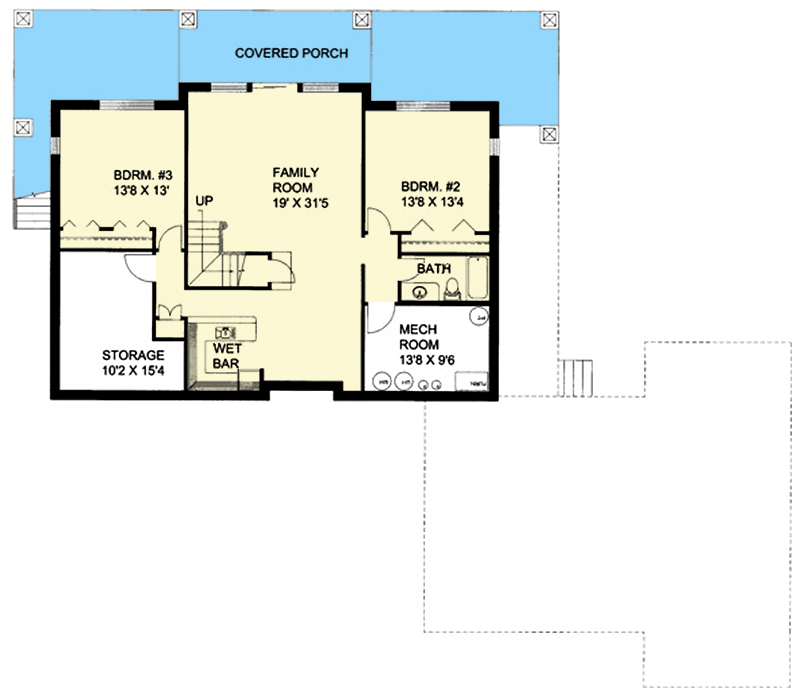

  • On the lower level, a family room with sitting area and wet bar will be a favorite place to hang out. Two bedrooms plus storage, mechanical room and a covered porch complete the home plan.
  • Related Plans: Eliminate the RV garage with house plan 35221GH, and 35042GH (courtyard entry garage).
  • Eliminate the finished lower level and get an upper floor with house plan 35141GH (2,075 sq. ft.) and 35244GH (2,736 sq. ft).

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.

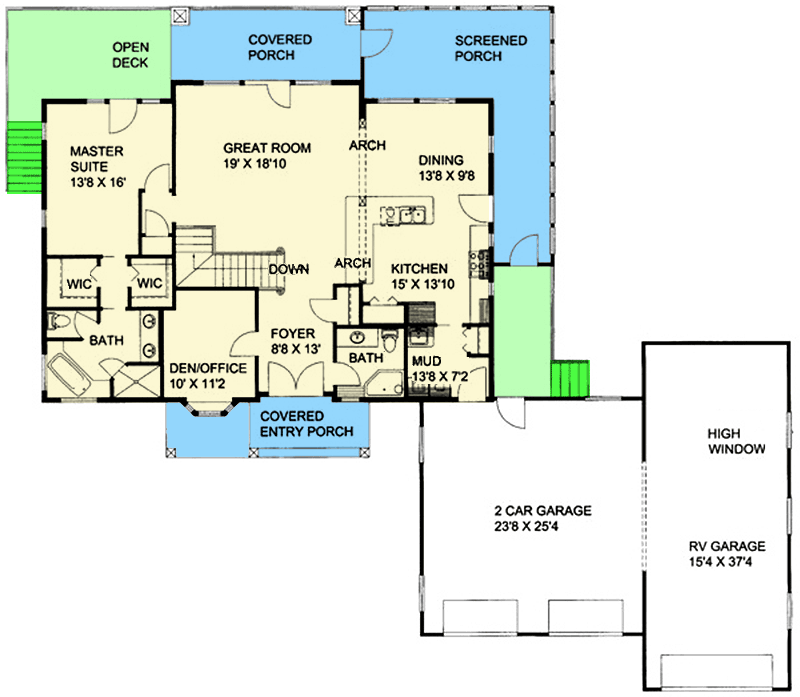

  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

Floor Plan

Plan details



King of the Mountain

  • 3,307

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,100
  • CAD $1,300
  • PDF - single-use $1,300
  • 8 Sets $1,350
  • CAD - multi-use $2,100
  • View all purchase option online

About This Plan

  • Feel like the king of the mountain in your own mountain lodge with two story windows geared to take advantage of your views.
  • On the main level, lots of open decks provide space to sit and enjoy the views and the sun.
  • The focal point of the great room is the warm fireplace where you can relax and enjoy the views from the two-story windows.
  • Windows surround the dining room with light and close proximity to the kitchen makes serving a breeze.
  • Two walk-in closets and a spa bath pamper the owners who also have their own access to the deck.
  • On the lower level, a family room with sitting area and wet bar will be a favorite place to hang out. Two bedrooms plus storage, mechanical room and a covered porch complete the home plan.
  • Related Plans: Eliminate the RV garage with house plan 35221GH, and 35042GH (courtyard entry garage).
  • Eliminate the finished lower level and get an upper floor with house plan 35141GH (2,075 sq. ft.) and 35244GH (2,736 sq. ft).

Floor Plans

  • Basement

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,307 sq. ft.
  • Lower Level: 1,652 sq. ft.
  • 1st Floor: 1,655 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 67' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached, RV Garage
  • Area: 903 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: N on N
  • Secondary Pitch: N on N
  • Framing Type: Truss
