Plan 35485GH
Larger Version of a Carriage House Favorite - 1320 Sq Ft
Heated S.F.
2,025
Beds
2 - 3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 35485GH

Ground Level
slide image 0
Upper Floor
slide image 1

Plan 35485GH

1-800-854-7852

1-262-521-4596

Ground Level
floor plan image Ground Level
Upper Floor
floor plan image Upper Floor
Plan Details

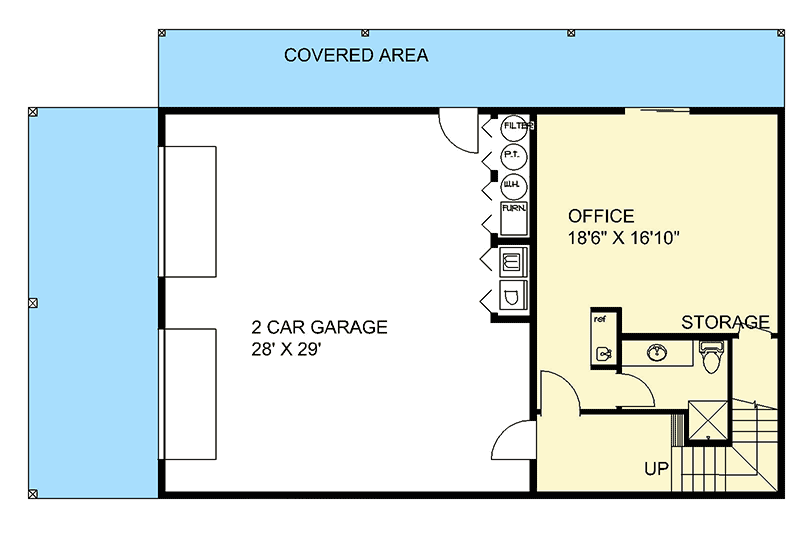

  • With room for 2 cars plus an office and bath on the ground floor, this carriage house plan packs a lot into its space.

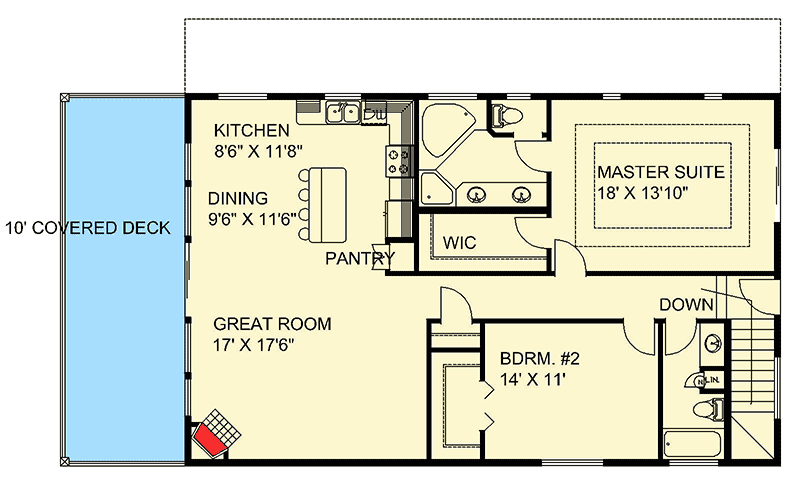

  • On the second floor main living level, the great room, dining area and kitchen are all open to each other, creating a spacious feeling. Double doors lead out to the covered deck.
  • The " suite has its own private bath and two closets.
  • Another good-sized bedroom and a hall bath complete this design.
  • Related Plans: Get an alternate layout with house plan 35490GH (2,030 sq. ft.). Get a man-cave version with house plan 35361GH and get ICF exterior walls with house plan 35396GH. Get room for 5 cars on the lower level with house plan 35401GH. For a smaller version, see house plan 35245GH (1,901 sq. ft.). And a larger version with plan 35513GH (2,068 sq. ft.).
What's Included

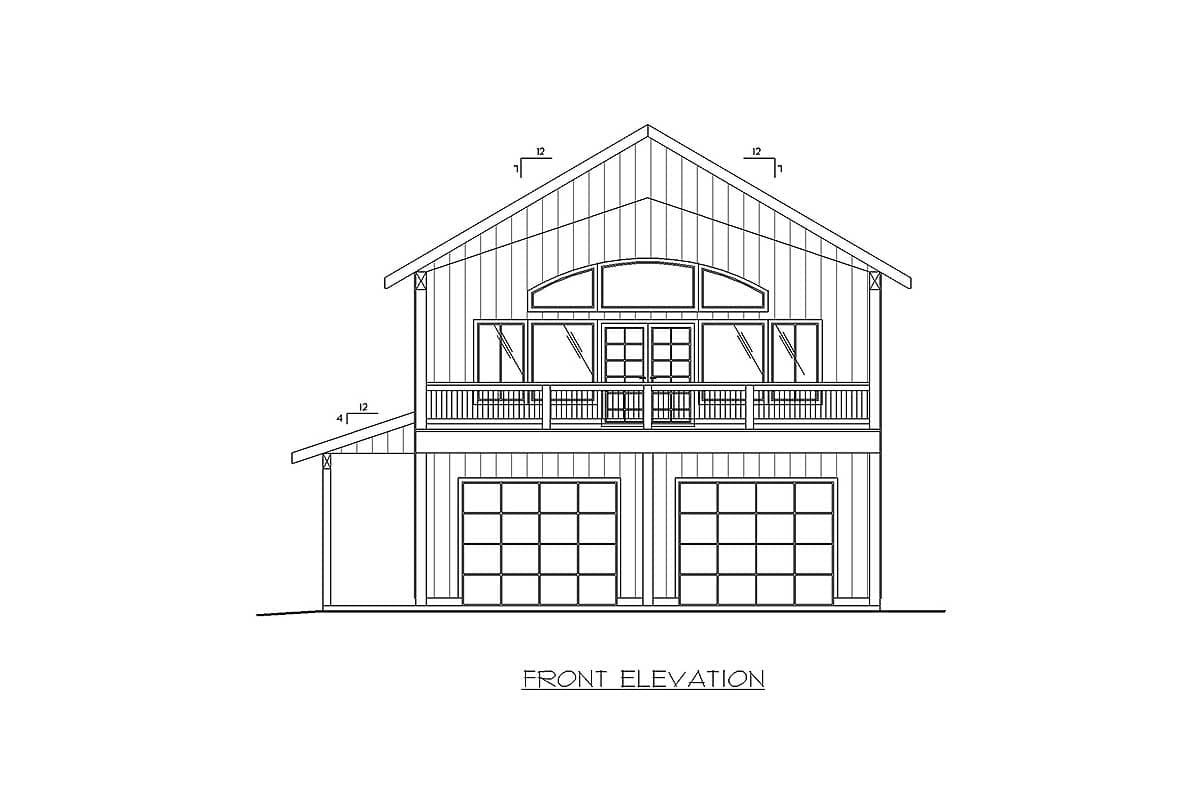

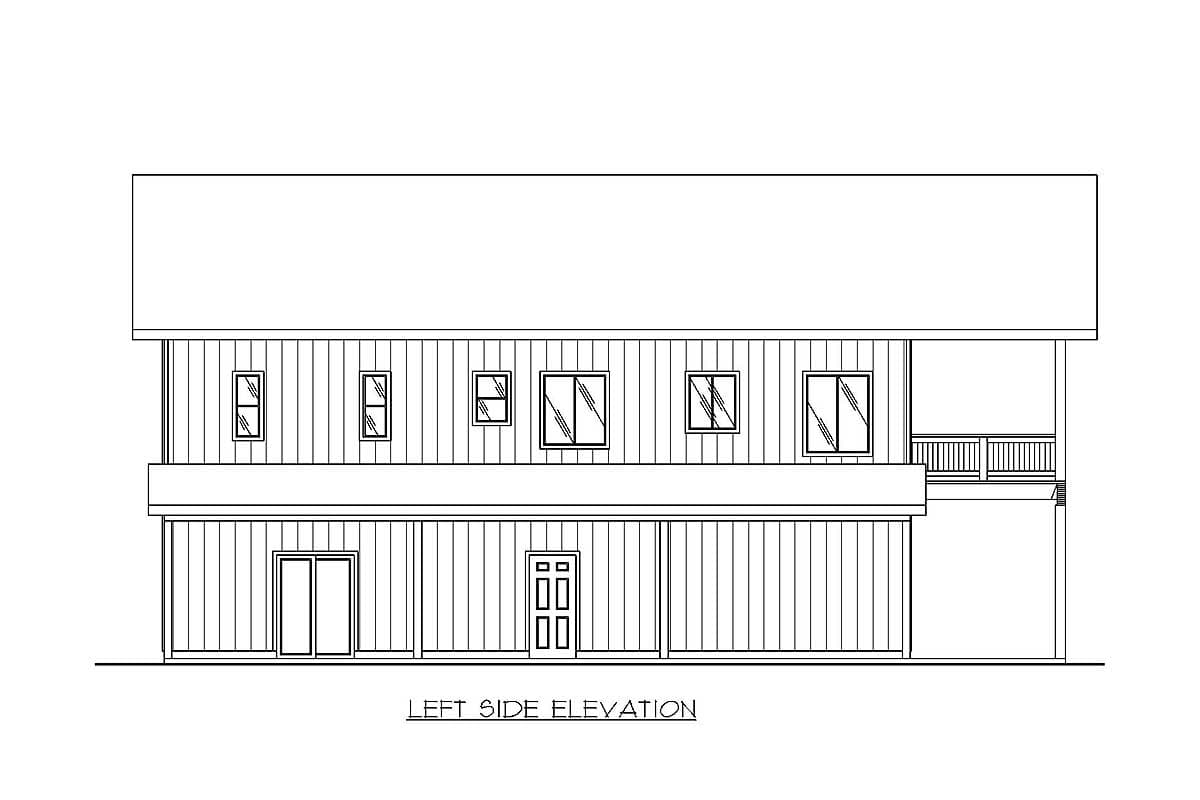

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,025 sq. ft.

Lower Level

585 sq. ft.

1st Floor

1,440 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

30' 0"

Max Ridge Height

31' 4"

Garage

Type

Attached

Area

812 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Architectural Style

Carriage

Plan Collections
