Lavish Florida House Plan

Plan 86066BS

  • 4,959

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • With its abundance of outdoor living spaces and large, open layout this Florida house plan is a luxurious retreat for your family.
  • Almost every room in the house gets a beautiful ceiling treatment.
  • The huge great room area is L-shaped with views that flow from room to room.
  • In the kitchen, a huge island seats five people and you can enjoy the great room fireplace while working at the sink.
  • Three sets of retracting glass doors slide back to take you to the massive outdoor area complete with an outdoor kitchen and fireplace.
  • The master suite is a gorgeous oasis where even the master bathroom gets a tray ceiling.
  • A split bedroom layout separates the master suite from the family bedrooms.
  • And the giant rec room is the perfect spot for entertaining on a large scale.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

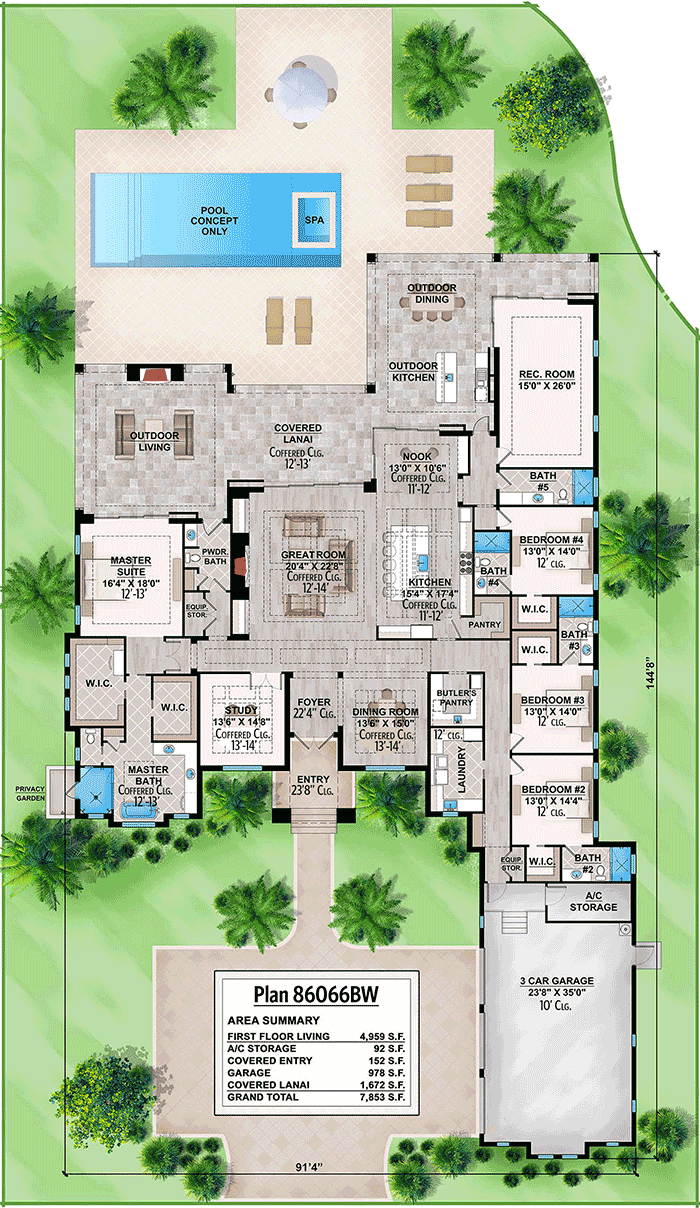

Lavish Florida House Plan - 86066BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,959 sq. ft.
  • 1st Floor: 4,959 sq. ft.
  • Lanai: 1,672 sq. ft.
  • Entry: 152 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 91' 4"
  • Depth: 144' 8"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 978 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Lavish Florida House Plan

  • 4,959

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,460
  • PDF - Single-Build $4,460
  • View all purchase option online

About This Plan

  • With its abundance of outdoor living spaces and large, open layout this Florida house plan is a luxurious retreat for your family.
  • Almost every room in the house gets a beautiful ceiling treatment.
  • The huge great room area is L-shaped with views that flow from room to room.
  • In the kitchen, a huge island seats five people and you can enjoy the great room fireplace while working at the sink.
  • Three sets of retracting glass doors slide back to take you to the massive outdoor area complete with an outdoor kitchen and fireplace.
  • The master suite is a gorgeous oasis where even the master bathroom gets a tray ceiling.
  • A split bedroom layout separates the master suite from the family bedrooms.
  • And the giant rec room is the perfect spot for entertaining on a large scale.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.
