Lift-Friendly Modern RV Garage Plan

Plan 68500VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 3-4

    Cars

  • This spacious garage plan comes with a tandem bay for two automobiles and a large RV bay.
  • The slanted roof line gives the garage a contemporary appearance.
  • Related Plans: Add a front door with garage plan 68579VR. Get loft space above with garage plans 68491VR, 68448VR and 68596VR.

This plan set has the following details:

Cover Page

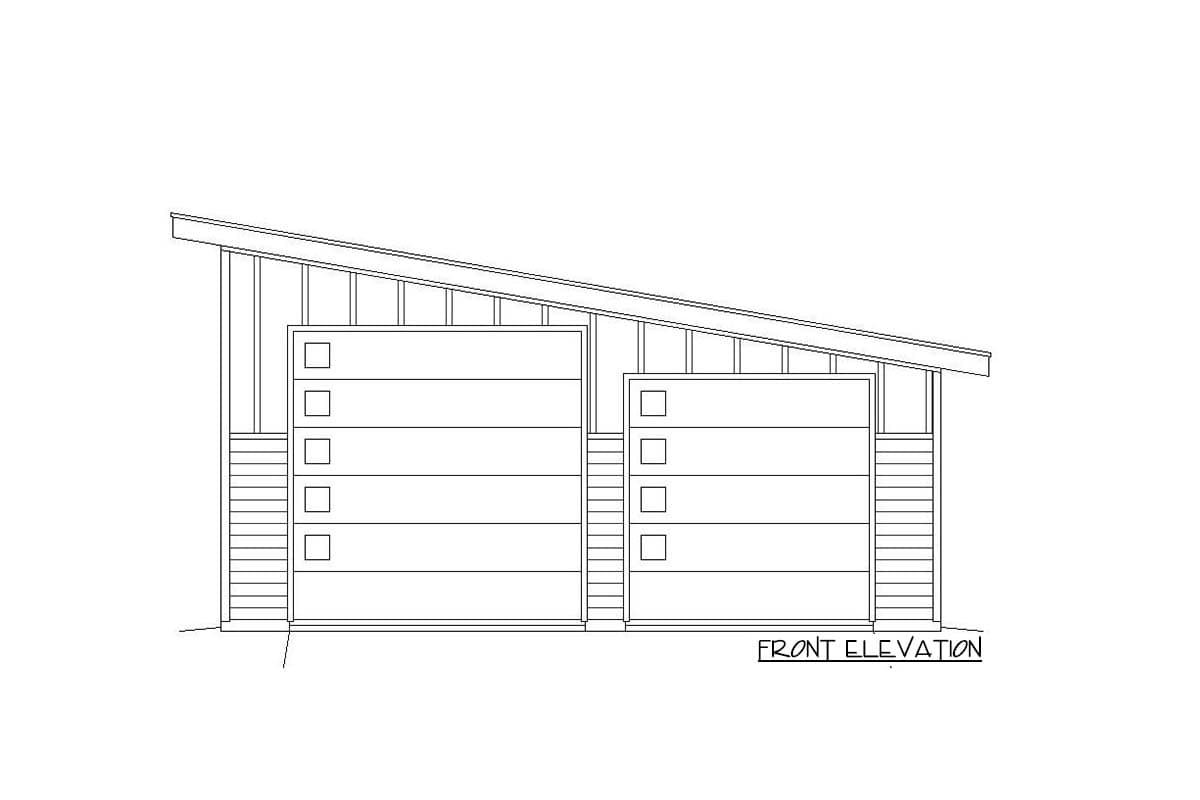

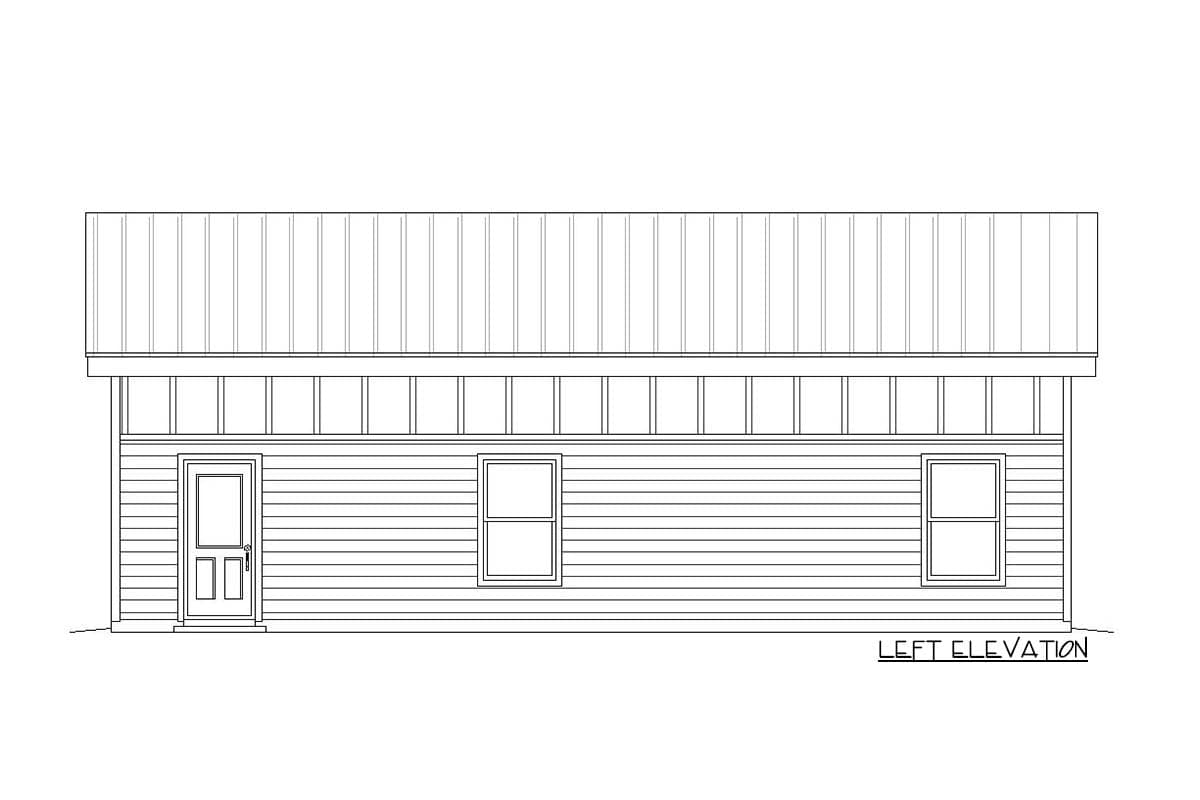

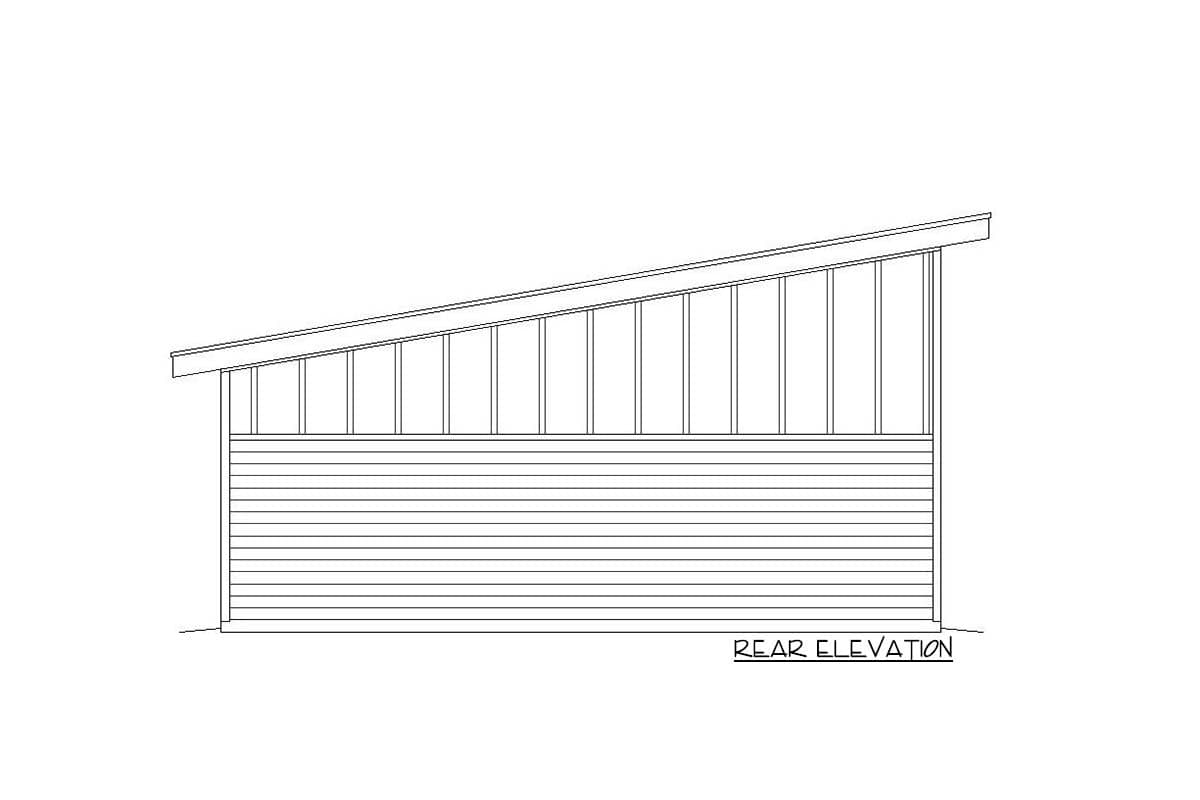

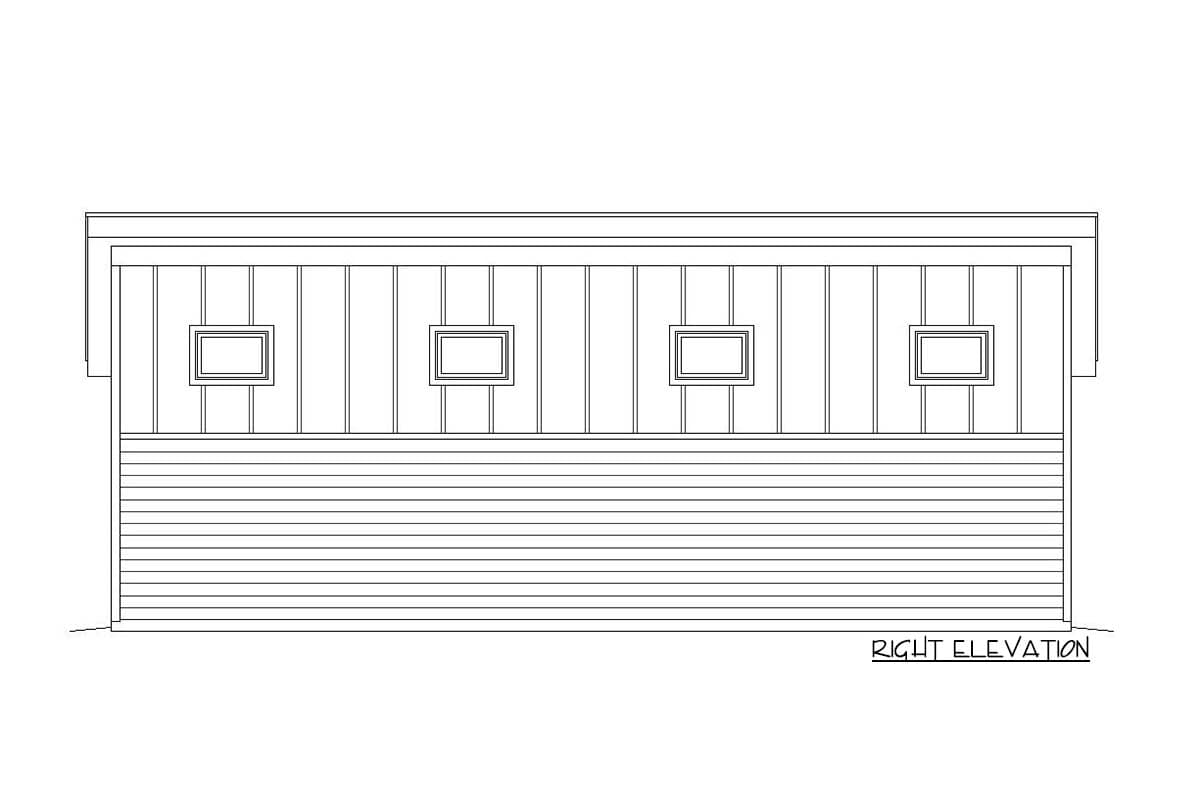

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

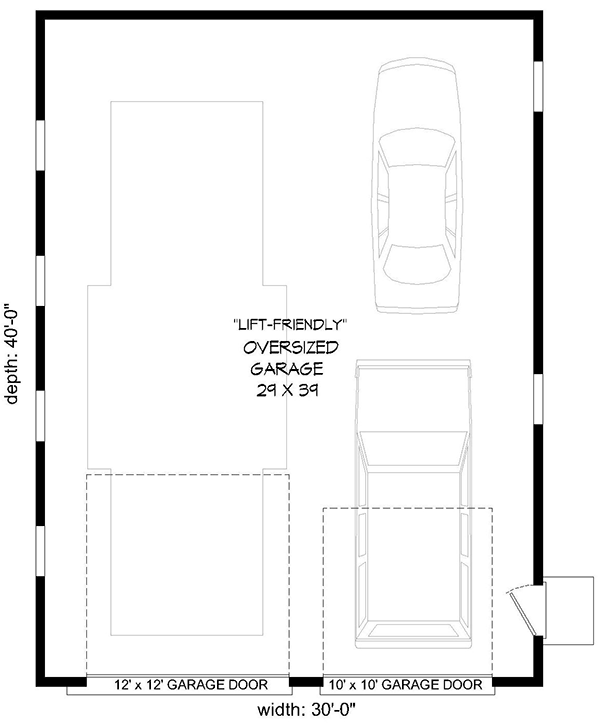

Lift-Friendly Modern RV Garage Plan - 68500VR floor plan - Main Level

Plan details

Special features

Lift-Friendly Modern RV Garage Plan

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • Study Set – Digital $510
  • PDF - Single-Build $675
  • 5 Sets $750
  • 5 Sets + PDF $800
  • CAD + PDF - Single-Build $975
  • View all purchase option online

About This Plan

  • This spacious garage plan comes with a tandem bay for two automobiles and a large RV bay.
  • The slanted roof line gives the garage a contemporary appearance.
  • Related Plans: Add a front door with garage plan 68579VR. Get loft space above with garage plans 68491VR, 68448VR and 68596VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 40' 0"
  • Max ridge height: 17' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 1200 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
