Plan 68596VR RV Garage Plan with Vault

470 0 2 3-4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

RV Garage Plan with Vault

Plan 68596VR

  • 470

    Heated s.f.

  • 0

    Beds

  • 2

    Stories

  • 3-4

    Cars

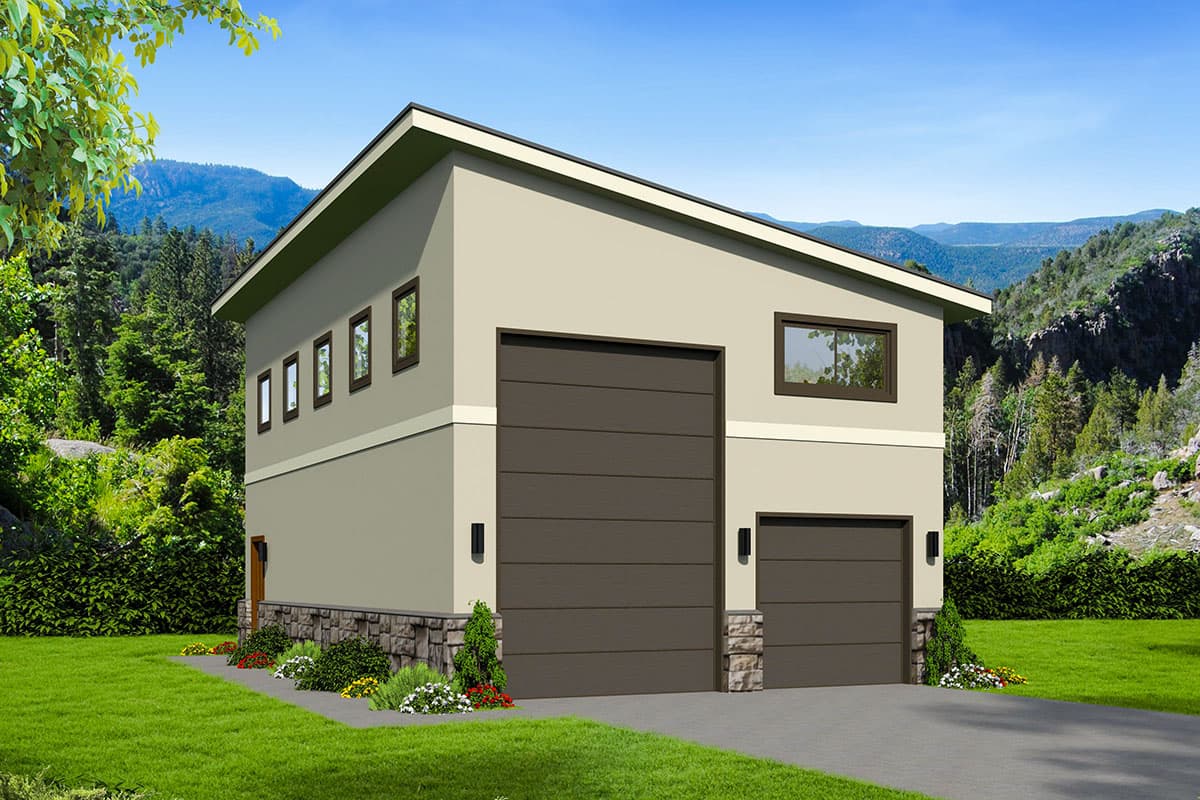

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan.
  • Climb the stairs to reach an enormous loft studio.
  • There are plenty of windows to bring in light.
  • Related Plans: Get a 30'-deep version with plan 68672VR. Get a 14' by 14' garage door with plan 68675VR. Get other versions with garage plans 68448VR, 68491VR, 68500VR and 68579VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

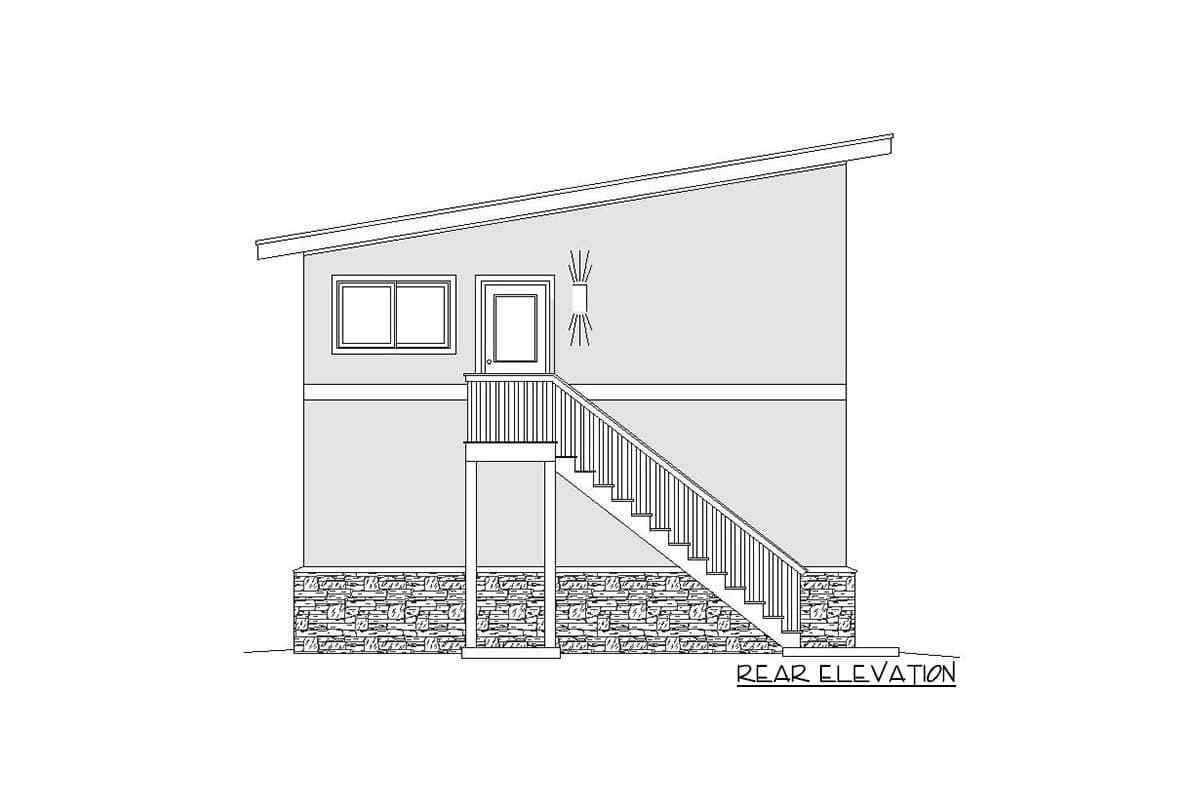

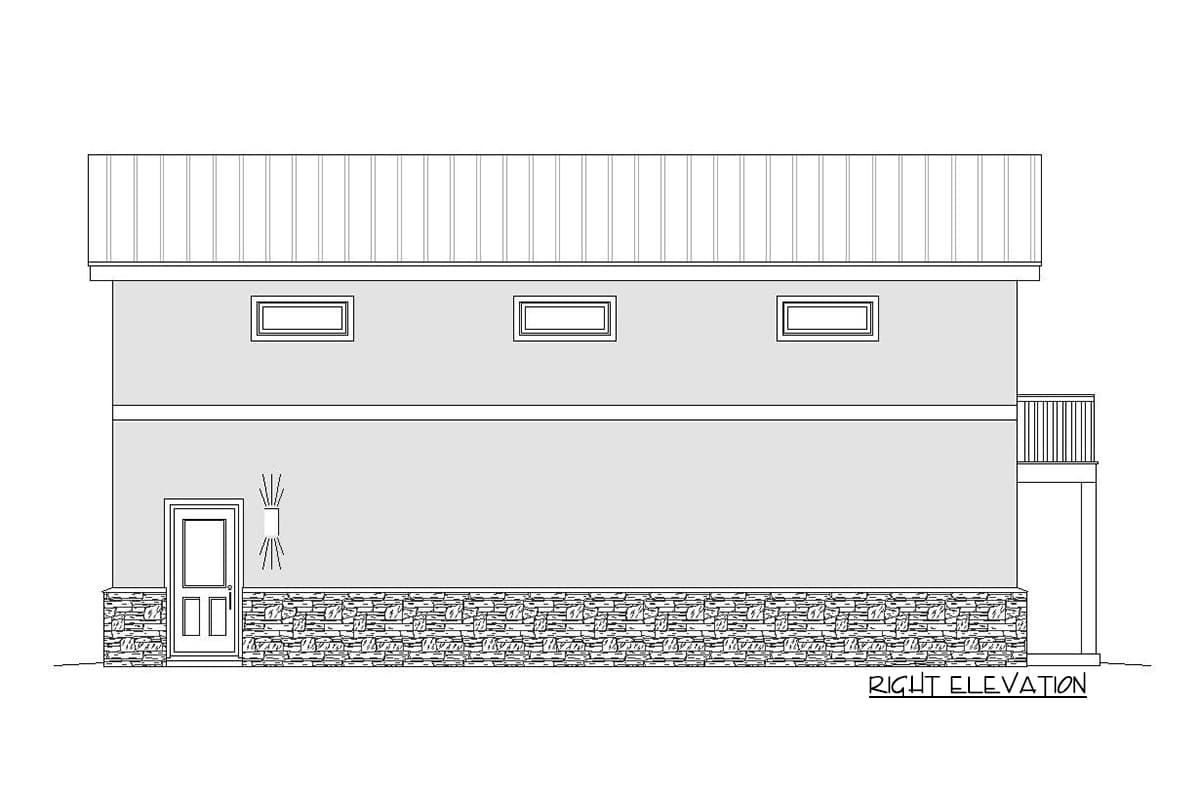

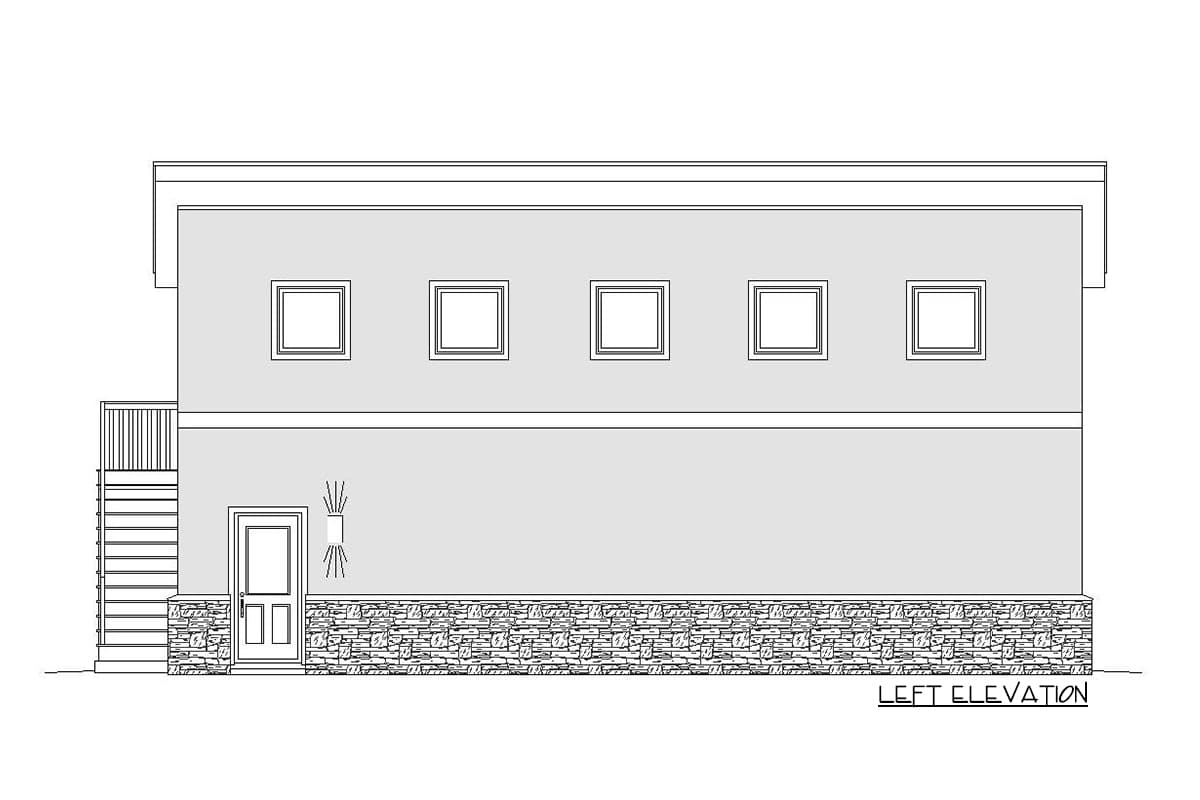

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

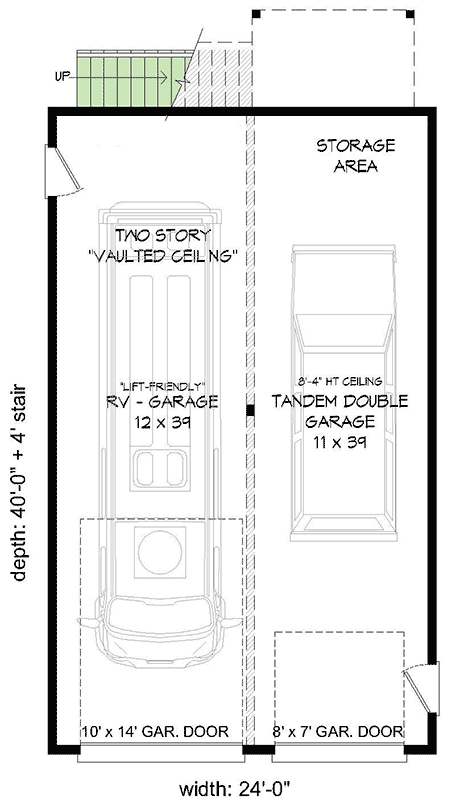

RV Garage Plan with Vault - 68596VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

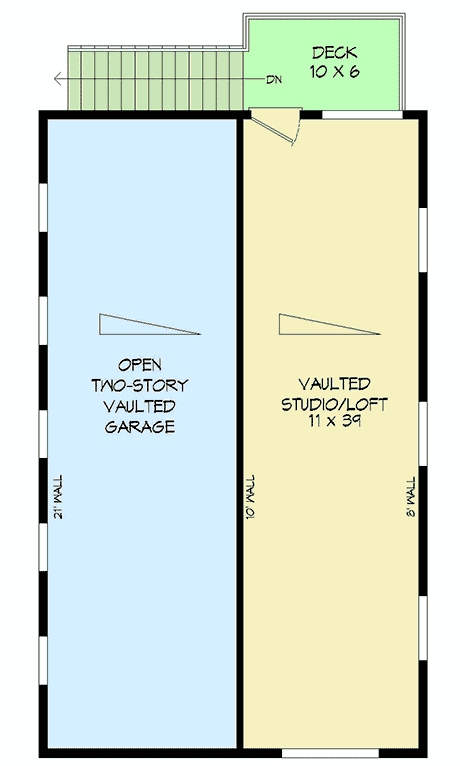

RV Garage Plan with Vault - 68596VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 470 sq. ft.
  • 2nd Floor: 470 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 44' 0"
  • Max ridge height: 22' 2"

Garage

  • Type: RV Garage, Detached
  • Area: 960 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 4" Second Floor / 8' 0" RV Garage 21' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Special features

Plan Collections

RV Garage Plan with Vault

  • 470

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • PDF - Single-Build $925
  • 5 Sets $1,000
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single-Build $1,225
  • View all purchase option online

About This Plan

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan.
  • Climb the stairs to reach an enormous loft studio.
  • There are plenty of windows to bring in light.
  • Related Plans: Get a 30'-deep version with plan 68672VR. Get a 14' by 14' garage door with plan 68675VR. Get other versions with garage plans 68448VR, 68491VR, 68500VR and 68579VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 470 sq. ft.
  • 2nd Floor: 470 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 44' 0"
  • Max ridge height: 22' 2"

Garage

  • Type: RV Garage, Detached
  • Area: 960 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 4" Second Floor / 8' 0" RV Garage 21' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
Plan 68596VR
