Light-Filled Vacation Retreat

Plan 21764DR

  • 540

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • What more do you need? A place to gather with friends, wash up, and sleep soundly on your vacation retreats.
  • When you wake up, have your coffee on on your covered front porch.
  • In the main area you'll find a kitchenette, table area and a few chairs and also a space for a wood stove. When its time to turn in, you'll find a shower and room for simple beds or bunks.
  • SPECIAL BONUS: Purchase of this plan gets you two versions. Choose which one you want to build. The 3-Season Version is not insulated or heated and gives you 2x4 exterior walls, 2x8 floor joists and 2x8 roof rafters. The 4-Season Version gives you 2x6 exterior walls , 2x10 floor joists and a truss roof design. Both versions are provided on screw piles to ensure stability.
  • Related Plans: For a simpler porch design, see vacation plan 21762DR (400 sq. ft.). And for a light-filled retreat, see 21763DR (480 sq. ft.). For a smaller getaway, see house plan 21760DR (320 sq. ft.) and 21761DR (384 sq. ft.).

Each plan includes the following:

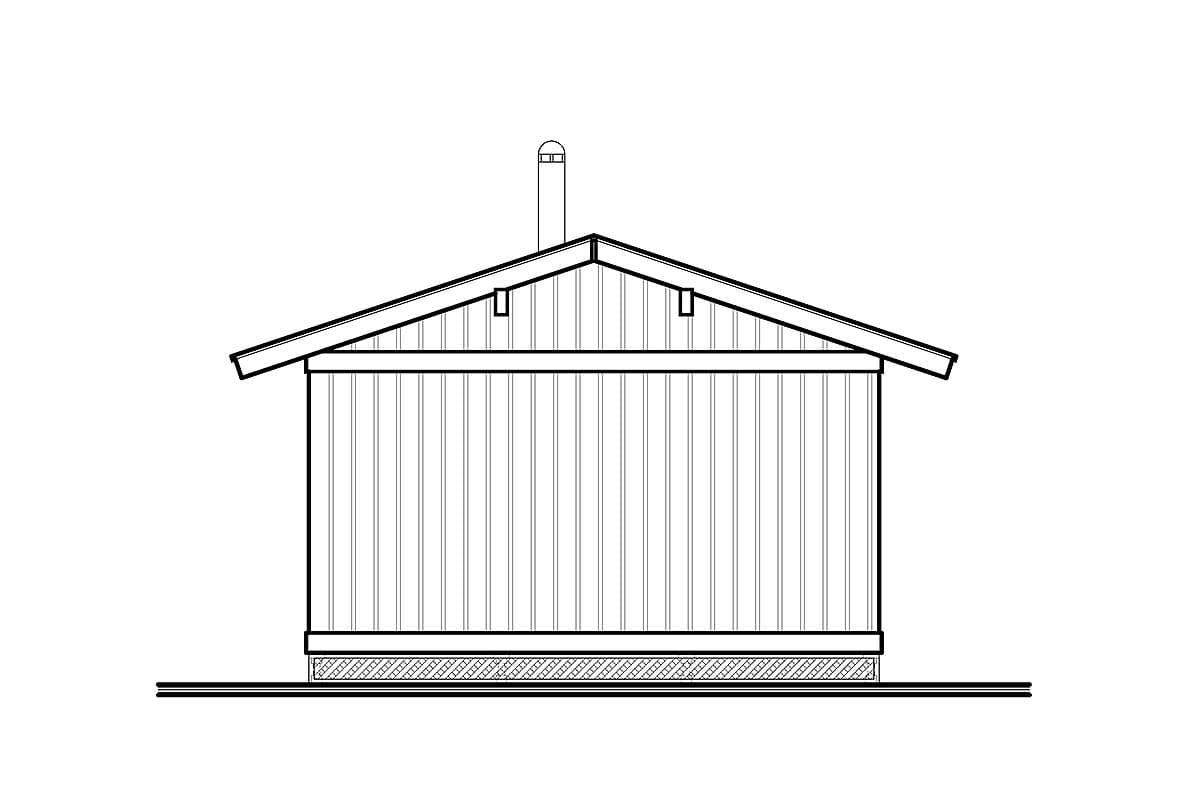

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

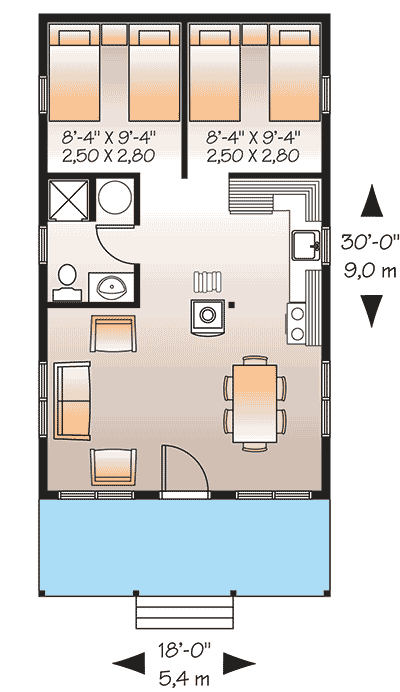

Light-Filled Vacation Retreat - 21764DR floor plan - Main Level

Plan details

Architectural Style

Special features

Plan Collections

Light-Filled Vacation Retreat

  • 540

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Reproducible Set $845
  • PDF - Single-Build $845
  • 5 Sets + PDF $970
  • CAD + PDF - Single-Build $1,445
  • View all purchase option online

About This Plan

  • What more do you need? A place to gather with friends, wash up, and sleep soundly on your vacation retreats.
  • When you wake up, have your coffee on on your covered front porch.
  • In the main area you'll find a kitchenette, table area and a few chairs and also a space for a wood stove. When its time to turn in, you'll find a shower and room for simple beds or bunks.
  • SPECIAL BONUS: Purchase of this plan gets you two versions. Choose which one you want to build. The 3-Season Version is not insulated or heated and gives you 2x4 exterior walls, 2x8 floor joists and 2x8 roof rafters. The 4-Season Version gives you 2x6 exterior walls , 2x10 floor joists and a truss roof design. Both versions are provided on screw piles to ensure stability.
  • Related Plans: For a simpler porch design, see vacation plan 21762DR (400 sq. ft.). And for a light-filled retreat, see 21763DR (480 sq. ft.). For a smaller getaway, see house plan 21760DR (320 sq. ft.) and 21761DR (384 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 540 sq. ft.
  • 1st Floor: 540 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 18' 0"
  • Depth: 30' 0"
  • Max ridge height: 13' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Stick Or Truss
