Low Country House Plan with Ground Level 4-Car Garage

Plan 66392JMD

  • 4,124

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 4

    Cars

  • Enjoy coastal living with this low country house plan, which features a 4-car garage on the ground level, along with plenty of storage space. An elevator helps maneuver between floors when needed.
  • Cleans views through the great room and onto the covered lanai are provided upon entering, creating a seamless flow between the indoor and outdoor living spaces. Elegant coffered ceilings soar above the spacious great room, which opens to the kitchen and dining area.
  • A retractable wall draws you outside onto a spacious lanai, complete with an outdoor kitchen.
  • The master suite occupies the left side of the home, next door to a quiet study. The hallway leading to the ensuite is framed by walk-in closets, and a freestanding tub rests in-between two vanities.
  • Three other family bedrooms are dotted throughout the floor plan, each with their own full bath.
  • BUILDING RESTRICTION: This house plan can not be built in Sarasota County, Florida. Contact us for details.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

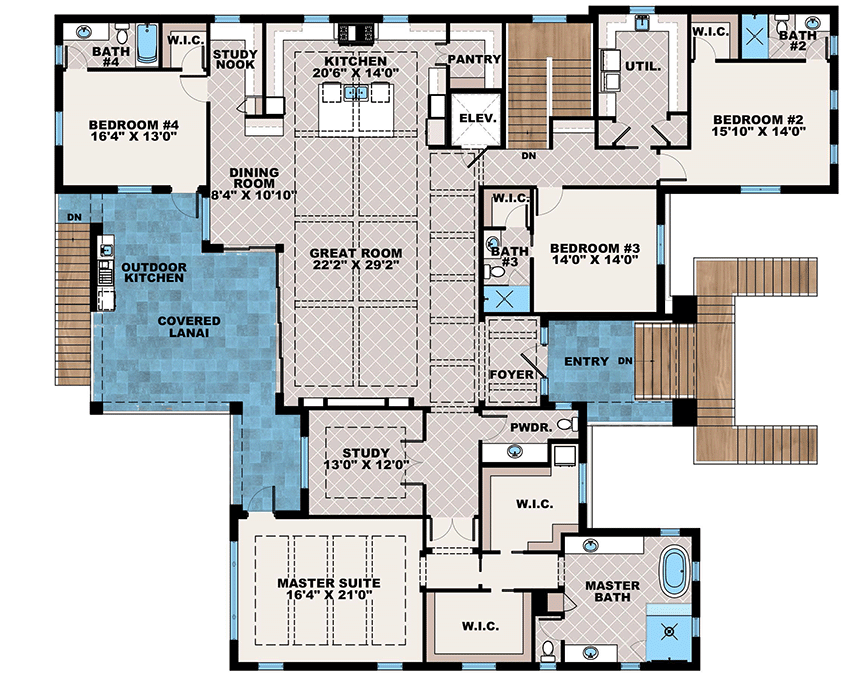

Low Country House Plan with Ground Level 4-Car Garage - 66392JMD floor plan - Main Level

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

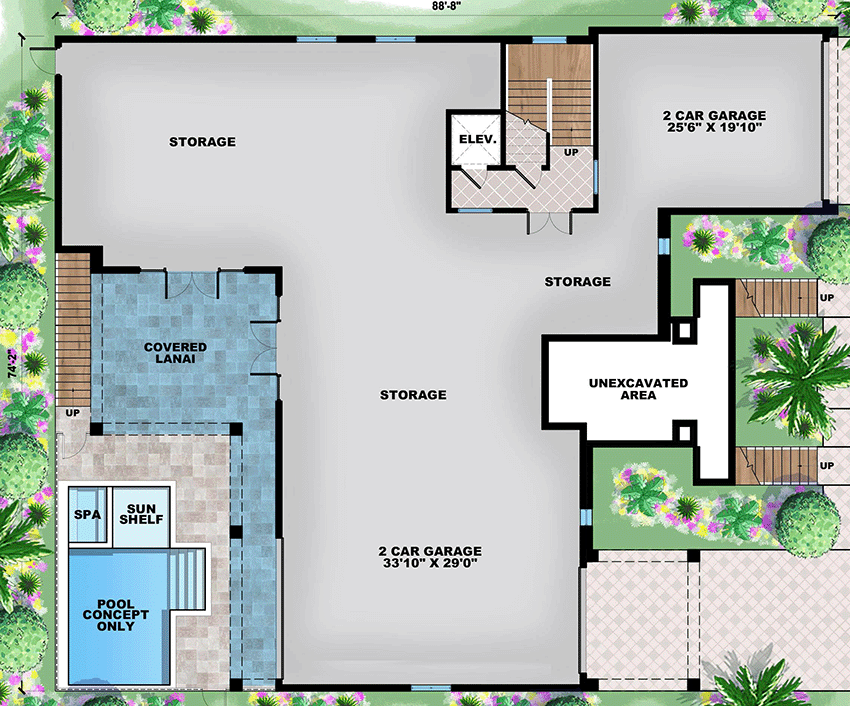

Low Country House Plan with Ground Level 4-Car Garage - 66392JMD floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,124 sq. ft.
  • 1st Floor: 4,124 sq. ft.
  • Lanai: 557 sq. ft.
  • Porch, Rear: 535 sq. ft.
  • Porch, Front: 200 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 89' 0"

Garage

  • Type: Attached, Drive Under
  • Area: 3993 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Low Country House Plan with Ground Level 4-Car Garage

  • 4,124

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • CAD - Single-Build $4,500
  • PDF - Single-Build $4,500
  • View all purchase option online

About This Plan

  • Enjoy coastal living with this low country house plan, which features a 4-car garage on the ground level, along with plenty of storage space. An elevator helps maneuver between floors when needed.
  • Cleans views through the great room and onto the covered lanai are provided upon entering, creating a seamless flow between the indoor and outdoor living spaces. Elegant coffered ceilings soar above the spacious great room, which opens to the kitchen and dining area.
  • A retractable wall draws you outside onto a spacious lanai, complete with an outdoor kitchen.
  • The master suite occupies the left side of the home, next door to a quiet study. The hallway leading to the ensuite is framed by walk-in closets, and a freestanding tub rests in-between two vanities.
  • Three other family bedrooms are dotted throughout the floor plan, each with their own full bath.
  • BUILDING RESTRICTION: This house plan can not be built in Sarasota County, Florida. Contact us for details.
