Low Country Shingle House Plan with Stacked Porches and an Elevator

Plan 765043TWN

  • 3,464

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Low Country Shingle house plan features loads of decks and covered porches to maximize outdoor living. With a lower-level garage, an elevator helps easily maneuver between floors.
  • The main-level living space is open and surrounded by windows with easy access to a covered porch with a fireplace.
  • The service areas are clustered on the main level and include a chef's pantry, walk-in pantry, and laundry room. A home office, or guest bedroom, is located next door.
  • Discover three bedroom suites upstairs, along with a home office. Decks are accessible from each of the bedrooms.
  • The primary bedroom features an attached bath that flows freely into a walk-in closet.
  • Related Plan: Get an alternate version with house plan 765049TWN.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

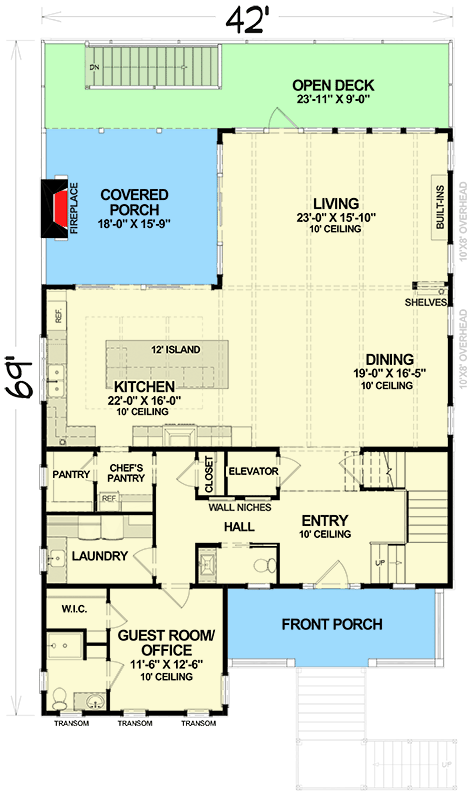

Low Country Shingle House Plan with Stacked Porches and an Elevator - 765043TWN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

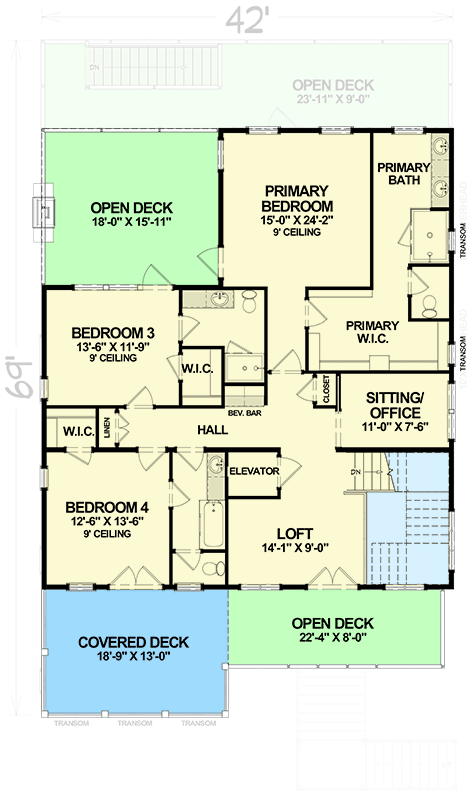

Low Country Shingle House Plan with Stacked Porches and an Elevator - 765043TWN floor plan - 2nd Floor

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

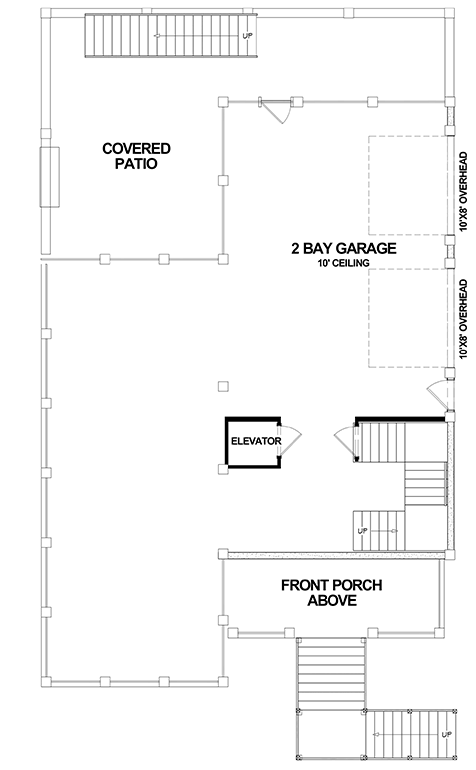

Low Country Shingle House Plan with Stacked Porches and an Elevator - 765043TWN floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,464 sq. ft.
  • 1st Floor: 1,933 sq. ft.
  • 2nd Floor: 1,531 sq. ft.
  • Covered Patio: 703 sq. ft.
  • Deck: 557 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 69' 0"
  • Max ridge height: 38' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 1933 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

Low Country Shingle House Plan with Stacked Porches and an Elevator

  • 3,464

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • Chief Architect Plan File - Single Build $2,195
  • View all purchase option online

About This Plan

  • This Low Country Shingle house plan features loads of decks and covered porches to maximize outdoor living. With a lower-level garage, an elevator helps easily maneuver between floors.
  • The main-level living space is open and surrounded by windows with easy access to a covered porch with a fireplace.
  • The service areas are clustered on the main level and include a chef's pantry, walk-in pantry, and laundry room. A home office, or guest bedroom, is located next door.
  • Discover three bedroom suites upstairs, along with a home office. Decks are accessible from each of the bedrooms.
  • The primary bedroom features an attached bath that flows freely into a walk-in closet.
  • Related Plan: Get an alternate version with house plan 765049TWN.

Floor Plans
