3000 Square Foot Beach Home Plan

Plan 765049TWN

  • 3,588

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This coastal contemporary-style house plan features loads of decks and covered porches to maximize outdoor living. With a lower-level garage, an elevator helps easily maneuver between floors.
  • The main-level living space is open and surrounded by windows with easy access to a covered porch with a fireplace.
  • The service areas are clustered on the main level and include a chef's pantry, walk-in pantry, and laundry room. A main floor primary suite is located next door.
  • Discover three bedroom suites upstairs, along with a home office. An open deck is accessible from two of the bedrooms.
  • The primary bedroom features an attached bath that flows freely into a walk-in closet.
  • Related Plan: Get an alternate version with house plan 765043TWN (3,464 sq. ft.).
  • DELIVERY NOTE: Please allow 10 to 15 days for plan delivery.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

First Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

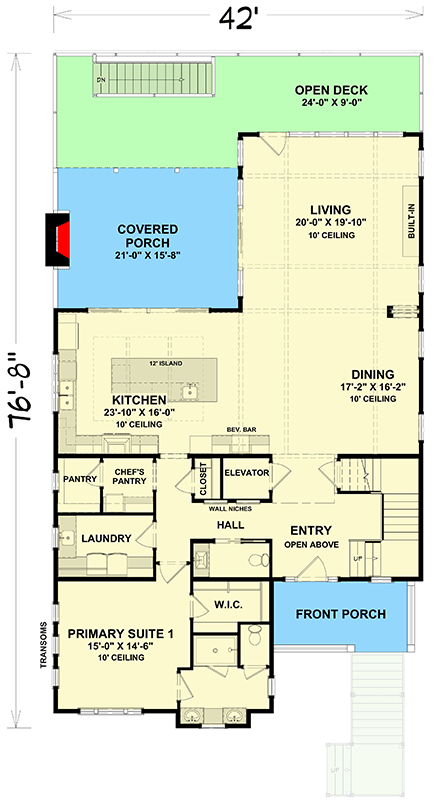

3000 Square Foot Beach Home Plan - 765049TWN floor plan - First Floor

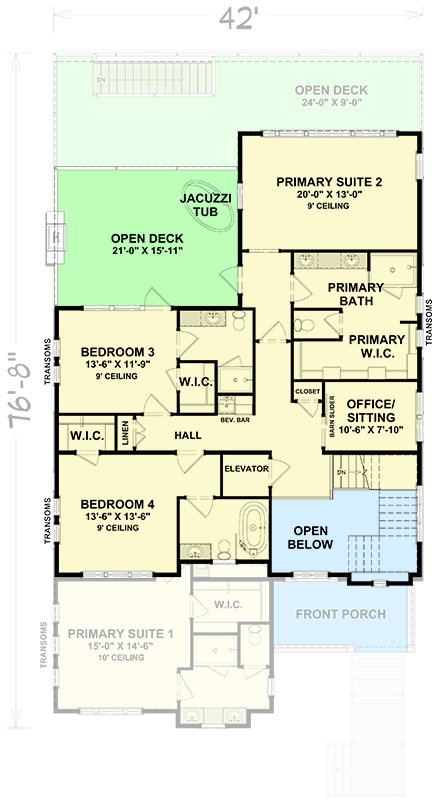

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3000 Square Foot Beach Home Plan - 765049TWN floor plan - 2nd Floor

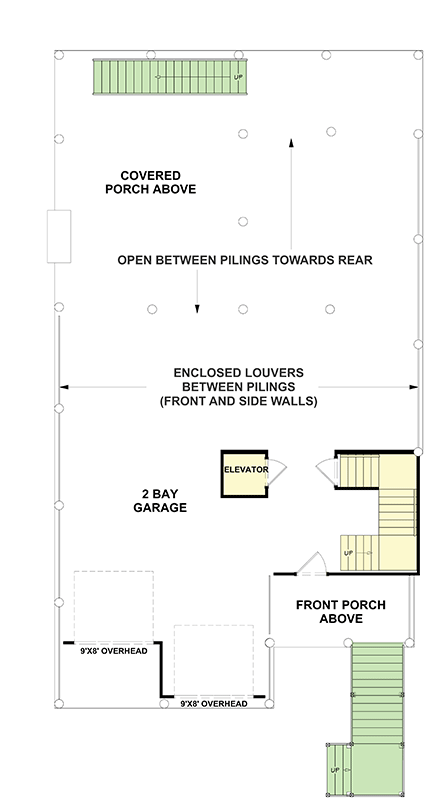

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3000 Square Foot Beach Home Plan - 765049TWN floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,588 sq. ft.
  • 1st Floor: 2,111 sq. ft.
  • 2nd Floor: 1,477 sq. ft.
  • Covered Patio: 829 sq. ft.
  • Deck: 419 sq. ft.
  • Porch, Combined: 455 sq. ft.
  • Porch, Rear: 328 sq. ft.
  • Porch, Front: 127 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Piling, Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 76' 8"
  • Max ridge height: 38' 4"

Garage

  • Type: Drive Under, Attached
  • Area: 2010 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features
