Lower Level Entertainment Center

Plan 9516RW

  • 5,613

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • This elegant European home plan is filled with amentities such as the front courtyard, two-story family room and loft area that overlooks the family room below.
  • The formal dining room with tray ceiling is located near the spacious gourmet kitchen with two islands.
  • From here you can see the informal dining nook and the big family room fireplace.

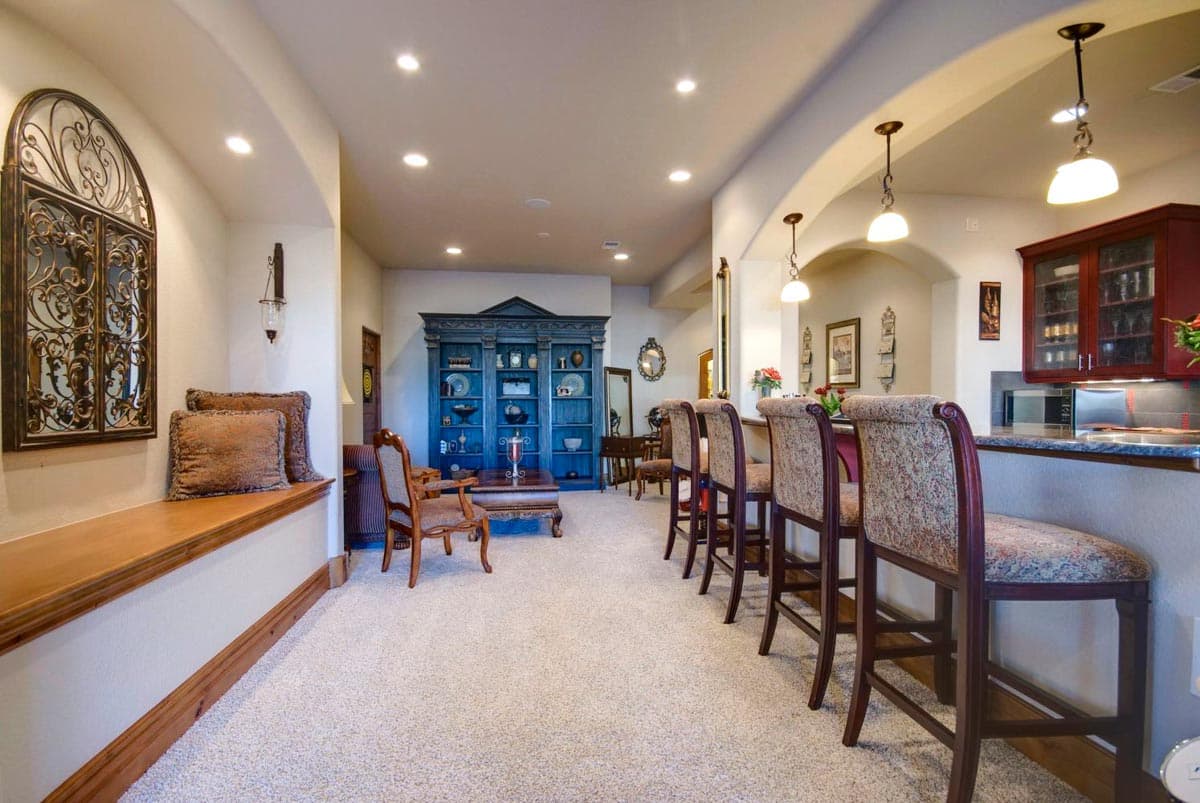

  • You can entertain out on the huge deck or head down to the finished lower level that is game central.
  • Take advantage of the built-in seating, huge wet bar, wine cellar and gaming room.
  • A guest bedroom on this level would work equally well as an in-law suite.
  • On the opulent second floor, every bedroom is large and comfortable with a walk-in closet.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

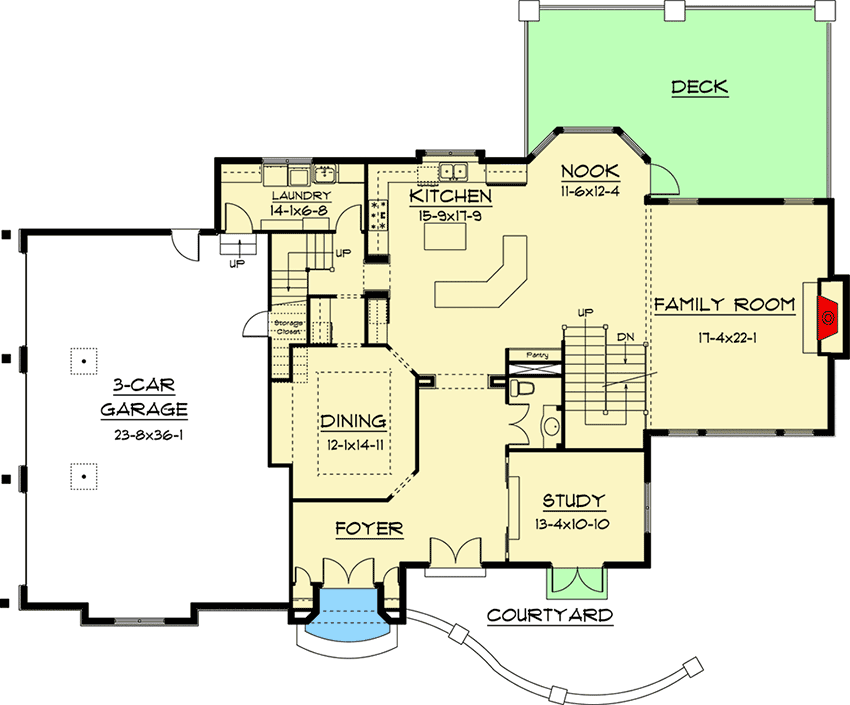

Lower Level Entertainment Center - 9516RW floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

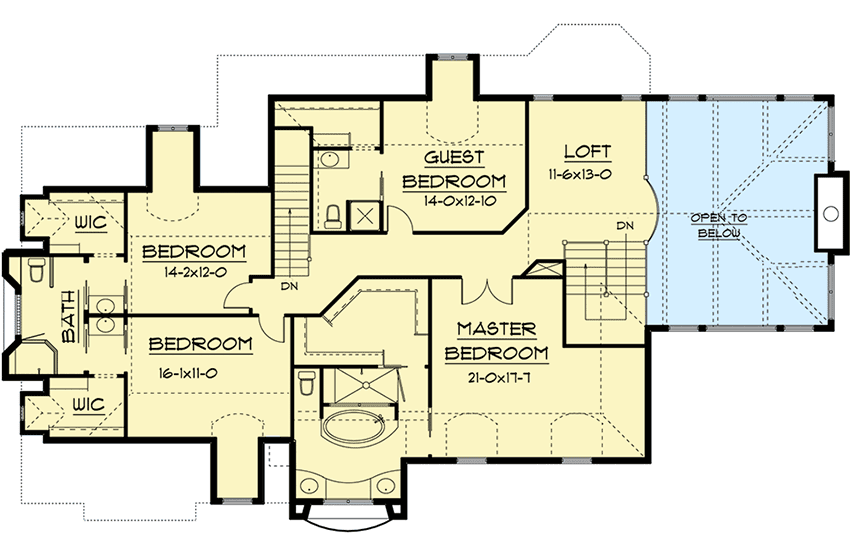

Lower Level Entertainment Center - 9516RW floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

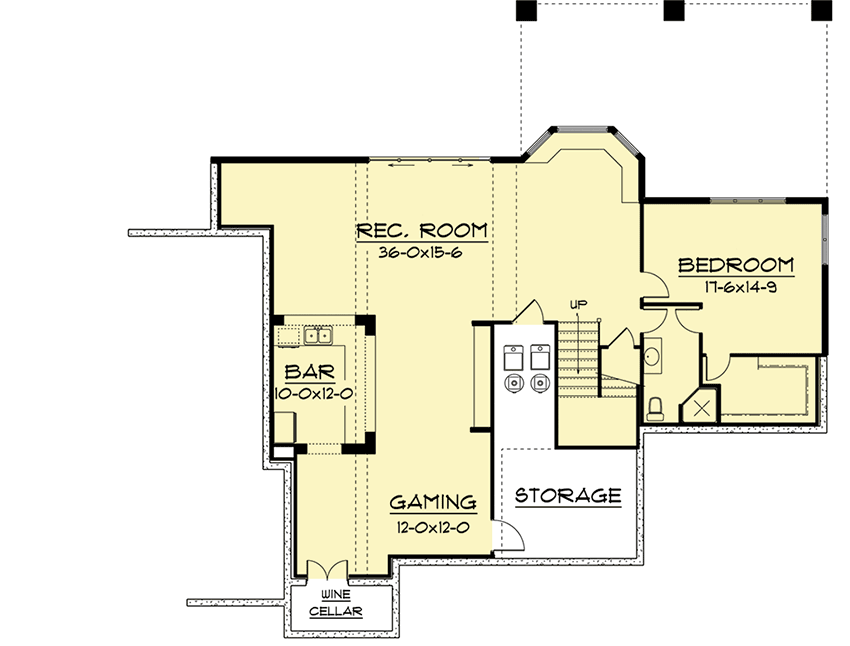

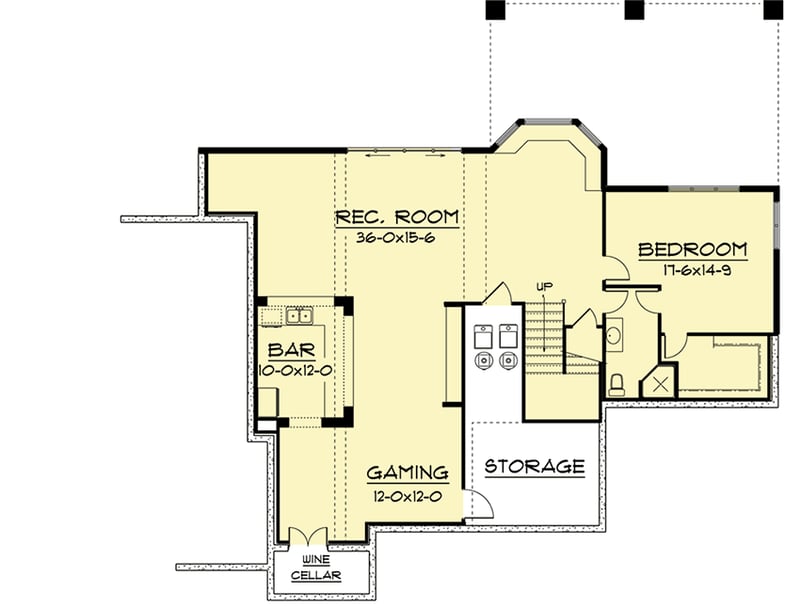

Lower Level Entertainment Center - 9516RW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,613 sq. ft.
  • Lower Level: 1,651 sq. ft.
  • 1st Floor: 1,997 sq. ft.
  • 2nd Floor: 1,965 sq. ft.
  • Porch, Rear: 933 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 0"
  • Depth: 60' 6"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 949 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Lower Level Entertainment Center

  • 5,613

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $4,100
  • CAD + PDF - Single Build $5,800
  • PDF - Unlimited Build $6,150
  • CAD - Unlimited Build $8,700
  • View all purchase option online

About This Plan

  • This elegant European home plan is filled with amentities such as the front courtyard, two-story family room and loft area that overlooks the family room below.
  • The formal dining room with tray ceiling is located near the spacious gourmet kitchen with two islands.
  • From here you can see the informal dining nook and the big family room fireplace.
  • You can entertain out on the huge deck or head down to the finished lower level that is game central.
  • Take advantage of the built-in seating, huge wet bar, wine cellar and gaming room.
  • A guest bedroom on this level would work equally well as an in-law suite.
  • On the opulent second floor, every bedroom is large and comfortable with a walk-in closet.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,613 sq. ft.
  • Lower Level: 1,651 sq. ft.
  • 1st Floor: 1,997 sq. ft.
  • 2nd Floor: 1,965 sq. ft.
  • Porch, Rear: 933 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 0"
  • Depth: 60' 6"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 949 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
Plan 9516RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/9516RW
|
Need Help? 800-854-7852
|
Plan 9516RW
