Luxurious Mediterranean Beach Home with Open-Concept Floor Plan

Plan 24117BG

  • 3,602

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Low-pitched, hip and valley roof lines rest atop this luxurious, Mediterranean beach home, which offers an open-concept floor plan ideal for gatherings, and split bedrooms which provides restful and private sleeping accommodations.
  • Double doors welcome you into a spacious foyer with views through the great room and beyond to the covered lanai. Two retractable walls in the heart of the home bring the outdoors inside, while filling the space with natural light.
  • A forward-facing study includes a wet bar and a wall of built-ins.
  • Retreat to the master suite, which boasts sliding doors to the back porch, dual closets, and a lavish bathroom with a standalone tub located in front of an oversized shower. A door reveals access to a single-car garage.
  • Three secondary bedrooms occupy the left side of the home; one includes a full bath, and two share the hall bath.
  • NOTE: This plan is not available for purchase in Collier Country, Florida

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

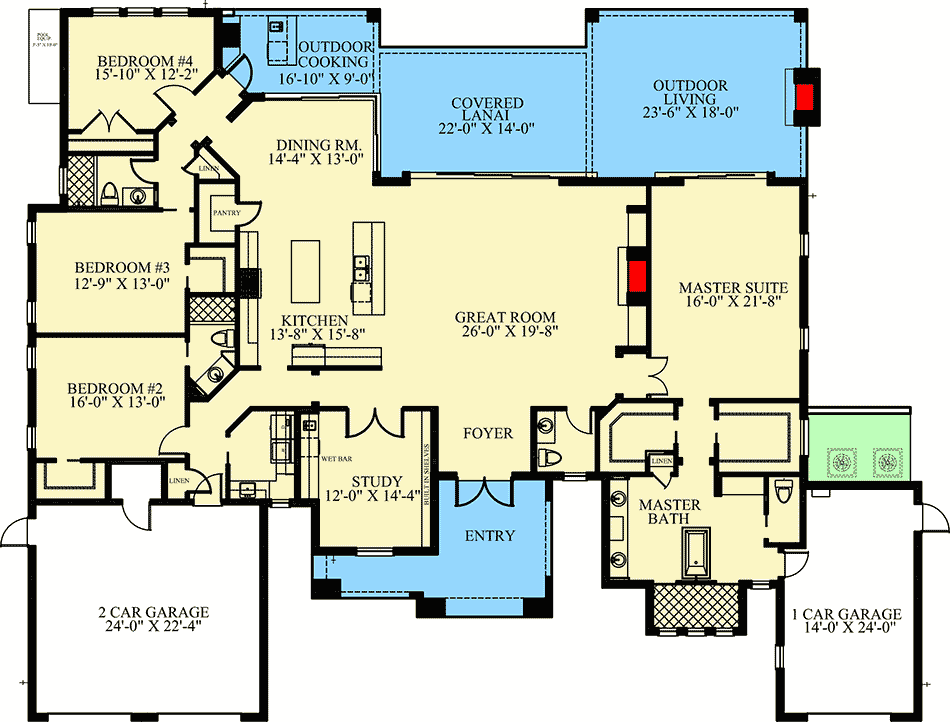

Luxurious Mediterranean Beach Home with Open-Concept Floor Plan - 24117BG floor plan - Main Level

Luxurious Mediterranean Beach Home with Open-Concept Floor Plan

  • 3,602

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,602 sq. ft.
  • 1st Floor: 3,602 sq. ft.

Dimensions

  • Width: 95' 0"
  • Depth: 75' 8"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
