Plan 16825WG

Luxurious Mediterranean Home Plan

Heated S.F.
5,405
Beds
6
Baths
5.5
Stories
2
Cars
2

Floor Plan

Plan 16825WG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 16825WG

M-F 9am-5pm EST |

1-203-761-8500

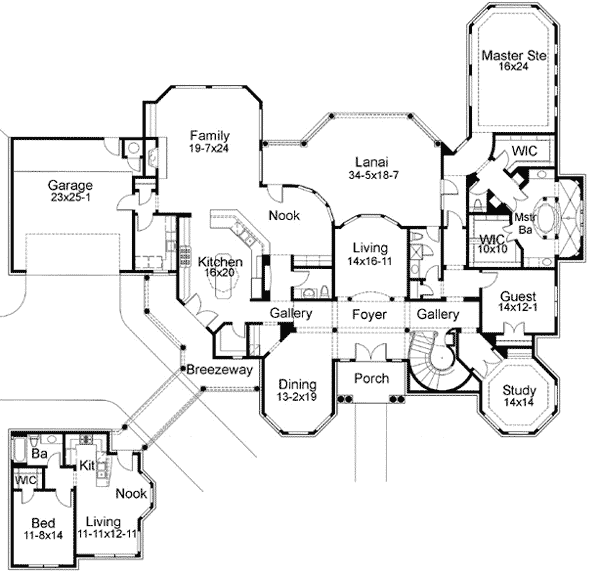

Main Level

Plan 16825WG: Luxurious Mediterranean Home Plan - Floor Plan - Main Level - Florida-Style, Mediterranean

2nd Floor

Plan 16825WG: Luxurious Mediterranean Home Plan - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • This luxurious Mediterranean home plan boasts a huge rear lanai, an elaborate curved staircase and separate in-law guest accommodations.
  • Glass on four sides of the study with tray ceiling make this a special room.
  • All your family and friends will fit into the extra-large family room with fireplace and built-in shelves.
  • The first floor master suite is a place you will look forward to spending time in, with its tray ceiling, bayed sitting area and spa bath with a huge walk-in shower.
  • Three more bedrooms lie on the second floor along with a game room.
  • A fully-equipped in-law apartment is separated from the main home.

What's Included

  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

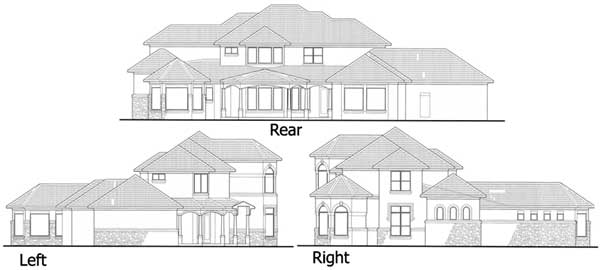

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,405 sq. ft.

1st Floor

3,963 sq. ft.

2nd Floor

1,442 sq. ft.

Apartment

619 sq. ft.

Porch, Front

437 sq. ft.

Lanai

539 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

111' 5"

Depth

109' 0"

Max Ridge Height

34' 10"

Garage

Type

Attached

Area

625 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

Second Story

0' 0''

Study

Tray

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Mediterranean

Special Features

Breakfast Nook

Game/Rec Room

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Two Kitchen Islands

Walk-in Pantry

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

5,405 sq. ft.

1st Floor

3,963 sq. ft.

2nd Floor

1,442 sq. ft.

Apartment

619 sq. ft.

Porch, Front

437 sq. ft.

Lanai

539 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

111' 5"

Depth

109' 0"

Max Ridge Height

34' 10"

Garage

Type

Attached

Area

625 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

Second Story

0' 0''

Study

Tray

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Mediterranean

Special Features

Breakfast Nook

Game/Rec Room

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Two Kitchen Islands

Walk-in Pantry

Plan Collections

Luxury
