Plan 66024WE

Luxurious Mediterranean House Plan Featuring Six Bedrooms and Expansive Courtyard

Heated S.F.
9,870
Beds
6
Baths
6.5
Stories
2
Cars
6

Floor Plan

Plan 66024WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66024WE

M-F 9am-5pm EST |

1-203-761-8500

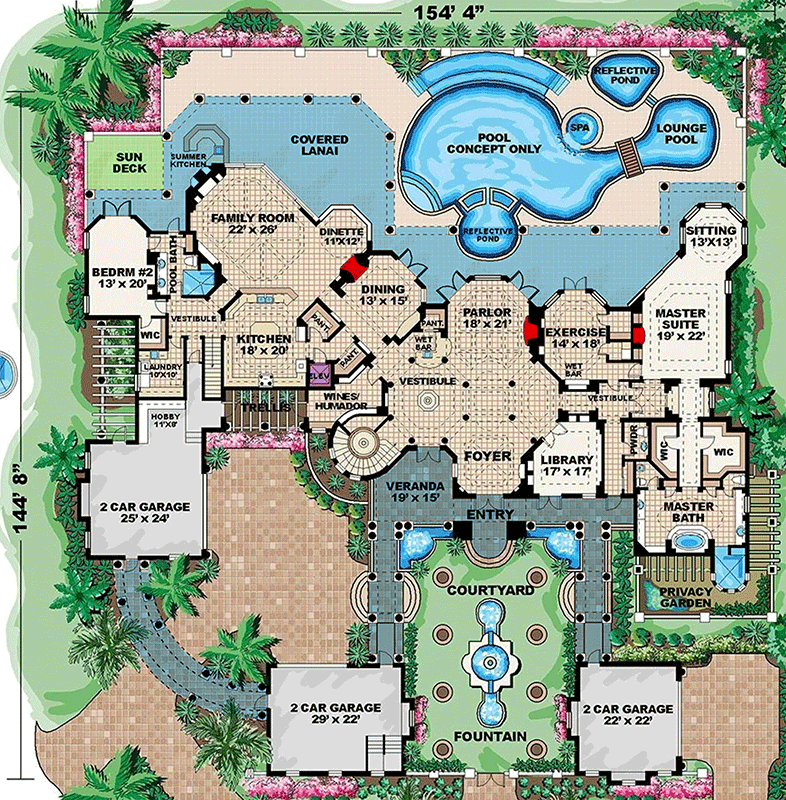

Main Level

Plan 66024WE: Luxurious Mediterranean House Plan Featuring Six Bedrooms and Expansive Courtyard - Floor Plan - Main Level - Beach, Coastal, European, Florida-Style, Mediterranean, Tuscan

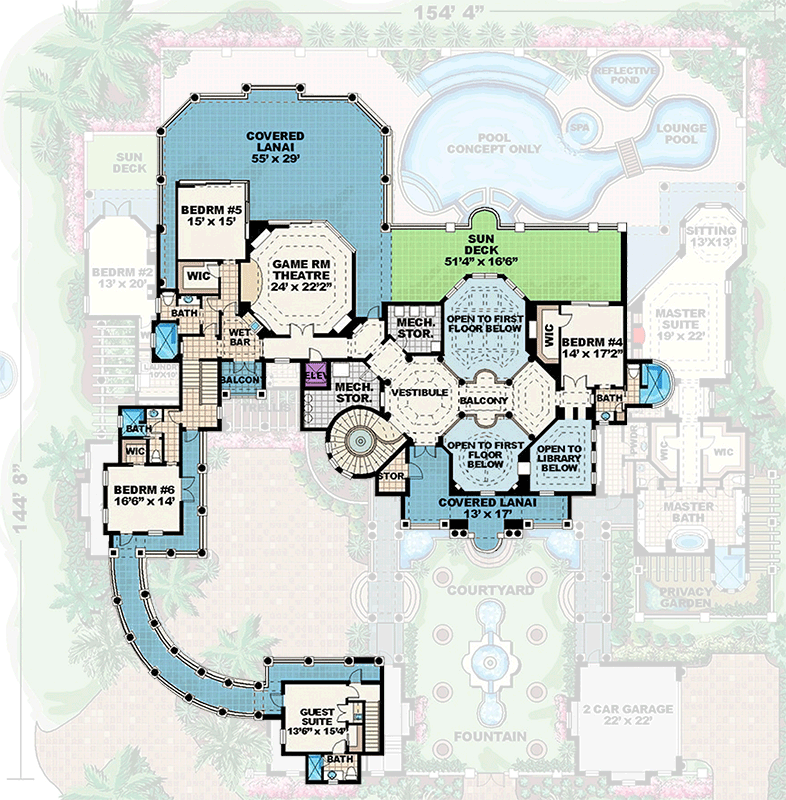

2nd Floor

Plan 66024WE: Luxurious Mediterranean House Plan Featuring Six Bedrooms and Expansive Courtyard - Floor Plan - 2nd Floor - Beach, Coastal, European, Florida-Style, Mediterranean, Tuscan

Plan Details

  • Offering 9,870 square feet of finished living space, this Mediterranean-style estate features six bedrooms, six full bathrooms, a half bath, and an attached six-car garage.
  • The arrival experience is defined by a grand courtyard with a central fountain, leading into an impressive barrel-vaulted entry that sets the tone for the residence.
  • Inside, the floor plan focuses on seamless indoor-outdoor connectivity, with a soaring two-story great room and formal parlor that open toward the rear lanai and pool area.
  • The main level hosts a private master suite complete with a vaulted ceiling, sitting area, and a dedicated privacy garden, while secondary bedrooms are strategically positioned throughout the two levels to ensure guest comfort.
  • For those who enjoy hosting, the home includes specialized amenities such as a dedicated home theater, a wine room, a library, and a full wet bar for entertaining.
  • Expansive covered lanais, a sun deck, and multiple balconies provide extensive outdoor living spaces that wrap around the rear of the home to maximize views.
  • The home is designed for convenience with an integrated elevator, dual laundry rooms, and a versatile hobby room located near the garage wing.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

9,870 sq. ft.

1st Floor

6,526 sq. ft.

2nd Floor

3,344 sq. ft.

Lanai

3,167 sq. ft.

Storage

376 sq. ft.

Balcony / Veranda

1,046 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

126' 3"

Depth

144' 8"

Max Ridge Height

35' 0"

Garage

Type

Attached, Standard

Area

2177 sq. ft.

Count

6 Cars

Entry Location

Front, Side, Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Dining Room

Flat

12' 0''

Master Bath

Vaulted

11' 0''

All Bedrooms

Flat

10' 0''

Kitchen

Flat

11' 2''

Lanai

Flat

13' 8''

Dinette

Flat

11' 2''

Master Bedroom

Vaulted

12' 0''

Foyer

Vaulted

27' 2''

Living Room

Vaulted

27' 2''

Study

Vaulted

27' 2''

Entry

Barrel Vaulted

12' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Beach

Coastal

European

Florida-Style

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Elevator

Formal Dining

Home Theater

In-Law Suite

Keeping Room

Laundry - Main Level

Laundry - Upstairs

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Multiple Stairs

Porte Cochere

Two Story Great Room

Walk-in Pantry

Wet Bar

Wine Room

Workshop
