Plan 66015WE

Luxurious Mediterranean House Plan with Four Bedrooms and Three-Car Garage

Name: Plan 66015WE: Luxurious Mediterranean House Plan with Four Bedrooms and Three-Car Garage
Brand: Architectural Designs
SKU: 66015WE
Price: 1800.0 USD
Availability: InStock

Heated S.F.

4,669

Beds

Baths

5.5

Stories

Cars

Floor Plan

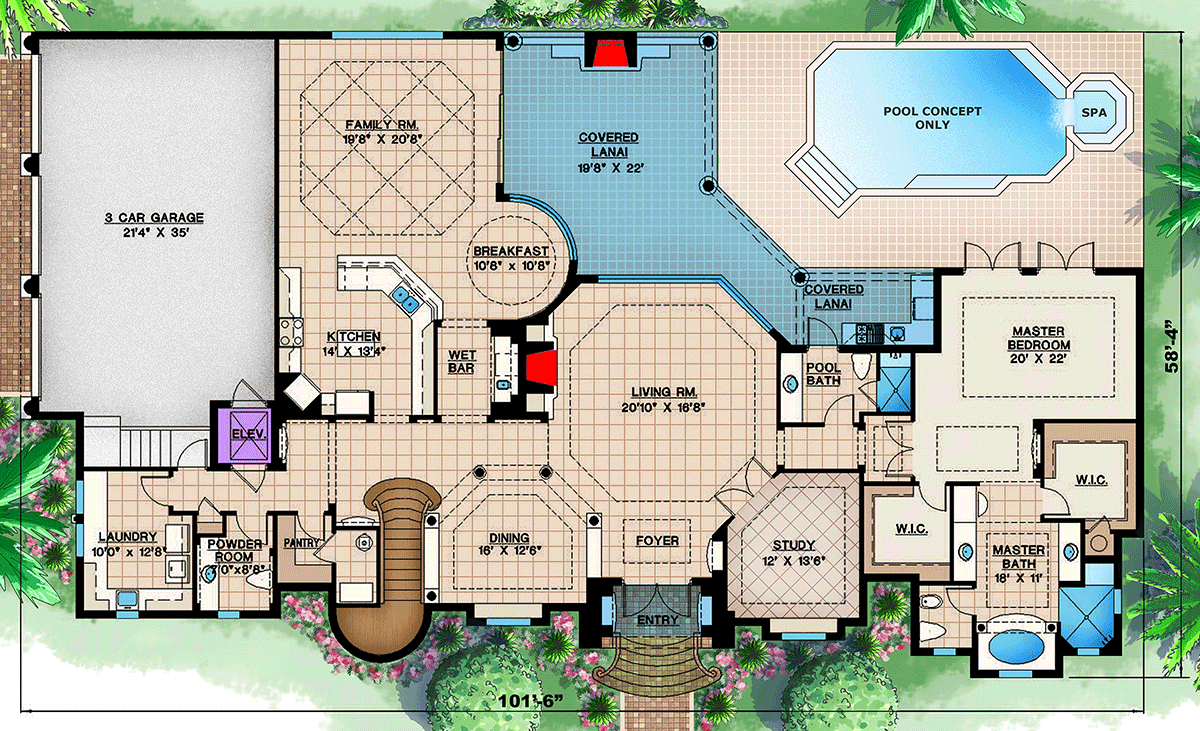

Main Level

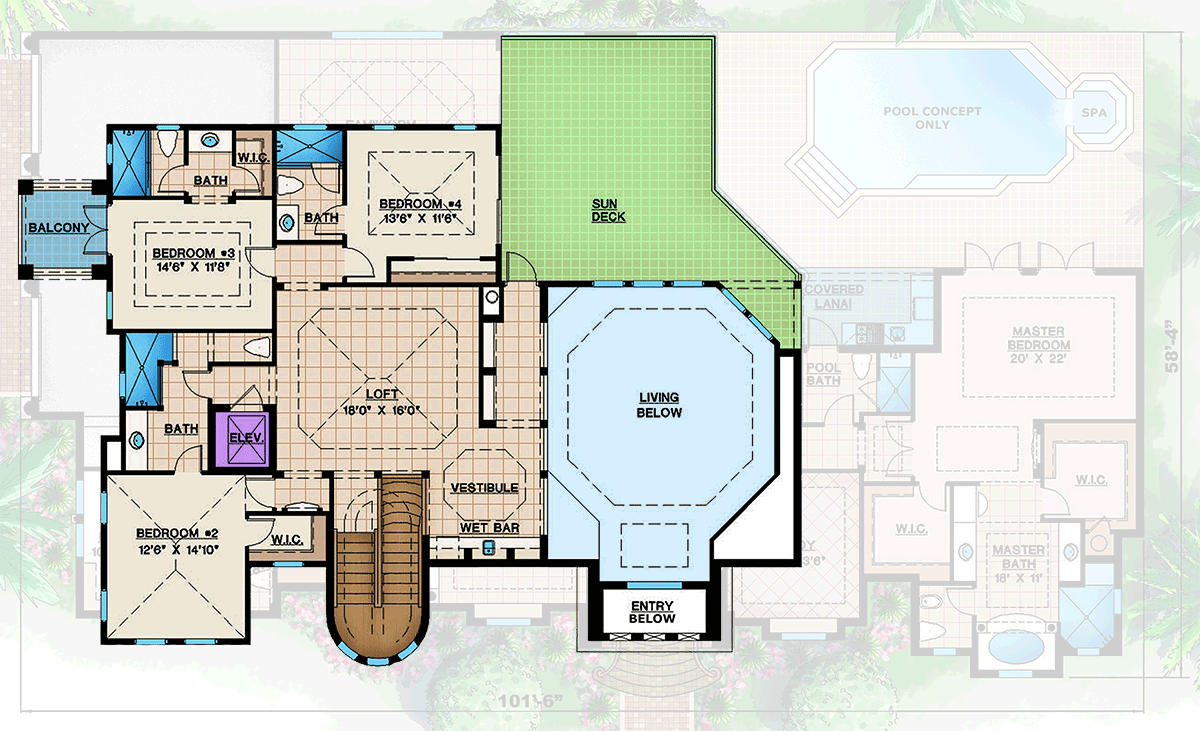

2nd Floor

Plan Details

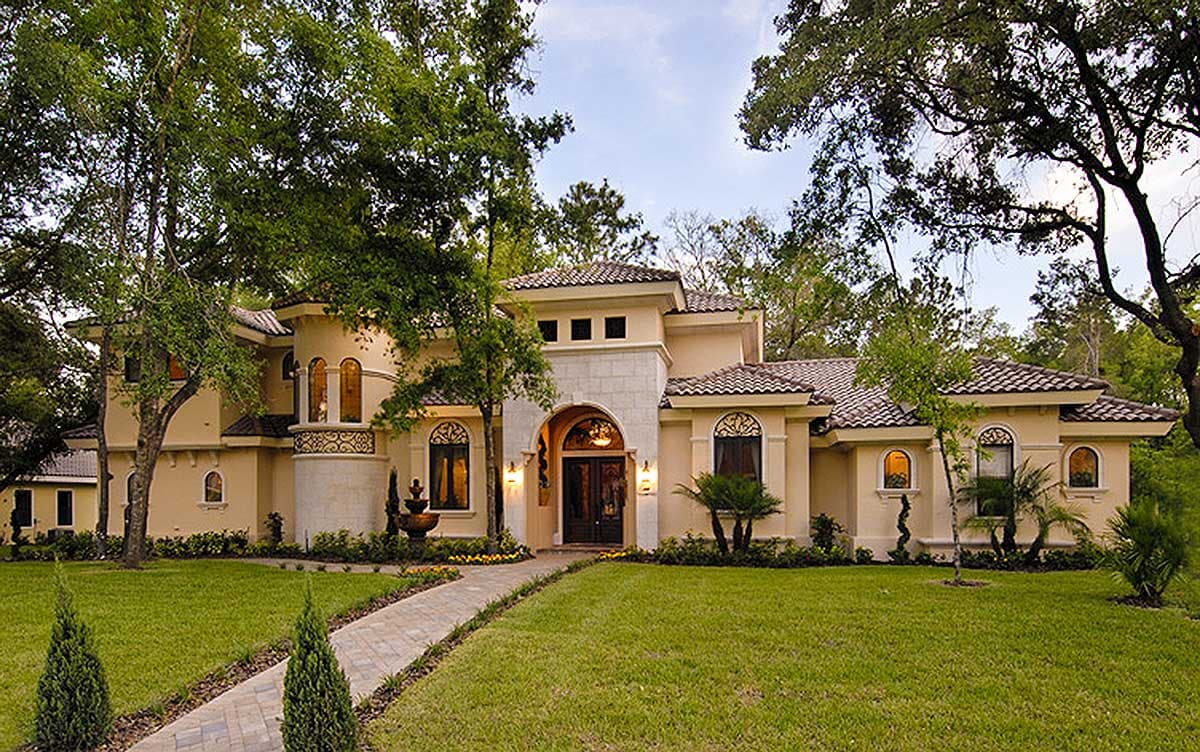

This sprawling 4,669 square foot Mediterranean residence features four bedrooms, five full baths, one half bath, and a three-car side-entry garage.

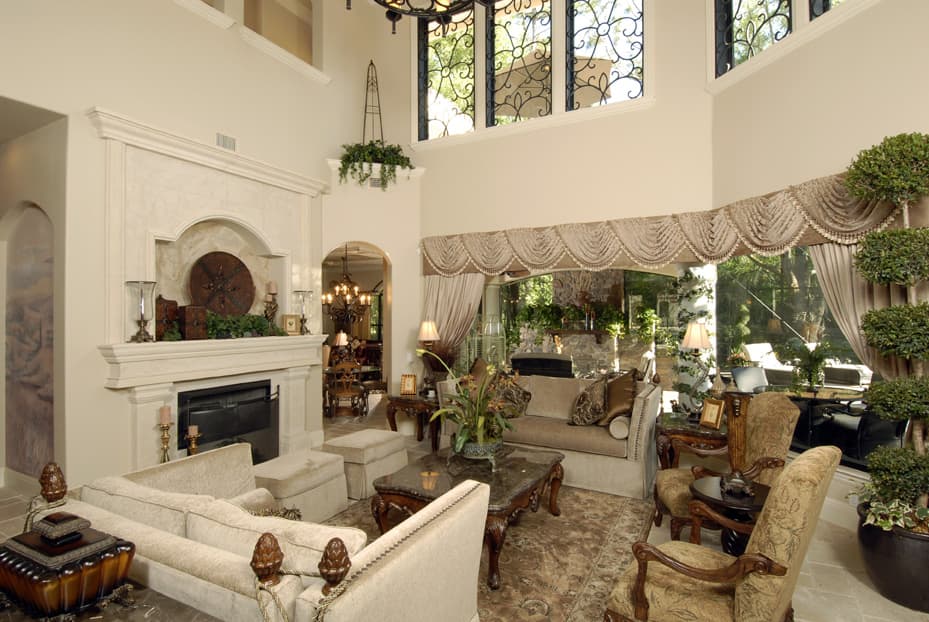

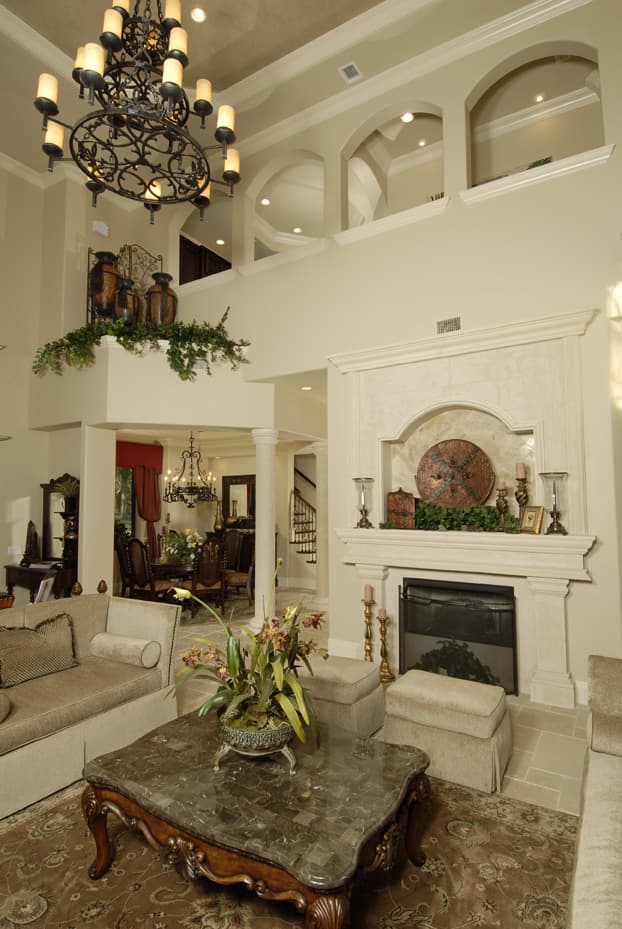

Upon entering through the vaulted foyer, sightlines extend directly through the grand living room to the covered lanai, creating an immediate sense of openness.

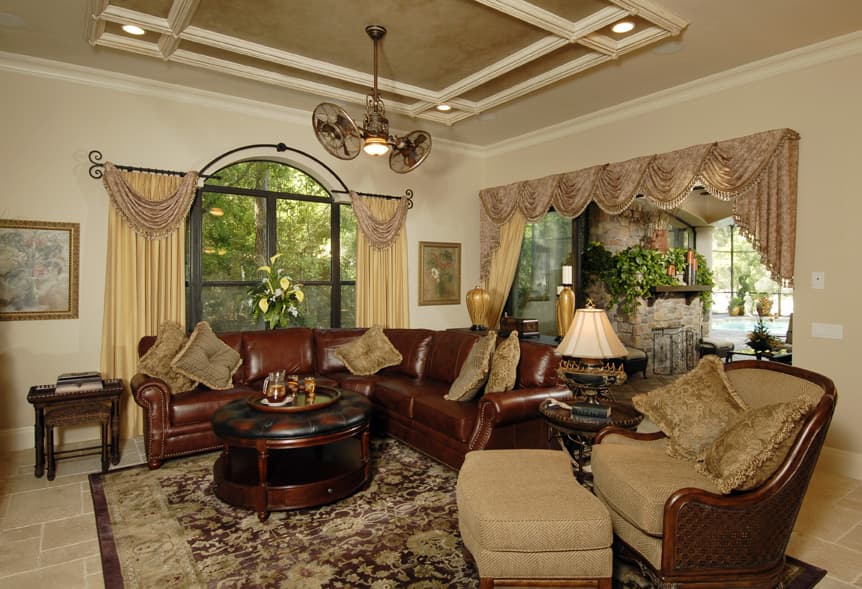

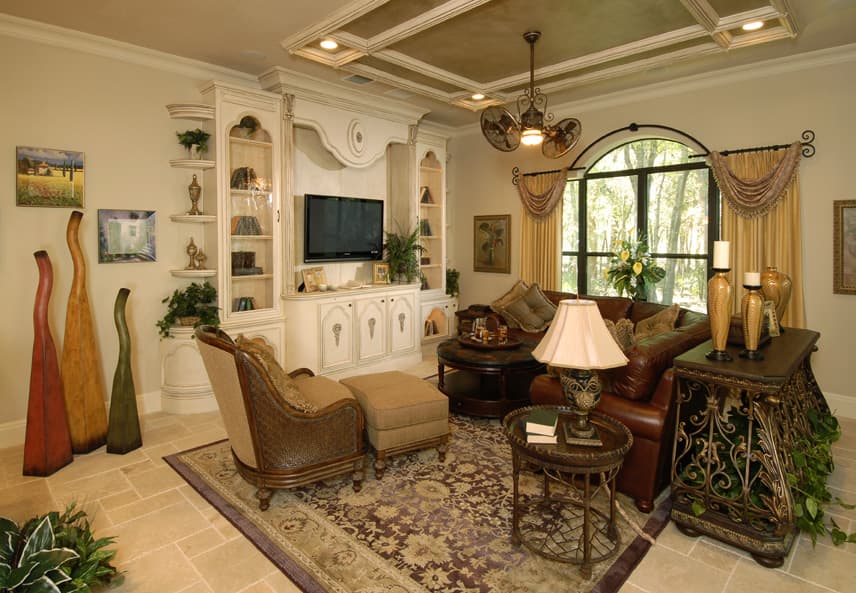

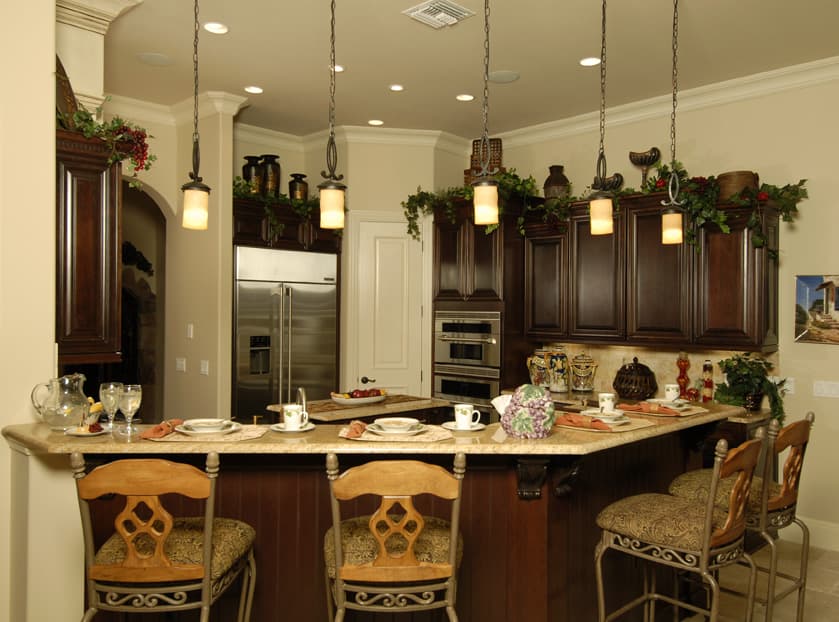

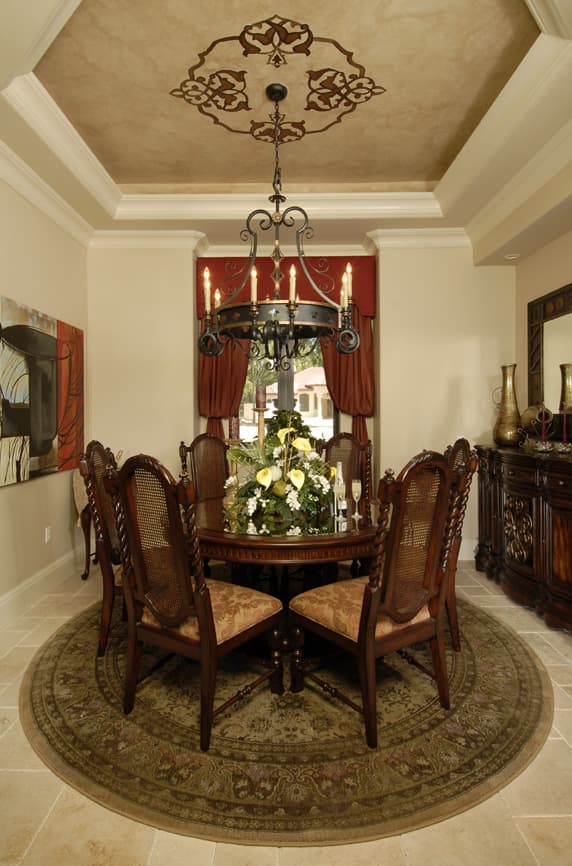

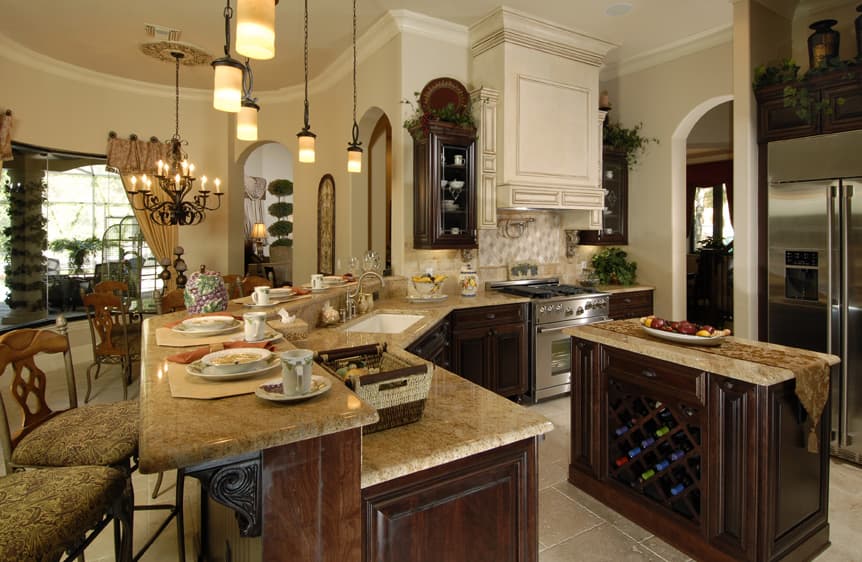

The main level is designed for effortless entertaining, with a formal dining room, a gourmet kitchen, and an informal family room all connected by a strategically placed wet bar.

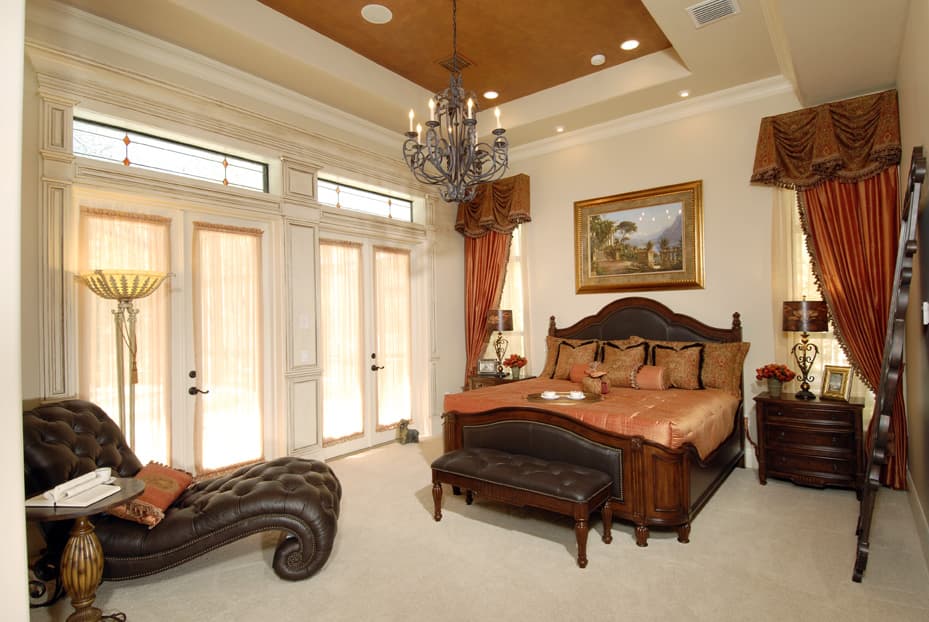

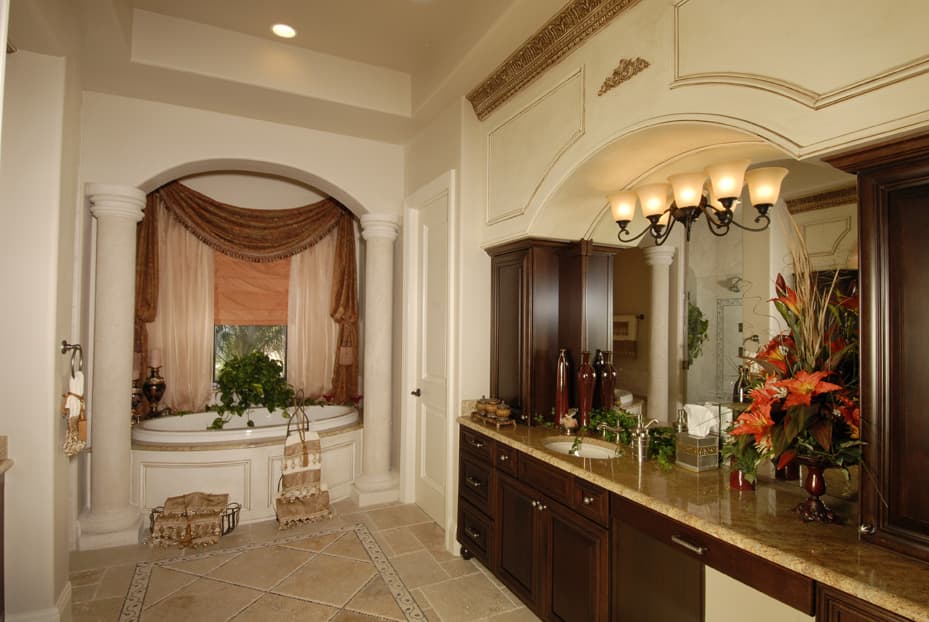

The opulent first-floor primary suite serves as a private retreat, complete with dual walk-in closets and a bathroom featuring a centerpiece tub framed by elegant columns.

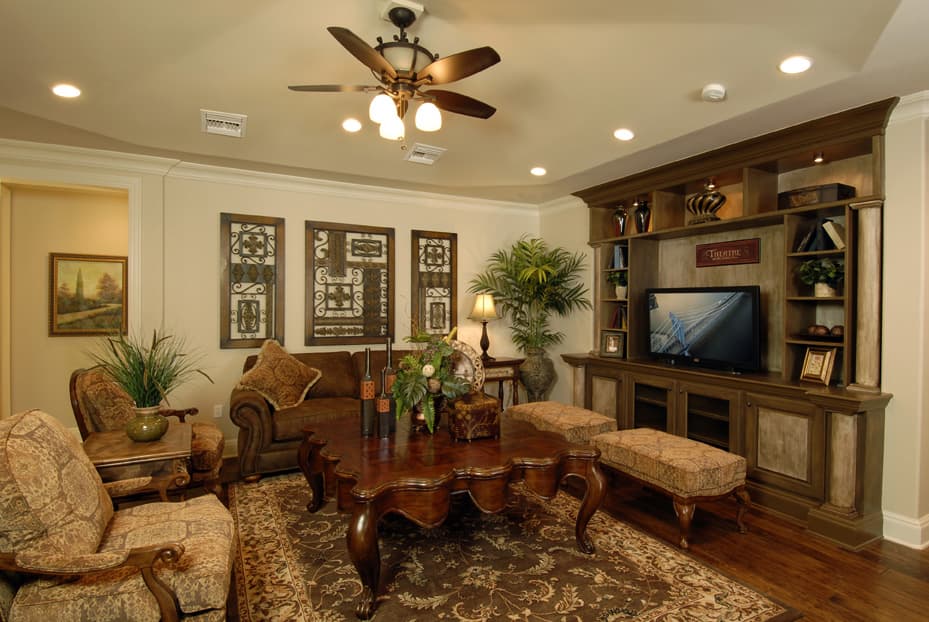

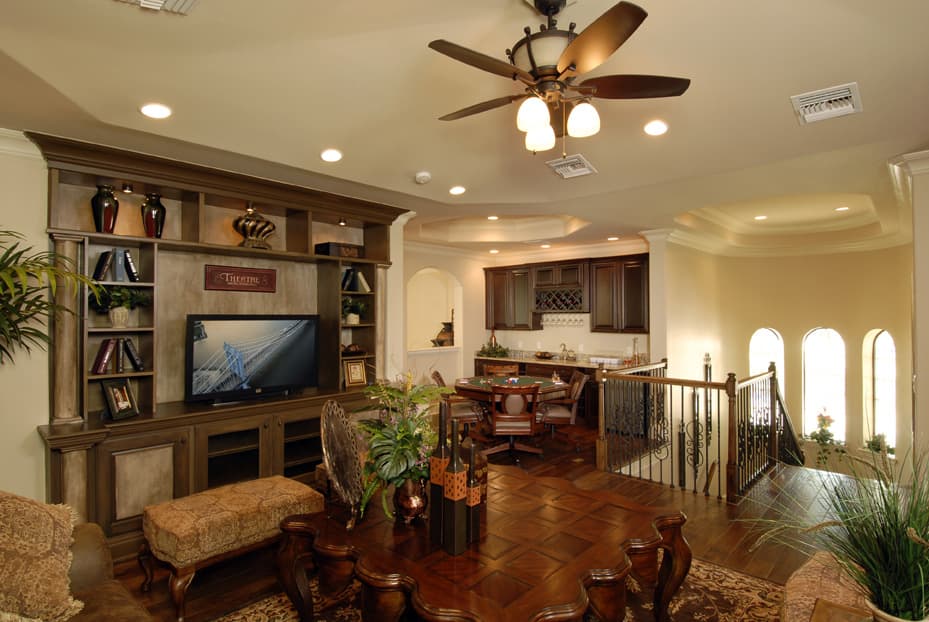

Upstairs, a versatile loft provides additional living space with its own wet bar and access to a expansive sun deck for outdoor relaxation.

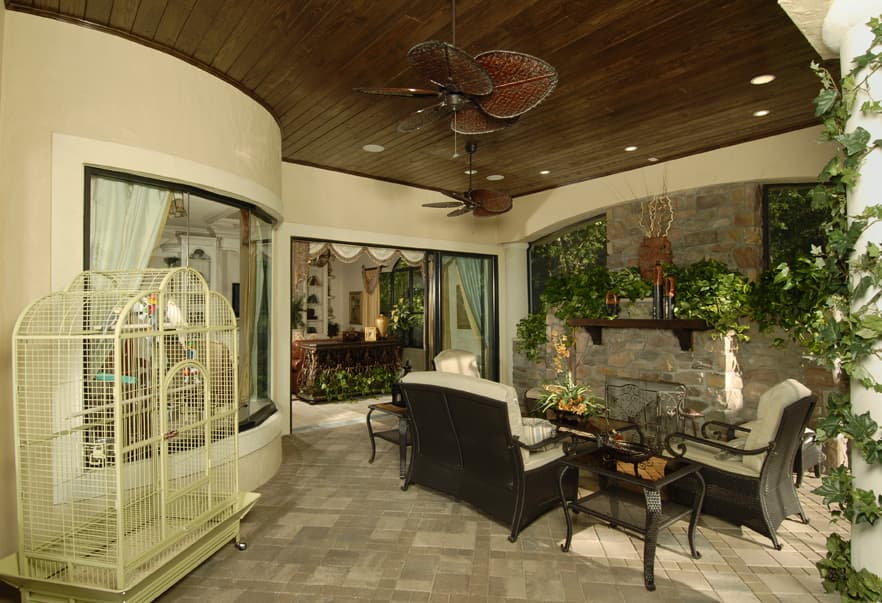

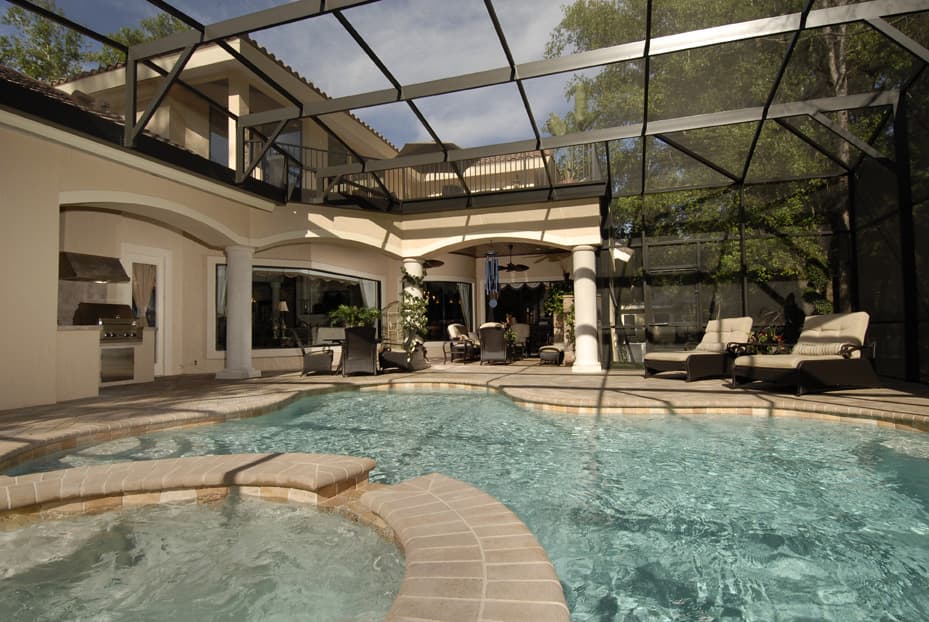

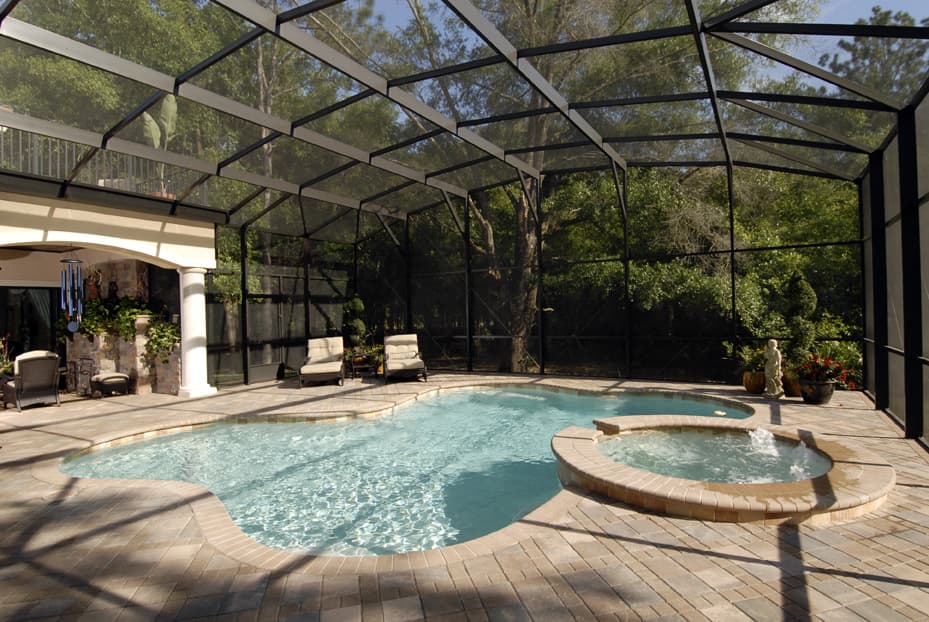

The rear of the home is an entertainer's paradise, boasting a covered lanai equipped with an outdoor fireplace and a summer kitchen for year-round alfresco dining.

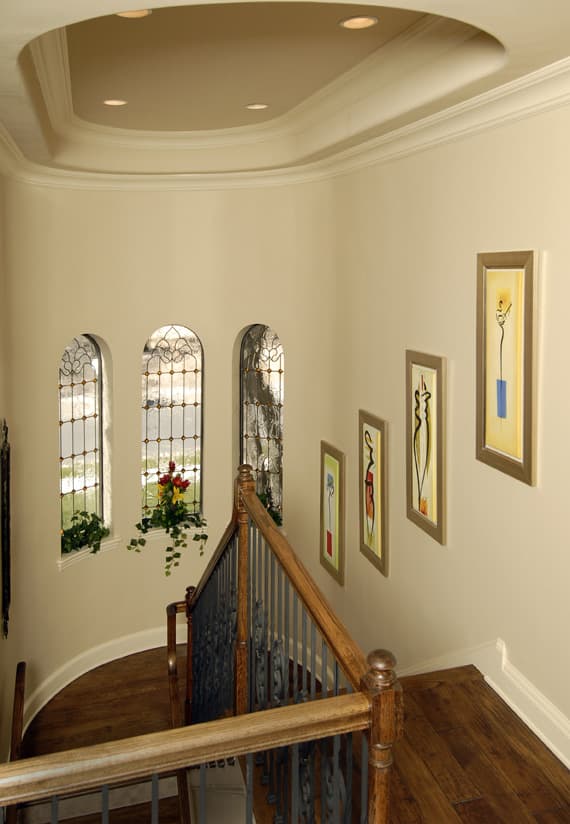

Convenience is paramount in this design, which includes both a grand fanned staircase and a private residential elevator for easy access between levels.

What's Included

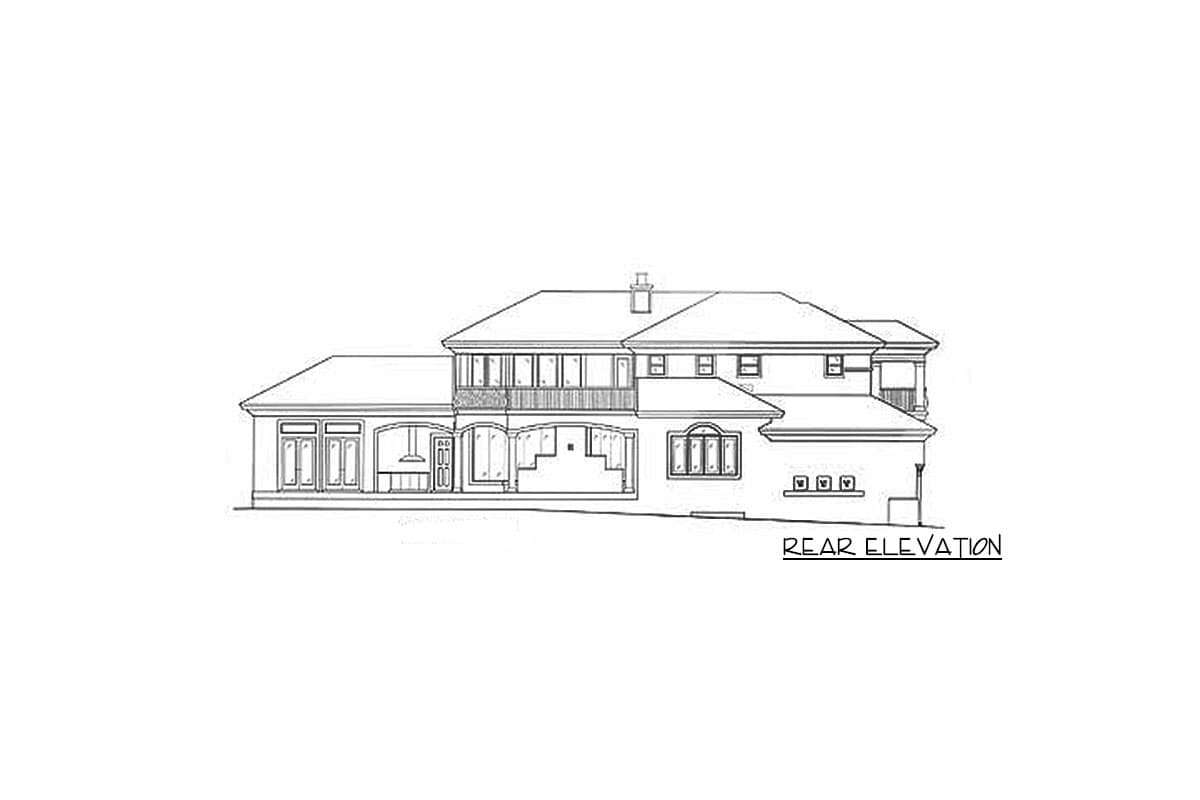

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
