Luxurious Southern Traditional House Plan - 5654 Sq Ft

Name: Plan 66361WE: Luxurious Southern Traditional House Plan - 5654 Sq Ft
Brand: Architectural Designs
SKU: 66361WE
Price: 4100.0 USD
Availability: InStock

Heated S.F.

5,654

Beds

Baths

5.5+

Stories

Cars

Floor Plan

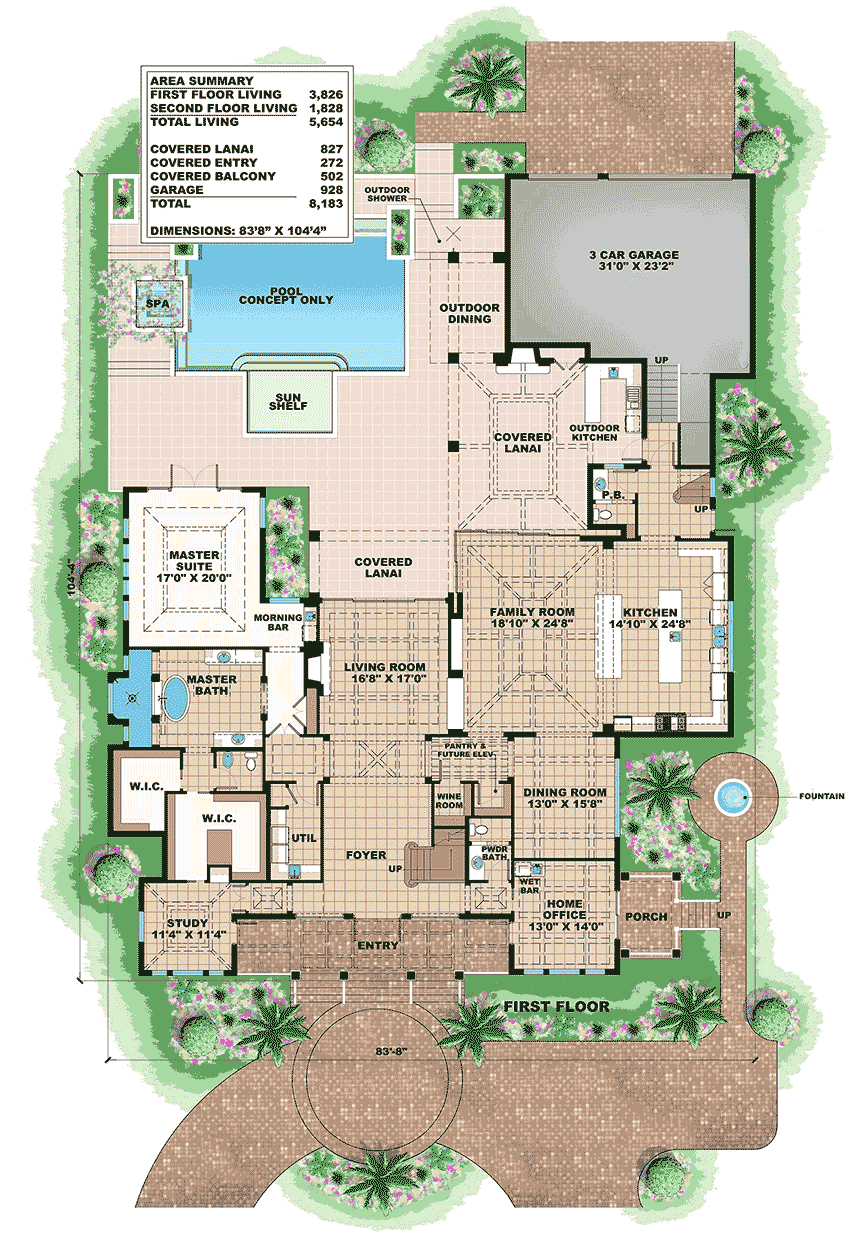

Main Level

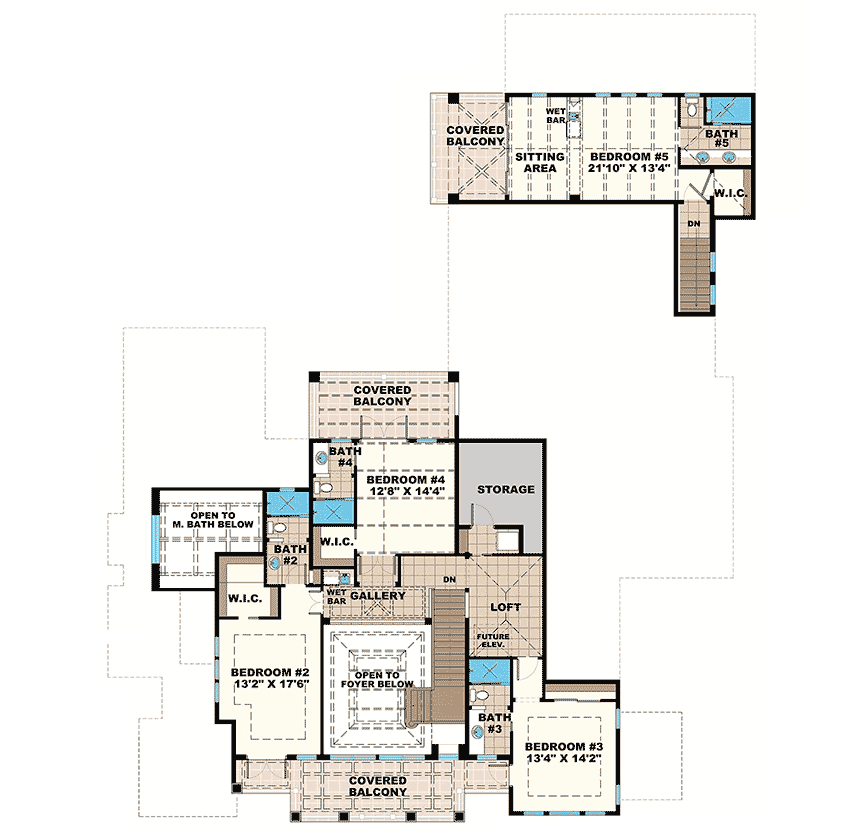

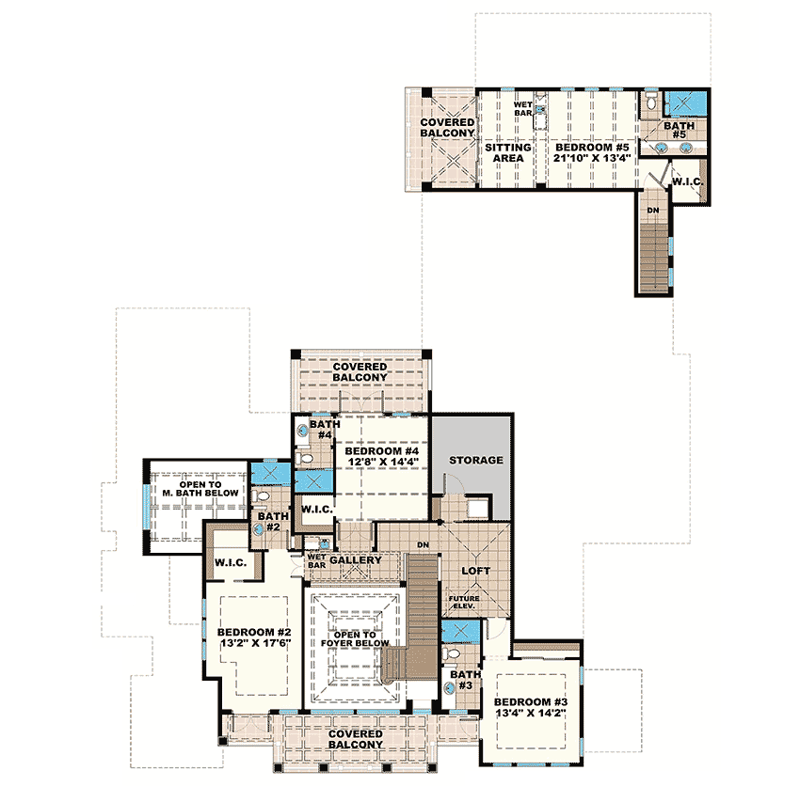

2nd Floor

Plan Details

This strikingly beautiful Southern Traditional house plan comes with so many wonderful amenities your family will love including an in-law suite over the garage.
Want a wine cellar or a future residential elevator or a fabulous outdoor living space? This home has them all plus the open layout today's families enjoy.
Take your choice of the study or a home office with wet bar when you work from home.
In the extravagant first floor master suite, you have a morning bar for coffee, an elegant vaulted ceiling and a huge, two-entry walk-in shower in the master bathroom.
On the second floor, bedroom 4 gets a private outdoor balcony while bedrooms 2 and 3 share the front-facing balcony.
And over the garage, the in-law suite offers a wet bar and sitting area plus its own covered balcony.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
