Plan 23283JD - Luxury Craftsman with Bonus Room

  • 3,780

    SQ. FT.

  • 3

    BEDS

  • 3

    BATHS

  • 1

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • MORE PHOTOS: See more photos in our Facebook photo album.

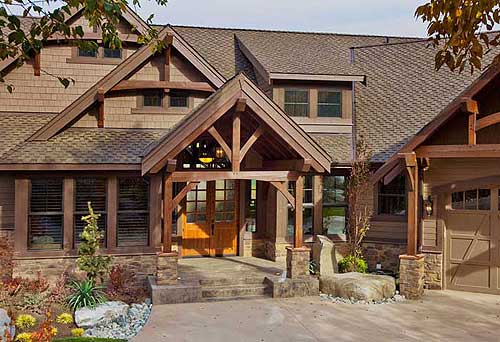

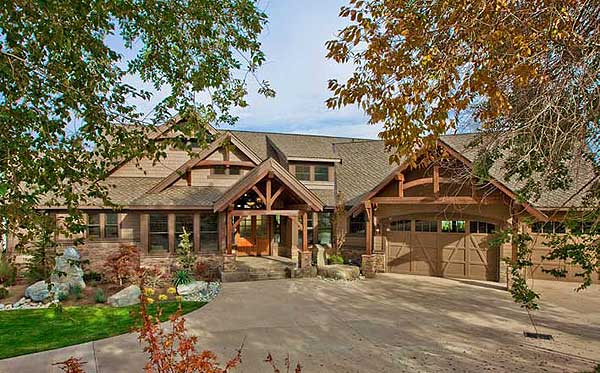

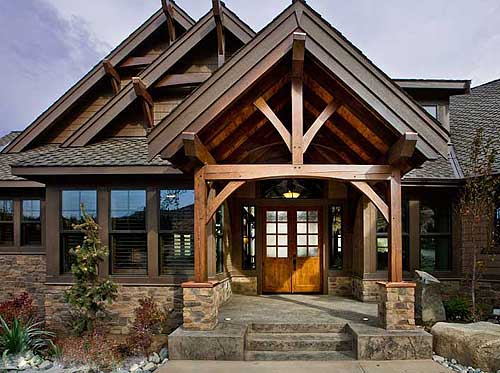

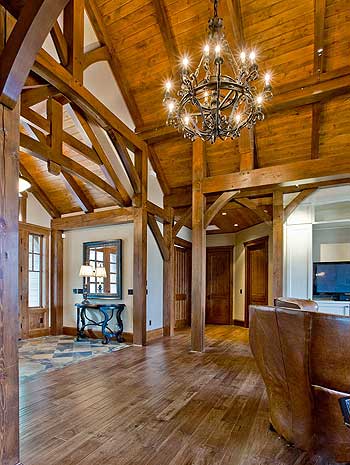

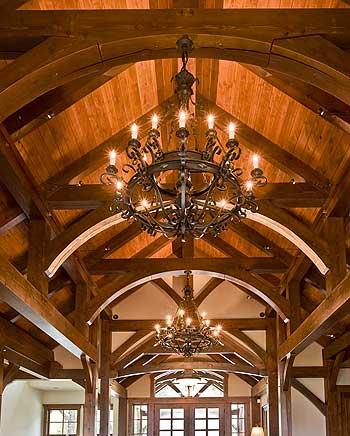

  • Step inside this luxury Craftsman house plan and you'll be blown away by the front-to-back views. Exposed timbers add a sense of drama to the vaulted ceilings.

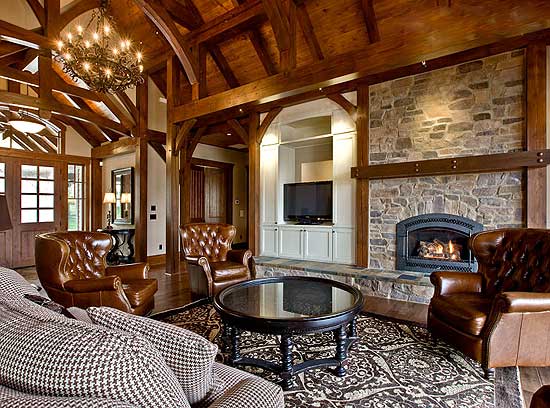

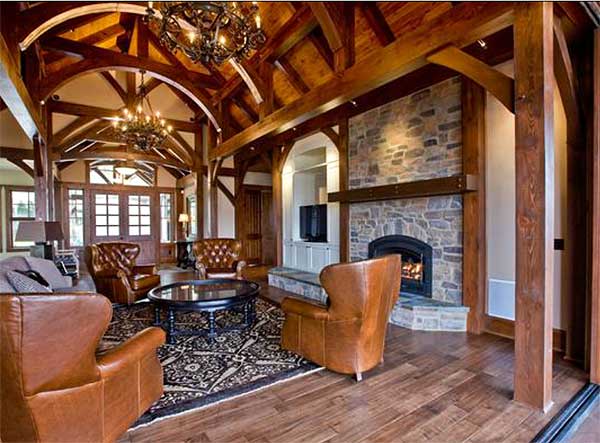

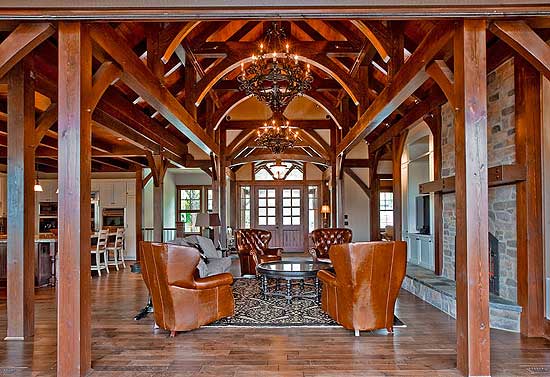

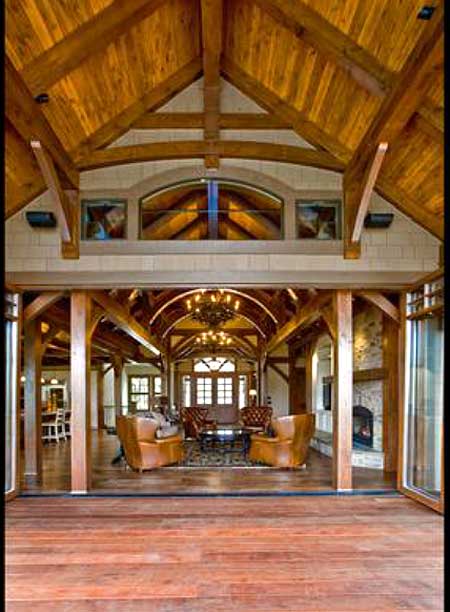

  • The vaulted great room features a fireplace and built-ins. The rear Nanawall can be folded open bringing an even greater sense of space connecting you to the outdoor living room.

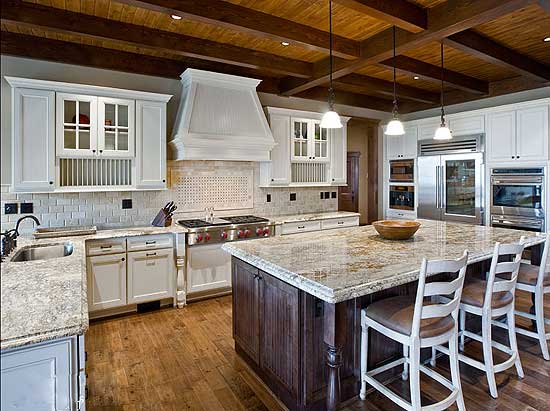

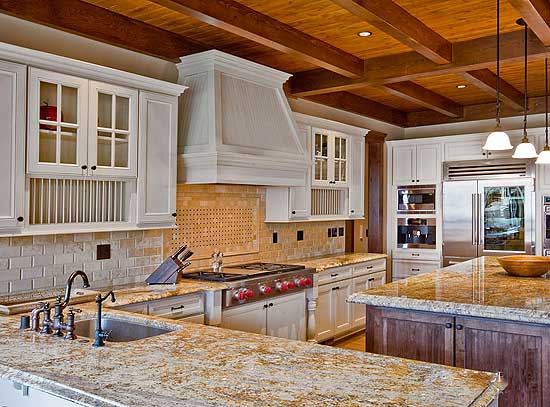

  • The kitchen features a large island with seating plus a breakfast bar. The nook is light-filled and has direct access to the covered outdoor living room.
  • The den has french doors and built-ins and is great for guests or for a home office.

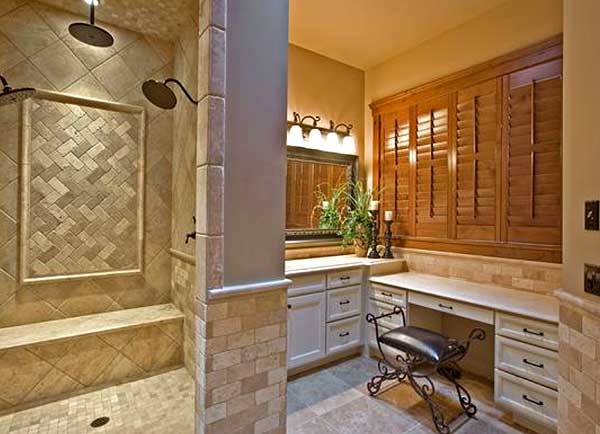

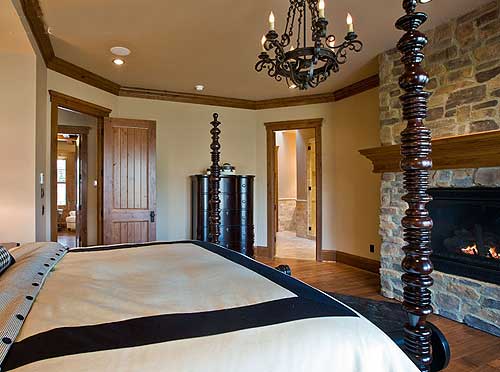

  • The master suite has a fireplace of its own. You'll enjoy the luxury tub in the five-fixture bath. And the walk-in closet is spacious.

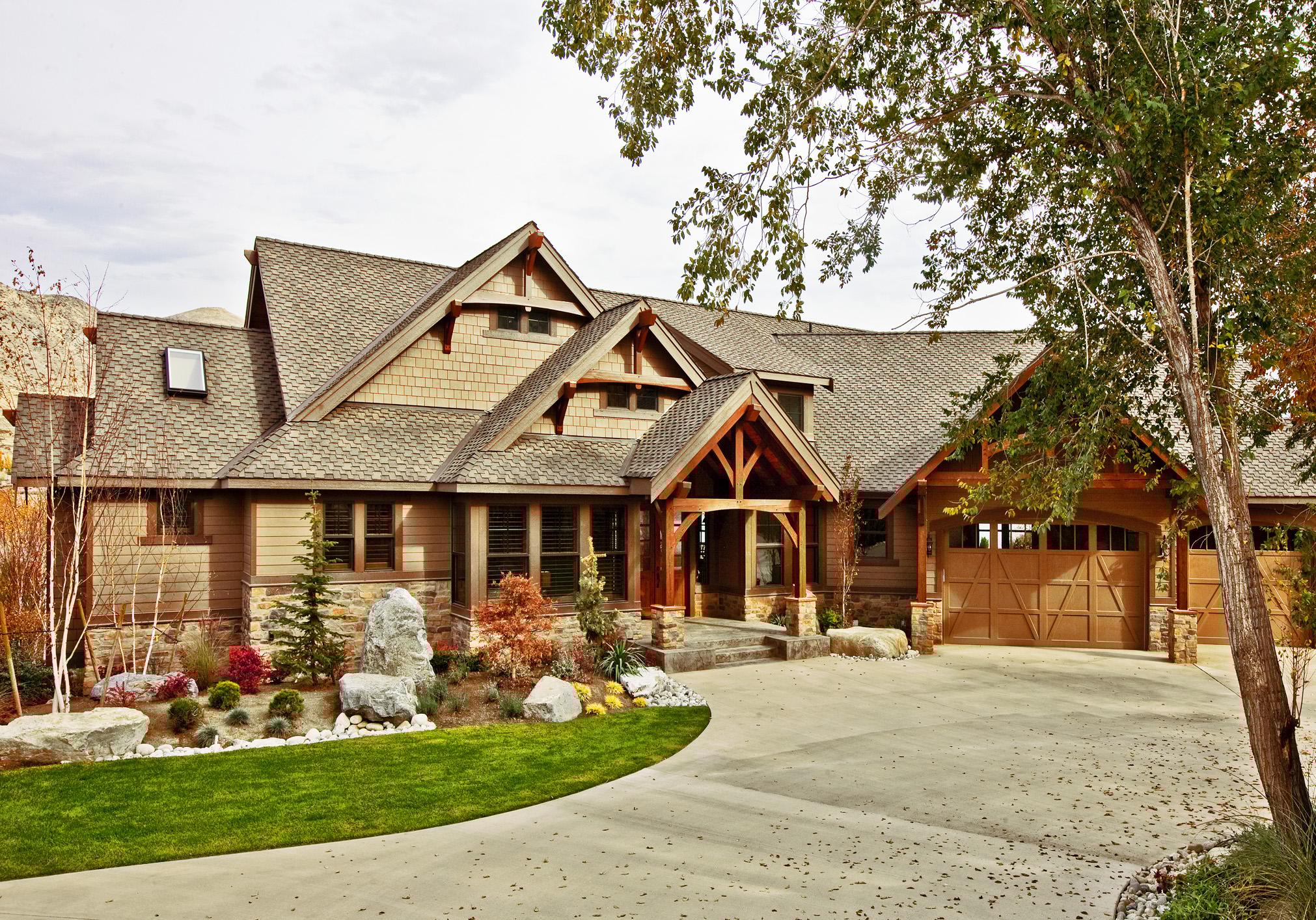

  • Two additional bedrooms are located across the home for added privacy. And a large utility room is located off the 3-car garage.

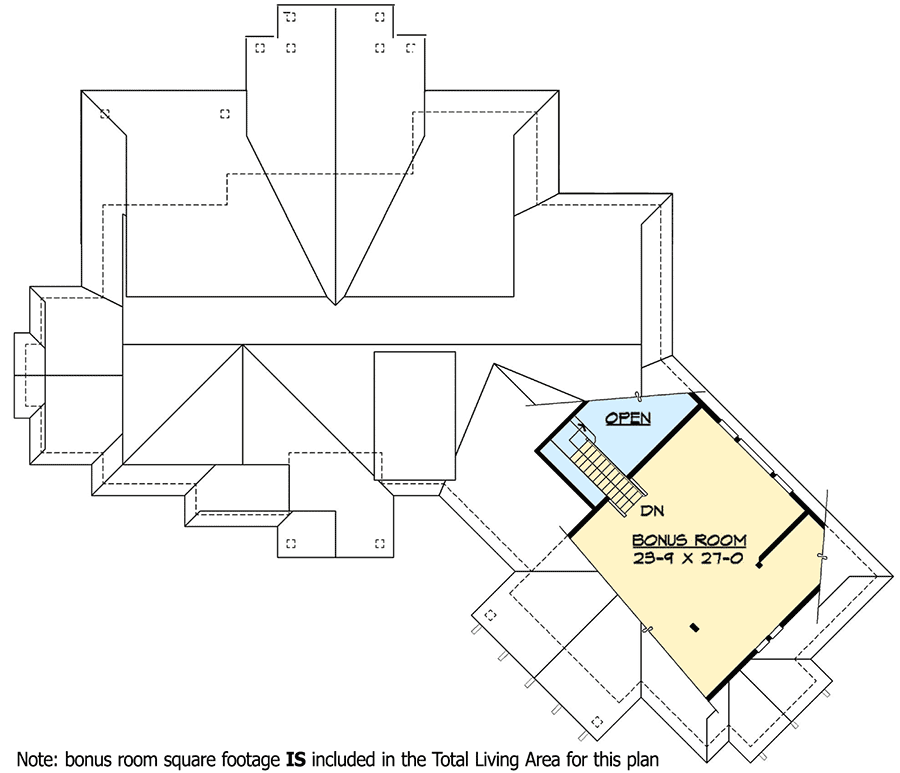

  • Expand above the garage and get additional living space if needed.
  • Related Plans: Get more room on the main floor and over the garage (with a bunk room and bedroom) with house plan 23623JD.
  • Eliminate the bonus room with house plan 23284JD.Gain a finished basement with house plan 23285JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  •

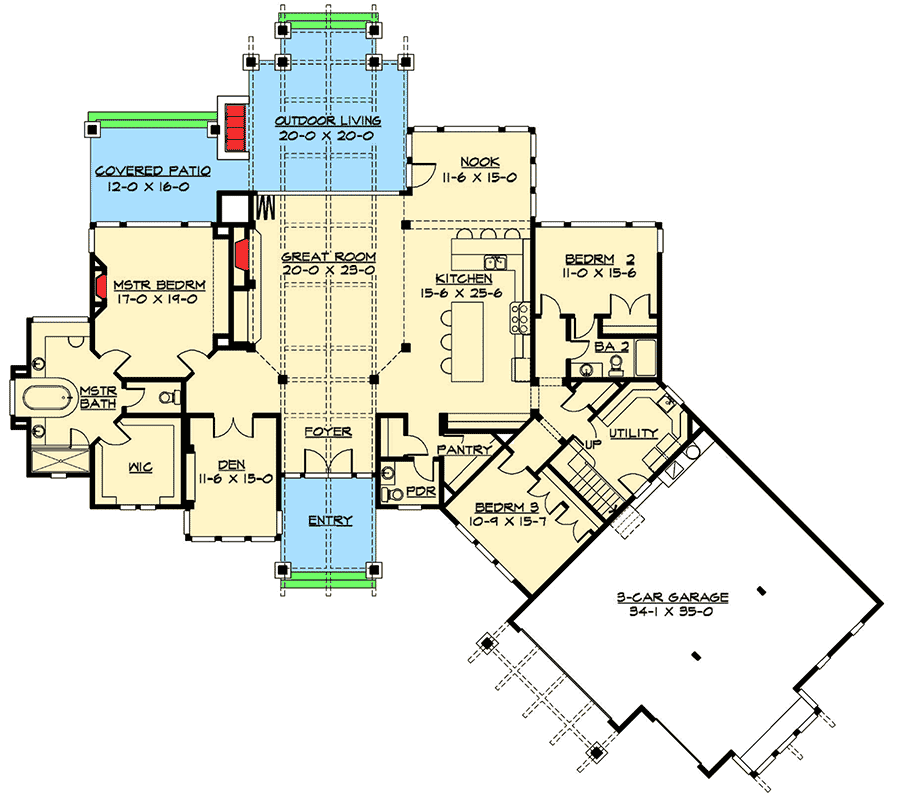

Floor Plan

Plan details

Total living area:

  • 3,780 sq. ft. Total living area:
  • 3,135 sq. ft. First Floor:
  • 645 sq. ft. Second Floor:

Beds/Baths

  • 3 bedrooms:
  • 2 full bathrooms:
  • 1 half bathrooms:

Dimensions:

  • 108' 0" width:
  • 96' 0" depth:
  • 25' 6" max ridge height:

Garage

  • Attached Type:
  • 3 Cars Details:
  • 1125 sq. ft.

Foundation Type

  • Crawl Standard Foundations:
  • None Optional Foundations:

Exterior Walls

  • 2x6 Standard Type(s):

Ceiling Heights

Floor Height
First Floor 10' 0"
Second Floor 9' 0"

Roof

  • 10 on 12 Primary Pitch:
  • 5 on 12 Secondary Pitch:
  • Stick and Truss Framing Type:
