Plan 23216JD

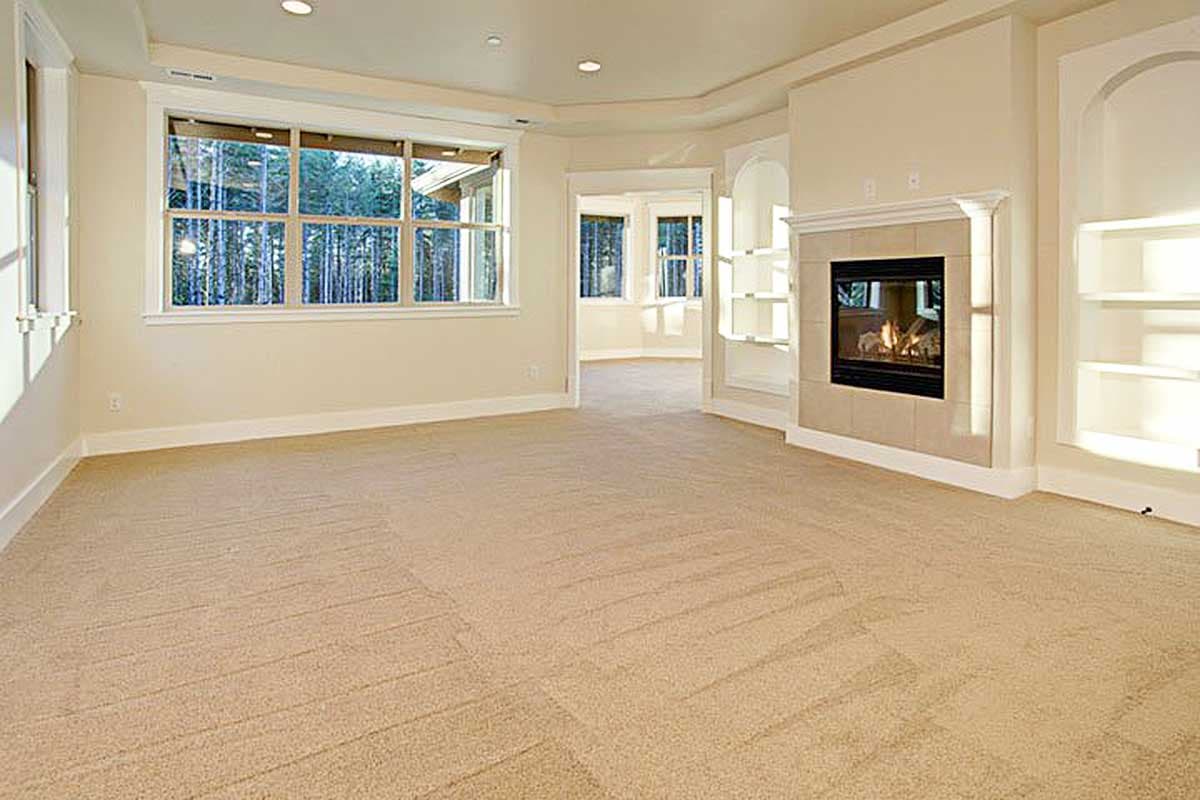

Luxury Master Suite and Recreation Level

Pageloader

Luxury Master Suite and Recreation Level

Plan 23216JD

  • 6,590

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

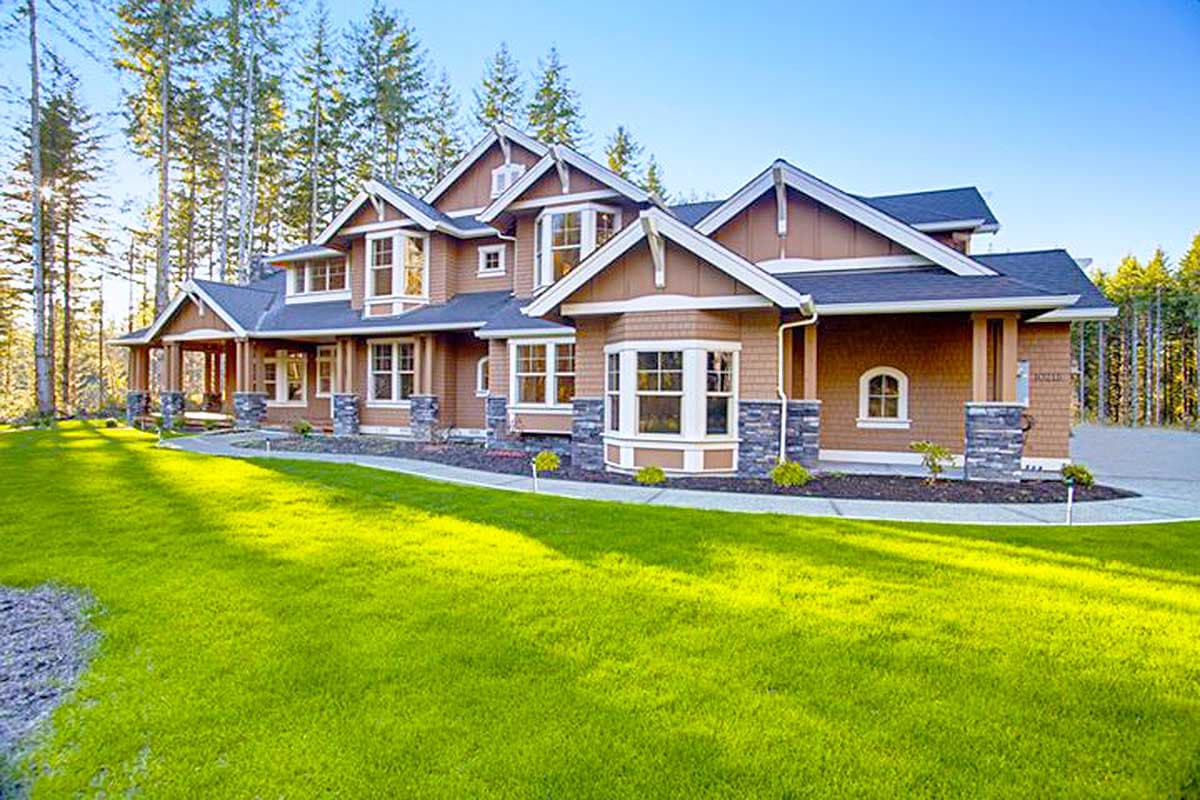

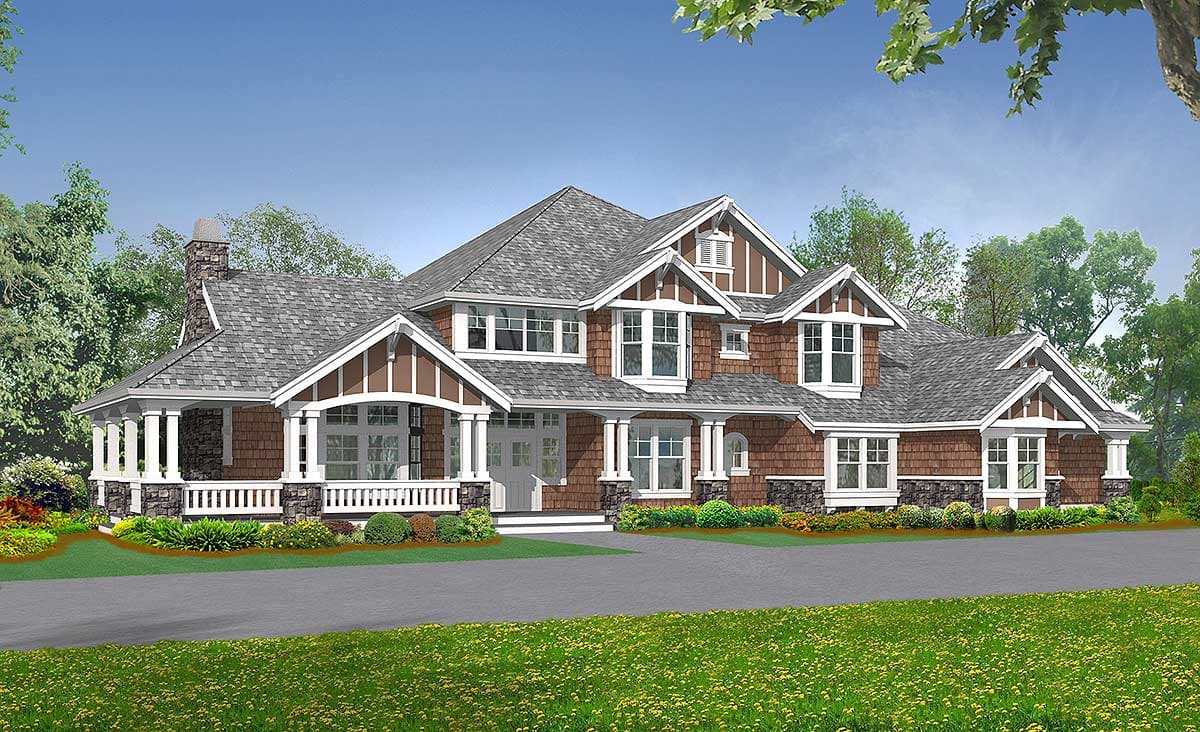

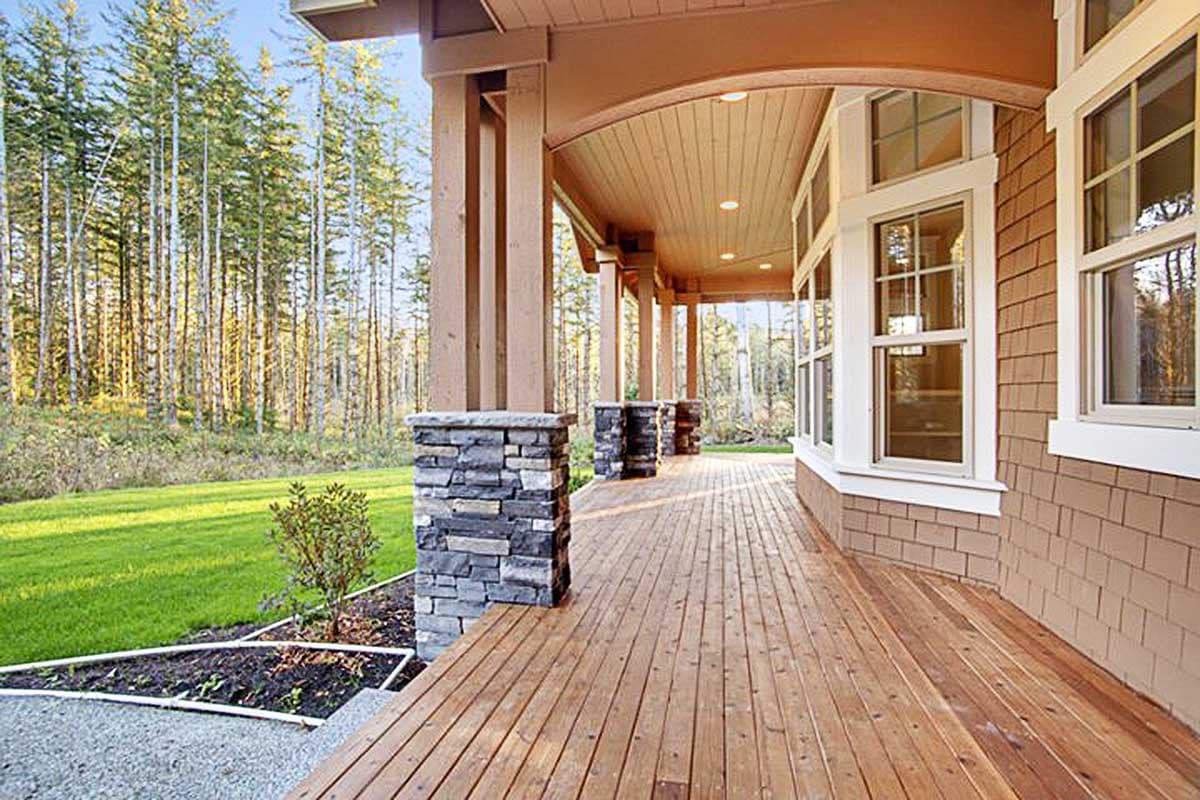

  • A fantastic porch with sturdy columns wraps around the front left corner of this extravagant Craftsman home plan.
  • A covered deck in back gives you a second location to enjoy the fresh air and the views.

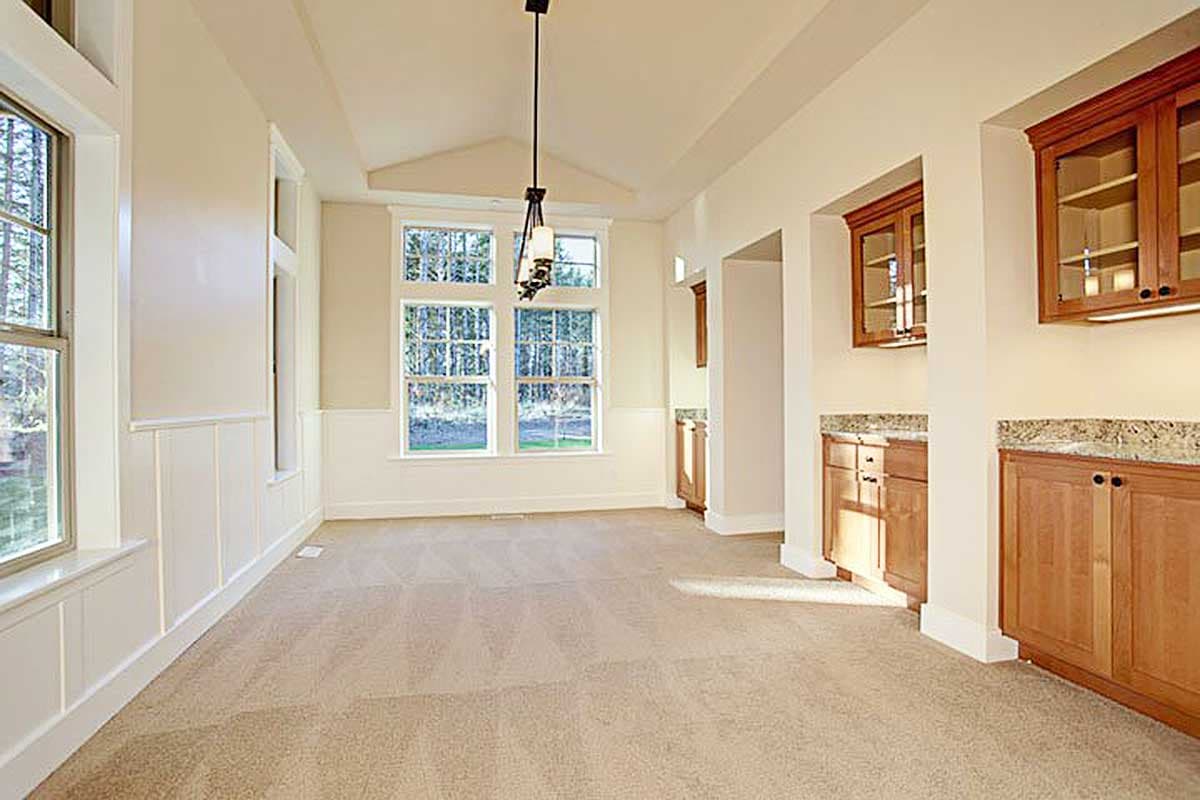

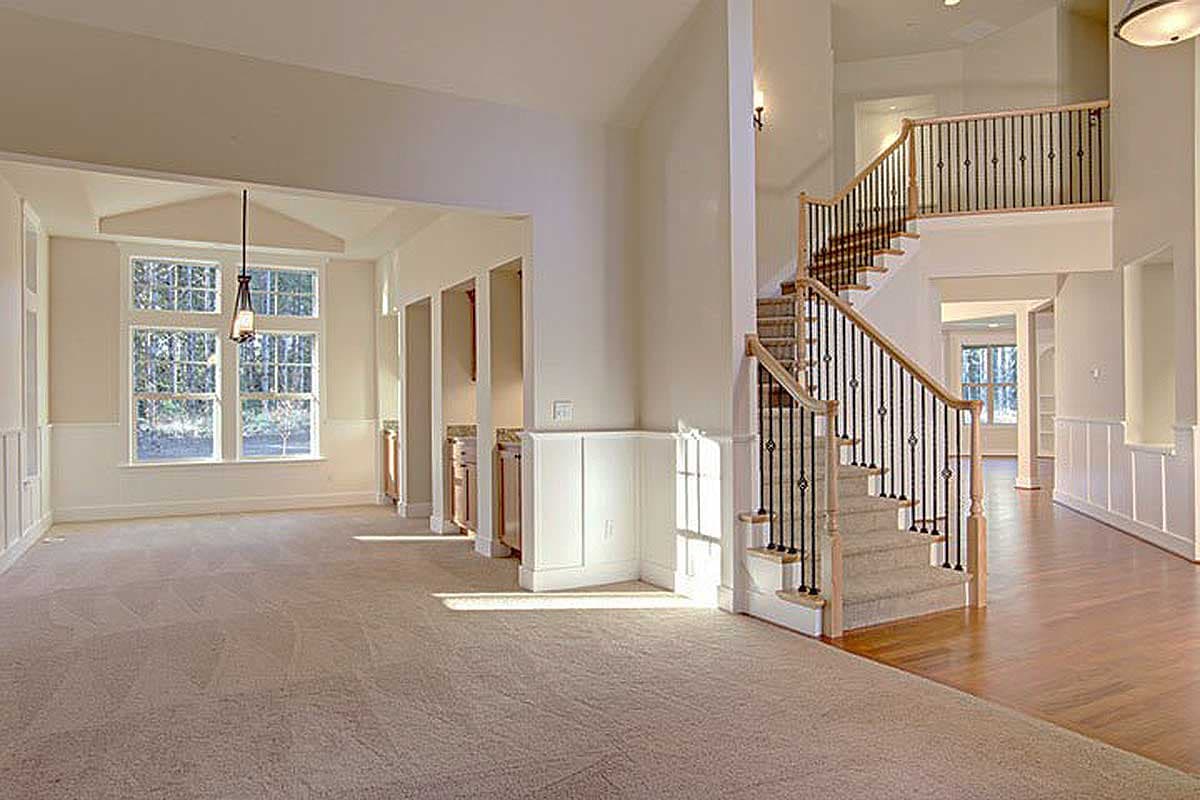

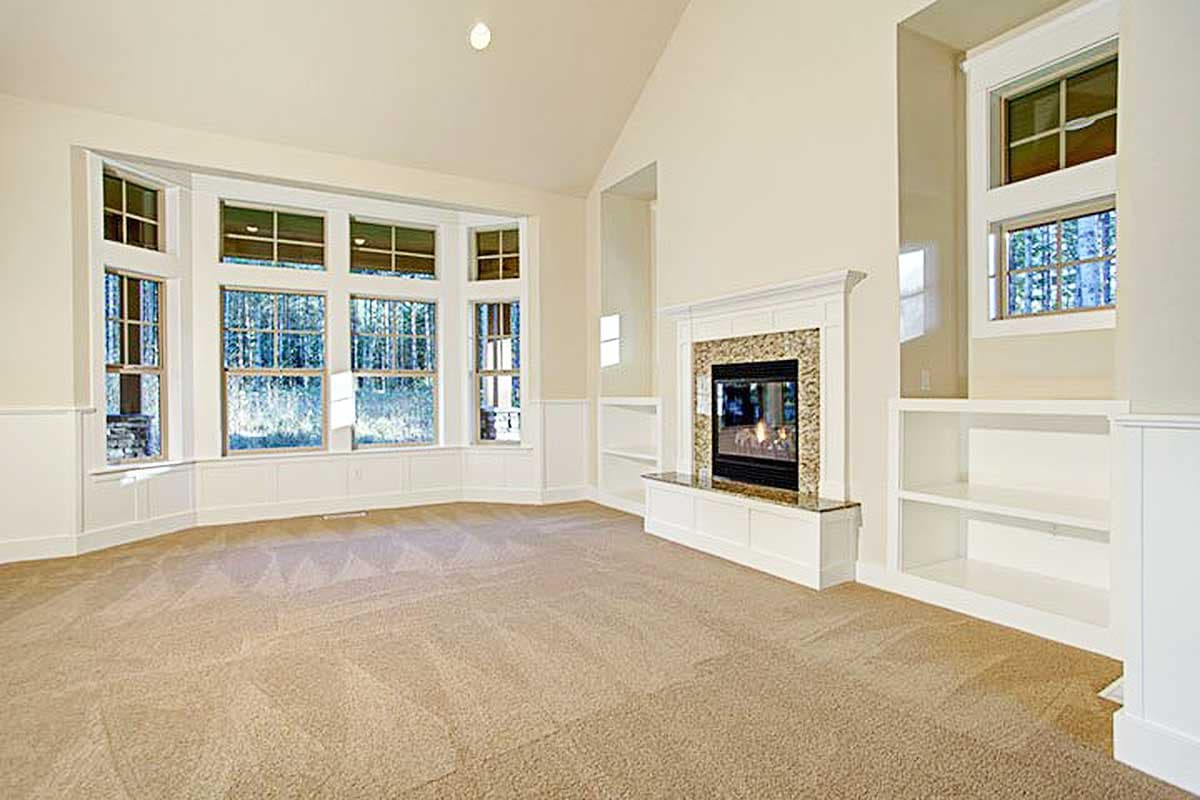

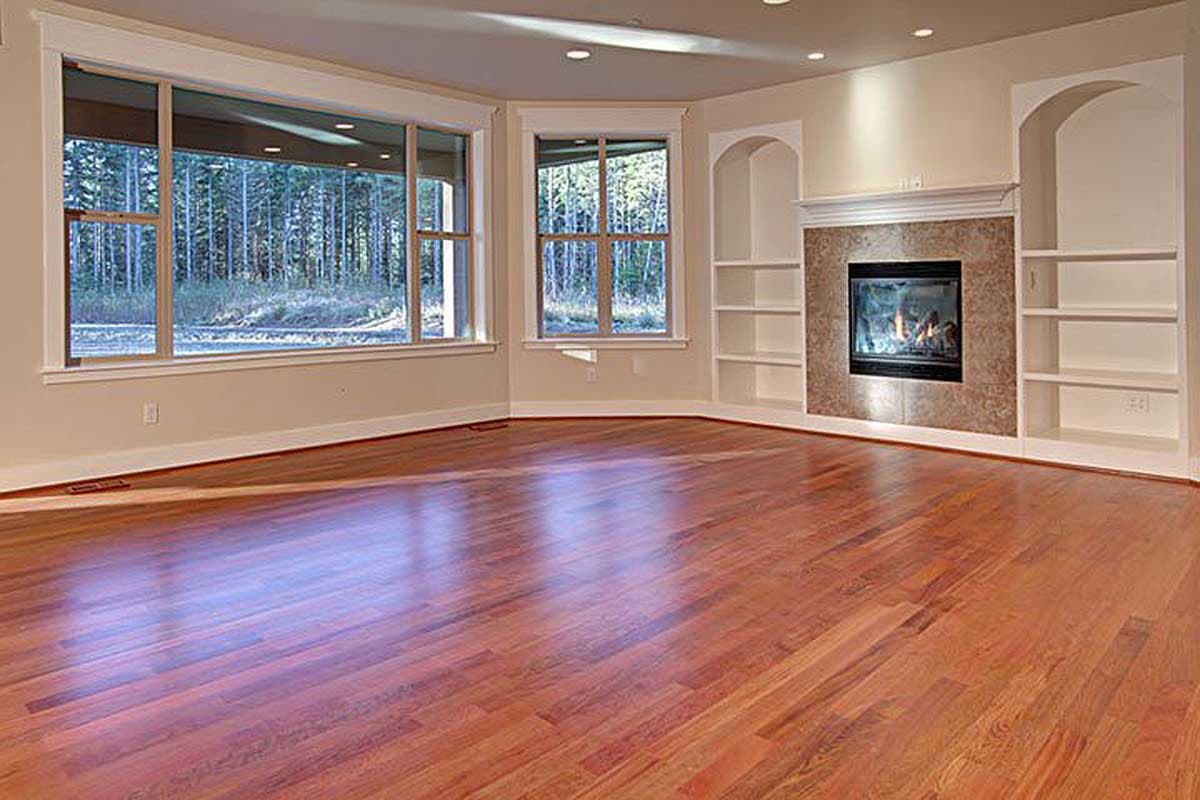

  • The two-story foyer is roomy and opens to the formal living room which in turn is open to the dining room.

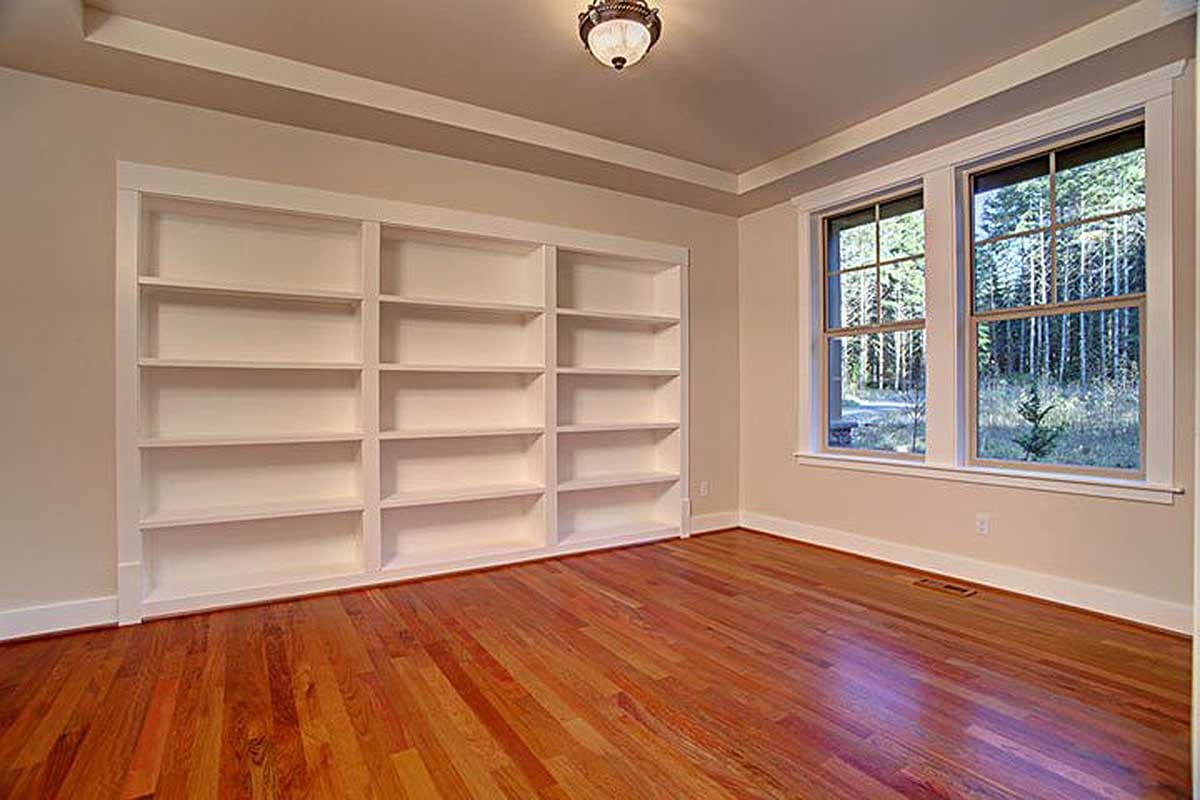

  • There, you'll find a wall of built-ins and access to the kitchen via a butler's pantry.

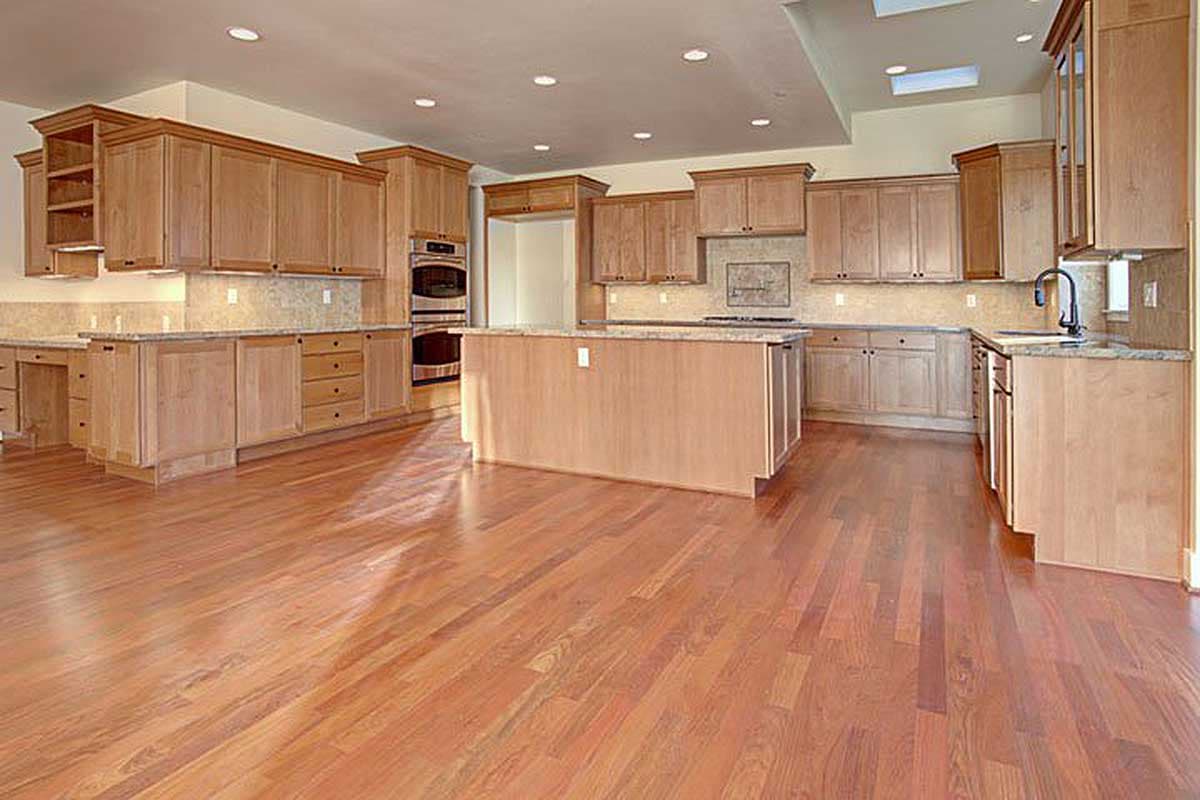

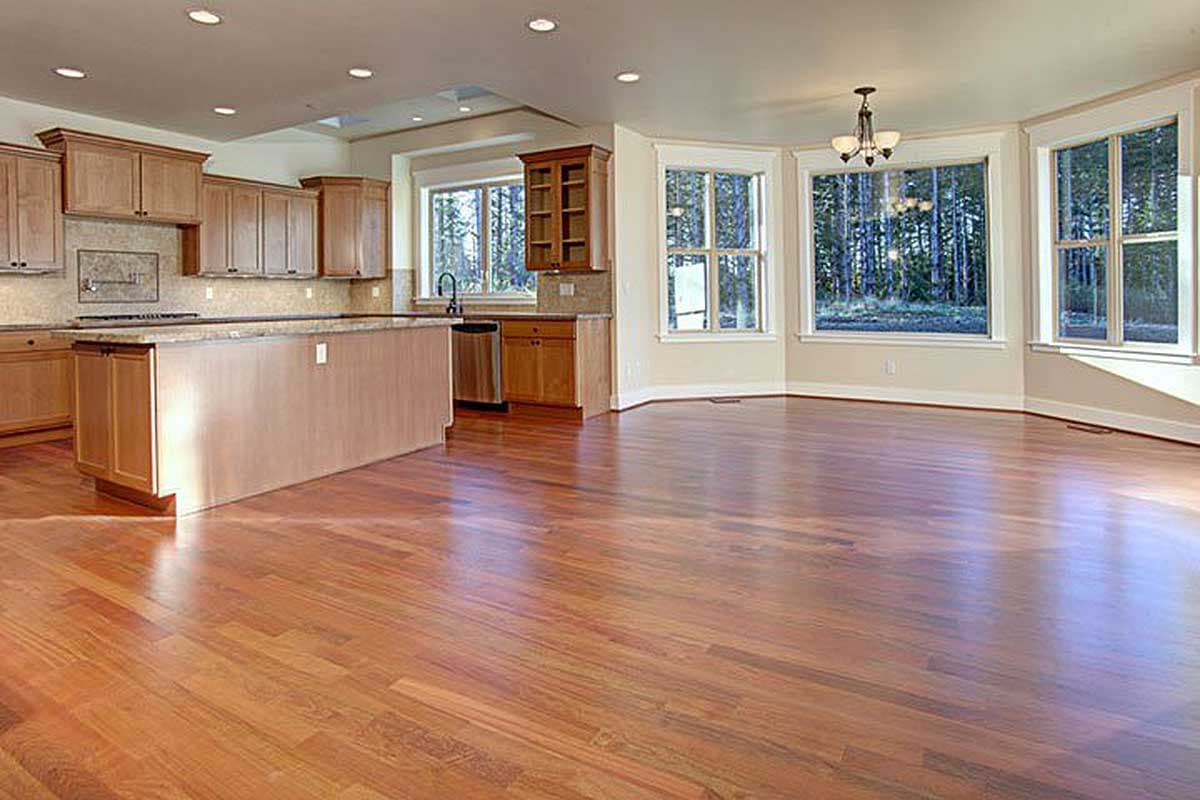

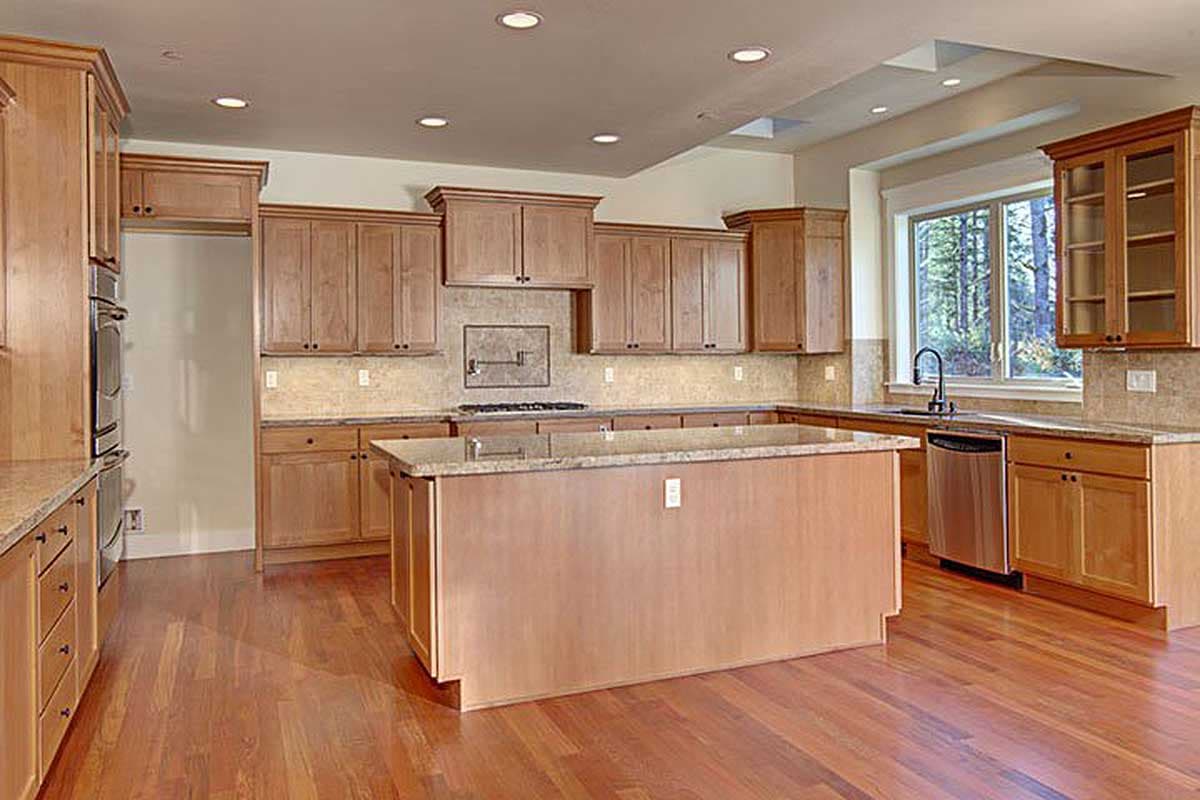

  • The kitchen is huge and has views of the nook and the family room with fireplace.
  • A first floor guest suite ideal for elderly relative who don't want stairs.

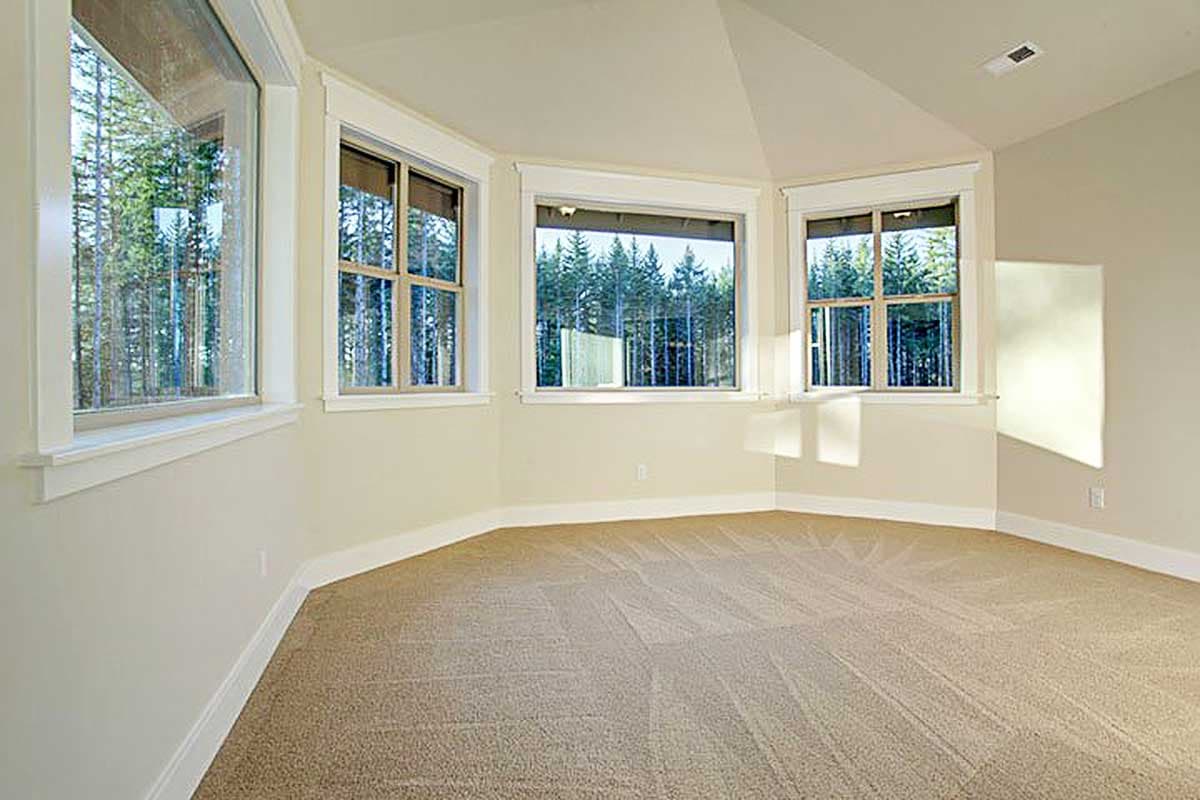

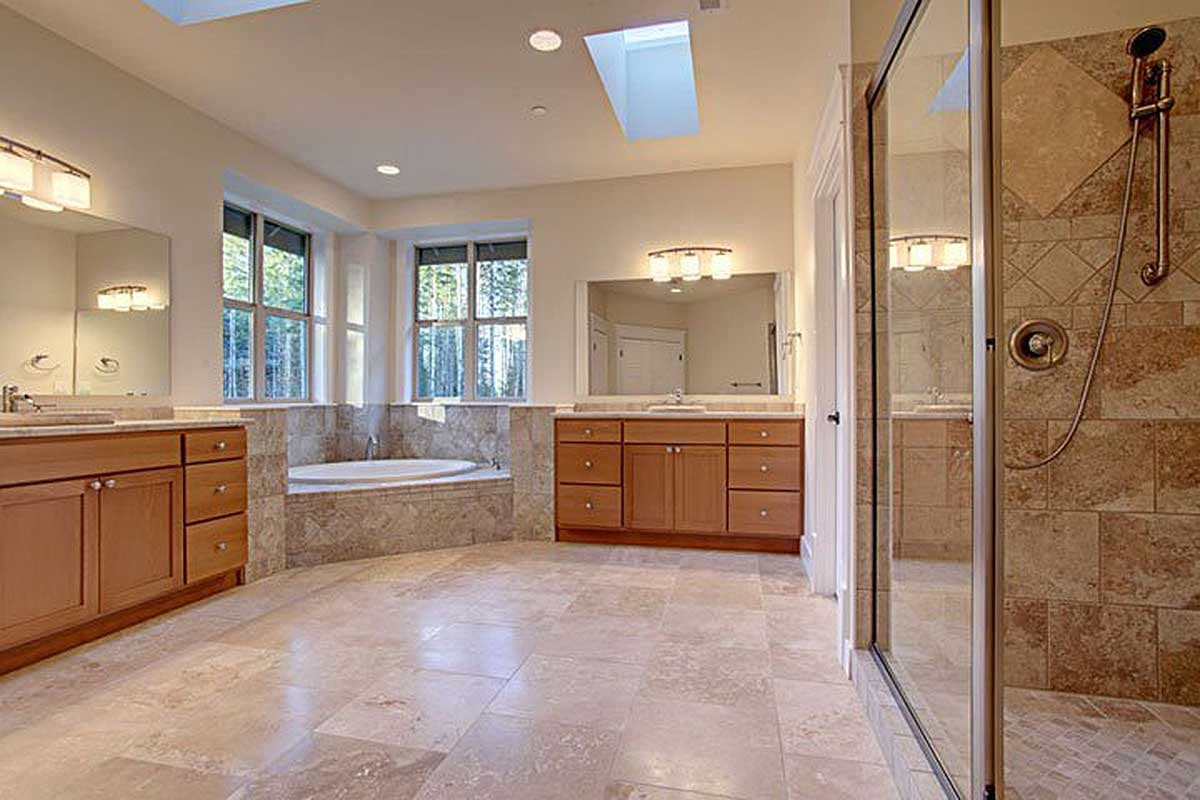

  • All the remaining bedrooms are upstairs.

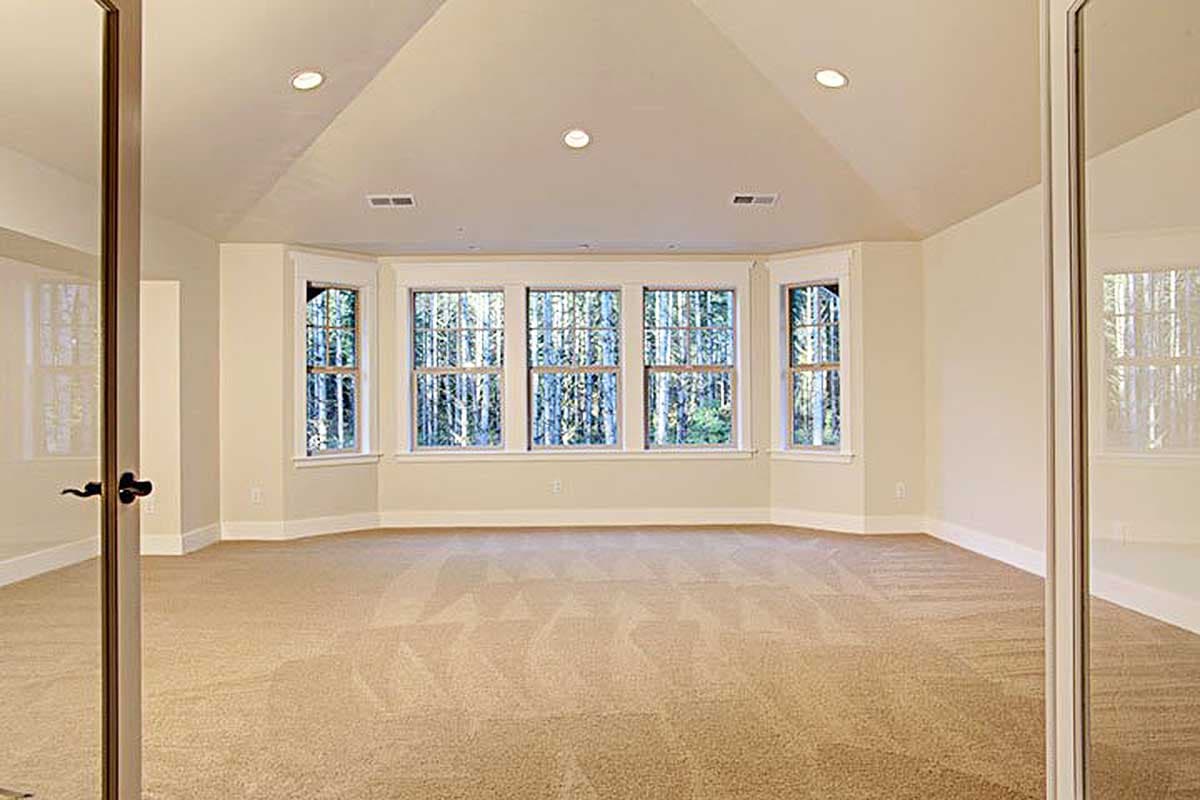

  • And a large bonus room - included in the total living area calculations - is over the garage. Finish it later and end up with the same home but less heated area.
  • The fabulous finished lower level has plenty of room for a media room, exercise room and huge rec room with a kitchenette.
  • Related Plan: Need a crawlspace foundation? Save money with house plan 2387JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

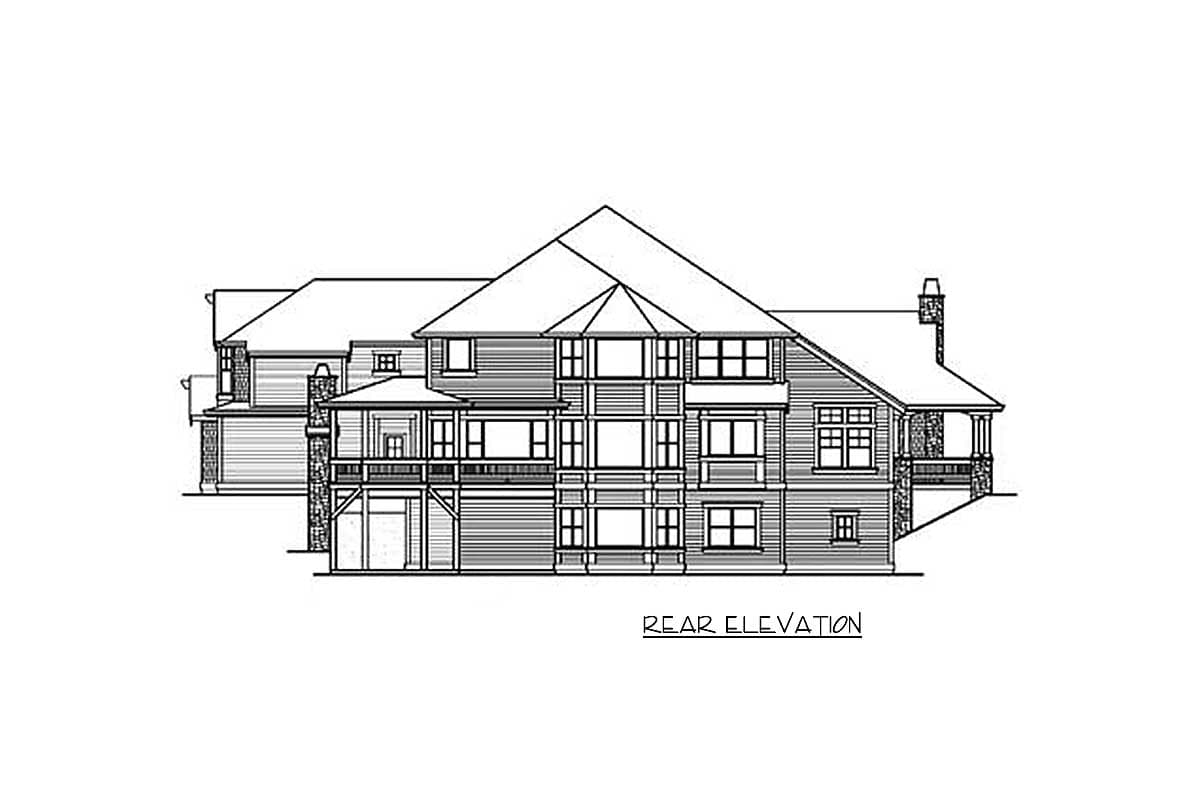

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Plan details



Luxury Master Suite and Recreation Level

  • 6,590

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,000
  • 5 Sets PLUS $3,200
  • CAD - multi-use $5,000
  • View all purchase option online

About This Plan

  • A fantastic porch with sturdy columns wraps around the front left corner of this extravagant Craftsman home plan.
  • A covered deck in back gives you a second location to enjoy the fresh air and the views.
  • The two-story foyer is roomy and opens to the formal living room which in turn is open to the dining room.
  • There, you'll find a wall of built-ins and access to the kitchen via a butler's pantry.
  • The kitchen is huge and has views of the nook and the family room with fireplace.
  • A first floor guest suite ideal for elderly relative who don't want stairs.
  • All the remaining bedrooms are upstairs.
  • And a large bonus room - included in the total living area calculations - is over the garage. Finish it later and end up with the same home but less heated area.
  • The fabulous finished lower level has plenty of room for a media room, exercise room and huge rec room with a kitchenette.
  • Related Plan: Need a crawlspace foundation? Save money with house plan 2387JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

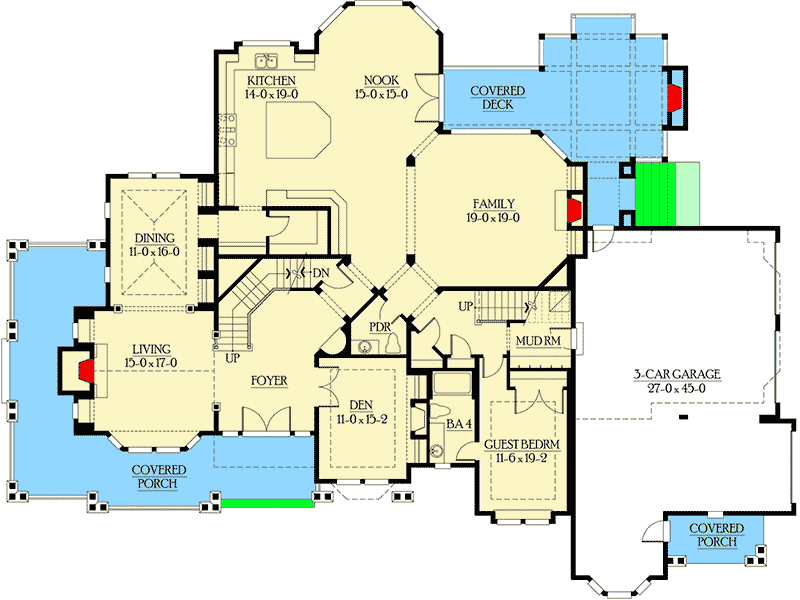

  • Main Level

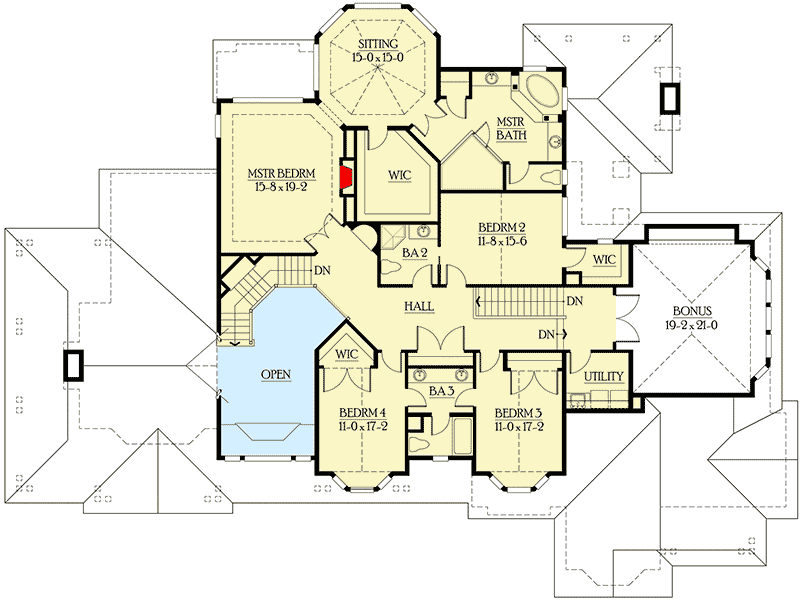

  • 2nd Floor

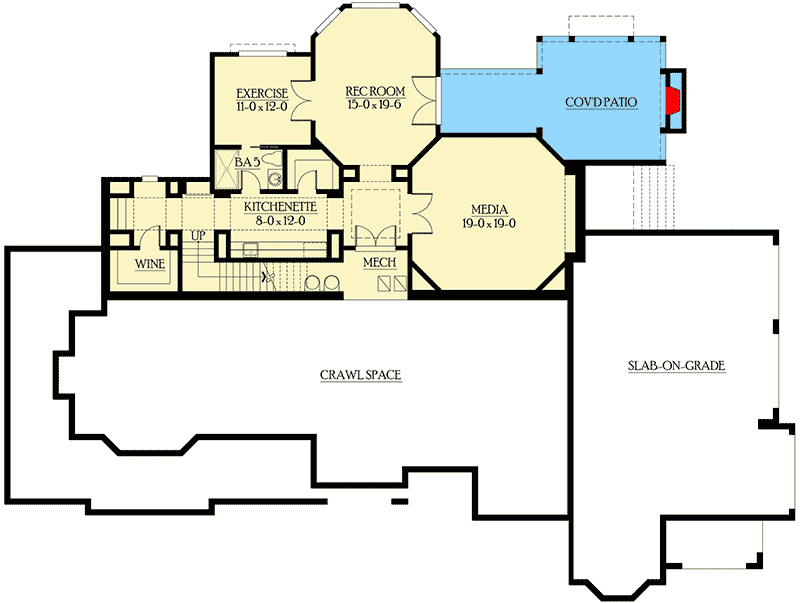

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,590 sq. ft.
  • Lower Level: 1,340 sq. ft.
  • 1st Floor: 2,750 sq. ft.
  • 2nd Floor: 2,500 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 0"
  • Depth: 74' 0"
  • Max ridge height: 34' 2"

Garage

  • Type: Attached
  • Area: 1060 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
