Plan 23166JD

Luxury Master Suite with Private Deck

3,946 4 4 2 3
Pageloader

Luxury Master Suite with Private Deck

Plan 23166JD

  • 3,946

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This spacious Craftsman home with side-facing decks was designed for a lot that slopes to the front.
  • The entry porch brings you to a large foyer and the formal living room with fireplace and dining room.
  • Nearby, the large kitchen has a center island and a large window by the sink.
  • Views extend to the nook and family room with fireplace.
  • Double doors in the nook and quiet den lead to the side decks.
  • Three bedrooms are on the upper level including the luxurious master suite with an enormous walk-in shower.
  • On the lower level, the fourth bedroom is off by itself along with a bath and rec room.
  • This level would make a great in-law suite.
  • Related Plans: Get a slightly altered floor plan and exterior with house plan 23087JD (3,035 sq. ft.) and 2355JD (3,175 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

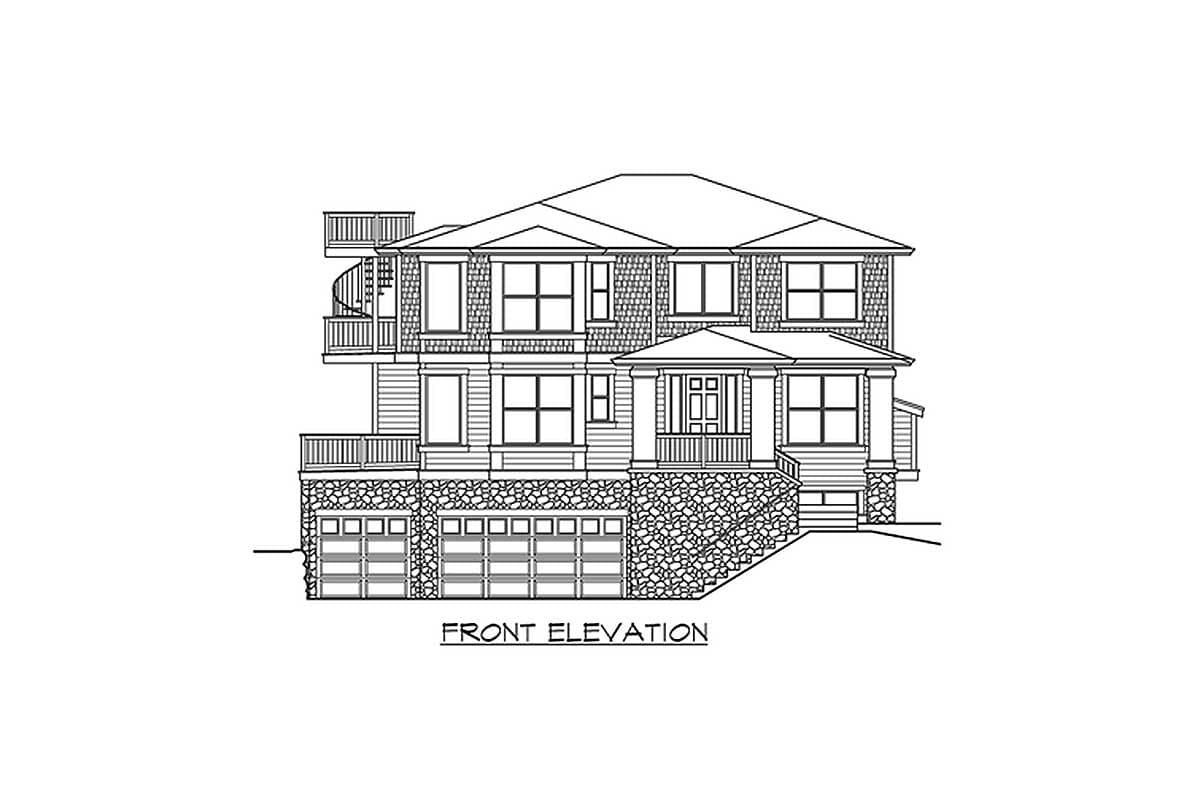

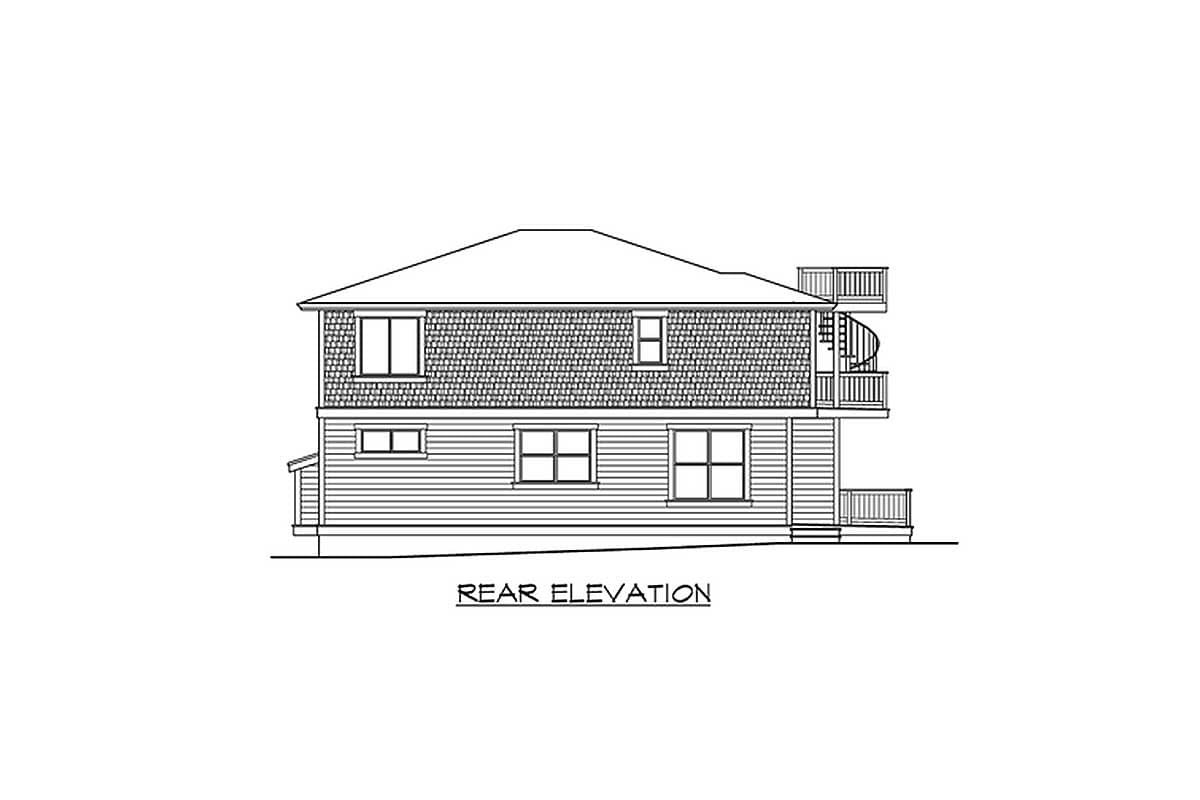

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Plan details



Luxury Master Suite with Private Deck

  • 3,946

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets PLUS $1,800
  • CAD - multi-use $2,900
  • View all purchase option online

About This Plan

  • This spacious Craftsman home with side-facing decks was designed for a lot that slopes to the front.
  • The entry porch brings you to a large foyer and the formal living room with fireplace and dining room.
  • Nearby, the large kitchen has a center island and a large window by the sink.
  • Views extend to the nook and family room with fireplace.
  • Double doors in the nook and quiet den lead to the side decks.
  • Three bedrooms are on the upper level including the luxurious master suite with an enormous walk-in shower.
  • On the lower level, the fourth bedroom is off by itself along with a bath and rec room.
  • This level would make a great in-law suite.
  • Related Plans: Get a slightly altered floor plan and exterior with house plan 23087JD (3,035 sq. ft.) and 2355JD (3,175 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

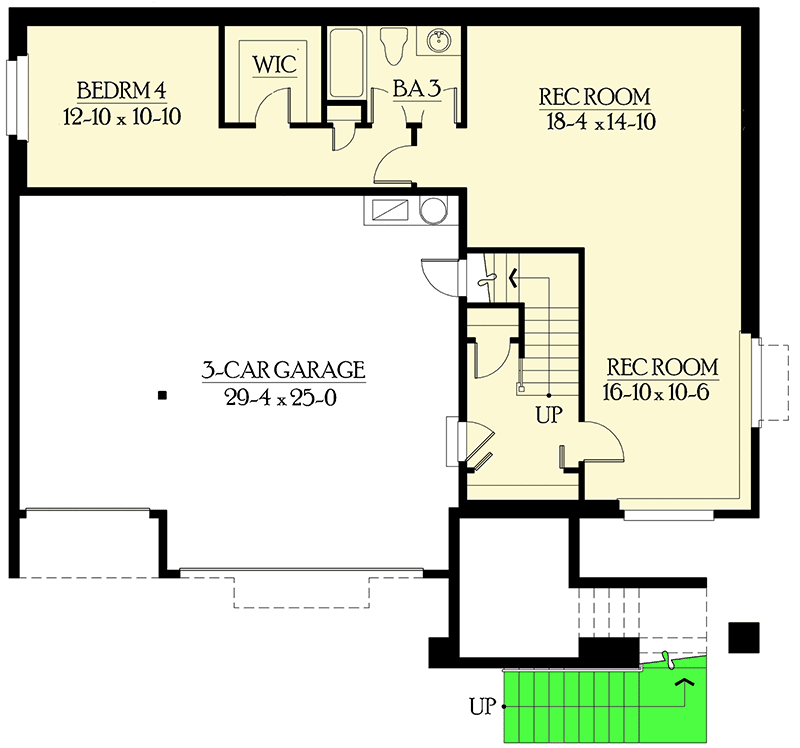

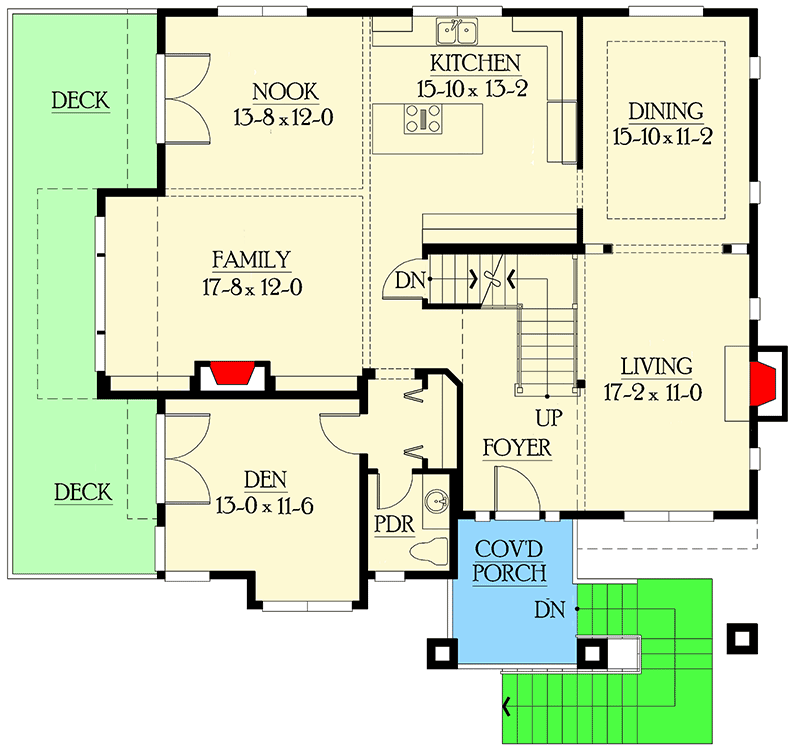

Floor Plans

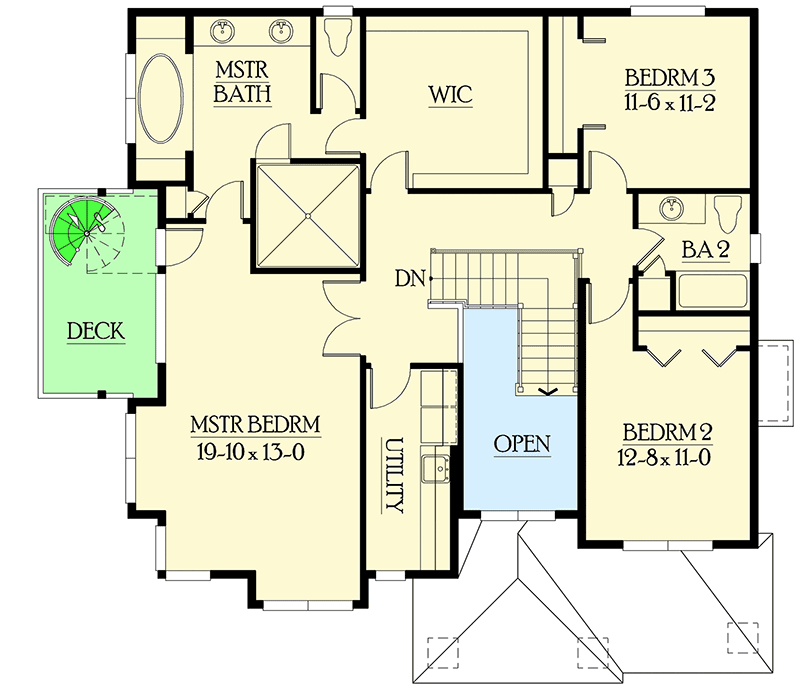

  • Basement

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,946 sq. ft.
  • Lower Level: 1,055 sq. ft.
  • 1st Floor: 1,514 sq. ft.
  • 2nd Floor: 1,377 sq. ft.
  • Porch, Front: 50 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 44' 0"
  • Max ridge height: 24' 10"

Garage

  • Type: Drive Under
  • Area: 705 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest
  • Shingle

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
  • Photo Gallery
  • Premium Collection
  • Sloping Lot
