Plan 23175JD
Majestic, Bold Accents with Options
Heated S.F.
4,084
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • This Craftsman house plan gives you 4 beds and over 4,000 square feet of heated living space (that includes the bonus room) and has a central rotunda and 2-story family room.

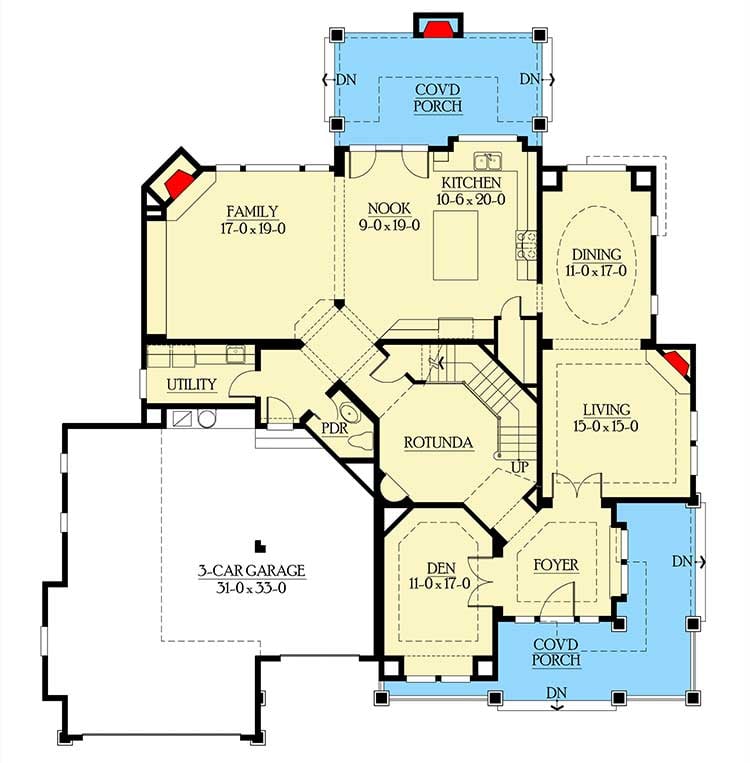

  • The family room has a corner fireplace and is open to the kitchen with a large island and walk-in pantry. Two doors from the nook take you to the covered porch in back with a fireplace.There is a third fireplace in the living room which is accessible from both the foyer and the formal dining room.

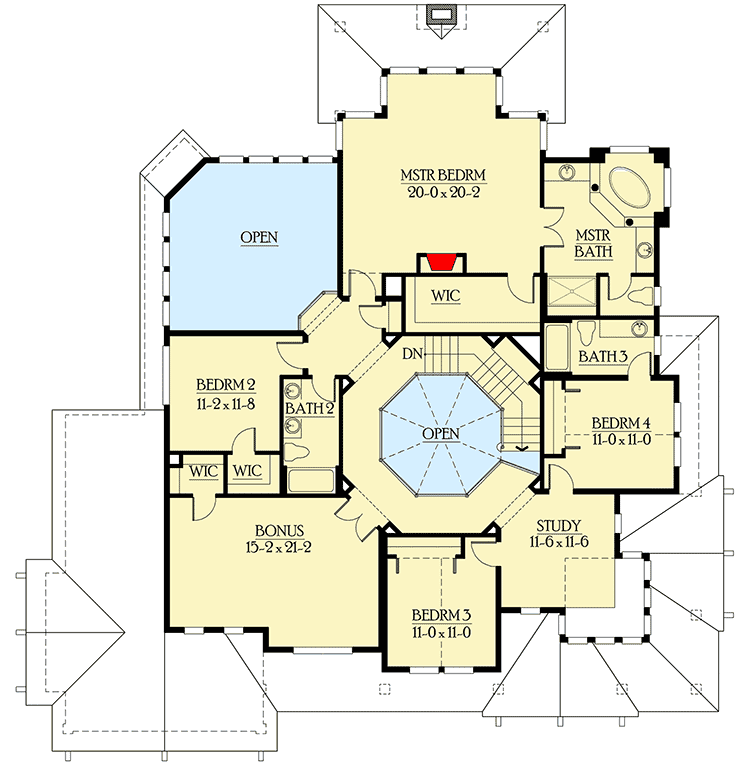

  • All the bedrooms are upstairs including the master bedroom with fireplace. Three more bedrooms plus a study and a bonus room complete the upstairs.
  • Related Plans: Get a side-entry garage with house plan 23176JD. Build on a basement with house plan 23174JD. Get a Victorian exterior with house plan 2375JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
This plan has 12 pages as follows:
  1. Cover
  2. Schedules, Glazing & Ventalation
  3. General Details
  4. Foundation
  5. Main Framing
  6. Main Floor Plan
  7. Upper Framing
  8. Upper Floor Plan
  9. Roof Plan

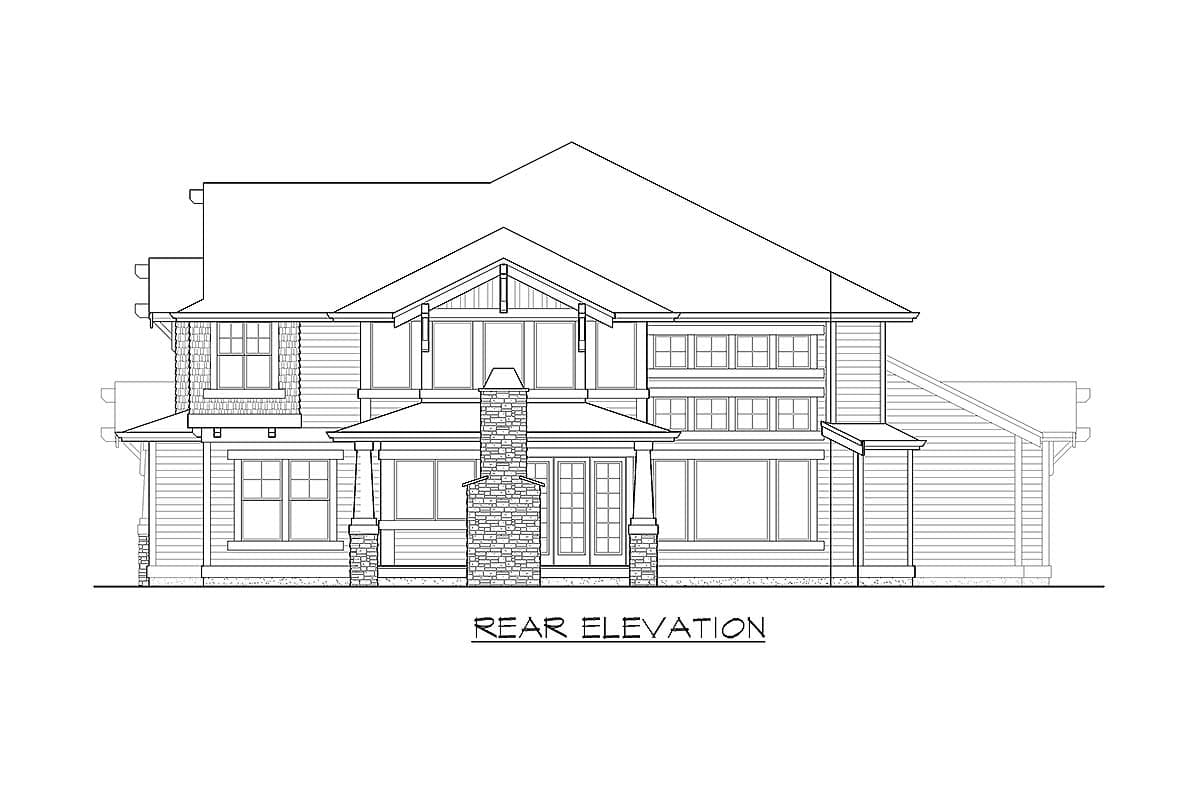

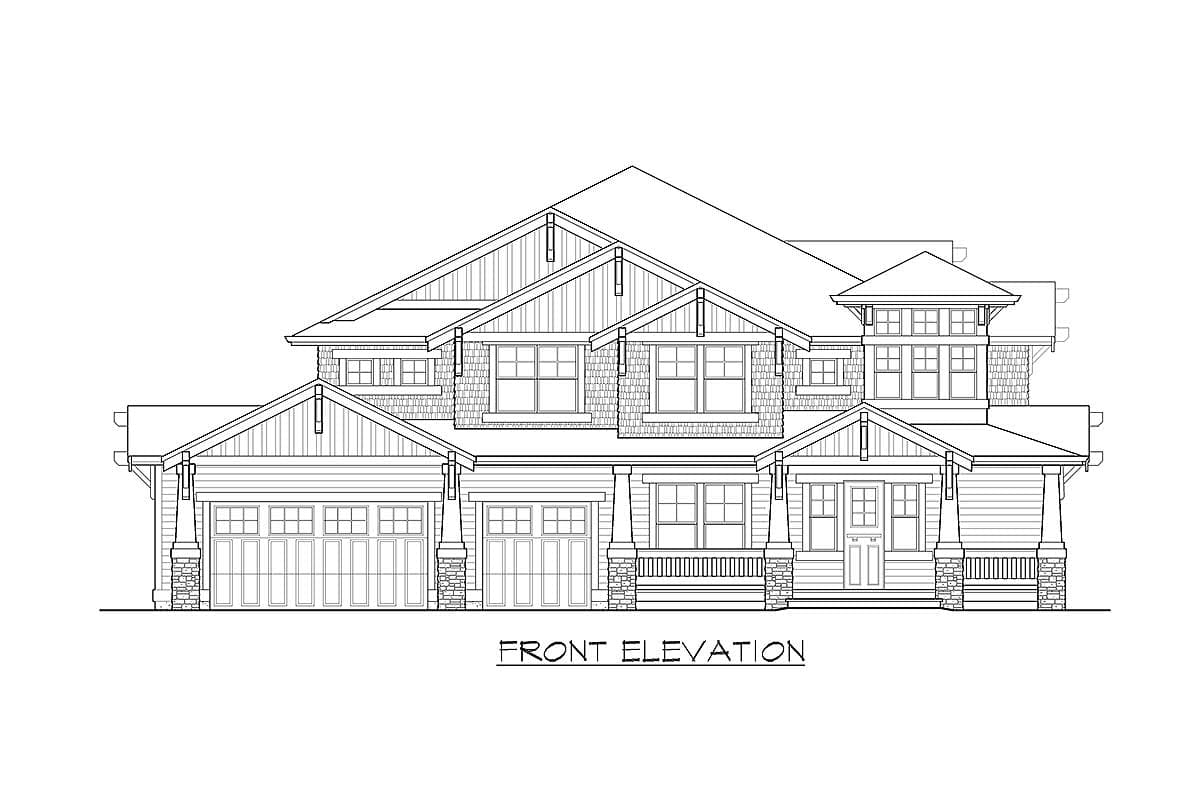

  10. Elevations
  11. Elevations
  12. Building Sections

What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Majestic, Bold Accents with Options

  • 4,084

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,084 sq. ft.
  • 1st Floor: 2,000 sq. ft.
  • 2nd Floor: 2,084 sq. ft.

Dimensions

  • Width: 66' 6"
  • Depth: 74' 0"
  • Max ridge height: 32' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 940 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
